Name: SMA Male To GPO Female Adapter
SKU: N/A

SMA Male To GPO Female Adapter

1. SMA male to GPO female adapter, used to connect SMA male interfaces to GPO (SMP series) female interfaces on devices or cables. One end has an SMA male connector (50 ohm impedance, common in RF modules and antennas), and the other end has a GPO/SMP female connector (a miniaturized high-frequency connector suitable for microwave, 5G, and other high-frequency applications).
2. Impedance: 50 Ohms nominal
3. VSWR: 1.2:1 to 18GHz typical
4. Insertion loss: .12√f (GHz)
5. Temperature range: -55°C to 125°C

SMA Male To GPO Female Adapter - High-Performance RF Connector Solution

Overview

When you need to bridge different connector types in your RF system, our SMA Male To GPO Female Adapter provides the perfect solution. This precision-engineered connector consistently interfaces SMA male interfacing to GPO (SMP arrangement) female interfacing, making it perfect for microwave, 5G, and high-frequency applications. This connector guarantees solid flag transmission with negligible misfortune, including 50-ohm impedance coordinating and execution from DC to 18GHz for requesting applications.

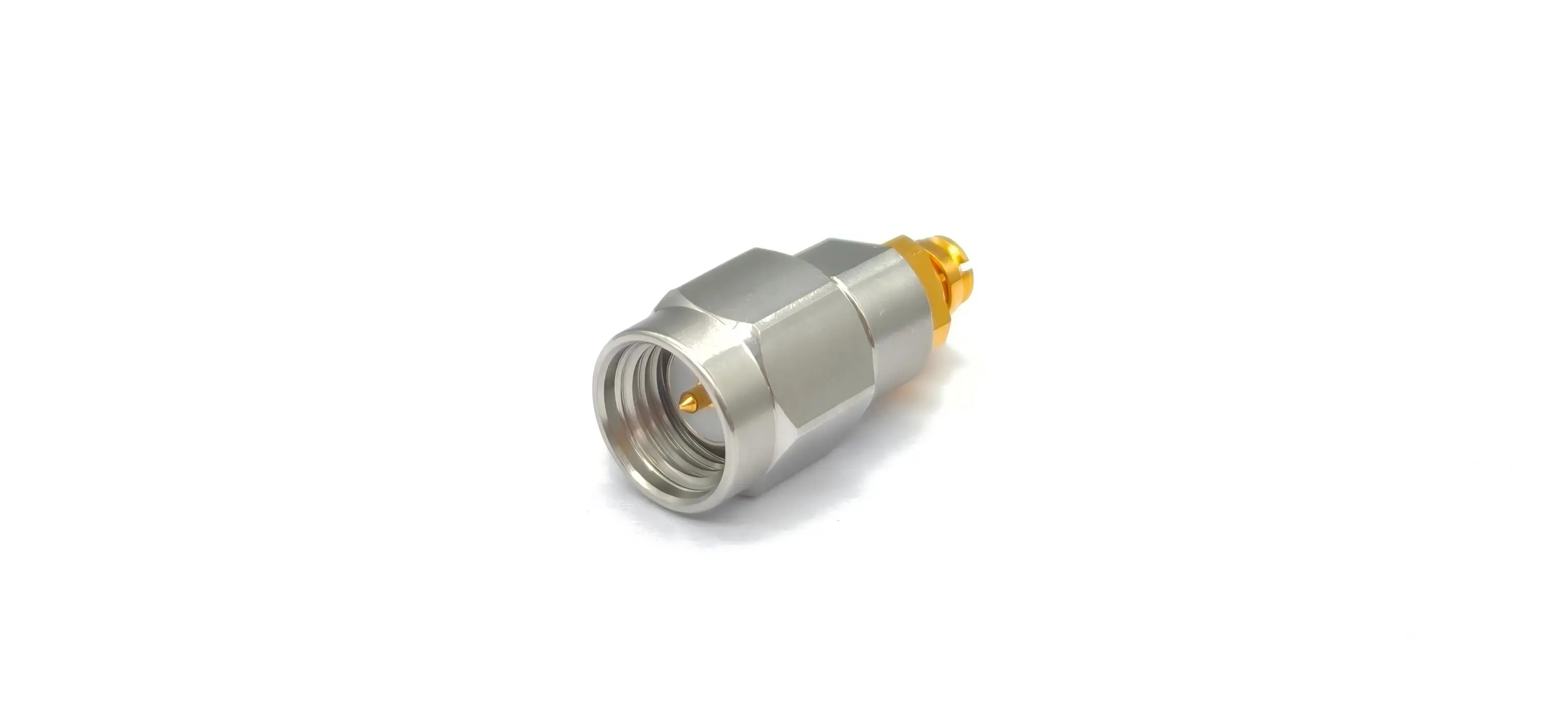

SMA Male To GPO Female Adapter

Product Features

Exceptional Electrical Performance

This adapter offers outstanding electrical performance with a VSWR of 1.2:1 to 18GHz and minimal insertion loss for consistent signal integrity.

Wide Temperature Range

Operating from -55°C to 125°C, this connector guarantees steady execution in both cruel open air conditions and controlled environments.

Premium Materials

We use only the finest materials in construction:

Stainless steel and beryllium copper housing with gold plating
Beryllium copper center contacts with gold plating
High-quality PEI and PTFE insulators

These materials ensure long-term reliability and excellent signal transmission properties.

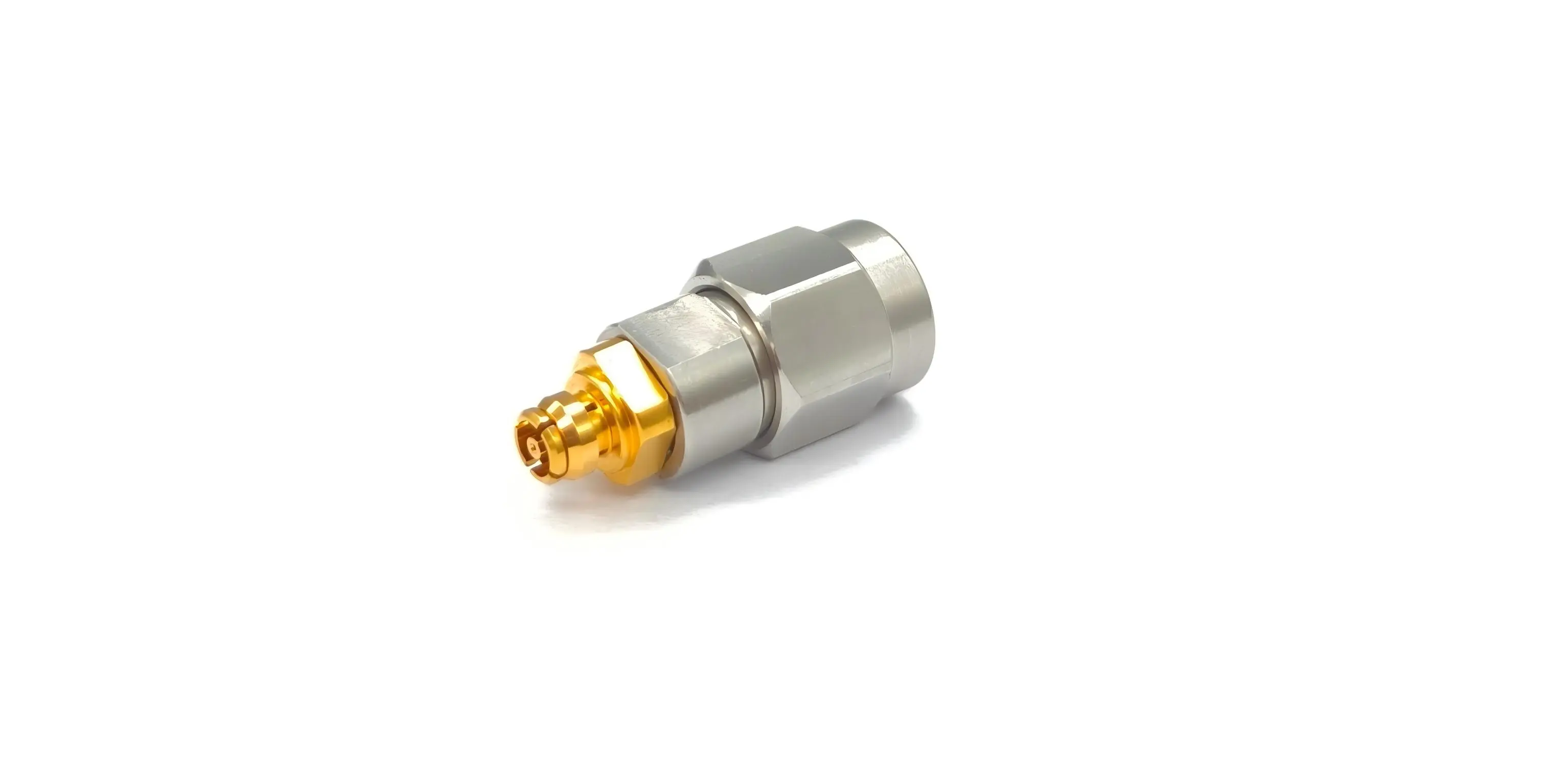

SMA Male To GPO Female Adapter

Robust Construction

Built to withstand repeated use, our SMA Male To GPO Female Adapter offers impressive durability:

SMA port: 500 mating cycles
GPO port: Up to 1,000 cycles (depending on variant)
Connection torque: 0.79N·m to 1.13N·m

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Specifications
VSWR	1.2:1 to 18GHz typical
Insertion Loss	.12 √f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housings	Stainless steel Passivated & Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PEI & PTFE
Mechanical Specifications
Mate/Demate Cycles (SMA)	500 cycles
Mate/Demate Cycles (GPO)	FD-100 min, LD-500 min, SB-1,000 min
SMA Engagement Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.69N·m

Applications

5G and Wireless Communications

Perfect for connecting different connector types in 5G base stations, small cells, and wireless infrastructure. The high-frequency performance makes it ideal for millimeter wave applications.

Test and Measurement

Laboratory technicians and engineers rely on these adapters for creating custom test setups. The low insertion loss ensures accurate measurements across the frequency range.

Aerospace and Defense

Military and aerospace applications benefit from the rugged construction and wide temperature range. Meets stringent MIL-STD environmental requirements.

Medical Equipment

High-frequency medical devices often require different connector types. Our SMA Male To GPO Female Adapter provides the flexibility needed while maintaining signal integrity.

Quality Assurance

At Shaanxi Chuangyu Electronic Technology, we maintain strict quality control throughout the manufacturing process. Each adapter undergoes comprehensive testing to ensure it meets specifications. Our digital manufacturing approach and precision testing instruments guarantee consistent quality.

Environmental Testing

All adapters pass rigorous environmental testing including:

Thermal shock (MIL-STD-202, Method 107, Condition B)
Salt spray resistance (MIL-STD-202, Method 101, Condition B)
Vibration testing (MIL-STD-202, Method 204, Condition D)
Shock resistance (MIL-STD-202, Method 213, Condition I)
Moisture resistance testing

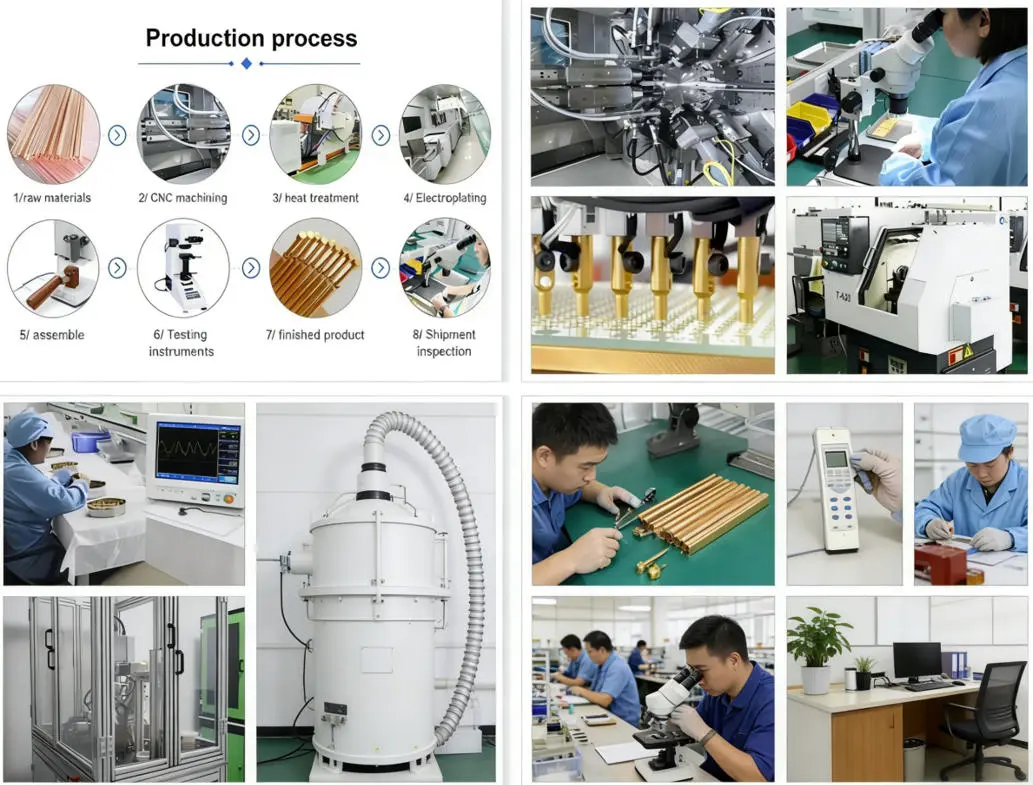

SMA male to GPO female adapter full inspection and testing

Why Choose Our Adapter

Proven Expertise

With years of RF connector design experience, our team combines theory and practice to deliver effective solutions for your challenges.

Custom Solutions Available

We offer customization administrations to meet your determinations. Our designing group can adjust plans for your special application.

Comprehensive Support

From introductory interview to after-sales bolster, we're here to offer assistance. Our specialized group gives direction on legitimate establishment, torque determinations, and best hones for long-term reliability.

SMA male to GPO female adapter

Installation Guidelines

Proper establishment guarantees ideal execution and life span. Utilize the indicated torque values and dodge over-tightening. Guarantee clean, dry associations and review routinely for wear or harm.

When installing your product, follow these key steps:

Verify connector compatibility
Clean all contact surfaces
Apply proper torque specifications
Test connection before final installation

Custom SMA male to GPO female adapter

Get Started Today

Ready to enhance your RF system with our SMA Male To GPO Female Adapter? Contact our technical team to discuss your specific requirements. We're here to help you find the right solution for your application.

For technical inquiries, custom orders, or additional information, reach out to us at postmaster@cymicrowave.com. Our experienced engineers are ready to assist with your connector needs and ensure you get the optimal solution for your project.
