Name: GPO Surface Connector
SKU: N/A

GPO Surface Connector

1. A Surface Mount type GPO (SMP) connector. It connects to a PCB (Printed Circuit Board) and may utilize Surface Mount Technology, making it suitable for high-frequency signal transmission scenarios.
2. Tail contact surface mount welding
3. Housing material is Kovar alloy, dielectric material is 7070 glass sealed, small size.
4. Impedance: 50 Ohms nominal
5. VSWR: 1.3:1 to 18GHz typical
6. Insertion loss: .05√f (GHz)
7. Temperature range: -55°C to 125°C

Premium GPO Surface Connector for High-Frequency Applications

When you need reliable high-frequency signal transmission, choosing the right connector makes all the difference. Our GPO Surface Connector delivers exceptional performance for demanding electronic applications. This surface mount type connector utilizes advanced SMP (SubMiniature Push-on) technology, connecting seamlessly to PCBs through precision surface mount technology. Whether you're working on communications equipment, military applications, or test instrumentation, this connector provides the reliability and performance you demand.

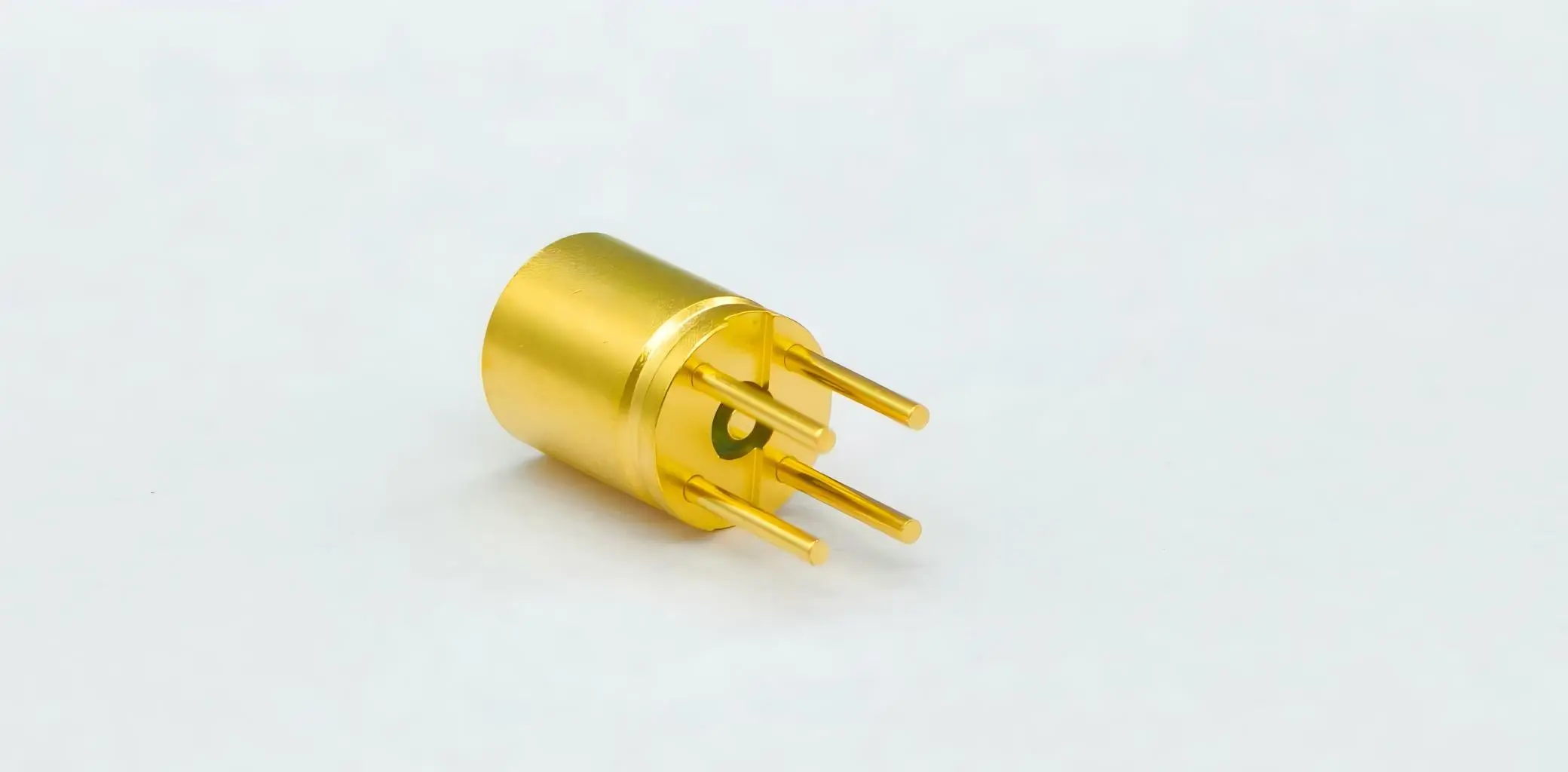

GPPO glass-encapsulated surface-mount connector

What Makes Our Surface Mount GPO Connector Special?

You get more than just a connector when you choose our GPO solution. The innovative design features tail contact surface mount welding technology, ensuring secure connections that withstand demanding environments. The housing utilizes premium Kovar alloy construction, while the dielectric material consists of 7070 glass sealed components. This combination delivers compact size without compromising performance.

Key Performance Features

Your applications benefit from outstanding electrical characteristics:

50 Ohms nominal impedance for consistent signal integrity
1.3:1 VSWR to 18GHz ensuring minimal signal reflection
Low insertion loss at just .05√f (GHz) for optimal signal transmission
Wide temperature range from -55°C to 125°C for extreme environments

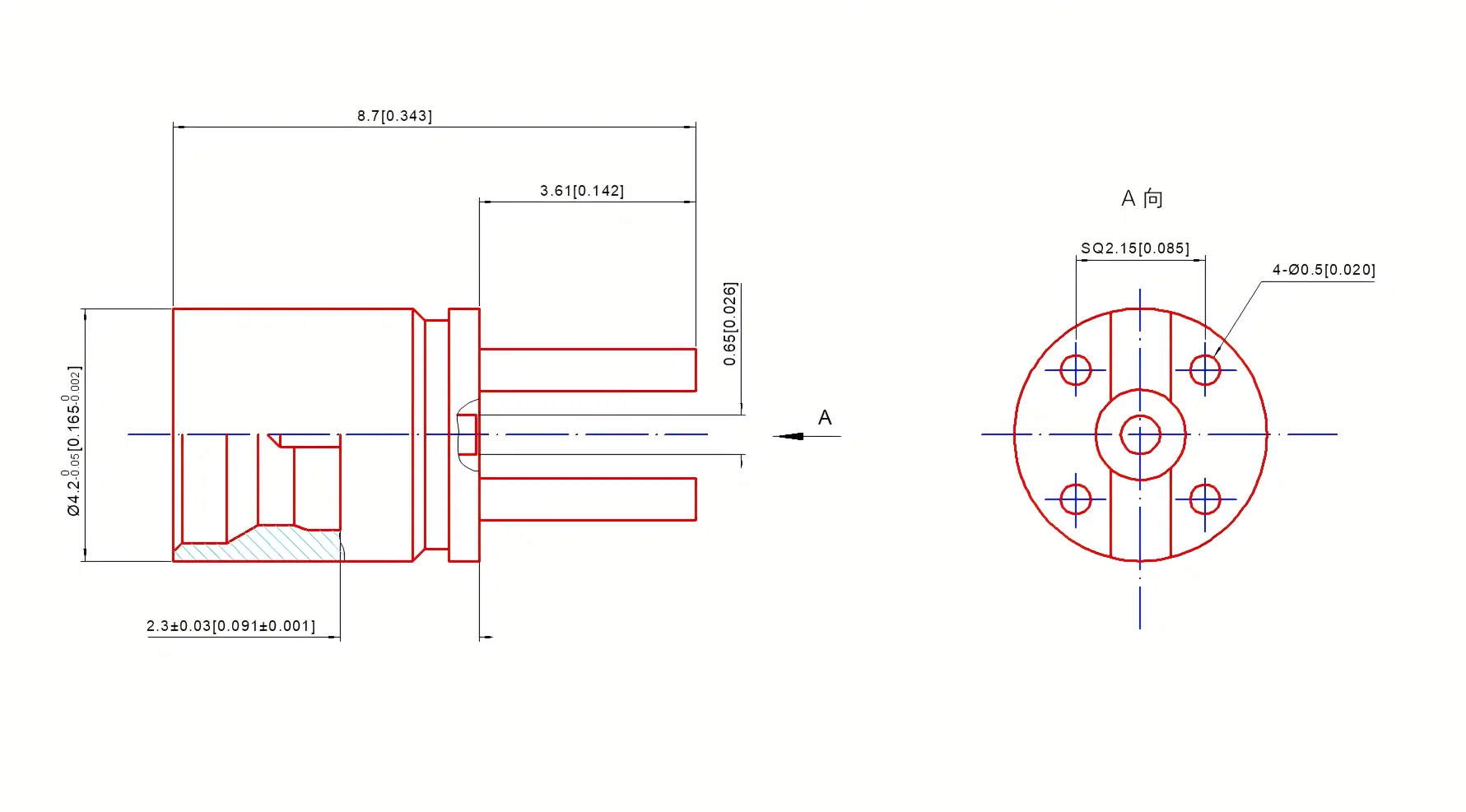

GPPO glass-sealed surface-mount connector dimensions

Technical Specifications

General Specifications	Value
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Performance	Value
---------------------------	-----------
VSWR	1.3:1 to 18GHz typical
Insertion Loss	.05 √f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials	Specification
---------------	-------------------
Housings	Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PEEK
Mechanical Data	Value
--------------------	-----------
Mate/Demate Cycles	FD-100 min, LD-500 min, SB-1,000 min
Engagement Force	FD–7.0lb typ, LD–5.0lb typ, SB–3.0lb typ
Disengagement Force	FD–9.0lb typ, LD–7.0lb typ, SB–0.5lb typ

Superior Construction Materials

Your connector performance depends on quality materials. We use beryllium copper with gold plating for both housings and center contacts. This combination provides excellent conductivity while maintaining durability. The PEEK insulators offer exceptional dielectric properties and temperature stability.

The brass gold-plated construction operates reliably from -40°C to +165°C, delivering outstanding conductivity and temperature resistance for your most challenging applications.

Applications Across Industries

Our GPO Surface Connector serves multiple industry sectors:

Communications Equipment: Reliable signal transmission for wireless infrastructure
Military Applications: Rugged performance meeting stringent military standards
Test Equipment: Precision connections for measurement instruments
Medical Devices: Dependable performance for critical healthcare applications
Aerospace Systems: Lightweight, compact design for space-constrained environments

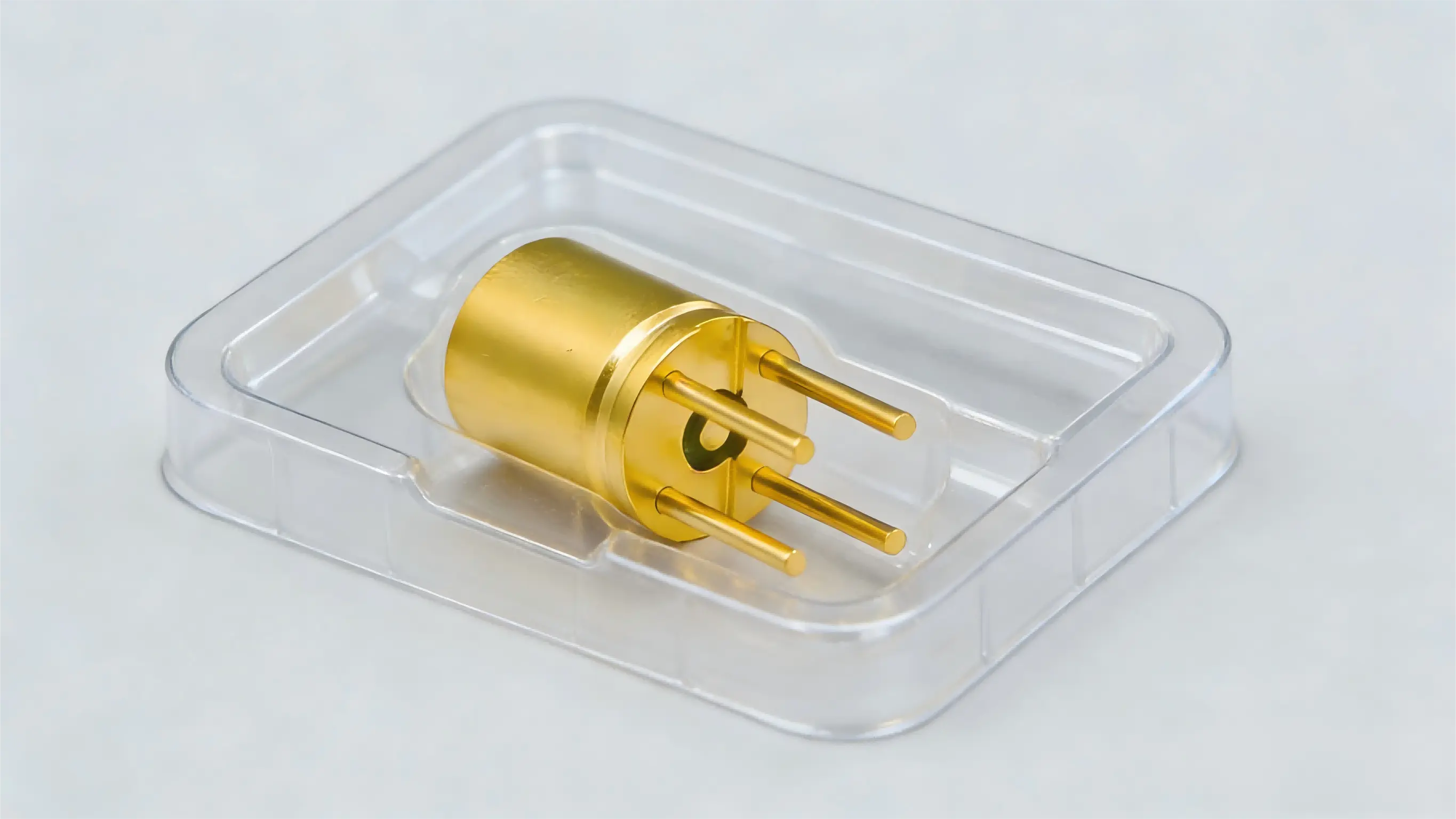

GPPO surface-mount connector packaging

Environmental Reliability

You can trust our connectors in harsh environments. Each unit undergoes rigorous testing according to military standards:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray Resistance: MIL-STD-202, Method 101, Condition B
Vibration Testing: MIL-STD-202, Method 204, Condition D
Shock Testing: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

Why Choose Shaanxi Chuangyu Electronic Technology?

Found in Chang'an Development and Innovation Mechanical Stop, we specialize in accuracy electrical connectors and RF cable gatherings. Our skill expands to microwave components coming to up to 110 GHz, with over 200 millimeter wave connector determinations and 400+ cable gathering variations.

You advantage from our comprehensive capabilities counting custom plan, high-speed PCB improvement, and exactness fabricating. Our strict quality administration framework guarantees each item meets the most elevated measures from plan through delivery.

GPPO Surface Mount Connector Quality Commitment

Custom Arrangements Available

Need alterations for your particular application? We give custom building administrations for non-standard prerequisites. Our experienced group works with you to create custom-made arrangements that meet your correct determinations whereas keeping up the predominant execution characteristics you anticipate.

Get Started Today

Ready to enhance your next project with reliable GPO Surface Connector technology? Contact our technical team to discuss your requirements and receive detailed specifications. We're here to help you select the perfect connector solution for your application.

For technical inquiries and ordering information, reach out to us at postmaster@cymicrowave.com. Our experienced engineers are ready to support your project from concept to completion.
