BMA Panel Connector

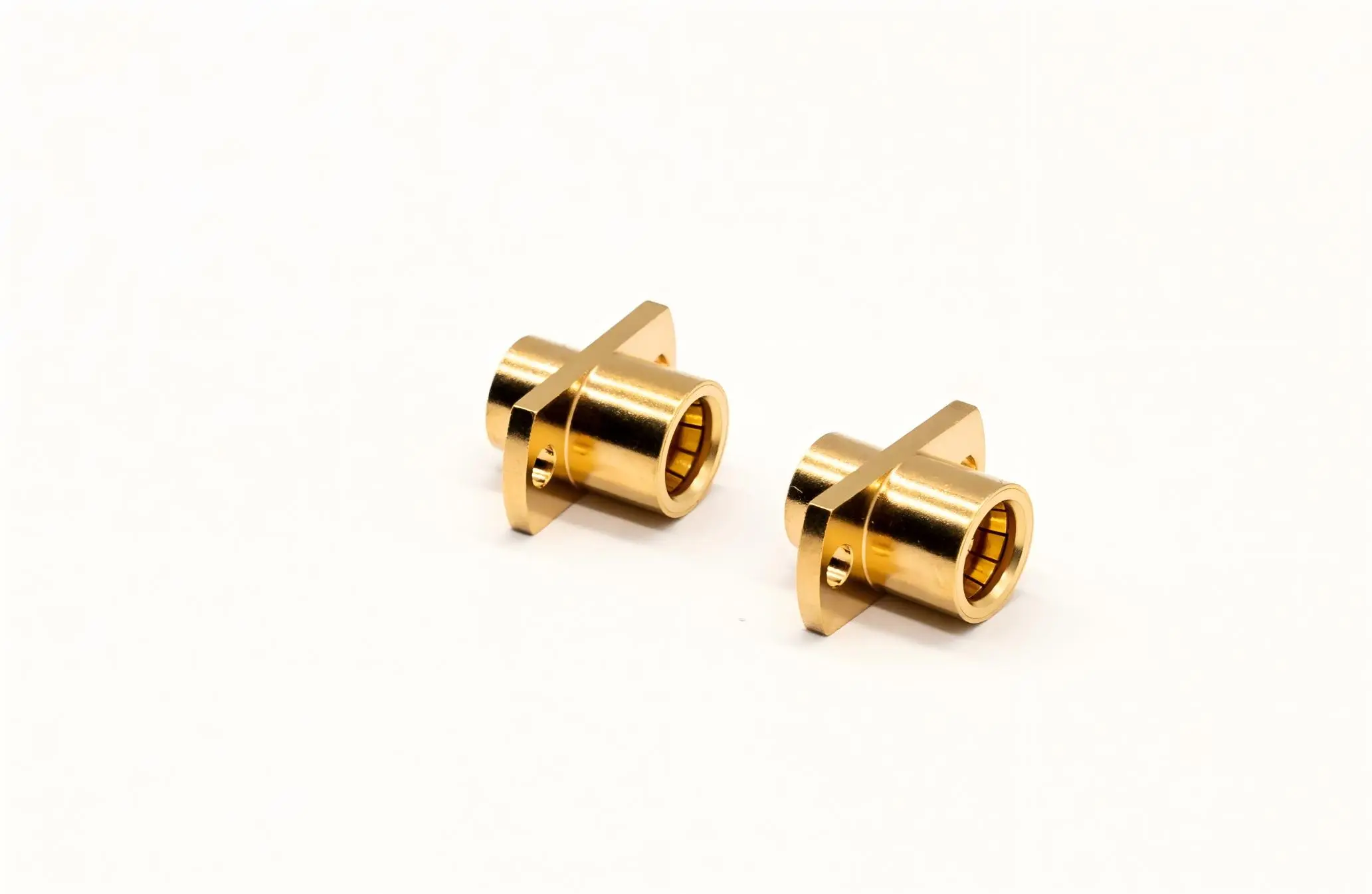

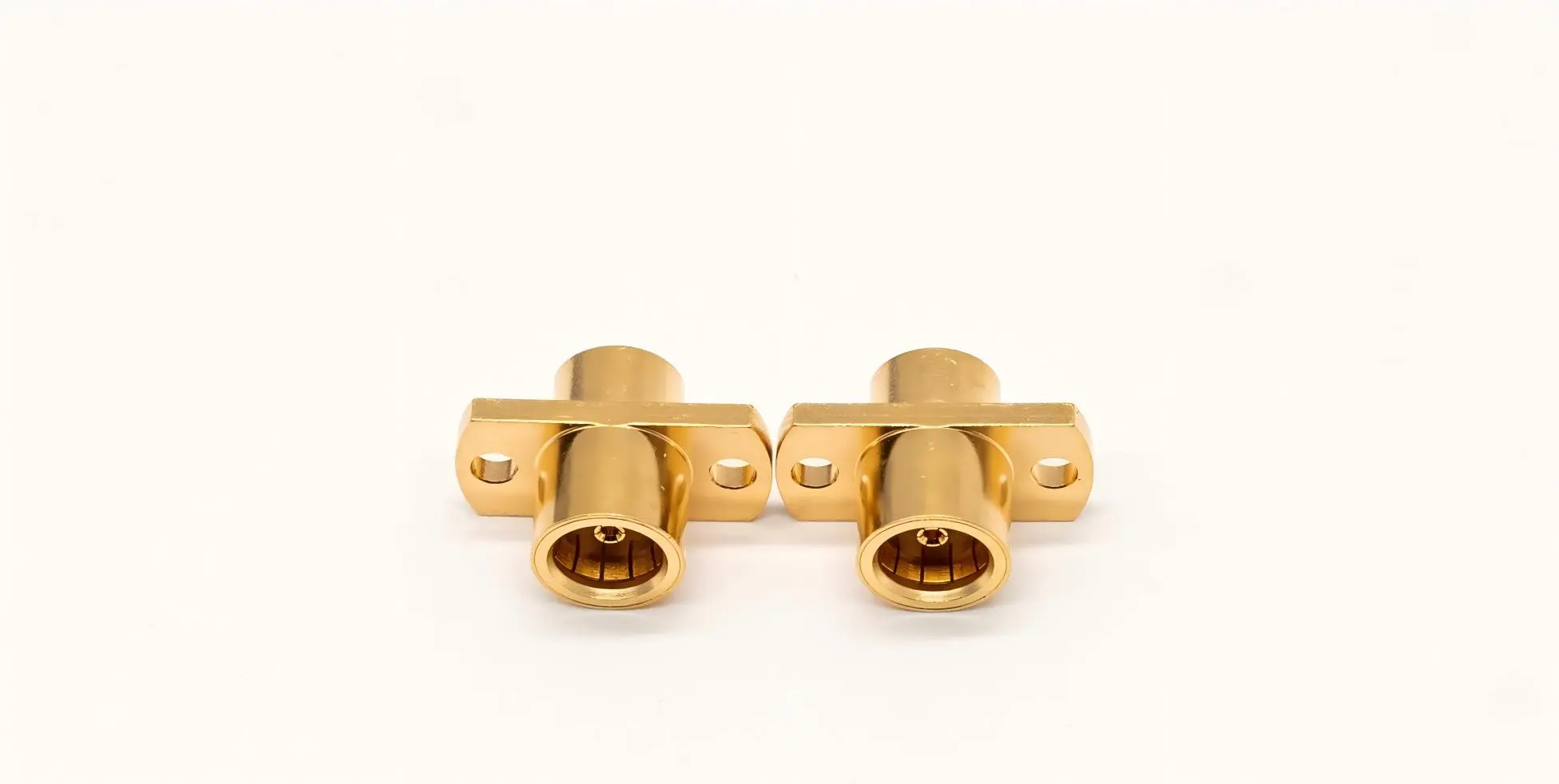

1. The BMA panel connector is a type of RF coaxial connector designed specifically for panel mounting, featuring a blind-mate interface that allows for quick connections without the need for threaded coupling. It is suitable for RF systems that require blind-mate connections, such as radar enclosures, modular equipment, and microwave circuits, and supports panel mounting (e.g., 2-hole flange mounting).
2. Tail microstrip welding, can be customized with a floating option
3. Impedance: 50 Ohms nominal
4. VSWR: 1.25:1 up to 18GHz typical
5. Insertion loss: .05√f (GHz)
6. Temperature range: -55°C to 125°C

Professional BMA Panel Connector Solutions for Your RF Applications

When you need reliable panel-mounted RF connectivity, our BMA Panel Connector delivers exceptional performance for demanding applications. This specialized radio frequency coaxial connector features a blind-mate interface that enables quick connections without threaded coupling. You'll discover it idealize for radar walled in areas, measured hardware, and microwave circuits where productive board mounting is fundamental. Our item bolsters different mounting arrangements, counting 2-hole spine establishment, making it flexible for your particular requirements.

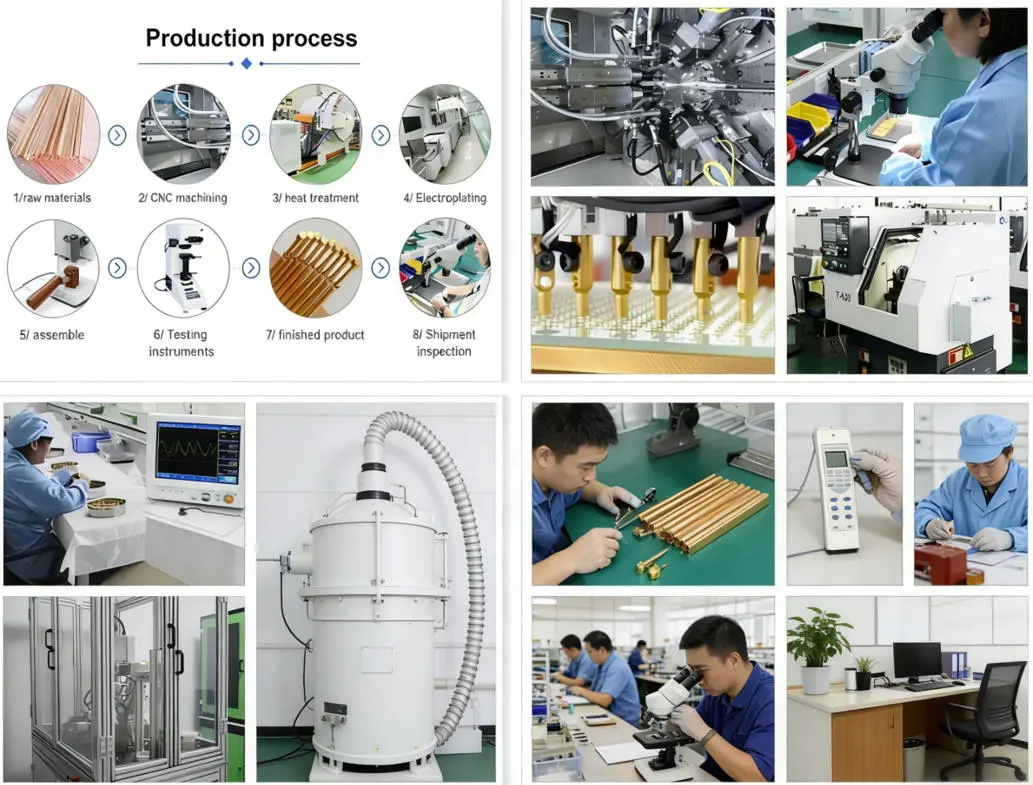

product-1-1

What Makes Our BMA Connectors Stand Out

Precision Engineering for Demanding Applications

Our connectors feature brass housings with gold plating for superior conductivity, beryllium copper contacts for reliable signal transmission, and PTFE insulators for excellent insulation, ensuring consistent performance in extreme environments.

Blind-Mate Technology Benefits

The blind-mate design enables quick, secure connections without manual alignment, reducing assembly time and errors. Ideal for modular equipment with frequent connections, the floating option adds flexibility for applications with slight mechanical tolerances.

product-1-1

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-65°C to 125°C
Electrical Performance
VSWR	1.25:1 to 18GHz typical
Insertion Loss	.05 √f (GHz)
DWV @ Sea Level	750Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housings	Brass Gold Plated
Center Contacts	Beryllium Copper Gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement Force	0.56N-13.3N
Environmental Standards
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Key Applications and Industries

Radar and Defense Systems

Military and defense applications request connectors that perform dependably beneath extraordinary conditions. Our BMA Panel Connectors meet exacting military guidelines for stun, vibration, and natural exposure.

Telecommunications Infrastructure

High-frequency broadcast communications gear requires low-loss associations with fabulous flag astuteness. The predominant electrical execution guarantees negligible flag corruption over your network.

Test and Estimation Equipment

Laboratory and field testing disobedient advantage from the solid associations and repeatable execution. The 500-cycle rating guarantees long-term solidness in requesting test environments.

Microwave and Millimeter Wave Systems

Advanced microwave applications require exact impedance coordinating and moo inclusion misfortune. Our plan keeps up great electrical execution all through the recurrence range.
