Name: MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector
SKU: N/A

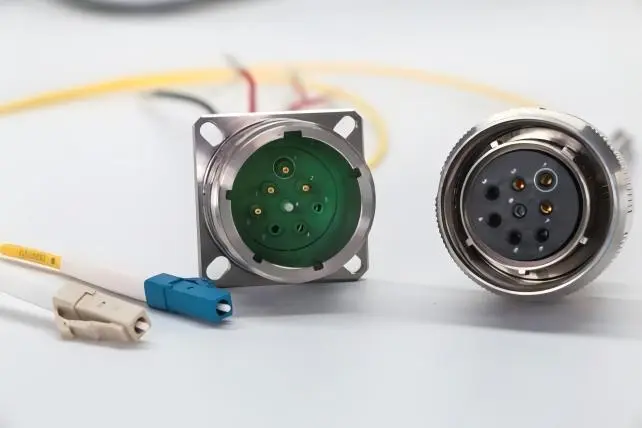

MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector

1.The MIL-DTL-38999 Series 3 hybrid optoelectronic connector refers to the Series III hybrid optoelectronic connector that complies with the military standard MIL-DTL-38999, integrating both optical signal and electrical signal transmission capabilities.
2.This type represents a derivative version of the Series III 38999 connector, employing hybrid optoelectronic transmission technology to expand the application range of traditional military connectors.
3.Housings: Gold-plated copper
4.Center contacts: Ceramics
5.Insulators: Thermoplastic or thermosetting
6.Insertion loss: ≤1dB
7.Rated current: 22D#5A, 20#7.5A, 16#13A, 12#23A, 10#40A
8.Shielded Type: 65dB@10GHz 85dB@1GHz

MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector

Advanced Connectivity Solutions for Demanding Applications

When you need reliable signal transmission in extreme environments, the MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector delivers unmatched performance. This specialized connector coordinating both optical fiber and electrical flag transmission capabilities inside a single, compact lodging. You get the flexibility of cross breed innovation combined with the demonstrated unwavering quality of military-grade benchmarks. Our connector arrangement meets the thorough necessities of aviation, defense, and mechanical applications where disappointment is not an option.

product-1-1

What Makes Our Half breed Optoelectronic Connectors Special

You confront one of a kind challenges in present day electronic frameworks. Conventional connectors frequently drop brief when you require both optical and electrical associations. Our Arrangement 3 half breed arrangement understands this issue elegantly.

The connector highlights gold-plated copper lodgings that stand up to erosion and give amazing conductivity. Ceramic center contacts guarantee ideal optical execution with negligible flag misfortune. You advantage from thermoplastic or thermosetting insulin that keep up their properties over extraordinary temperature ranges.

Multi-Functional Integration

Your frameworks request flexibility. This connector bolsters both fiber optic signals and conventional electrical contacts in one unit. You can transmit control, information, and optical signals at the same time. This integration diminishes your generally framework complexity and weight.

The compact circular plan maximizes association thickness. You get more usefulness in less space. This effectiveness demonstrates significant in weight-sensitive applications like airplane and satellites.

Environmental Resilience

Harsh environments test every component. Our MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector inherits the legendary durability of the 38999 series. You can count on reliable performance through vibration, shock, moisture, and corrosive conditions.

The sealed design prevents contamination. Your optical and electrical connections stay clean and functional. This protection extends operational life and reduces maintenance requirements.

product-1-1

Technical Specifications

Parameter Category	Specification	Value
Mechanical Performance	Mate/Demate Cycles	500 cycles
	Impact Resistance	3ms semi-sinusoidal wave, 2940m/s²
	Vibration Resistance	10Hz-2000Hz, 196m/s²
	Tensile Strength	≥800N
Optical Performance	Insertion Loss	≤1dB
Electrical Ratings	Current Capacity	22D#5A, 20#7.5A, 16#13A, 12#23A, 10#40A
	Shielding Effectiveness	65dB@10GHz, 85dB@1GHz
	Withstand Voltage	≥500V, 125 Vac @ 21000m
	Insulation Resistance	5,000 megohms minimum
	Voltage Drop	Inner/middle: ≤55mV @ 1A, Outer: ≤75mV @12A
Environmental	Operating Temperature	-55°C to 85°C
	Salt Spray Resistance	500 hours
Sealing Performance	Body Seal	Pressure diff: 2×10⁵ Pa, Leak rate: <4.6×10² Pa.cm³/S
	Sintered Seal	Pressure diff: 1×10⁵ Pa, Leak rate: <0.1 Pa.cm³/s

Material Excellence

Quality starts with superior materials. We use only premium components in every connector:

Housing: Gold-plated copper gives amazing conductivity and erosion resistance
Contacts: Ceramic and beryllium copper with gold plating guarantee dependable connections
Insulators: High-performance thermoplastic or thermosetting materials keep up judgment over temperature extremes

Why Choose Shaanxi Chuangyu

Your ventures merit master bolster. We bring decades of encounter in accuracy connector fabricating. Our office in Xi'an highlights progressed generation gear and thorough quality control.

We get it your challenges. Whether you work in aviation, defense, or mechanical robotization, we give connectors that surpass desires. Our designing group can customize arrangements for your particular prerequisites.

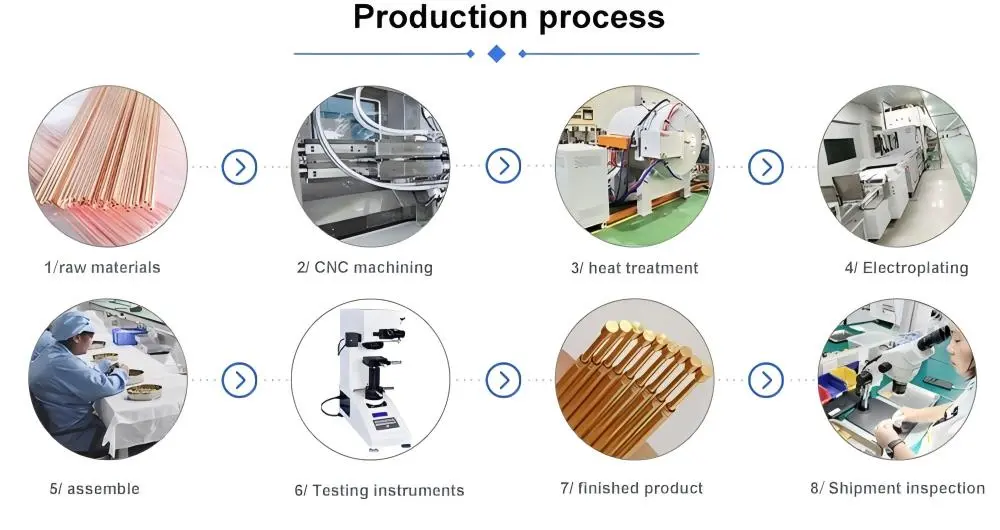

Quality comes first in everything we do. We maintain strict production processes and use precision testing equipment. Every MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector undergoes comprehensive testing before shipment.

product-1-1

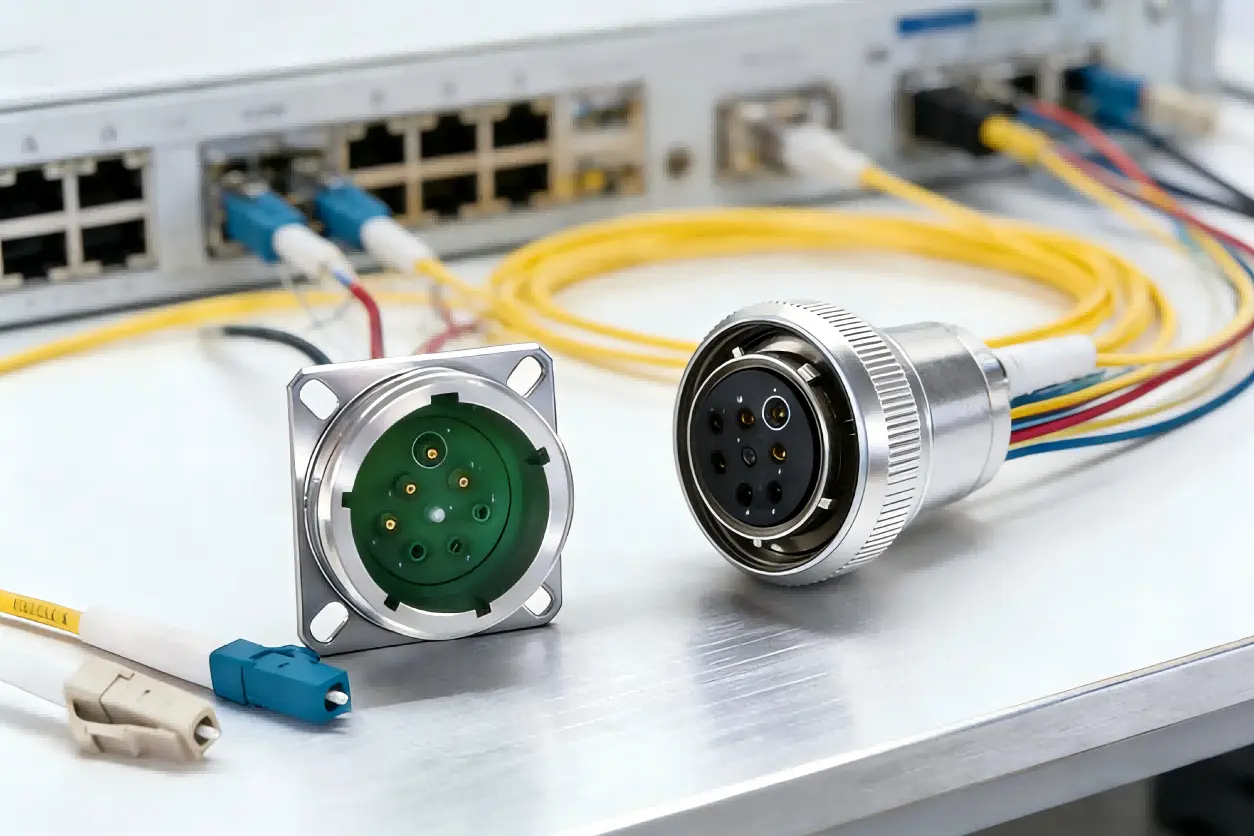

Applications and Industries

These connectors excel in demanding applications:

Aerospace Systems: Aeronautics, flight control frameworks, toady communications
Military Equipment: Radar frameworks, communication clusters, vehicle electronics
Industrial Automation: Prepare control, mechanical autonomy, observing systems
Medical Devices: Imaging gear, surgical rebellious, symptomatic devices

product-1-1

Get Expert Support

Ready to integrate hybrid optoelectronic connectivity into your next project? Our technical team stands ready to help. We provide comprehensive support from initial consultation through production.

Contact us today at postmaster@cymicrowave.com for detailed specifications, custom configurations, or technical consultation. Let us help you find the perfect MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector solution for your application.

Your success depends on reliable connections. Trust our expertise to deliver the performance you need, when you need it most.
