Name: 2.92 Female To GPPO Female Adapter
SKU: N/A

2.92 Female To GPPO Female Adapter

1.2.92mm female to GPPO female adapter, one end is a 2.92mm female connector (used for high-frequency testing, supports up to 40GHz), and the other end is a GPPO female connector (a micro high-frequency connector suitable for microwave systems).
2.It is mainly used for interface conversion in radio frequency signal transmission, commonly found in communication equipment, test instruments, and other high-frequency systems.
3.Impedance: 50 Ohms nominal. 4.VSWR: 1.25:1 to 40GHz typical. 5.Insertion loss: .08√f (GHz). 6.Temperature range: -55°C to 125°C.

2.92 Female To GPPO Female Adapter - Precision RF Interface Solution

When you need reliable high-frequency signal transmission between different connector types, choosing the right adapter makes all the difference. The 2.92 Female To GPPO Female Adapter from Shaanxi Chuangyu Electronic Technology delivers exceptional performance for your most demanding RF applications. This accuracy connector bridges 2.92mm and GPPO interfacing, supporting up to 40GHz. It guarantees consistent network and predominant flag astuteness for communication, test, and microwave systems.

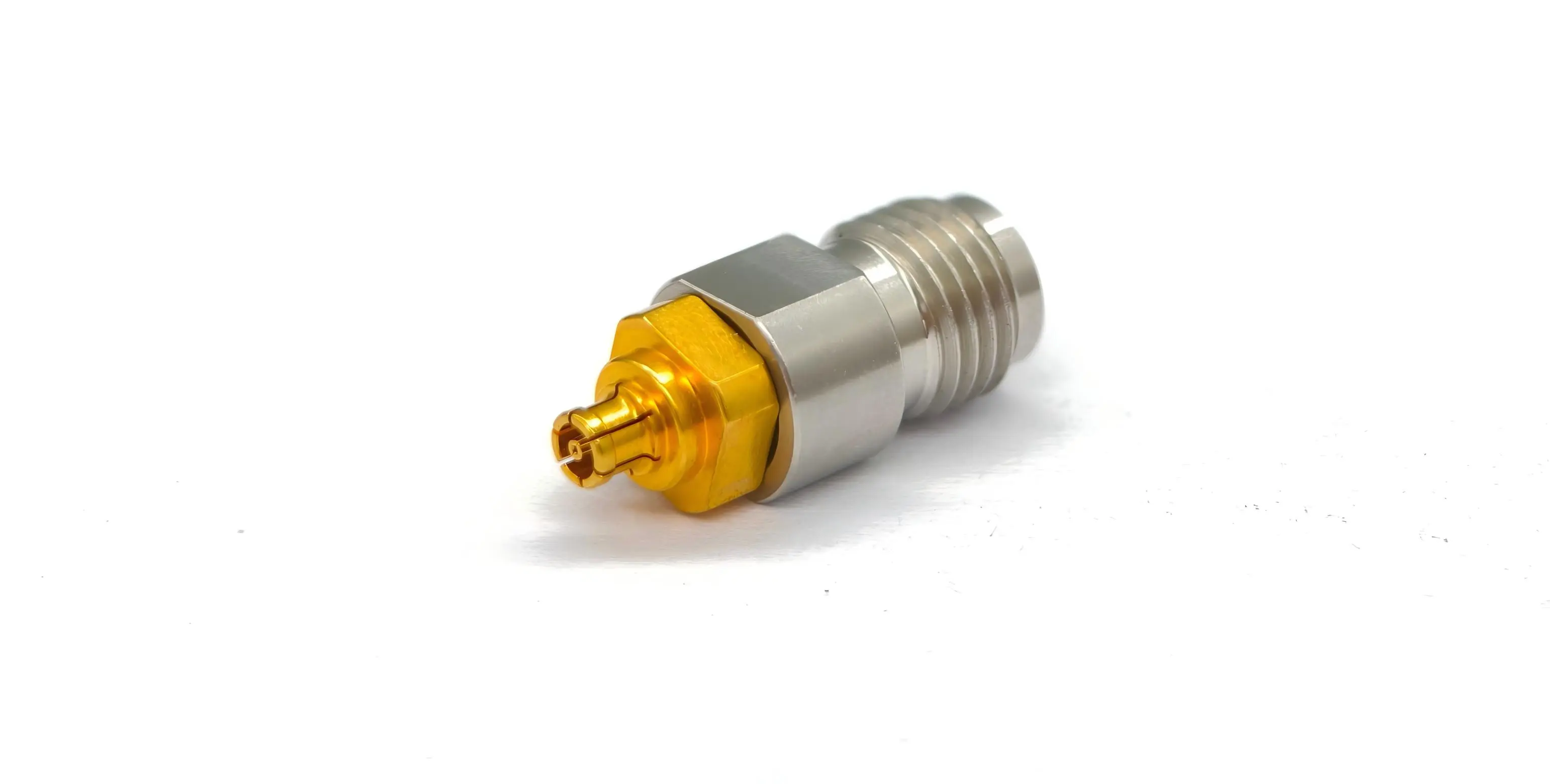

2.92mm female to GPPO female adapterale to GPPO female adapter

What Makes This RF Connector Special?

You merit components that perform reliably beneath requesting conditions. This connector combines the demonstrated unwavering quality of 2.92mm connectors with the compact plan of GPPO interfacing. The result is a flexible arrangement that keeps up 50-ohm impedance all through its working range.

The exactness fabricating prepare guarantees each connector meets strict quality measures. Your signals keep up their astuteness over the whole recurrence range, from DC to 40GHz. This makes it idealize for high-precision testing situations where precision things most.

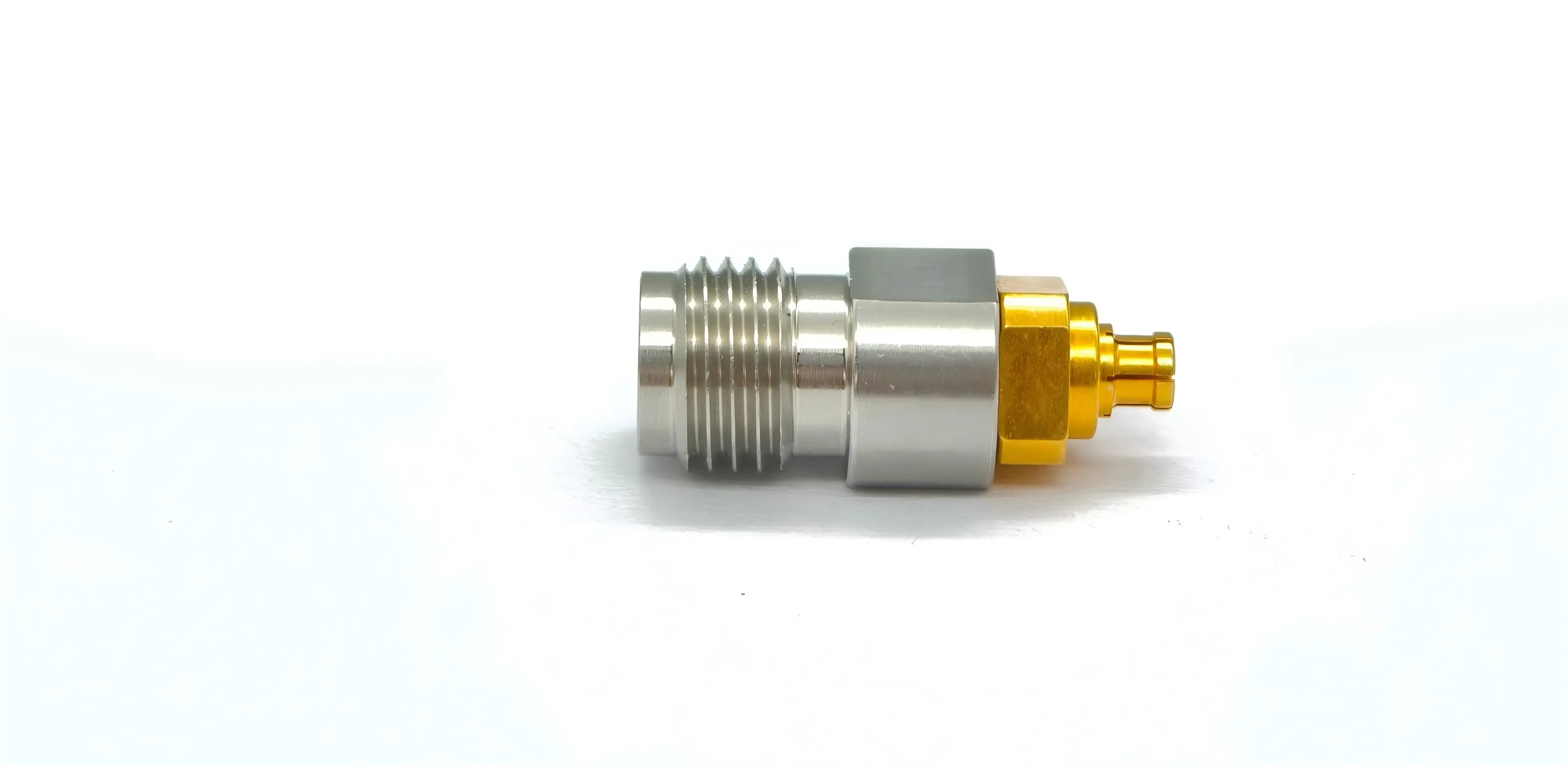

2.92mm female to GPPO female adapter

Key Benefits for Your Applications

Superior Recurrence Execution: Supporting DC to 40GHz, this connector offers moo addition misfortune of .08√f (GHz), guaranteeing solid, clear signals for testing.

Exceptional Soundness: With VSWR ≤1.25:1 to 40GHz, this connector minimizes flag reflection, guaranteeing precise estimations and dependable performance.

Robust Development: Stainless steel and beryllium copper guarantee strength, whereas gold plating on contacts gives enduring conductivity and erosion resistance.

Wide Temperature Run: Working dependably from -55°C to 125°C, this connector handles extraordinary situations without compromising performance.

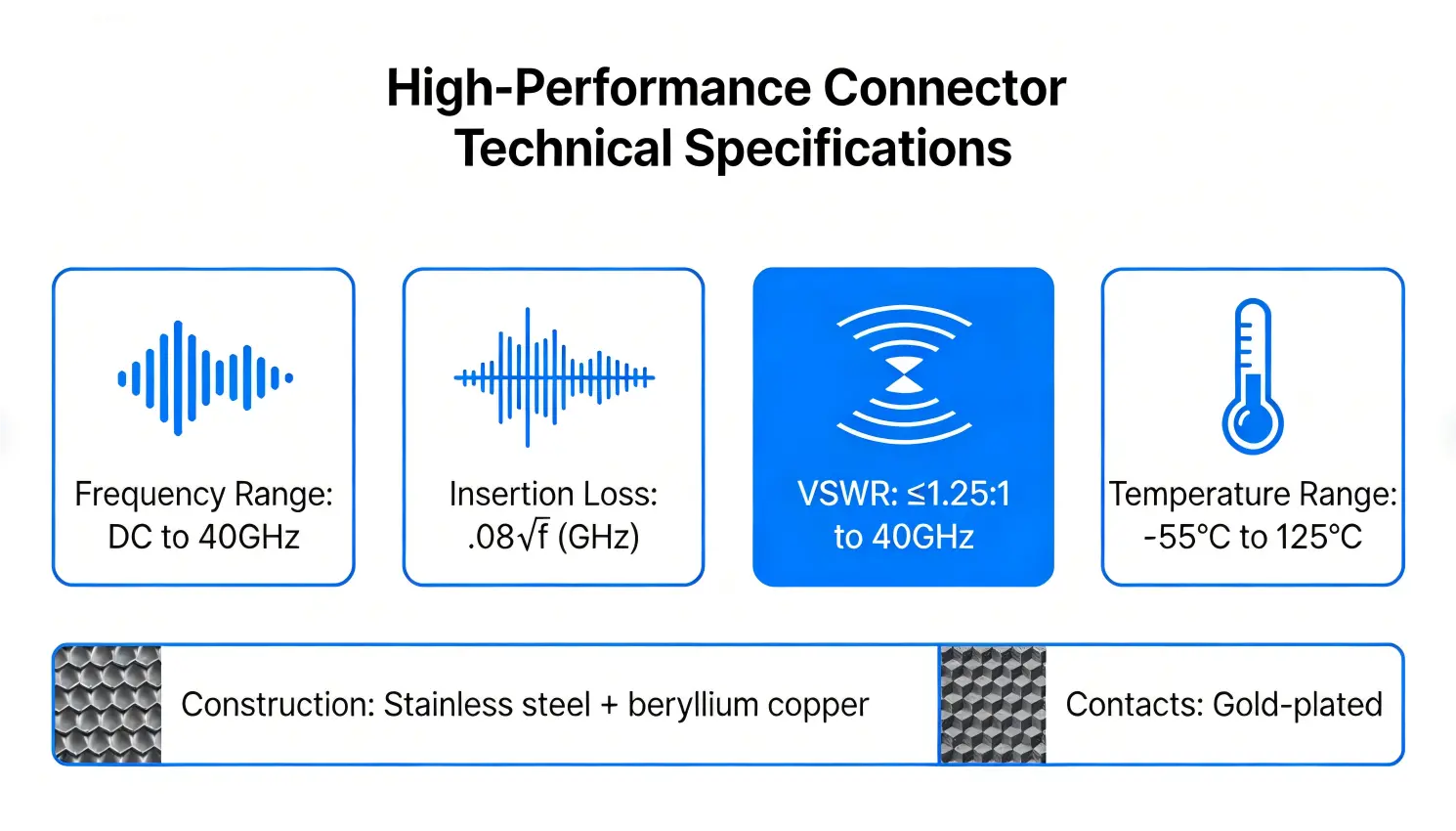

Performance advantages of the 2.92mm female to GPPO female adapter

Technical Specifications

Category	Parameter	Value
General	Impedance	50 Ohms nominal
	Frequency Range	DC to 40GHz
	Temperature Range	-55°C to 125°C
Electrical	VSWR	1.25:1 to 40GHz typical
	Insertion Loss	.08√f (GHz)
	Dielectric Withstanding Voltage	500 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	2.5 milliohms maximum
	Contact Resistance (Inner)	4 milliohms maximum
Materials	Housings	Stainless steel & Beryllium copper gold
	Center Contacts	Beryllium copper gold
	Insulators	PEI
Mechanical	2.92 Port Cycles	500 cycles
	GPPO Port Cycles	FD: 100 min, SB: 500 min
	Connection Torque (2.92)	0.79-1.13 N·m
Environmental	Testing Standards	MIL-STD-202 compliant

Perfect Applications for Your Needs

Communication Systems: Bridge connector types in cellular, satellite, and wireless systems, ensuring strong and reliable communication links.

Test Equipment: Laboratory instruments often require adapter flexibility. This 2.92 Female To GPPO Female Adapter provides the interface conversion you need for accurate measurements.

Microwave Systems: High-frequency applications demand precision components. The low loss characteristics make this adapter ideal for radar systems and microwave communications.

Medical Equipment: Modern medical devices use sophisticated RF systems. This adapter supports the high-frequency requirements of advanced diagnostic equipment.

2.92mm female to GPPO female adapter applications

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Xi'an's Chang'an Development and Innovation Mechanical Stop, we specialize in exactness RF components and microwave arrangements. Our mastery amplifies to millimeter wave frequencies up to 110GHz, giving us profound understanding of high-frequency challenges.

We guarantee strict quality control in fabricating, with comprehensive testing to meet demanding benchmarks. Recognized over broadcast communications, aviation, and restorative businesses, our building group plans solid, high-performance connectors that surpass industry measures for unwavering quality and life span.

Advantages of the 2.92mm female to GPPO female adapter

Installation and Usage Guidelines

For optimal performance, apply the specified torque (0.79-1.13 N·m) to the 2.92mm side. Handle the GPPO connection carefully; the smooth bore supports 500 cycles, while the full detent version ensures secure retention in mobile applications.

Store adapters in protective cases when not in use. This prevents damage to the precision-machined surfaces and maintains long-term reliability.

2.92 Female To GPPO Female Adapter

Get Your Adapter Today

Transform your RF system capabilities with this precision-engineered 2.92 Female To GPPO Female Adapter. Our commitment to quality ensures you receive a component that performs reliably in your most critical applications.

Contact our technical team at postmaster@cymicrowave.com for detailed specifications, custom configurations, or application guidance. We're here to help you find the perfect solution for your RF connectivity needs.

Experience the difference that precision engineering makes in your high-frequency applications.
