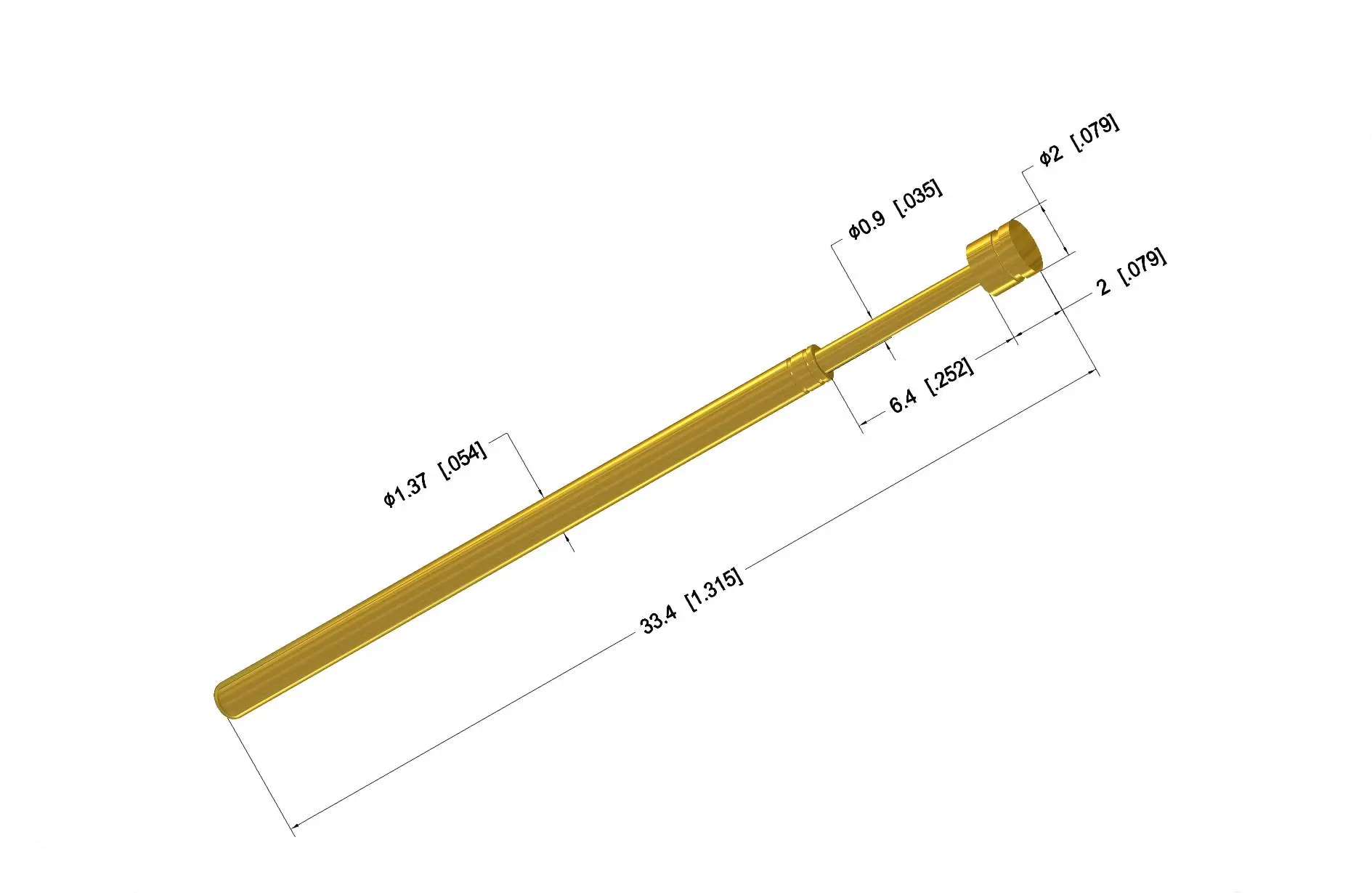

2mm Needle Standard Stroke Photovoltaic Test Probe

2mm Needle Standard Stroke Photovoltaic Test Probe - Professional Testing Solution

When you're testing photovoltaic panels, precision matters. Our 2mm Needle Standard Stroke Photovoltaic Test Probe delivers the accuracy and reliability your solar testing applications demand. Designed specifically for new energy applications, this probe combines low resistance performance with exceptional longevity. You'll find it meets all your requirements for electrical conductivity and stability testing in photovoltaic systems. With over 5 million test cycles capability, this probe ensures consistent results for your critical testing operations.

What Makes This Probe Special

Our photovoltaic test probe stands out in the competitive testing market. You get premium materials engineered for durability. The beryllium copper gold-plated construction provides excellent conductivity. Phosphor bronze components ensure reliable contact every time.

Key Features That Benefit Your Testing

Exceptional Durability: With a 5 million cycle lifespan, this probe outlasts many competitors. You'll reduce replacement costs and minimize downtime.

Low Resistance Design: At less than 15mOhm typical resistance, you get accurate measurements. Signal loss becomes negligible in your testing setup.

High Current Capacity: 5A current carrying capacity handles demanding test scenarios. You won't need multiple probes for different current levels.

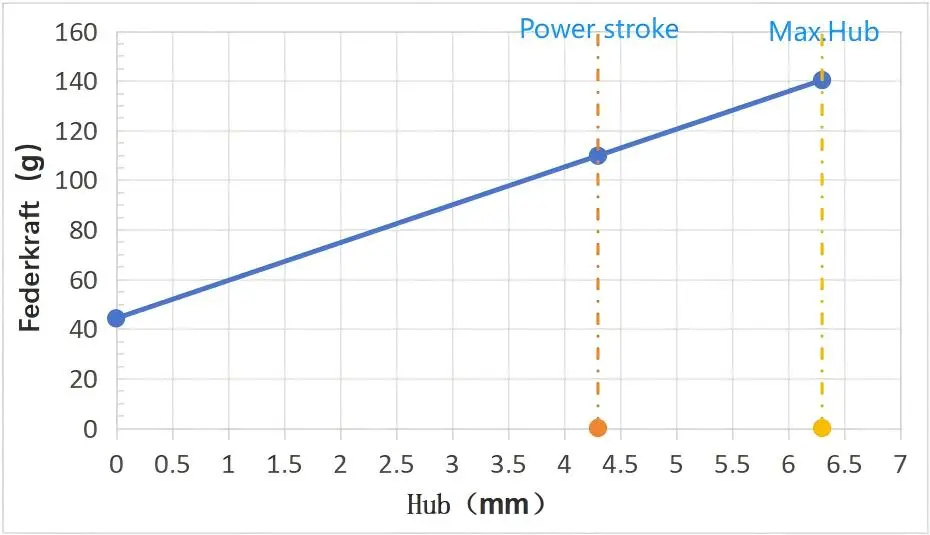

Precise Spring Force: 1N working force at 4.3mm stroke provides consistent contact pressure. This eliminates variables that could affect your test results.

Standard Spacing: 2.54mm (100mil) pitch fits common testing configurations. Integration with existing test fixtures becomes straightforward.

​​​​​​​

Technical Specifications

Material Construction

Plunger: Beryllium copper with gold plating ensures excellent conductivity and corrosion resistance.

Barrel: Phosphor bronze with gold plating provides durability and maintains electrical properties over time.

Spring: Steel with gold plating delivers consistent force characteristics throughout the probe's lifetime.

This combination creates a reliable testing tool that maintains performance across millions of test cycles.

Applications in Photovoltaic Testing

Your solar panel testing requirements vary depending on the technology. Our 2mm Needle Standard Stroke Photovoltaic Test Probe works effectively with:

• PERC cell testing
• HPBC technology evaluation
• TOPCon panel verification
• General photovoltaic module testing

The probe's design accommodates different panel configurations and test setups. You can use it for both research and production testing environments.

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, we specialize in precision electrical connectors and test probes. Our focus on electronic product research and development drives continuous innovation.

Cost-Effective Alternative

This probe serves as a competitive alternative to imported solutions. You get equivalent performance at a more attractive price point. The product matches the capabilities of premium international brands while offering better value.

Custom Solutions Available

We can customize probes for your specific testing requirements. Different head shapes, materials, and configurations are possible. Contact us to discuss your unique application needs.

Our engineering team works with you to develop the optimal testing solution. Whether you need modified dimensions or special materials, we can accommodate your requirements.

Get Your Testing Solution Today

Ready to upgrade your photovoltaic testing capabilities? Our 2mm Needle Standard Stroke Photovoltaic Test Probe provides the precision and reliability you need. Contact us at postmaster@cymicrowave.com for pricing and availability information.

We're here to support your testing success with high-quality probes designed for the demanding photovoltaic industry.
