RF Hermetic Feedthrus

1. High-quality RF packaging and sealing components. The hermetic feedthrough RF/microwave connectors are designed for military and commercial applications, where environmental conditions require extremely robust and reliable hermetic sealing. Low-loss glass is used to produce matching impedance seals suitable for high frequencies.
2. Impedance: 50 Ohms nominal
3. VSWR: 1.4:1 typical at 40Hz
4. Insertion loss: .08 √f (GHz)
5. DWV @ sea level: 300 Vrms
6. Materials: Elastomer alloy, 7070 glass
7. Leak rate: < 1.01325 X 10-3 Pa*cm3/s\n< 1X 10-9 mbar*l/s\n< 1 x 10-9 ccHe/sec @ 1 atm
8. Temperature range: -65°C to 260°C

RF Hermetic Feedthrus - Superior Sealing Solutions for Critical Applications

When you need reliable signal transmission in harsh environments, RF Hermetic Feedthrus deliver exceptional performance and durability. These precision-engineered components give air proof fixing whereas keeping up amazing electrical characteristics from DC to 40GHz. Our feedthrough connectors combine progressed materials with demonstrated fabricating strategies to guarantee your basic applications perform faultlessly. Whether you're working in aviation, military, or commercial situations, these fixed connectors secure your signals from defilement and natural damage.

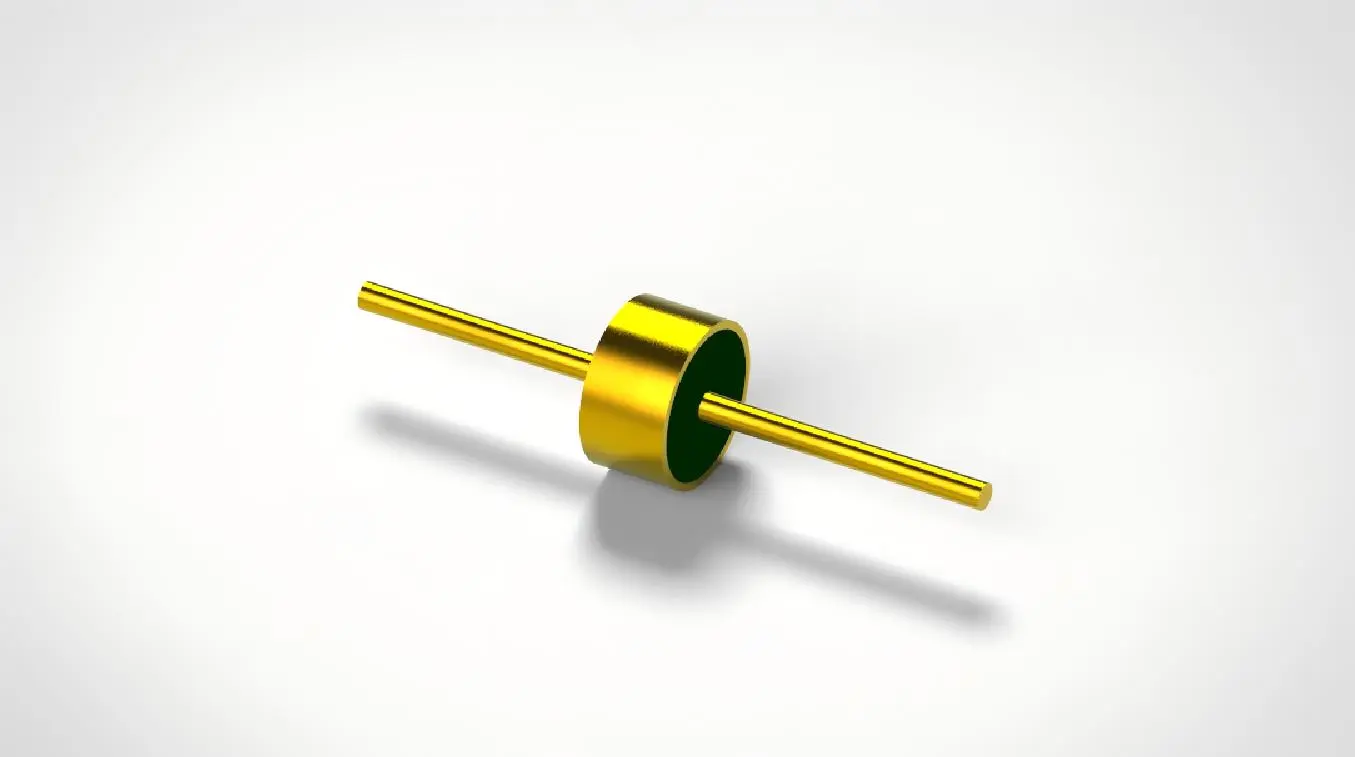

Glass-sintered sealed products

Why Choose Our Product?

Your applications demand components that won't fail when conditions get tough. Our hermetic feedthrough solutions excel in extreme temperatures, high-vibration environments, and chemically aggressive atmospheres.

Superior Materials and Construction

We use premium Kovar 4J29 gold-plated housings and 7050/7070 glass insulators for maximum corrosion resistance, excellent dielectric properties, and long-term reliability in demanding applications.

Outstanding Electrical Performance

With a typical VSWR of 1.4:1 at 40GHz and insertion loss of .08 √f (GHz), these 50-ohm connectors ensure excellent signal integrity across the entire frequency range.

Extreme Environment Capability

These feedthrough connectors work from -65°C to 260°C, assembly MIL-STD-202 for warm stun, salt shower, vibration, and dampness resistance, guaranteeing assurance in any natural condition.

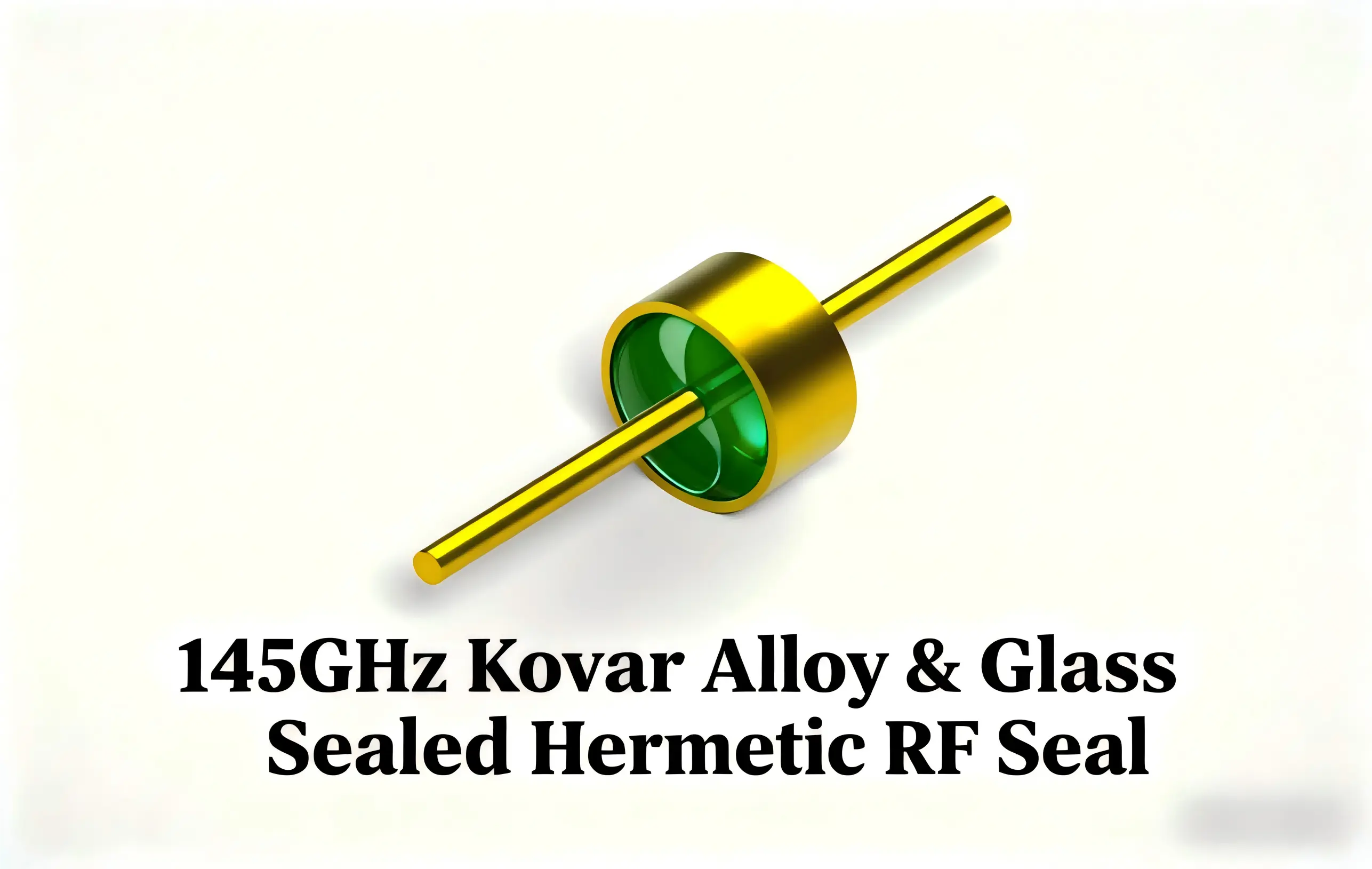

Advantages of RF sealed feedthrough

Technical Specifications

Parameter	Specification
General Specifications
Product Name	CYR3016-02 Hermetic Seal Connector
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
Temperature Range	-65°C to 260°C
Electrical Performance
VSWR	1.4:1 to 35GHz typical
Insertion Loss	.08 √f (GHz)
DWV @ Sea Level	300 Vrms
Insulation Resistance	1,000 megohms minimum
Outer Conductor Resistance	2 milliohms maximum
Inner Conductor Resistance	5 milliohms maximum
Hermetic Sealing
Leak Rate	< 1.01325 X 10⁻³ Pa*cm³/s
	< 1X 10⁻⁹ mbar*l/s
	< 1 x 10⁻⁹ ccHe/sec @ 1 atm
Materials
Housings	Kovar 4J29 gold
Center Contacts	Kovar 4J29 gold
Insulators	7050 or 7070 Type Green or White
Environmental Testing
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Key Applications

Your industry likely faces unique sealing challenges. Our RF Hermetic Feedthrus serve diverse markets requiring reliable signal transmission through pressure barriers.

Aerospace and Defense: Obsequious communications, radar frameworks, and aeronautics require components that withstand space situations and military conditions.

Medical Gear: Implantable gadgets and demonstrative hardware require biocompatible fixing arrangements that keep up flag integrity.

Industrial Mechanization: Handle control frameworks working in unforgiving chemical situations advantage from predominant airtight sealing.

Energy Frameworks: Photovoltaic testing gear and control era offices require components that handle extraordinary conditions dependably.

Glass-sintered sealed products

Advanced Manufacturing Capabilities

Our Xi'an facility specializes in precision manufacturing with strict quality control throughout production. Each connector undergoes comprehensive testing for electrical performance and hermetic integrity. Digital manufacturing processes ensure consistent quality and repeatability from design to final testing.Our precision testing instruments validate performance parameters before shipment. This attention to detail guarantees you receive components that meet or exceed specifications.
