Name: Integrated Contact Probe
SKU: N/A

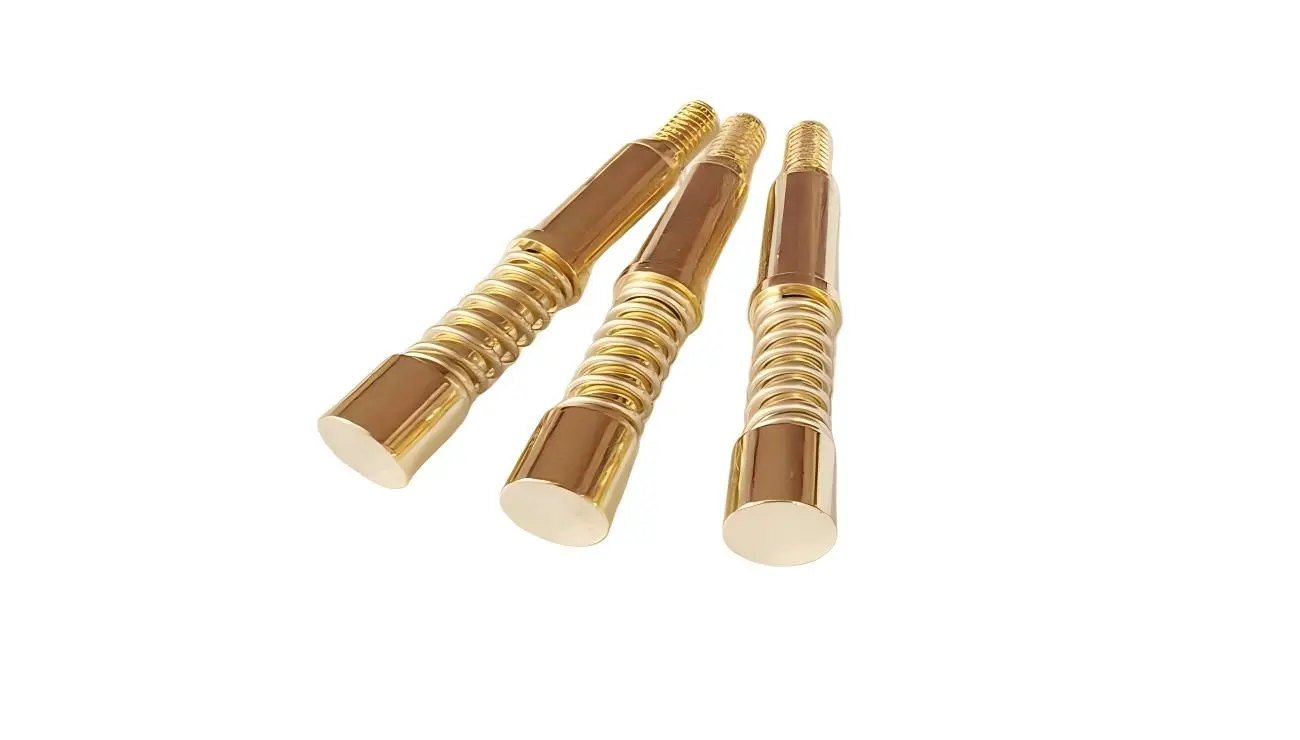

Integrated Contact Probe

1. From front to back, needle head integrated design, suitable for user testing in applications requiring low contact resistance and high current.
2. Material: Probe beryllium copper gold-plated, needle tube phosphor bronze gold-plated
3. Overall height: 48.5mm
4. Working stroke force: 30N@7mm
5. Current carrying capacity: 100A
6. Typical resistance: <5mOhm
7. Operating temperature: -45°C to +80°C.

Integrated Contact Probe - High Current Testing Solutions

When you need precision testing capabilities for high-current applications, our Integrated Contact Probe delivers exceptional performance. Designed with front-to-back needle head integration, this advanced testing solution offers low contact resistance and superior current handling capabilities. The product features beryllium copper gold-plated construction for maximum reliability. You'll find this probe perfect for demanding testing environments where accuracy matters most. Our integrated design ensures consistent contact quality throughout your testing processes.

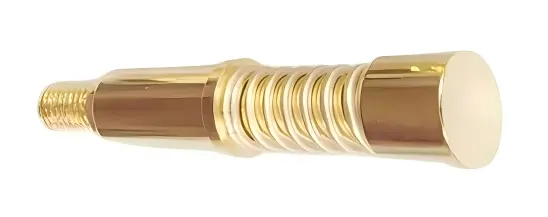

Integrated Contact Probe

Why Choose Our High Current Contact Probes?

Our contact probes stand out in the testing industry. You get premium materials and precision engineering in every unit. The beryllium copper construction provides excellent conductivity. Gold plating ensures long-lasting performance and corrosion resistance.

Testing professionals choose our probes for critical applications. The integrated design eliminates common failure points. You'll experience reliable testing session after session. Our probes handle up to 100A current capacity with ease.

Integrated contact probe

Advanced Design Features

Precision Engineering

Each probe undergoes strict quality control, meeting exact specifications with consistent contact pressure through an integrated needle head design.

Material Excellence

We select only the finest materials for construction. Beryllium copper offers superior electrical properties. The phosphor bronze barrel provides structural integrity. Gold plating protects against environmental factors.

Temperature Resilience

Your testing environment varies throughout the day. Our probes perform reliably from -45°C to +80°C. This wide temperature range covers most industrial applications. You won't worry about thermal performance issues.

Integrated contact probe quality assurance

Key Applications and Benefits

High Current Testing

Power electronics require specialized testing equipment. Our Integrated Contact Probe handles high current loads safely. You can test power supplies, inverters, and charging systems. The low resistance design minimizes heat generation during testing.

Precision Measurements

Accurate measurements start with quality contact. Our probes maintain stable electrical connection. You get consistent readings throughout your test cycles. The integrated design reduces measurement errors.

Industrial Reliability

These durable probes withstand 500K cycles, reducing replacement costs and ensuring reliability in demanding manufacturing environments with proper maintenance.

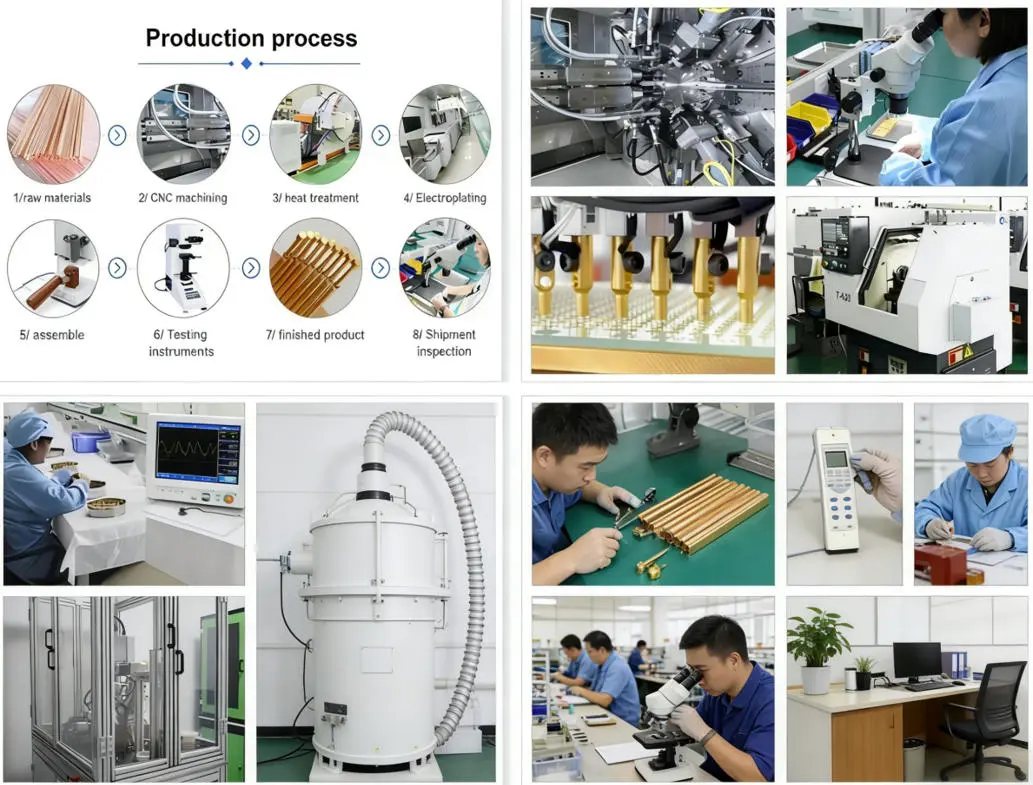

Integrated contact probes - About Us

Technical Excellence

Contact Performance

Low contact resistance (<5mOhm) ensures accurate measurements, meeting stringent testing requirements and providing reliable data for critical applications.

Mechanical Precision

The 7mm working stroke provides flexibility. 30N force ensures solid electrical contact. These specifications work well for various testing scenarios. You can adapt to different component layouts easily.

Electrical Capacity

100A current handling supports high-power device testing, covering all your needs with one probe solution, eliminating the need for multiple types.

Quality Manufacturing Standards

Production Excellence

Our Xi'an facility follows strict manufacturing protocols. Digital manufacturing ensures consistent quality. Each Integrated Contact Probe meets exact specifications. You receive products that perform as promised.

Testing Verification

Every probe undergoes thorough testing for electrical and mechanical performance, ensuring quality and reliable field performance before shipment.

Innovation Focus

Our research team improves probe technology, developing solutions for emerging challenges to keep products aligned with industry needs and the latest advances.

Integrated contact probe quality commitment

Technical Specifications

Parameter	Specification
Model	CY 800A 3-100-48.5
Pitch	9mm
Operating Temperature	-45°C to +80°C
Plunger Material	Beryllium copper gold
Barrel Material	Phosphor bronze gold
Spring Material	Steel gold
Total Length	27.3mm
Barrel Diameter	2.65mm
Spring Force	1N at working stroke
Working Stroke	4mm
Tip Style	Flat
Tip Diameter	4mm
Current Capacity	100A
Typical Resistance	< 5mOhm

Custom Solutions Available

Application-Specific Designs

Your testing requirements may need special configurations. We offer custom probe solutions for unique applications. Our engineering team works with your specifications. You get probes designed for your exact needs.

Volume Manufacturing

Large projects require consistent supply chains. We scale production to meet your volume requirements. Quality remains consistent across all quantities. You receive the same performance in every shipment.

Integrated contact probe customization process

Get Your Testing Solution Today

Ready to upgrade your testing capabilities? Our Integrated Contact Probe delivers the performance you need. Contact our technical team for application guidance. We'll help you select the right probe configuration.

Reach out to us at postmaster@cymicrowave.com for detailed specifications. Our experts provide technical support throughout your selection process. You'll get probes that perfectly match your testing requirements.

Experience the difference that precision engineering makes in your testing applications. Choose proven reliability for your critical measurements.
