Name: SMA RF Attenuator
SKU: N/A

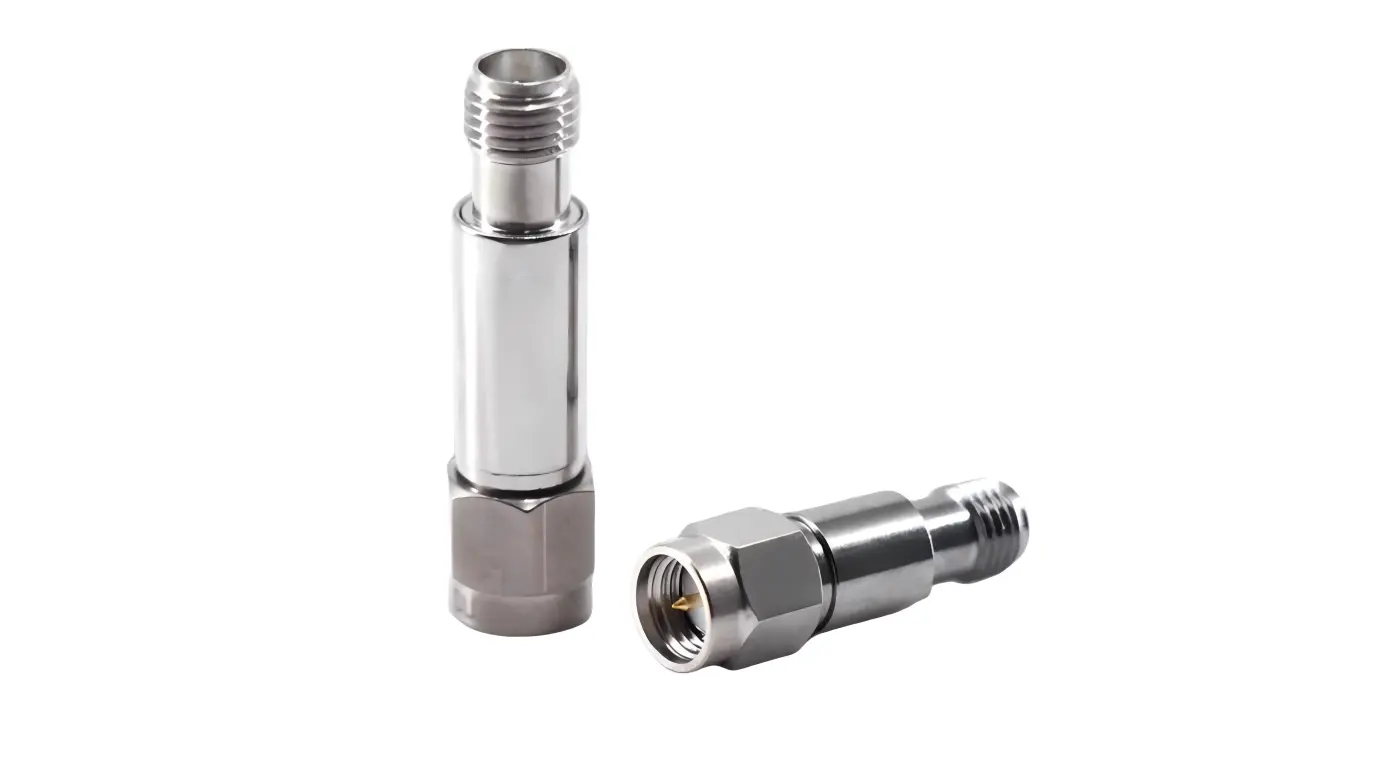

SMA RF Attenuator

1. SMA connector RF attenuator, designed to reduce the power of RF signals and widely used in communications, radar, and other RF systems.
2. Attenuation value (e.g., 1dB-40dB, etc.), power handling capacity 2W.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 18GHz
5. VSWR: 1.25:1 to 18GHz typical
6. Power: 2W
7. Attenuation value: 40dB
8. Attenuation accuracy: ±0.5dB
9. Temperature range: -55°C to 125°C

SMA RF Attenuator - High-Performance Signal Control Solution

When you need precise signal control in your RF applications, our SMA RF Attenuator delivers exceptional performance and reliability. This professional-grade attenuator highlights SMA connectors and is particularly planned to decrease RF flag control with exceptional exactness. Whether in communications, radar frameworks, or RF applications, this item offers exact flag constriction, steady execution over a wide recurrence run, and amazing impedance coordinating for basic applications.

product-1-1

Why Select Our RF Attenuators?

Our RF attenuators stand out in the advertise due to prevalent designing and quality development. You get dependable flag control with negligible addition misfortune and uncommon temperature soundness. The vigorous plan handles requesting situations whereas conveying reliable performance.

product-1-1

Key Benefits You'll Experience

Precise Flag Control: Accomplish precise constriction with ±0.5dB exactness over the whole recurrence run, guaranteeing solid estimations and flag processing.

Wide Recurrence Scope: Utilize this attenuator from DC to 18GHz over different applications, with a broadband plan that kills the require for different specialized components.

Excellent Control Taking care of: With 2W control capacity and a warm plan, this attenuator guarantees steady operation in direct to high-power applications, indeed beneath nonstop use.

Temperature Strength: Working from -55°C to 125°C, this attenuator is appropriate for extraordinary situations, counting aviation and defense applications, with a military-grade temperature range.

Technical Specifications

Parameter	Specification

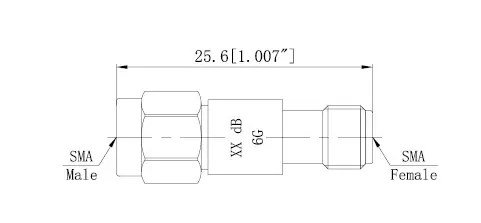

Product Name	SMAJKS-18-2W-40dB Attenuator
Impedance	50 Ohms nominal
Frequency Range	DC to 18 GHz
VSWR	1.25:1 to 18GHz typical
Attenuation Value	40dB
Attenuation Accuracy	±0.5dB
Power Rating	2W
Temperature Range	-55°C to 125°C
Housing Material	Stainless steel Passivated
Center Contacts	Beryllium copper gold
Insulators	PEI
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m-1.13N·m

Superior Construction Materials

Our SMA RF Attenuator features stainless steel housing for corrosion resistance and mechanical strength, with gold-plated beryllium copper contacts ensuring reliable electrical connections over thousands of mating cycles.

The PEI insulator material offers exceptional dielectric properties and temperature stability. This combination of materials ensures your attenuator maintains its electrical characteristics throughout its service life.

Environmental Compliance

Your applications often demand equipment that withstands harsh conditions. Our attenuators meet stringent military standards:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

These certifications ensure you can rely on consistent performance in demanding environments.

Applications Across Industries

Communications Systems: You can use our attenuators for signal level adjustment in base stations, repeaters, and test equipment. The precise attenuation helps optimize system performance and prevents receiver overload.

Radar Applications: In radar systems, you need accurate signal control for calibration and testing. Our attenuators provide the stability and precision required for critical measurements.

Test and Measurement: Laboratory environments demand reliable components. You get consistent results when using our attenuators for equipment calibration and signal conditioning.

Military and Aviation: The tough development and military-standard compliance make these attenuators perfect for defense applications where unwavering quality is paramount.

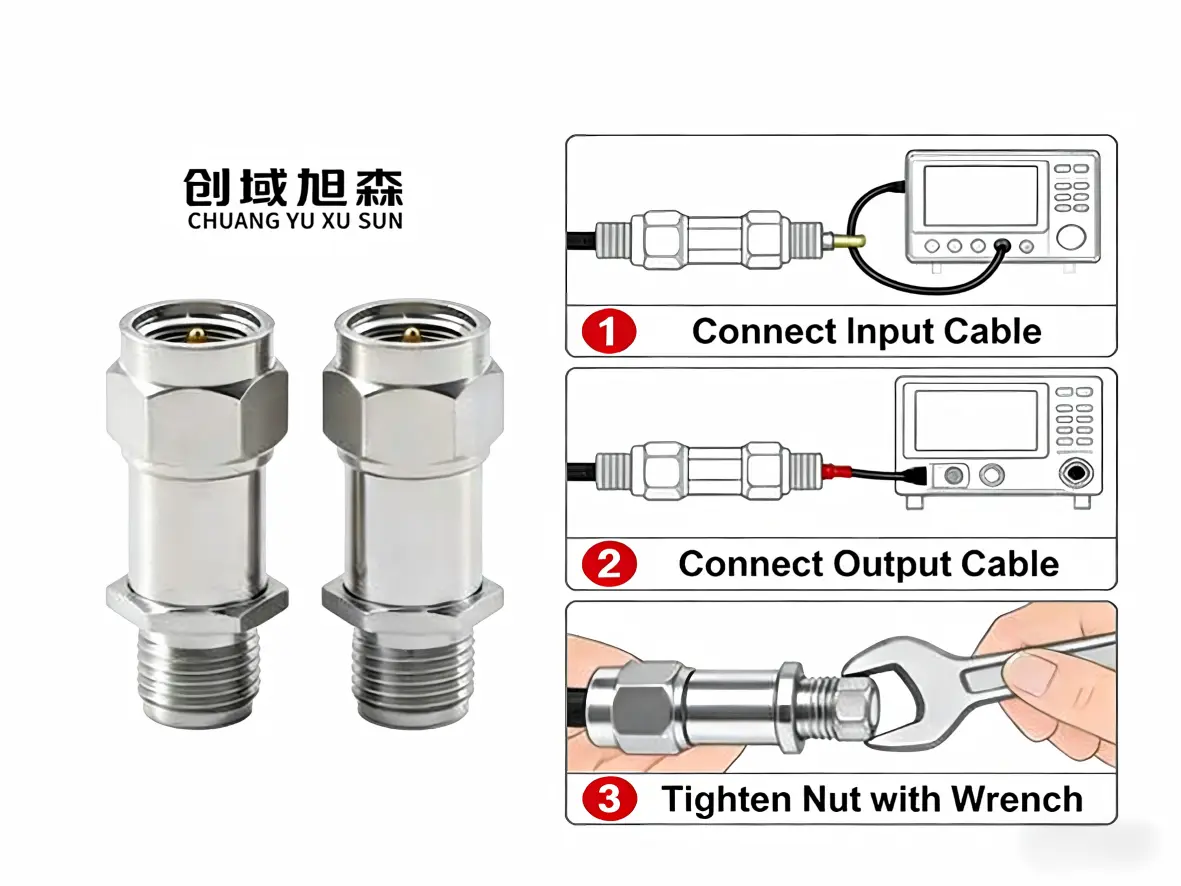

Installation and Utilization Tips

Installing your item is straightforward. Ensure proper torque settings (0.79N·m-1.13N·m) during installation to maintain optimal electrical performance. Regular inspections help sustain long-term reliability, ensuring continued efficiency and effectiveness over time.

product-1-1

About Shaanxi Chuangyu Electronic Technology

Located in Chang'an Innovation and Technology Industrial Park, Xi'an, we specialize in precision electrical connectors and RF components. Our expertise spans millimeter wave technology up to 110GHz, with over 200 connector specifications and 400 cable assembly variants.

We focus on import substitution and achieving international quality standards. Our products serve new energy, photovoltaic, medical, communications, military, and automation industries.

product-1-1

Get Your Product Today

Ready to enhance your RF system performance? Contact us at postmaster@cymicrowave.com to discuss your specific requirements. We provide technical support and can customize solutions for your unique applications.

Our engineering team stands ready to help you select the right SMA RF Attenuator for your needs. Whether you need different attenuation values or specific environmental requirements, we can provide tailored solutions that meet your exact specifications.
