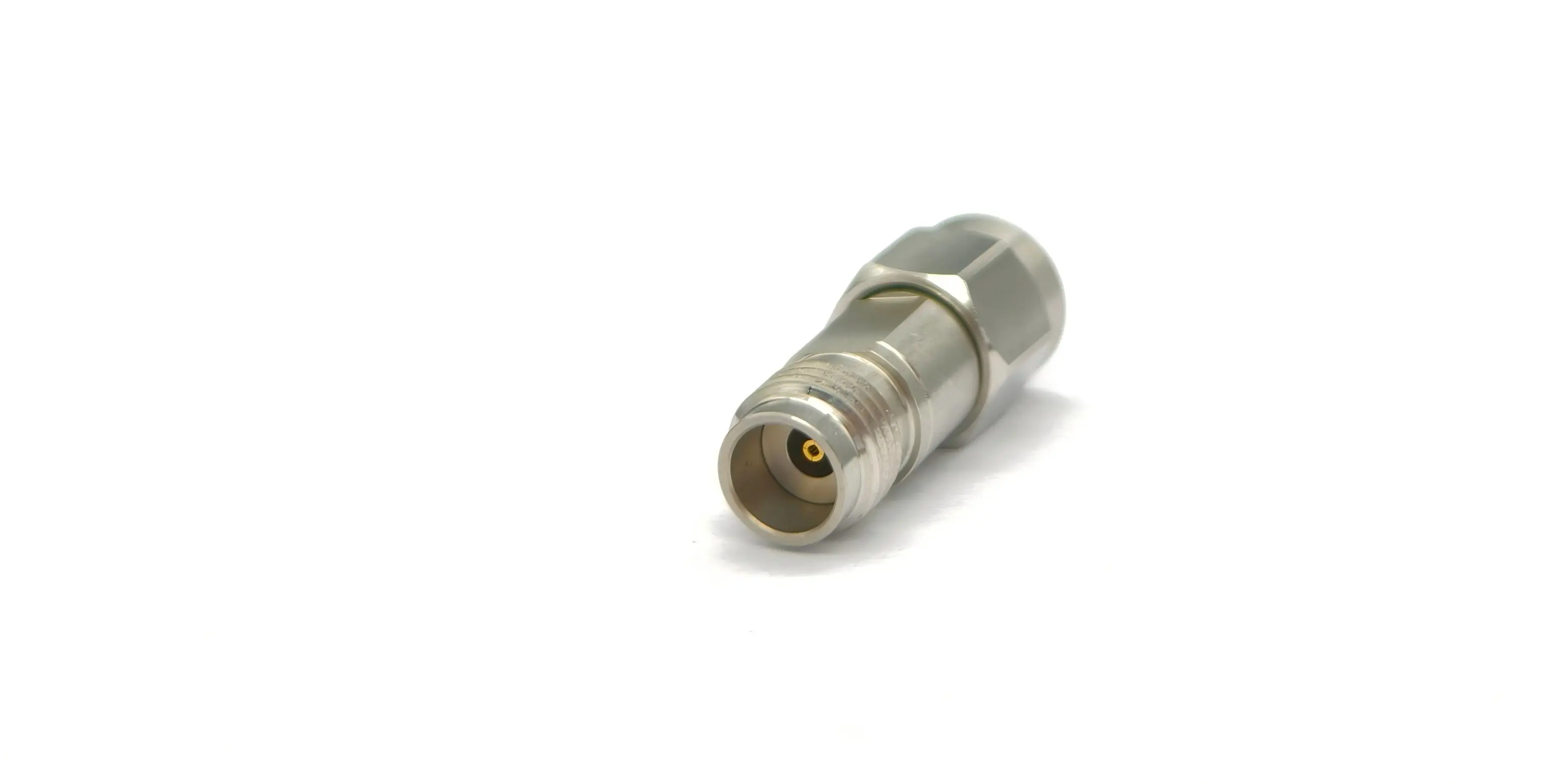

When you need reliable signal transmission between different RF interfaces, our Coaxial Adapter 2.4 Female To SMA Male delivers exceptional performance. This exactness connector interfaces 2.4mm female connectors to SMA male interfacing consistently. Whether you're working on millimeter-wave communication ventures or conducting basic test estimations, this connector guarantees ideal flag keenness. Your RF framework requests components that keep up flag quality whereas giving flexible network choices for different applications.
Our coaxial connector highlights a 2.4mm female connector on one conclusion and an SMA male connector on the other. This plan empowers easy flag transmission change between diverse interface sorts in RF and microwave systems.
The connector underpins an amazing DC to 27GHz recurrence run, making it appropriate for requesting high-frequency applications. You'll appreciate the strong stainless steel development that gives toughness and solid execution in challenging environments.
This connector keeps up 50-ohm impedance, negligible inclusion misfortune (.05√f), and moo VSWR (1.15:1 to 27GHz), guaranteeing amazing flag quality and decreased control misfortune in RF chains.
We utilize premium materials: stainless steel for strength, beryllium copper for conductivity, and PEI/PTFE insulin for fabulous dielectric properties, guaranteeing steady execution in shifting conditions.
This adapter operates reliably from -55°C to 125°C, making it ideal for both laboratory and field applications.The Coaxial Adapter 2.4 Female To SMA Male withstands up to 500 mate/demate cycles, ensuring long service life in frequently connected systems.
| Parameter | Specification |
|---|---|
| General Specifications | |
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 27GHz |
| Temperature Range | -55°C to 125°C |
| Electrical Performance | |
| VSWR | 1.15:1 to 27GHz typical |
| Insertion Loss | .05 √f (GHz) |
| DWV @ Sea Level | 1000 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
| Contact Resistance (Outer) | 2.5 milliohms maximum |
| Contact Resistance (Inner) | 4 milliohms maximum |
| Materials | |
| Housing | Stainless Steel Passivated |
| Center Contacts | Beryllium Copper Gold |
| Insulators | PEI & PTFE |
| Mechanical Data | |
| Mate/Demate Cycles | 500 cycles |
| Engagement Force | ≥0.23N.m |
| Connection Torque | 0.79N·m - 1.13N·m |
| Withstand Torque | 1.69N·m |
This adapter excels in 5G, satellite communication, and wireless backhaul applications, maintaining signal integrity at high frequencies.
Laboratory environments demand reliable, repeatable connections. The adapter provides consistent performance for network analyzers, spectrum analyzers, and other precision test equipment.
Our adapter meets MIL-STD-202 standards for thermal shock, salt spray, vibration, shock, and moisture resistance, ideal for military and aerospace systems.
At Shaanxi Chuangyu Electronic Technology Co., Ltd., we maintain strict production process management and use precision testing instruments. Every adapter undergoes comprehensive testing to ensure it meets our high standards.
Our digital manufacturing approach ensures consistent quality from design through production to final testing. You receive products that deliver reliable performance throughout their service life.
Located in Xi'an, we specialize in precision connectors and RF cable assemblies, with expertise up to 110GHz.
We offer over 200 details of millimeter-wave connectors and more than 400 determinations of cable gatherings. This broad portfolio guarantees we can meet your differing network requirements.
We offer custom plan and fabricating administrations, working with you to make arrangements for non-standard application needs.
Ready to enhance your RF system performance? Our Coaxial Adapter 2.4 Female To SMA Male provides the reliable connectivity solution you need. Whether you're building next-generation communication systems or conducting precision measurements, this adapter delivers consistent performance.
Contact our technical team at postmaster@cymicrowave.com for detailed specifications, custom configurations, or application support. We're here to help you select the right components for your projects and ensure optimal system performance.
