Name: SMA Female To BNC Male Adapter
SKU: N/A

SMA Female To BNC Male Adapter

1.SMA female to BNC male adapter, used to connect devices or cables with SMA interface (female) and BNC interface (male), achieving conversion between different interface types.
2.Impedance: 50 Ohms nominal
3.VSWR: 1.15:1 to 6GHz typical
4.Insertion loss: .04√f (GHz)
5.Temperature range: -55°C to 125°C

SMA Female To BNC Male Adapter - High-Quality RF Coaxial Connector Solution

Looking for a reliable connection between SMA and BNC interfaces? Our SMA Female To BNC Male Adapter provides the perfect solution for your RF connectivity needs. This precision-engineered connector consistently interfaces gadgets or cables with SMA female interfacing to BNC male interfacing. With 50-ohm impedance and predominant flag astuteness, this connector guarantees steady, low-loss associations over a wide recurrence range.

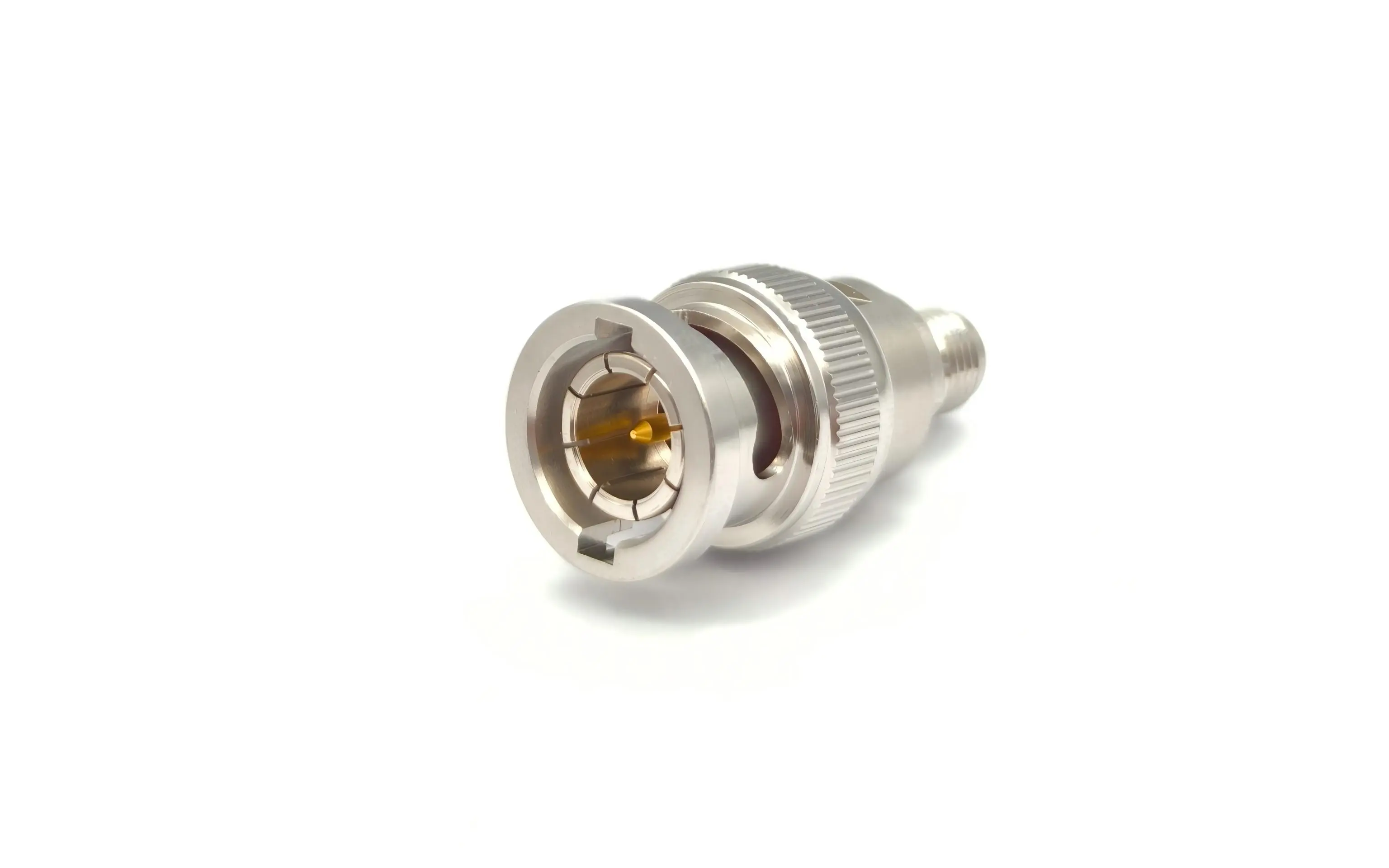

SMA female to BNC male adapter

What Makes Our RF Connector Stand Out?

Our connector guarantees solid RF associations with negligible flag misfortune. Brass development with gold plating offers solidness and conductivity, whereas PTFE cover decreases impedances, keeping up precise estimations over the recurrence spectrum.

Perfect for Multiple Applications

This versatile connector works beautifully in various scenarios:

Laboratory test setups and measurement equipment
Telecommunications infrastructure projects
Antenna system installations
Network analyzer connections
Signal generator interfaces
Prototype development and testing

You can trust this adapter in demanding environments. The wide temperature range makes it suitable for both indoor and outdoor applications.

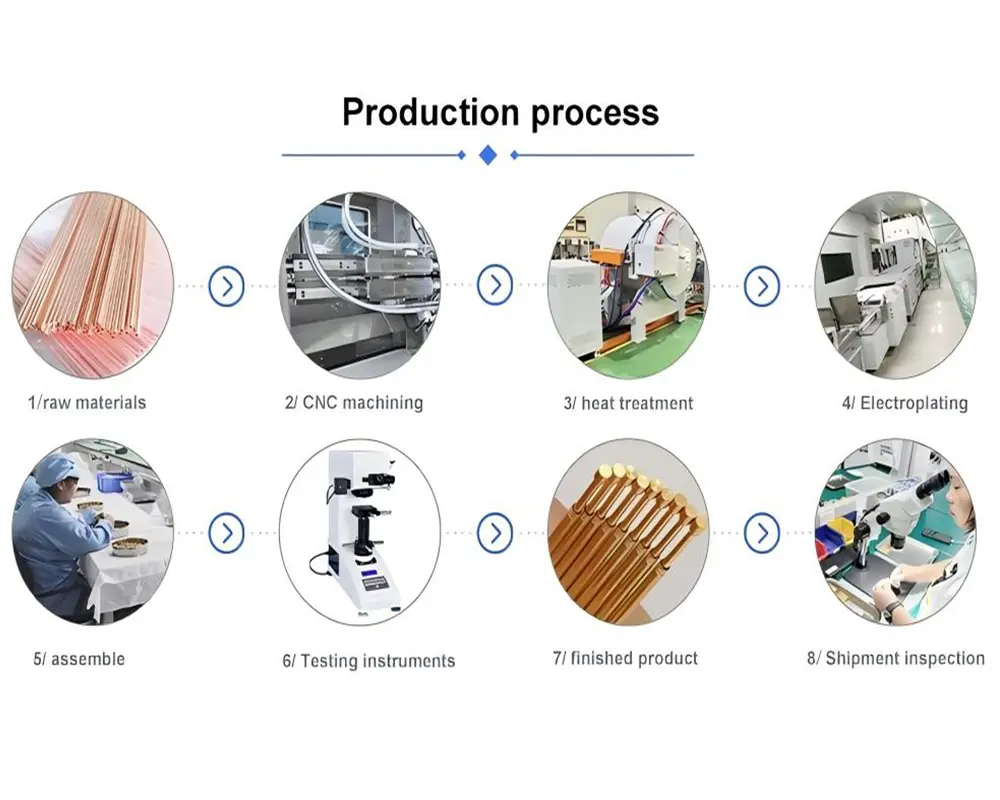

SMA female to BNC male adapter manufacturing process

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 6GHz
VSWR	1.15:1 to 6GHz typical
Insertion Loss	.04√f (GHz)
Temperature Range	-55°C to 125°C
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Outer Conductor Resistance	3 milliohms maximum
Inner Conductor Resistance	6 milliohms maximum
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.23N.m
Connection Torque	0.79N·m-1.13N·m

Premium Materials and ConstructionHousing Materials

Our brass-plated ternary alloy housings offer strong mechanical strength and corrosion resistance for long-term reliability in harsh environments.

Contact System

The beryllium copper gold-plated center contacts in the SMA Female To BNC Male Adapter ensure optimal conductivity and prevent oxidation, maintaining stable connections over thousands of cycles.

Insulation

PTFE (Polytetrafluoroethylene) insulation delivers exceptional dielectric properties. This high-performance material maintains consistent electrical characteristics across temperature variations.

Environmental Reliability

Your equipment operates in real-world conditions. Our adapter undergoes rigorous environmental testing to ensure dependable performance:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

These tests simulate extreme conditions your adapter might encounter. From temperature cycling to mechanical stress, you can count on consistent performance.

Easy Installation and Use

Installation takes fair seconds. Essentially interface the SMA female conclusion to your SMA male connector. At that point connect your BNC female cable or gadget to the BNC male conclusion. The pike coupling component guarantees secure, repeatable connections.

No extraordinary devices are required for most establishments. The adapter's compact plan fits into tight spaces where bigger connectors won't work.

Quality You Can Trust

At Shaanxi Chuangyu Electronic Innovation, we get it the significance of dependable RF associations. Our fabricating prepare incorporates strict quality control at each step. From fabric choice to last testing, each item meets our demanding standards.

We utilize exactness testing rebellious to confirm electrical execution. Each connector experiences review some time recently bundling. This consideration to detail guarantees you get a item that performs as specified.

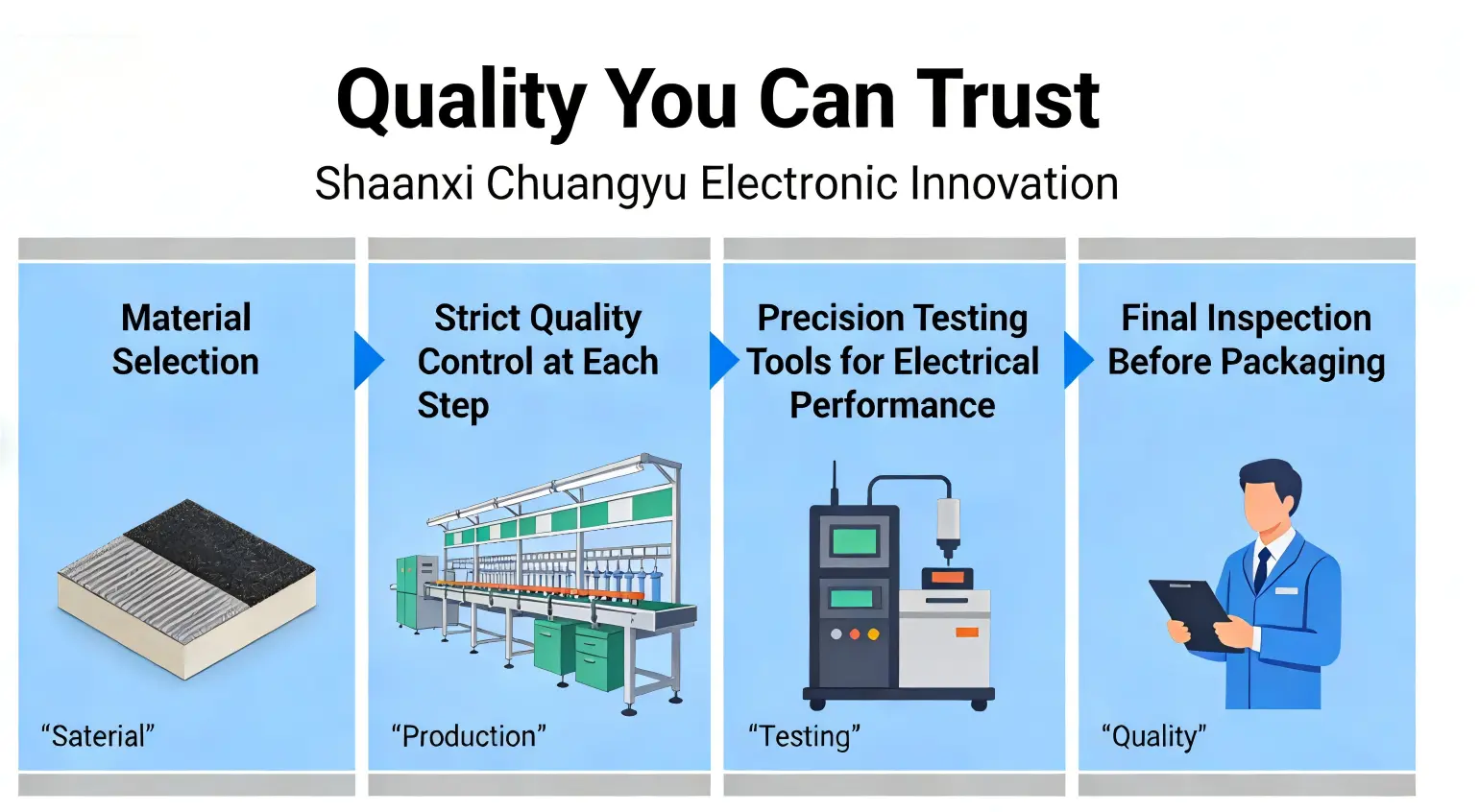

SMA female to BNC male adapter quality

Why Select Our Adapter?

You have numerous alternatives for RF connectors. Here's why experts select our solution:

Superior Electrical Execution: VSWR and addition misfortune keep up flag astuteness over the whole recurrence range.

Robust Development: Premium materials and accuracy fabricating guarantee long benefit life.

Wide Compatibility: Works with standard SMA and BNC interfacing from all major manufacturers.

Competitive Estimating: Get professional-grade execution without the premium cost tag.

Expert Bolster: Our specialized group gives application help when you require it.

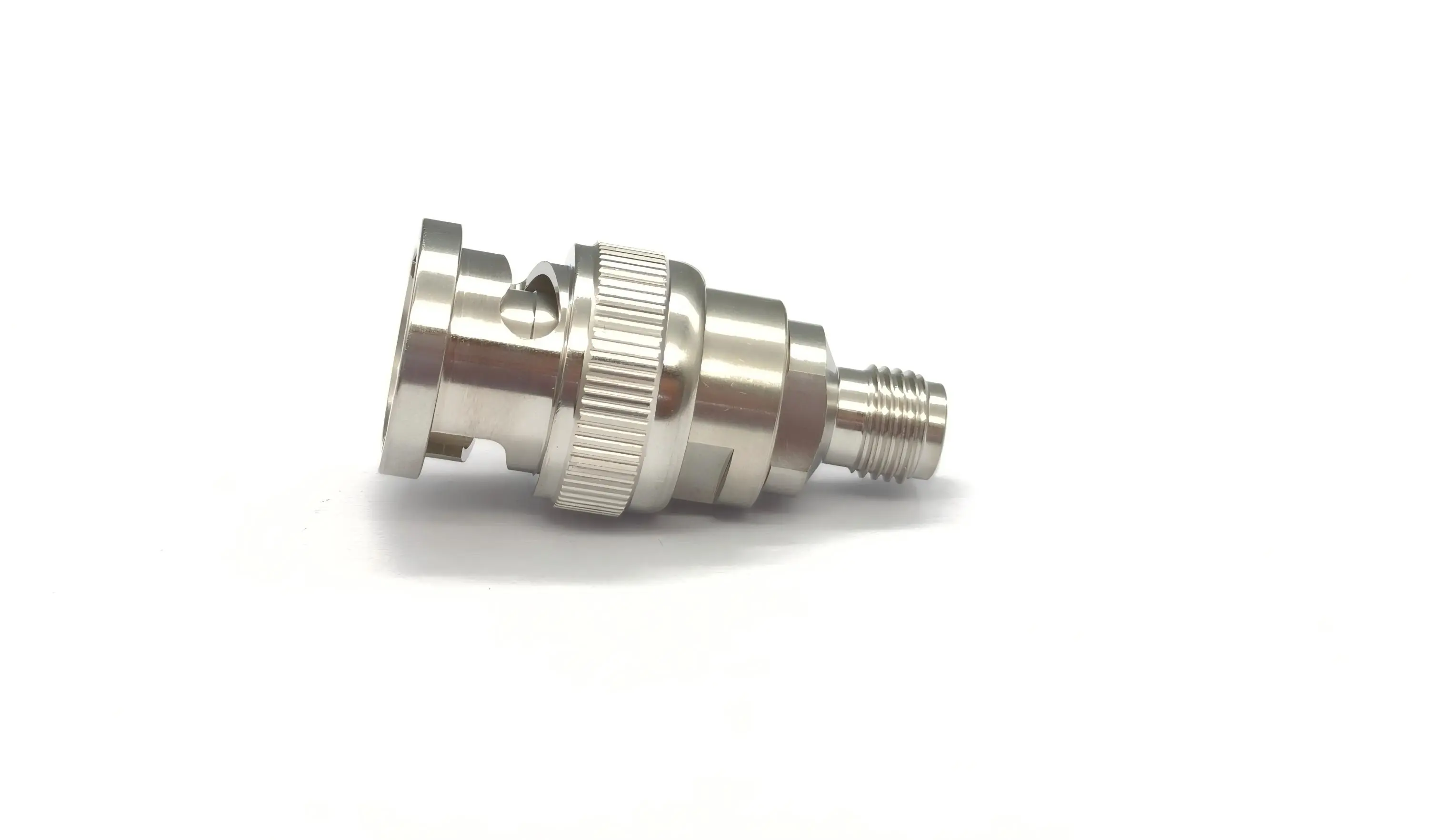

SMA female to BNC male adapter manufacturing process

Get Started Today

Ready to experience reliable RF connectivity? Our SMA Female To BNC Male Adapter provides the performance and durability you need for your most demanding applications. Whether you're building test setups, maintaining communication systems, or developing new products, this adapter delivers consistent results.

Contact our team at postmaster@cymicrowave.com for technical specifications, volume pricing, or custom solutions. We're here to help you find the perfect connectivity solution for your specific requirements.

Experience the difference that quality engineering makes in your RF connections.
