Name: SMA Male To GPPO Female Adapter
SKU: N/A

SMA Male To GPPO Female Adapter

1. SMA male to GPPO female adapter, used to connect different types of RF interfaces. It converts the SMA male interface to a GPPO (SSMP) female interface, allowing signal transmission between different RF systems.
2. Impedance: 50 Ohms nominal
3. VSWR: 1.2:1 to 18GHz typical
4. Insertion loss: .12√f (GHz)
5. Temperature range: -55°C to 125°C

SMA Male To GPPO Female Adapter - High-Performance RF Connectivity Solution

Are you looking for a reliable RF adapter that seamlessly connects different interface types? Our SMA Male To GPPO Female Adapter provides the perfect solution for your RF connectivity needs. This precision-engineered adapter converts SMA male interfaces to GPPO (SSMP) female interfaces, enabling smooth signal transmission between various RF systems. This adapter ensures exceptional performance up to 18GHz, with robust construction for reliable connections in telecommunications, medical, and testing applications.

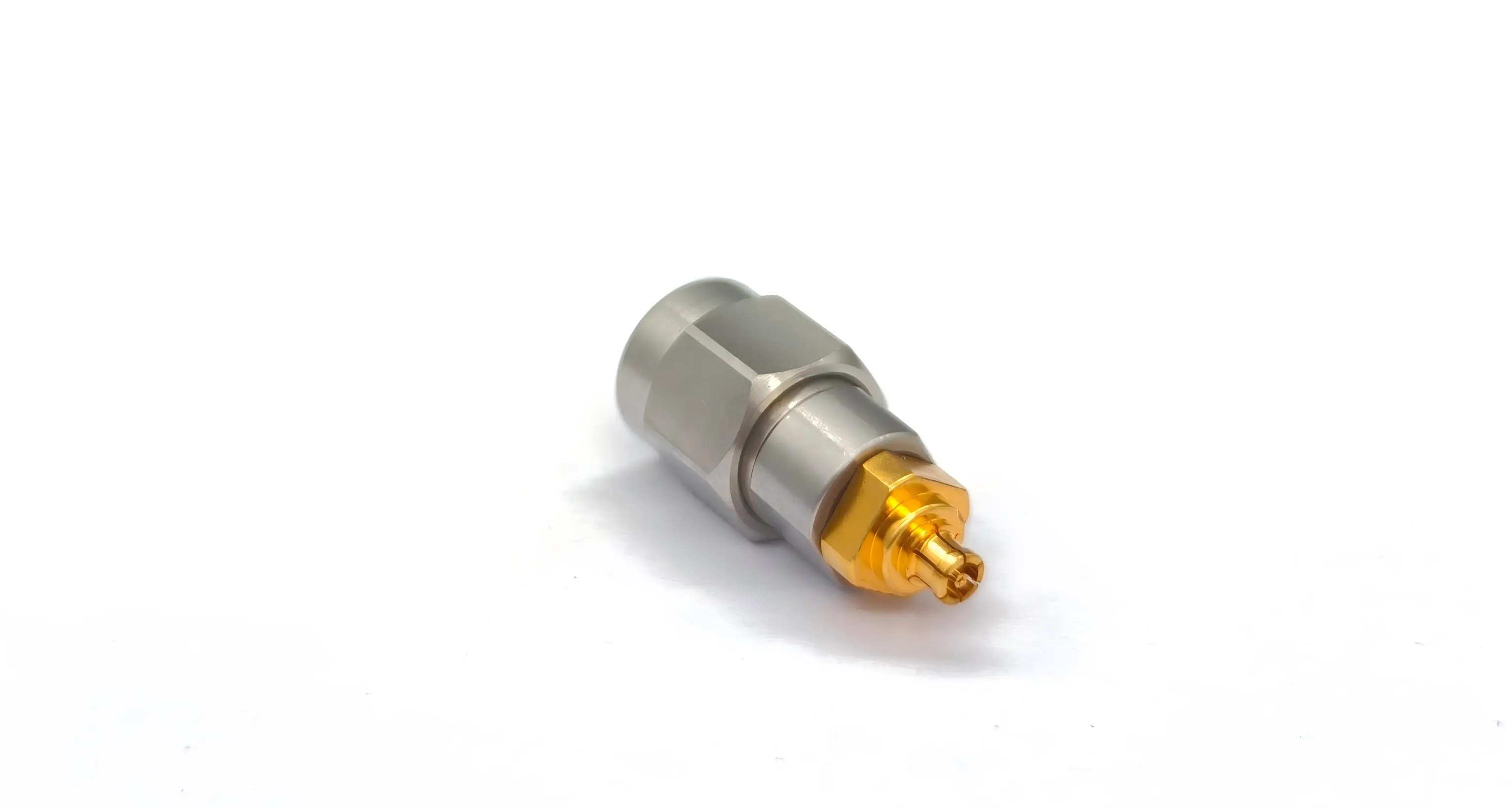

SMA male to GPPO female adapter

Why Choose Our RF Adapter Solutions?

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we get it that dependable RF associations are basic to your victory. Our connectors experience thorough testing, highlighting beryllium copper contacts and stainless steel lodgings for strength. Exactness fabricating and strict quality control guarantee reliable execution over wide temperature ranges for your basic projects.

SMA male to GPPO female adapter

Technical Specifications

Category	Parameter	Value
General	Impedance	50 Ohms nominal
	Frequency Range	DC to 18GHz
	Temperature Range	-55°C to 125°C
Electrical	VSWR	1.2:1 to 18GHz typical
	Insertion Loss	.12√f (GHz)
	DWV @ Sea Level	500 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	3 milliohms maximum
	Contact Resistance (Inner)	6 milliohms maximum
Materials	Housings	Stainless Steel & Beryllium Copper Gold
	Center Contacts	Beryllium Copper Gold
	Insulators	PEI
Mechanical	SMA Port Cycles	500 cycles
	GPPO Port Cycles	FD: 100 min / SB: 500 min
	SMA Engagement Force	≤0.23N.m
	Connection Torque	0.79N·m - 1.13N·m
	Withstand Torque	1.69N·m

Key Features and Benefits

Superior Material Construction

Our beryllium copper adapter offers excellent conductivity, longevity, and corrosion resistance, maintaining signal integrity over thousands of connection cycles.

Wide Frequency Coverage

This SMA Male To GPPO Female Adapter handles broadband applications from DC to 18GHz, ensuring consistent performance across cellular, Wi-Fi, and specialized RF frequencies.

Exceptional Electrical Performance

Low inclusion misfortune and amazing VSWR characteristics cruel negligible flag debasement. Your estimations remain precise, and your frameworks perform at their crest efficiency.

Robust Natural Tolerance

Operating temperatures from -55°C to 125°C make this connector reasonable for both research facility and field applications. It meets rigid military benchmarks for warm stun, vibration, and dampness resistance.

Key Features and Advantages of SMA Male to GPPO Female Adapter

Applications and Use Cases

Test and Measurement

Laboratory environments demand precision. Our adapters help you create reliable test setups when connecting instruments with different connector types. The low insertion loss preserves measurement accuracy.

Telecommunications Infrastructure

Base stations and network equipment often require interface conversions. These adapters provide the reliability telecommunications engineers need for critical infrastructure connections.

Medical Equipment

Medical gadgets require components that meet strict unwavering quality guidelines. Our connectors experience comprehensive testing to guarantee they perform reliably in healthcare applications.

Aerospace and Defense

Military applications request components that can withstand extraordinary conditions. Our connectors meet pertinent MIL-STD details for vibration, stun, and natural introduction.

Quality Assurance and Testing

Every SMA Male To GPPO Female Adapter undergoes comprehensive testing before shipment. We verify electrical performance, mechanical specifications, and environmental compliance. Our quality management system ensures consistency across all production batches.

The testing process includes VSWR measurements, insertion loss verification, and mechanical cycling tests. Environmental testing confirms performance across the specified temperature range.

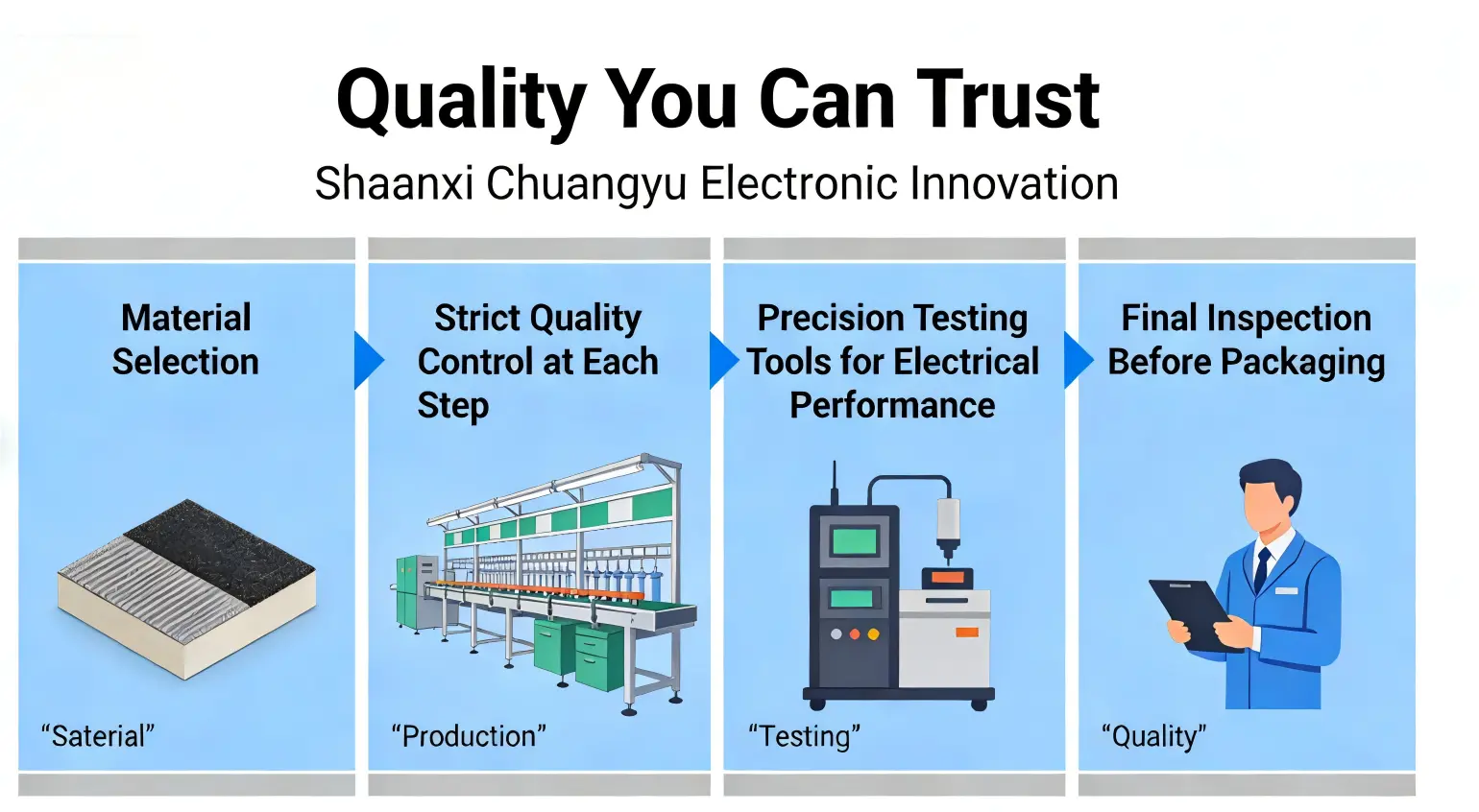

SMA male to GPPO female adapter undergoes full testing.

Installation and Usage Guidelines

Proper Connection Technique

Always use the specified torque values when connecting SMA interfaces. Over-tightening can damage the connector, while under-tightening may cause intermittent connections.

Handling Precautions

Handle adapters carefully to prevent damage to the center conductors. Store in protective packaging when not in use to maintain connector integrity.

Maintenance Recommendations

Regular inspection of connector interfaces helps identify wear before it affects performance. Clean connections periodically using appropriate solvents and tools.

Custom Solutions Available

Need modifications for your specific application? Our engineering team can develop custom variations of the standard design. We offer different plating options, cable lengths, and mechanical configurations to meet unique requirements.

Our design capabilities extend to specialized applications in new energy, photovoltaic, and automation industries. We work closely with customers to develop solutions that meet their exact specifications.

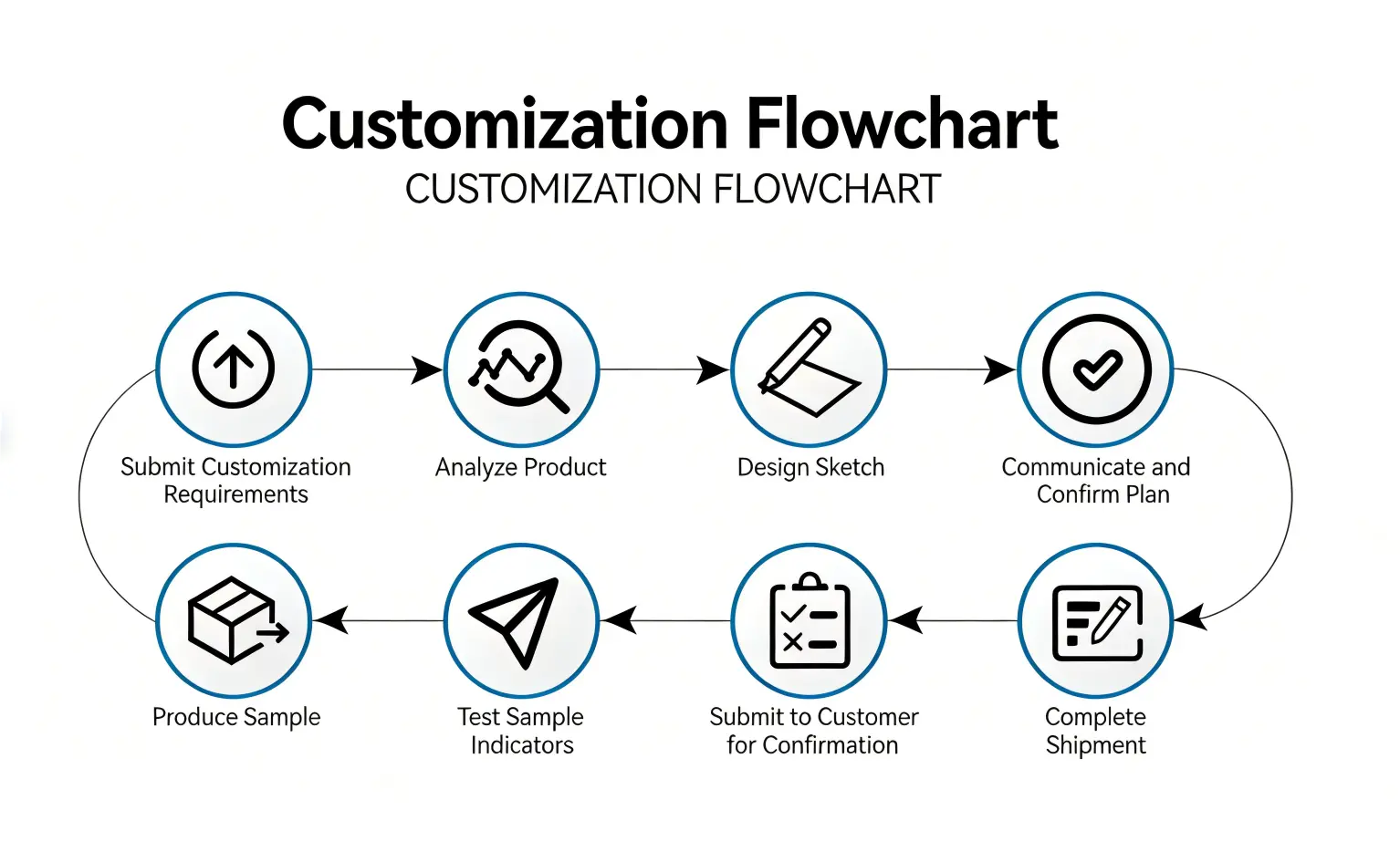

Customization process for SMA male to GPPO female adapter

Get Your Product Today

Contact our technical team for expert support in selecting the right components, whether for prototyping or large-scale production. We're here to help with your RF connectivity needs.

For pricing, technical specifications, or custom requirements, reach out to us at postmaster@cymicrowave.com. Let us help you achieve reliable RF connections with our high-quality SMA Male To GPPO Female Adapter solutions.
