Name: 2.92 Female To GPO Female Adapter
SKU: N/A

2.92 Female To GPO Female Adapter

1.2.92 female to GPO female adapter, operating frequency DC to 40GHz, impedance 50 Ohms, voltage standing wave ratio (VSWR) 1.25:1. 2.Commonly used in communication equipment and test instruments for high-frequency systems.
3.VSWR: 1.25:1 to 40GHz typical.
4.Insertion loss: .12 √f (GHz). DWV @ sea level: 500 Vrms.

2.92 Female To GPO Female Adapter - Precision RF Connection Solution

When you need reliable high-frequency connectivity for your test equipment or communication systems, the 2.92 Female To GPO Female Adapter delivers exceptional performance. This precision-engineered connector works consistently from DC to 40GHz with 50-ohm impedance and keeps up an noteworthy VSWR of 1.25:1. This connector bridges distinctive RF sorts, guaranteeing flag astuteness and dependable execution in lab, generation, and field applications.

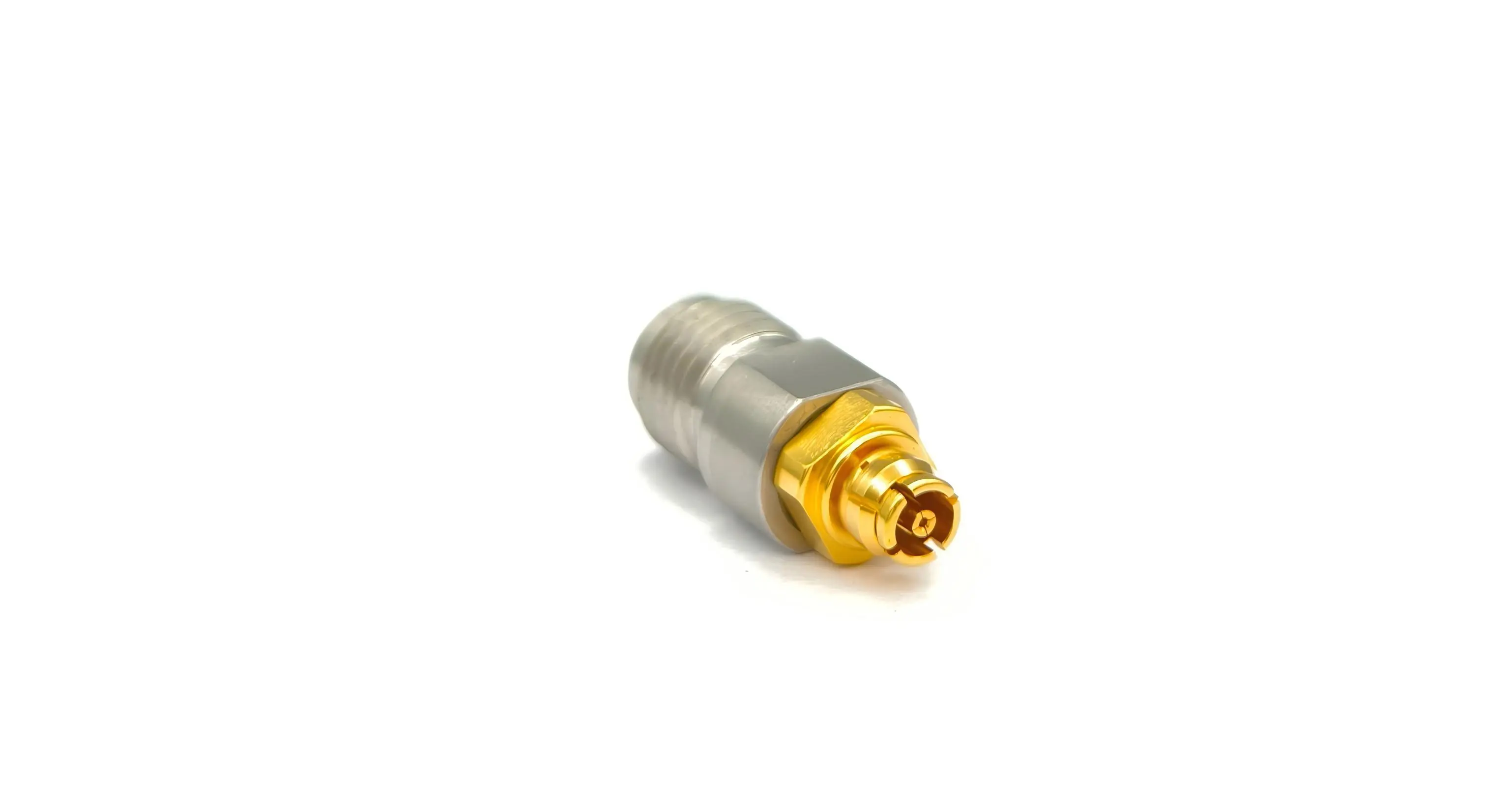

2.92mm female to GPO female adapter

Key Highlights That Set Us Apart

Our connector highlights stainless steel, beryllium copper, and gold plating for solidness and erosion resistance. PEI and PTFE cover guarantee reliable execution over the recurrence run. Working from -55°C to 125°C, it performs dependably in extraordinary temperature conditions without degradation.

The exactness fabricating handle guarantees each connector meets rigid determinations. Our quality control methods ensure steady execution from unit to unit, giving you certainty in your test comes about and framework reliability.

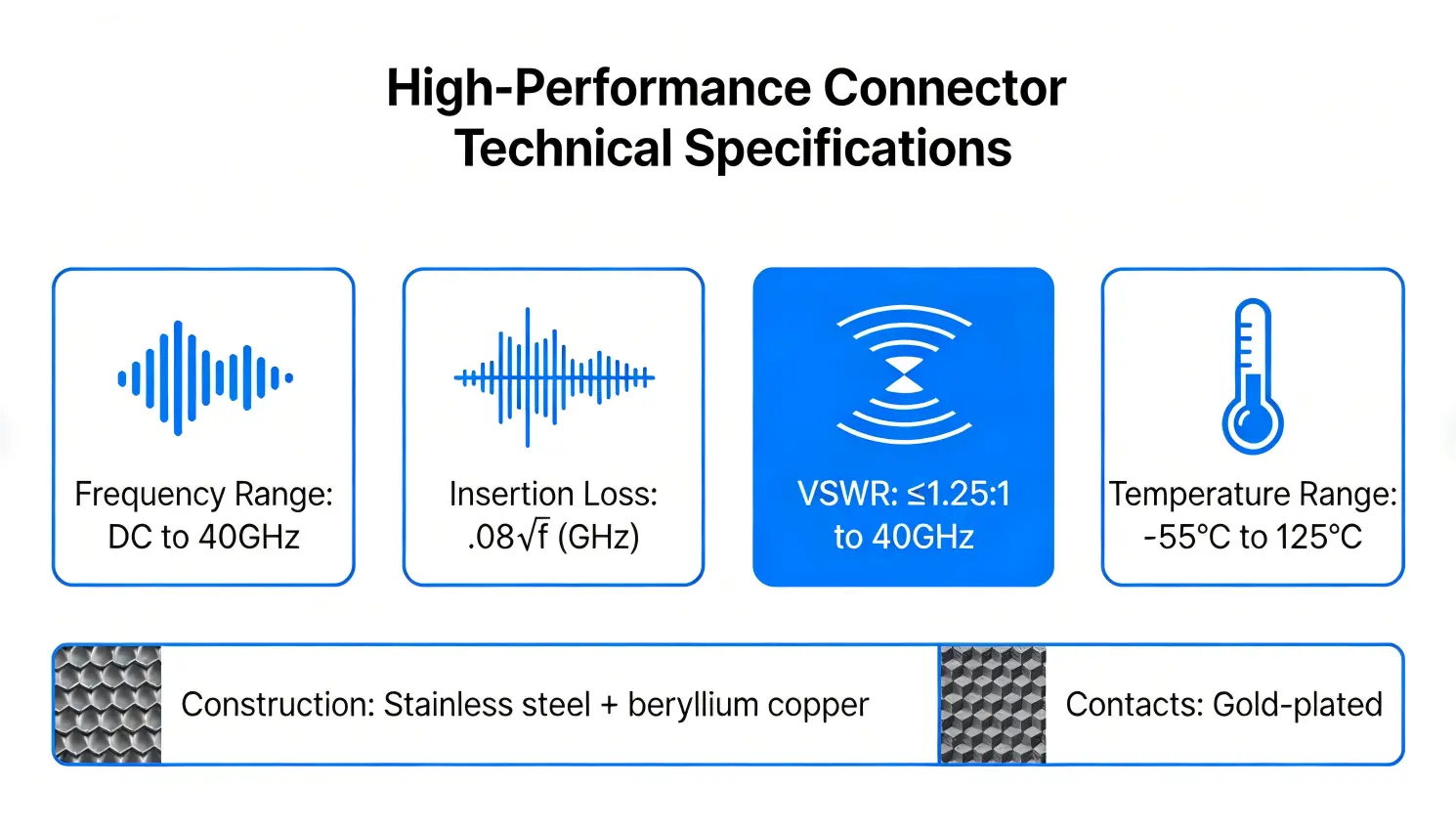

Performance advantages of the 2.92mm female to GPO female adapter

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.25:1 to 40GHz typical
Insertion Loss	.12 √f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housings	Stainless steel passivated & Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PEI & PTFE
Mechanical Properties
Mate/Demate Cycles	2.92 Port: 500 cycles; GPO Port: varies by type
Connection Torque	2.92 Port: 0.79N·m - 1.13N·m
Withstand Torque	2.92 Port: 1.69N·m

Applications and Use Cases

This adapter is essential for high-frequency applications, offering low insertion loss and excellent VSWR. It connects 2.92mm test equipment to GPO systems, ensuring compatibility. Trusted by communication manufacturers and R&D labs, it delivers stable performance across 40GHz and withstands repeated connections without degradation.

Military and aerospace applications demand the reliability this 2.92 Female To GPO Female Adapter provides. The wide temperature range and environmental compliance make it suitable for harsh operating conditions.

2.92mm Female to GPO Female Adapter Customization Service

Why Choose Shaanxi Chuangyu Electronic Technology

We specialize in precision RF connectors, with over 200 millimeter wave specifications. Our Xi'an facility ensures strict quality control, with comprehensive testing for electrical, mechanical, and environmental compliance before shipment, guaranteeing products that meet or exceed specifications.

Customer support is integral to our service. Our technical team provides application assistance and helps you select the right connector for your specific requirements. We understand the challenges you face in high-frequency applications and offer solutions that work.

2.92mm Female to GPO Female Adapter Customization Service

Quality and Reliability Standards

Environmental testing ensures your adapter performs reliably under real-world conditions. We conduct thermal shock testing per MIL-STD-202 Method 107 Condition B. Salt spray testing follows MIL-STD-202 Method 101 Condition B to verify corrosion resistance.

Vibration and stun testing approve mechanical astuteness. The connector withstands MIL-STD-202 Strategy 204 Condition D vibration and Strategy 213 Condition I stun necessities. Dampness resistance testing guarantees dependable operation in muggy environments.

2.92mm Female to GPO Female Adapter Quality Standards

Installation and Utilization Guidelines

Proper establishment guarantees ideal execution and life span. Utilize the indicated torque values when making associations. Over-tightening can harm the connector, whereas under-tightening may cause destitute electrical contact.

Handle the connector carefully to maintain a strategic distance from harm to the precision-machined surfaces. Store in defensive bundling when not in utilize to avoid defilement of the contact surfaces.Regular review makes a difference keep up top execution. Check for signs of wear or harm some time recently each utilize, particularly in high-cycle applications.

2.92mm Female to GPO Female Adapter Installation Precautions

Get Your High-Performance Adapter Today

Experience superior RF connectivity with our product's wide frequency range, low VSWR, and robust construction. Contact us to discuss your requirements or place an order.Our team stands ready to provide technical support and ensure you get the right solution for your needs. Email us at postmaster@cymicrowave.com for pricing, availability, and technical assistance.

Your success depends on reliable connections. Trust Shaanxi Chuangyu Electronic Technology to deliver the quality and performance you need in every 2.92 Female To GPO Female Adapter.
