Name: 2.4 Male To 2.92 Female Adapter
SKU: N/A

2.4 Male To 2.92 Female Adapter

1.2.4 male to 2.92 female adapter, used for connecting RF equipment with different interface types. One end is a 2.4mm male connector (male), and the other end is a 2.92mm female connector (female).
2. Typically used for RF links requiring interface conversion, such as instrument connections, equipment interconnections, etc.
3.Impedance: 50 Ohms nominal
4.VSWR: 1.15:1 to 40GHz typical
5.Insertion loss: .04√f (GHz)
6.Temperature range: -55°C to 125°C

2.4 Male To 2.92 Female Adapter - High-Precision RF Connector Solution

Looking for a reliable interface conversion solution for your RF equipment? Our 2.4 Male To 2.92 Female Adapter delivers exceptional performance across DC to 40GHz frequency range. This precision-engineered connector consistently interfaces RF gadgets with distinctive interface sorts, including a 2.4mm male connector on one conclusion and a 2.92mm female connector on the other. Whether you're working on instrument associations, hardware interconnects, or high-frequency testing applications, this connector guarantees steady flag transmission with negligible misfortune. Built with premium materials and strict quality control, it meets requesting proficient requirements.

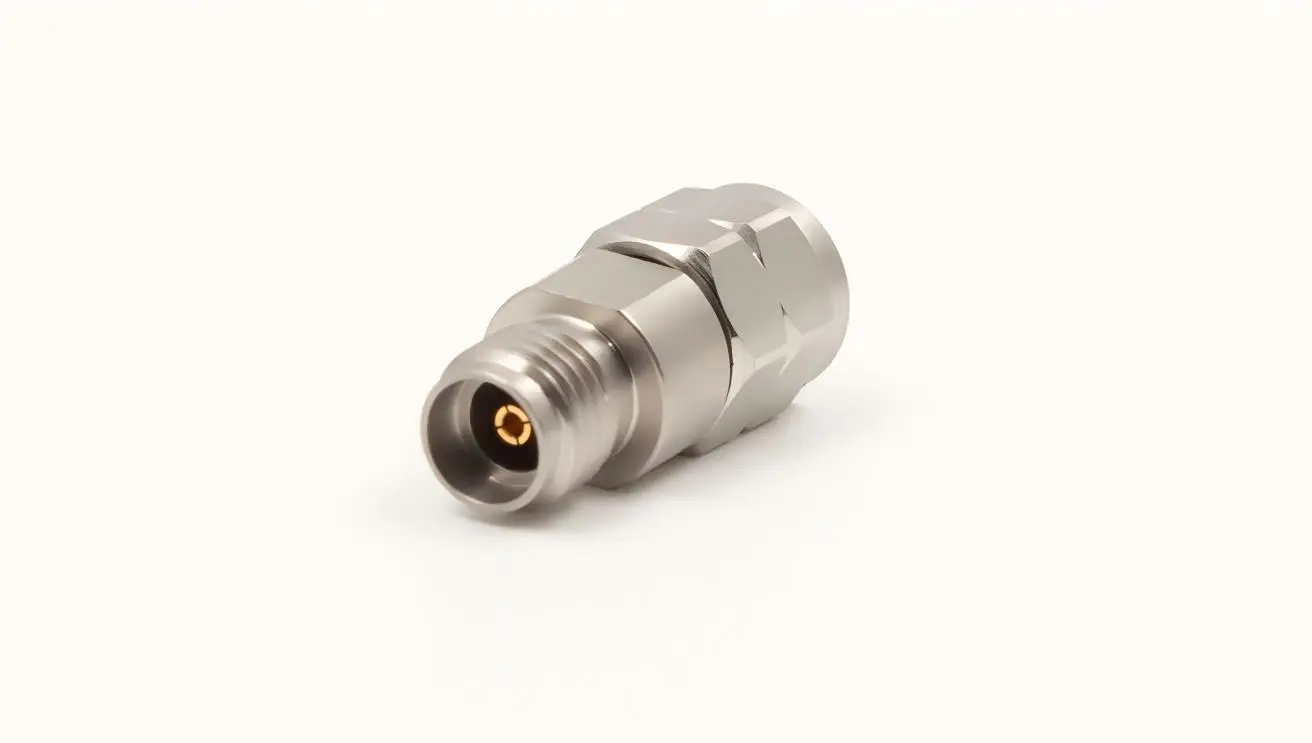

2.4mm male to 2.92mm female adapter

What Makes Our RF Connector Special?

Superior Execution Specifications

Our connector underpins DC to 40GHz, with 1.15:1 VSWR and moo inclusion misfortune, guaranteeing exact flag judgment for RF testing.

Robust Development Materials

Premium materials, counting stainless steel, beryllium copper, and PEI insulin, guarantee strength, conductivity, and amazing dielectric properties over the recurrence range.

Wide Temperature Operation

This connector works immaculately from -55°C to 125°C, making it perfect for lab, field testing, and mechanical applications with temperature variations.

Features of the 2.4mm male to 2.92mm female adapter

Technical Excellence in Every Detail

Precision Engineering

Our manufacturing process ensures consistent quality and performance. Each 2.4 Male To 2.92 Female Adapter undergoes rigorous testing to verify electrical and mechanical specifications. The 50-ohm nominal impedance matches standard RF systems, ensuring seamless integration with your existing equipment.

Electrical Performance

With moo contact resistance (2.5mΩ external, 3mΩ inward), this connector guarantees negligible flag debasement and exact measurements.

Mechanical Reliability

Built to withstand rehashed utilize, our connector bolsters up to 500 mate/demate cycles. The engagement and separation constrain determinations guarantee secure associations whereas remaining simple to handle amid visit testing scenarios.

Technical advantages of the 2.4mm male to 2.92mm female adapter

Complete Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
VSWR	1.15:1 to 40GHz typical
Insertion Loss	.04√f (GHz)
Temperature Range	-55°C to 125°C
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Outer Conductor Resistance	2.5 milliohms maximum
Inner Conductor Resistance	3 milliohms maximum
Mate/Demate Cycles	500 cycles
Connection Torque	0.79N·m - 1.13N·m
Housing Material	Stainless steel passivated
Center Contact Material	Beryllium copper gold
Insulator Material	PEI

Professional Applications

Laboratory Testing

Research facilities rely on our adapters for precision measurements. The excellent VSWR and low insertion loss characteristics make them ideal for calibration setups and high-accuracy testing environments.

Communications Systems

Network equipment manufacturers use these adapters for system integration and testing. The wide frequency range supports both traditional and emerging communication standards.

Industrial Applications

Manufacturing environments benefit from the rugged construction and reliable performance. The wide temperature range and robust materials ensure consistent operation in challenging industrial conditions.

Technical advantages of the 2.4mm male to 2.92mm female adapter

Quality Assurance

Environmental Testing

Our adapters meet MIL-STD-202 standards for thermal shock, salt spray, vibration, shock, and moisture resistance, ensuring reliable performance.

Manufacturing Excellence

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, Shaanxi Province, our facility specializes in precision electrical connectors and RF components. We maintain strict production process management and use precision testing instruments throughout manufacturing.

Proven Track Record

With expertise up to 110GHz, we ensure each product meets the highest professional standards for quality and performance.

product-1-1

Why Choose Our Solution?

You require solid RF associations that won't compromise your estimations or framework execution. Our connector combines exactness designing, premium materials, and thorough quality control to convey steady comes about. Whether you're conducting research facility investigate, creating communication frameworks, or overseeing mechanical RF applications, this connector gives the unwavering quality and execution you require.

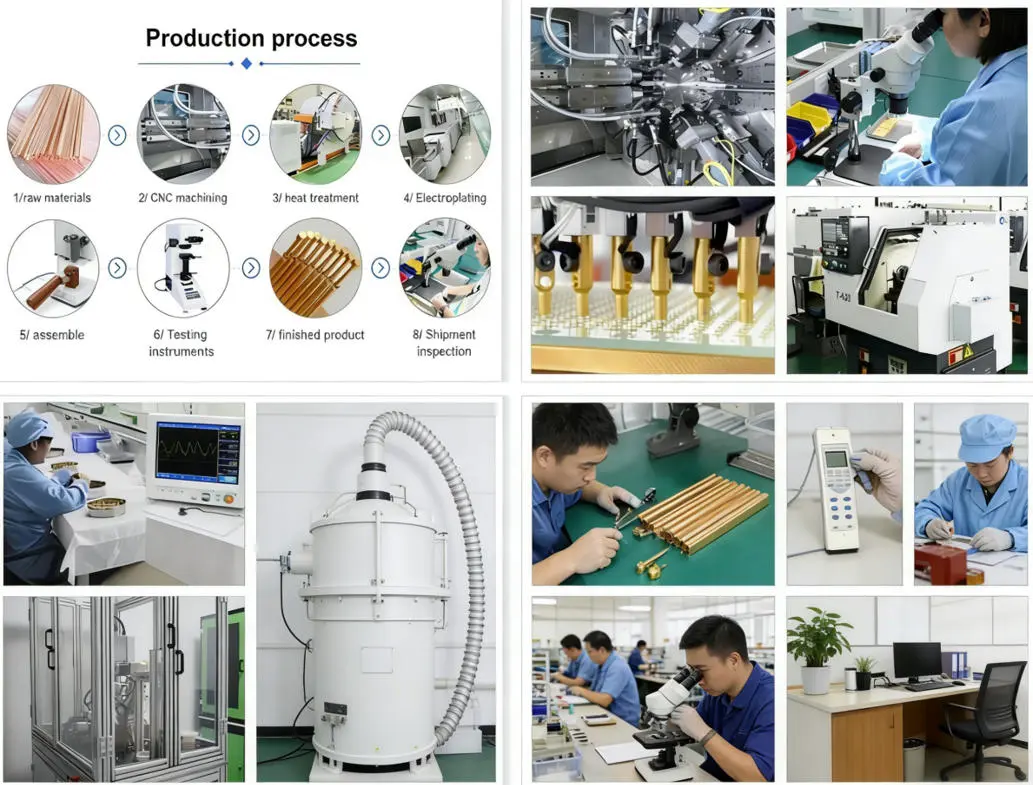

2.4mm male to 2.92mm female adapter full inspection and testing

Get Your RF Adapter Today

Ready to enhance your RF system connectivity? Contact us to discuss your specific requirements and learn how our 2.4 Male To 2.92 Female Adapter can improve your testing capabilities. Our technical team is ready to help you select the right solution for your application.

For technical inquiries and ordering information, reach out to us at postmaster@cymicrowave.com. Let us help you achieve superior RF performance with our precision-engineered connector solutions.
