Name: 2.92 Female To SMA Female Adapter
SKU: N/A

2.92 Female To SMA Female Adapter

1.2.92mm female to SMA female adapter, used for signal conversion between microwave/radio frequency equipment with different interface types.
2.Commonly used in communication equipment and test instruments for high-frequency systems.
3.Impedance: 50 Ohms nominal.
4.VSWR: 1.15:1 to 18GHz typical.
5.Insertion loss: .05√f (GHz).
6.Temperature range: -55°C to 125°C.

2.92 Female To SSMA Female Adapter - High-Performance RF Connector Solution

When you need reliable signal conversion between microwave and RF equipment with different interface types, the 2.92 Female To SMA Female Adapter delivers exceptional performance. This precision-engineered connector empowers consistent network in high-frequency frameworks, making it an fundamental component for communication gadgets and test disobedient. Built with stainless steel development and planned for DC to 18GHz operation, our connector guarantees dependable flag transmission for your most requesting applications.

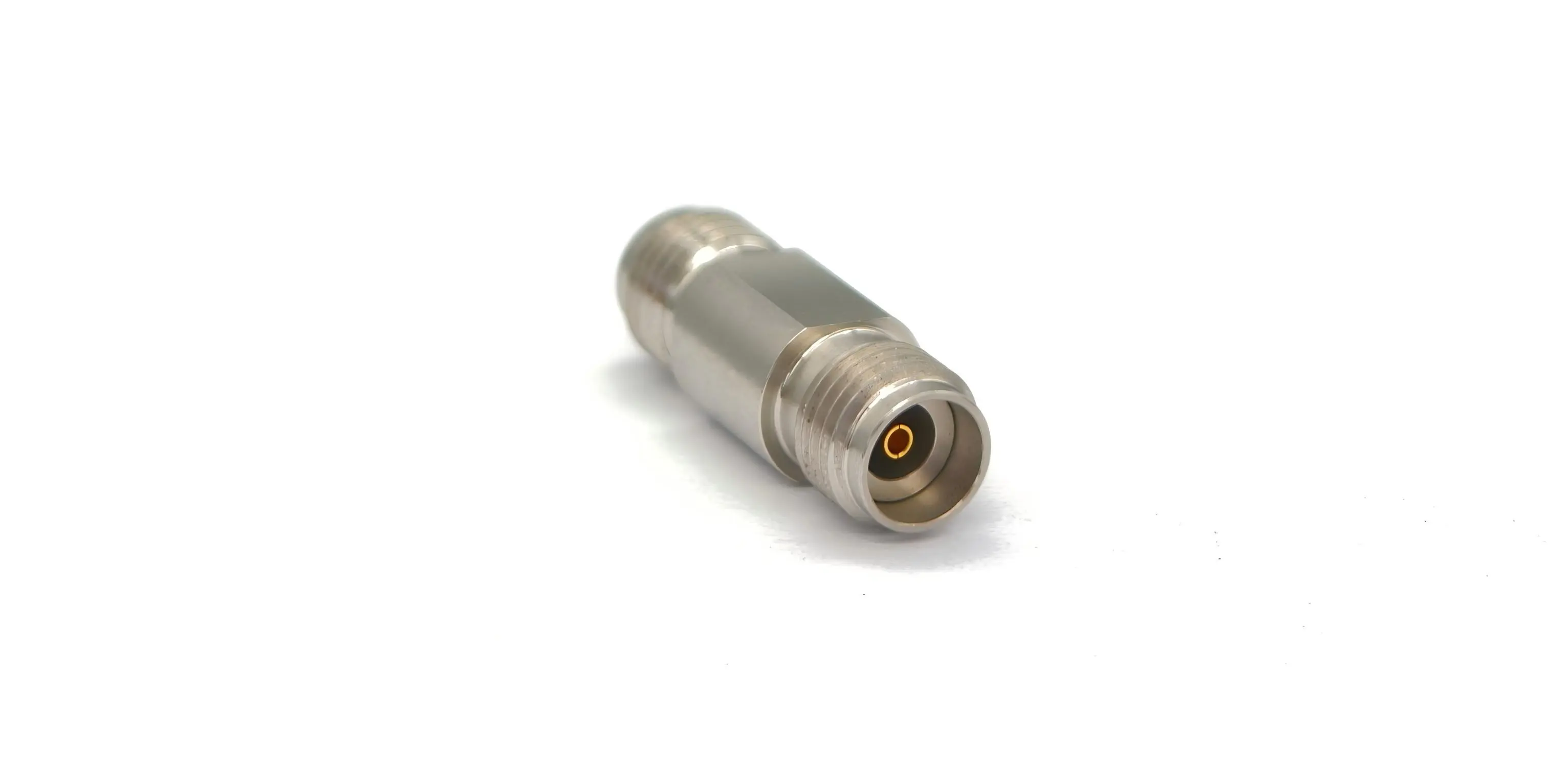

2.92mm female to SMA female adapter

Why Choose Our Precision RF Adapter?

You deserve components that meet the highest industry standards. Our adapter features premium materials and meticulous engineering to deliver consistent results in challenging environments.

Superior Material Construction

Stainless steel housing with passivation treatment for maximum durability
Beryllium copper gold center contacts for optimal conductivity
PEI and PTFE insulators for excellent electrical properties
Precision manufacturing ensures reliable performance

Outstanding Electrical Performance

Your applications require stable signal transmission. This connector keeps up 50-ohm impedance with negligible flag misfortune over the whole recurrence extend. Moo VSWR characteristics guarantee amazing flag judgment for your basic estimations and communications.

Built for Demanding Environments

This adapter withstands temperature extremes from -55°C to 125°C, maintaining reliable performance under vibration, shock, and environmental stress.

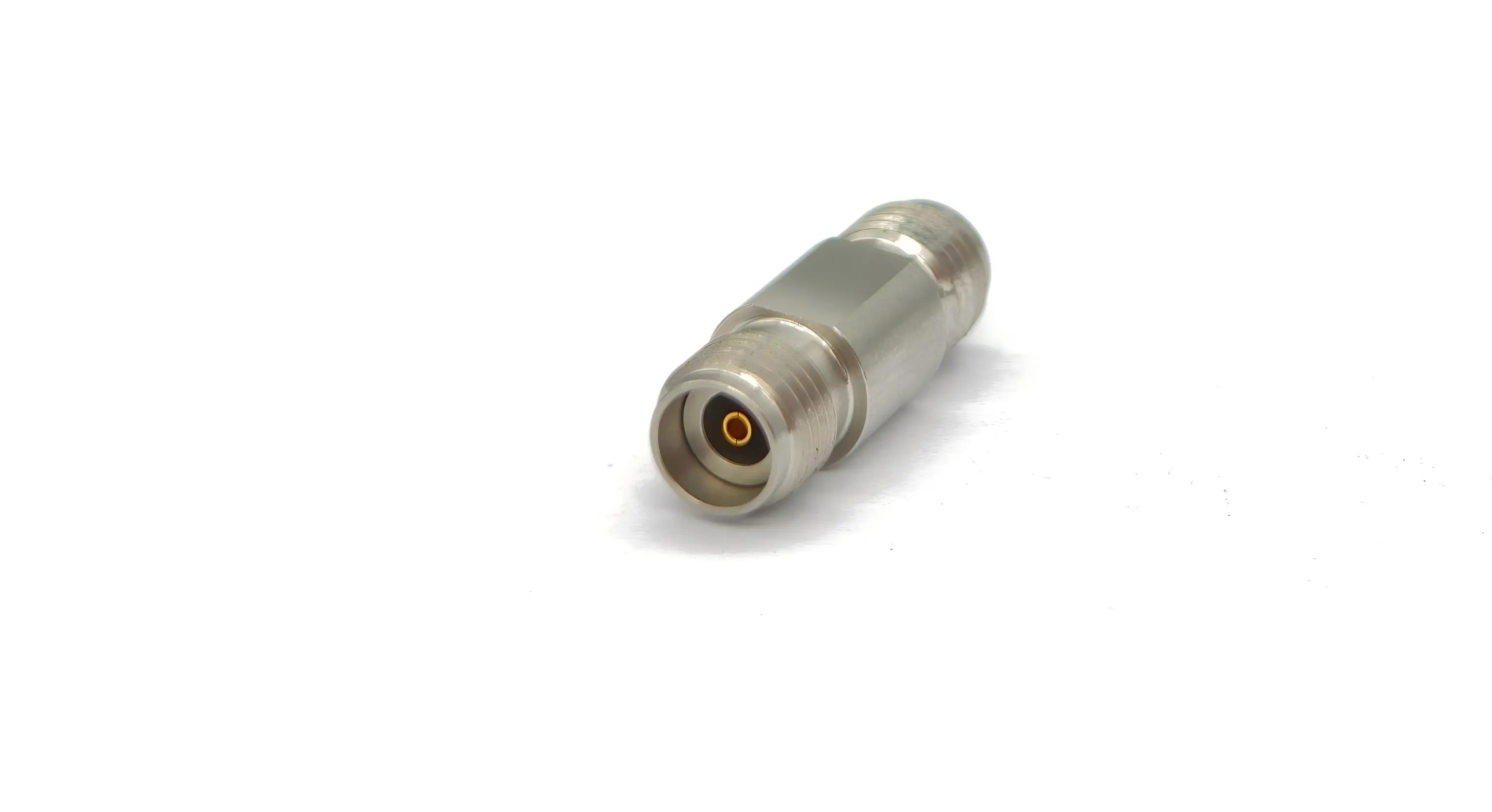

2.92mm female to SMA female adapter

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.15:1 to 18GHz typical
Insertion Loss	0.05√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI & PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≥0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Connector Withstand Torque	1.69N·m
Environmental Standards
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Applications That Benefit From Our Adapter

Test and Measurement Equipment

This 2.92 Female To SMA Female Adapter ensures accurate signal transmission in network analyzers, spectrum analyzers, and signal generators at millimeter wave frequencies.

Communication Systems

Modern communication equipment requires versatile connectivity solutions. The adapter facilitates connections between different connector types in base stations, satellite communication systems, and microwave links.

Research and Development

Laboratory environments demand components that maintain consistent performance. Our adapter supports your research activities with stable electrical characteristics and repeatable measurements.

Military and Aerospace Applications

This adapter's robust construction and environmental compliance make it ideal for demanding military and aerospace applications.

Applications of 2.92mm female to SMA female adapter

Quality Manufacturing Process

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we employ digital manufacturing techniques with strict production process management. Our accuracy testing rebellious confirm each viewpoint of execution from starting plan through last client use.

Located in Xi'an's Chang'an Advancement Stop, our office specializes in exactness connectors, expanding RF ability to 110 GHz. We guarantee each connector meets worldwide benchmarks, with comprehensive testing for mechanical, electrical, and natural execution.

2.92mm Female to SMA Female Adapter Quality Control

Installation and Handling Guidelines

Proper installation ensures optimal performance and longevity. Always use the specified connection torque range to prevent damage to connector threads. Avoid exceeding the maximum withstand torque during installation.

Handle the adapter carefully to maintain connector alignment and prevent damage to contact surfaces. Regular inspection of connector conditions helps maintain system reliability throughout the component's service life.

Installation precautions for 2.92mm female to SMA female adapter

Support and Customization

Our engineering team offers custom solutions, tailoring designs or specifications to meet your unique application requirements.

For technical support or to discuss your specific application requirements, contact our team at postmaster@cymicrowave.com. Our experts are ready to help you select the right components for your high-frequency applications.

The 2.92 Female To SMA Female Adapter represents our commitment to providing reliable, high-performance connectivity solutions. With proven reliability in demanding applications and comprehensive technical support, you can trust this adapter to deliver consistent results in your most critical systems.
