Name: 3.5mm female to BMA male adapter
SKU: N/A

3.5mm female to BMA male adapter

1. 3.5mm female to BMA female adapter, used to connect different types of RF interfaces. It converts the 3.5mm female interface to a BMA male interface, enabling signal transmission between different RF systems.
2. Impedance: 50 Ohms nominal
3. VSWR: 1.15:1 to 18GHz typical
4. Insertion loss: .05√f (GHz)
5. Temperature range: -55°C to 125°C

3.5 Female To BMA Female Adapter - Precision RF Interface Solution

When you need to connect different RF systems seamlessly, our 3.5 Female To BMA male Adapter delivers the precision and reliability your applications demand. This high-performance connector empowers easy flag transmission between 3.5mm and BMA interface frameworks, supporting frequencies up to 18GHz with remarkable solidness. Whether you're working in broadcast communications, test gear, or aviation applications, this connector gives the vigorous association you require for basic RF operations.

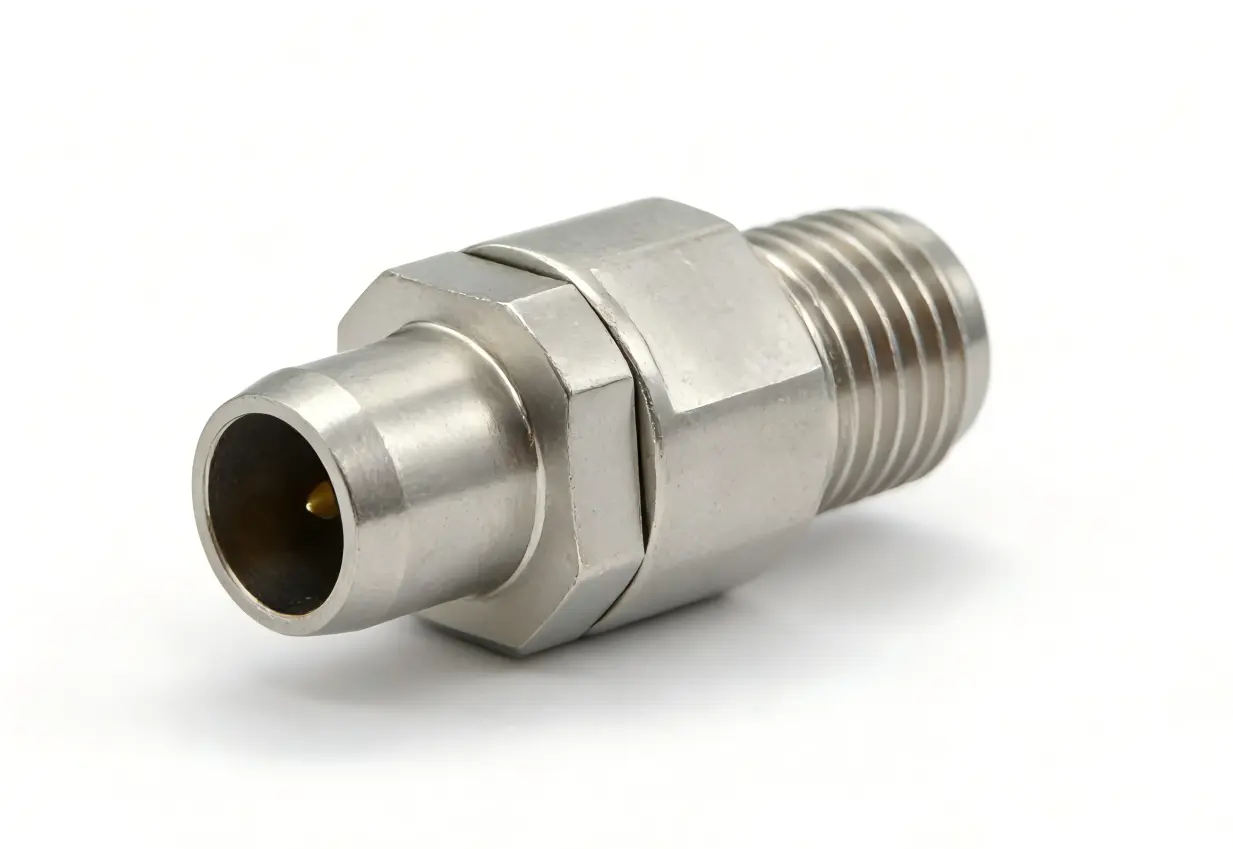

3.5mm female to BMA male adapter

Why Select Our RF Connector Solution?

Our connector highlights premium materials and exactness building for toughness, with stainless steel for erosion resistance. It minimizes flag misfortune, guarantees steady associations, and maximizes execution over the recurrence range.

Superior Execution Features

Our connector guarantees uncommon electrical execution, with moo inclusion misfortune and fabulous VSWR for dependable flag transmission. It works faultlessly from -55°C to 125°C, keeping up execution over extraordinary temperatures and natural conditions.

Robust Construction for Demanding Applications

We understand that durability matters in professional applications. That's why our 3.5 Female To BMA male Adapter features premium construction materials selected for longevity and performance.

The stainless steel lodging offers quality and erosion resistance, whereas beryllium copper gold contacts guarantee conductivity. Progressed insulin keep up execution, and thorough testing ensures steady quality and unwavering quality over each adapter.

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.15:1 to 18GHz typical
Insertion Loss	0.05√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI & PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Max Meshing Force (3.5 Port)	≤0.23N.m
Max Meshing Force (BMA Port)	≤13.3N
Min Separation Force (3.5 Port)	≥0.23N.m
Min Separation Force (BMA Port)	≥0.56N
Connection Torque (3.5 Port)	0.79N·m - 1.13N·m
Environmental Testing
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Key Applications

This versatile adapter serves numerous industries and applications where reliable RF connections are essential.

Test and Measurement Equipment: Seamlessly connect test instruments, maintaining measurement accuracy and reliable connections without affecting your results.

Telecommunications Frameworks: Bridge connector sorts in communication hardware, keeping up flag astuteness and supporting high-frequency applications with negligible loss.

Aerospace and Defense: Meet military details, giving dependable associations in mission-critical applications and withstanding extraordinary conditions whereas keeping up performance.

Research and Development: Enable flexible test configurations with reliable adapters. Connect various equipment types without signal degradation. Support prototype development and testing requirements.

3.5mm female to BMA male adapter applications

Installation and Usage Guidelines

Proper installation ensures optimal performance. Verify connector compatibility, use correct torque, and regularly inspect for wear or corrosion. Replace degraded adapters to maintain system reliability and longevity.

Store adapters properly when not in use. Protect connector interfaces from contamination and physical damage. Use appropriate protective caps when storing or transporting adapters.

Quality Assurance and Reliability

Our commitment to quality extends throughout the entire manufacturing process. Each 3.5 Female To BMA male Adapter undergoes comprehensive testing to ensure consistent performance and reliability.

Advanced fabricating guarantees exact measurements and reliable execution. Thorough quality control and natural testing ensure unwavering quality beneath extraordinary conditions, guaranteeing tried and true execution in any working environment.

3.5mm female to BMA male adapter with quality assurance.

About Shaanxi Chuangyu Electronic Technology

Located in Chang'an Development and Innovation Mechanical Stop in Xi'an, Shaanxi Area, we specialize in exactness electrical connectors and RF arrangements. Our skill in electronic item investigate and improvement drives ceaseless advancement in connector technology.

We give high-quality arrangements for unused vitality, therapeutic, communications, military, and robotization businesses. Our experienced designing group creates progressed connectors, guaranteeing cutting-edge items that meet advancing industry necessities and surpass desires.

3.5mm Female to BMA Male Adapter - About Chuangyu

Get Your RF Adapter Solution Today

Ready to enhance your RF system connections with the 3.5 Female To BMA male Adapter? Contact our technical team to discuss your specific requirements. We provide expert guidance to help you select the right adapter for your application.

For technical specifications, pricing, or custom solutions, reach out to our team at postmaster@cymicrowave.com. We're committed to providing the precision connectors you need for successful project completion.
