Name: 1.85 Male To Gppo Female Adapter
SKU: N/A

1.85 Male To Gppo Female Adapter

1. The 1.85mm male to GPPO female adapter is used to connect different types of high-frequency connector interfaces. One end is a 1.85mm male connector (male), and the other end is a GPPO (SSMP series) female connector (female).
2. It is suitable for high-frequency RF scenarios such as test measurement, 5G communication, satellite, and aerospace applications, supporting high-frequency signal transmission.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.3:1 to 67GHz typical
5. Insertion loss: .08√f (GHz)
6. Temperature range: -55°C to 125°C

1.85 Male To Gppo Female Adapter - Precision RF Connection Solution

When you need reliable connections between different high-frequency interfaces, the 1.85 Male To Gppo Female Adapter delivers exceptional performance for demanding applications. This precision-engineered adapter seamlessly bridges 1.85mm male connectors with GPPO female interfaces, making it essential for test measurement, 5G communication, satellite systems, and aerospace applications. Our adapter supports up to 67GHz, ensuring stable, high-quality connections for RF testing and communication systems.

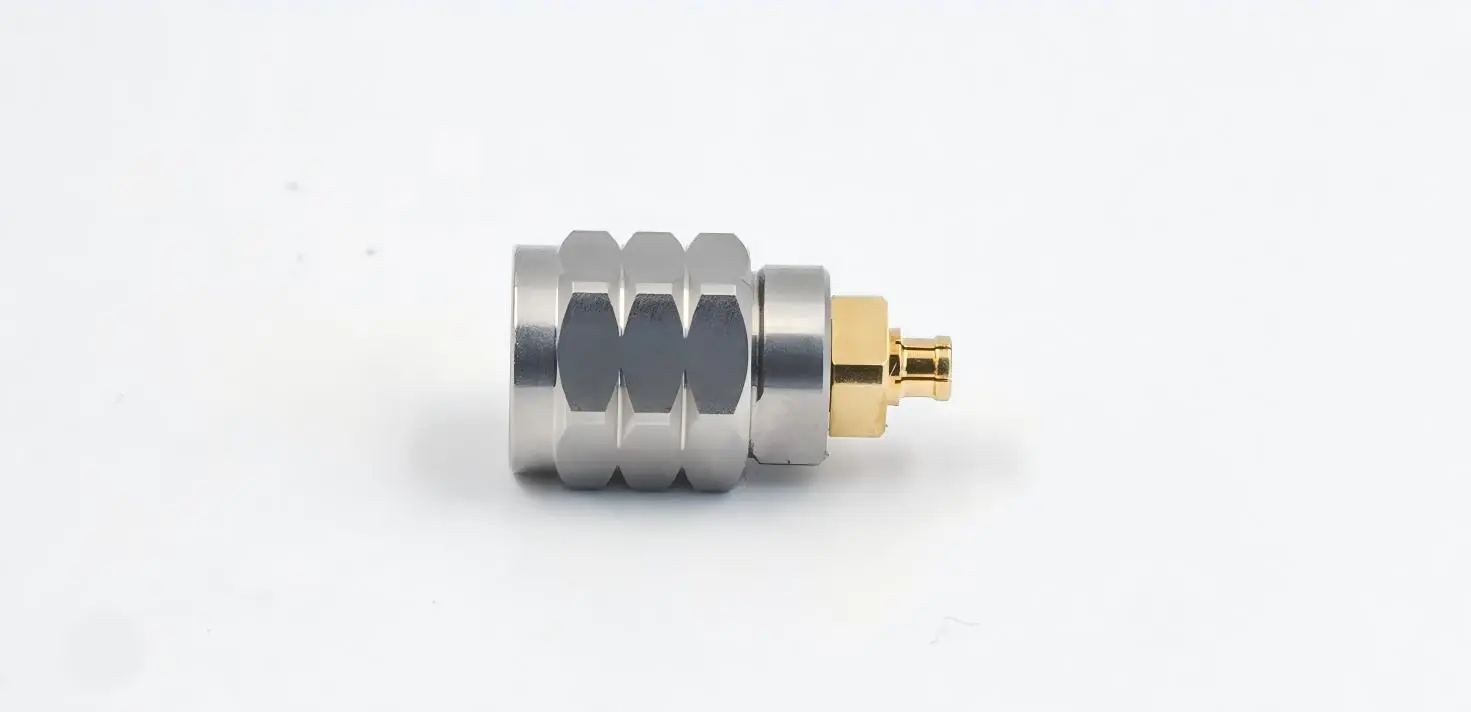

1.85mm male to GPPO female adapter

What Makes This Adapter Special?

This connector's straight plan guarantees flag solidness and negligible addition misfortune. High-quality materials and 50-ohm impedance give steady coordinating and long-lasting execution in challenging situations. This implies less flag reflections and way better generally execution in your applications. The brass nickel-plated development offers fabulous erosion resistance and flag integrity.

Key Applications You Can Rely On

This adapter excels in various demanding scenarios:

Test and Estimation Hardware: Idealize for research facility situations where exactness things. Interface diverse test rebellious consistently without compromising estimation accuracy.

5G Communication Frameworks: Back next-generation remote foundation with solid associations that handle high-frequency signals effortlessly.

Satellite Communications: Keep up flag quality in space applications where disappointment isn't an alternative. The vigorous development withstands extraordinary temperature variations.

Aerospace Applications: Meet stringent requirements for aviation and space systems. The adapter's wide temperature range and mechanical durability ensure consistent performance.

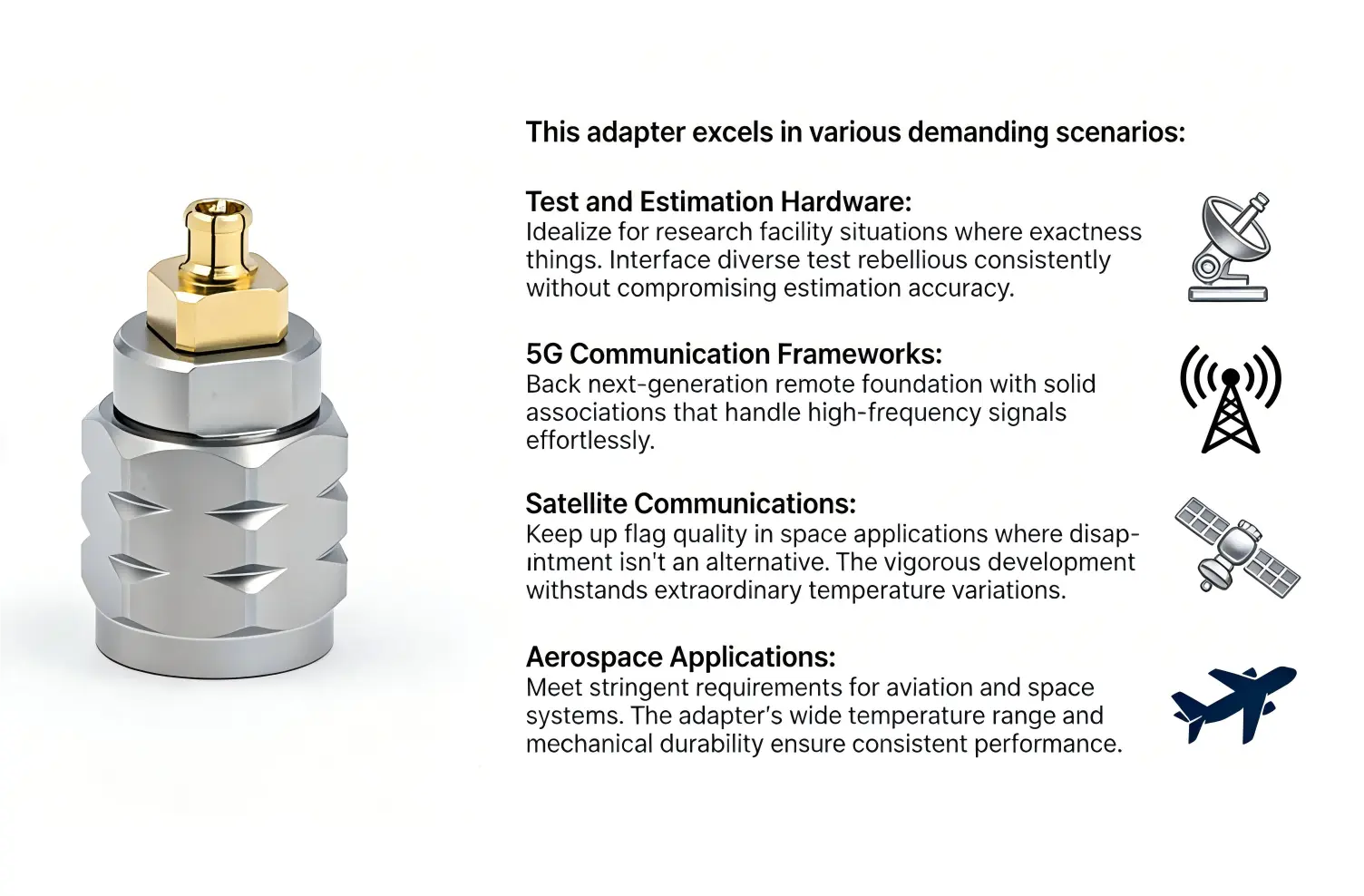

Key performance characteristics of the 1.85mm male to GPPO female adapter

Technical Excellence You Can Trust

Designed to exceed industry standards, this adapter offers low VSWR, controlled insertion loss, and temperature stability from -55°C to 125°C, ensuring reliable performance in extreme conditions.

The connector features excellent mechanical properties with defined engagement forces for both ports. This prevents over-torquing while ensuring secure connections that won't fail during critical operations.

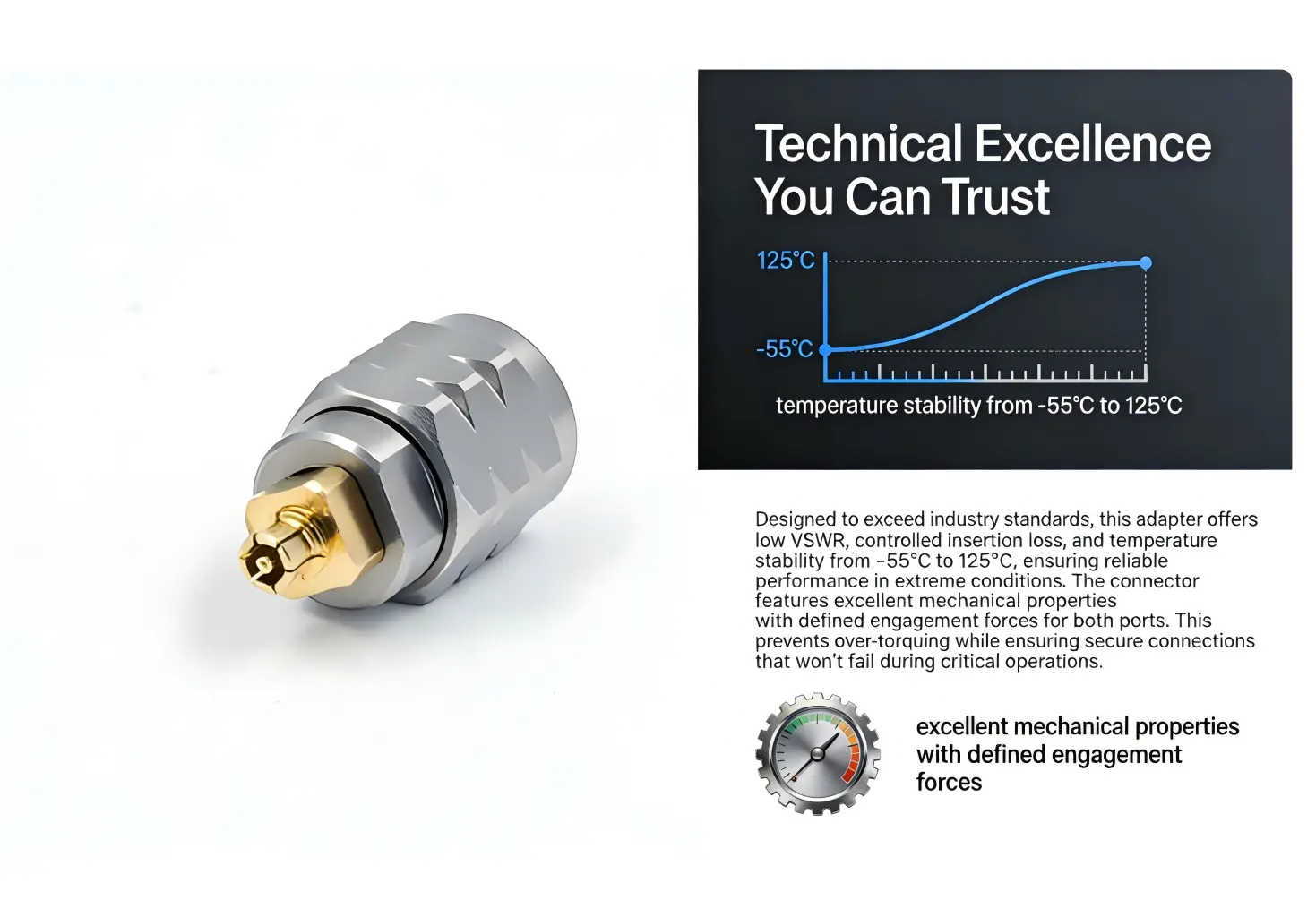

Advantages of the 1.85mm male to GPPO female adapter

Why Choose Our Solution?

At Shaanxi Chuangyu Electronic Technology, we understand your precision requirements. Located in Xi'an's Innovation and Technology Industrial Park, our team combines advanced manufacturing with rigorous quality control.

We've extended RF connector technology into the millimeter wave field, reaching frequencies up to 110GHz. This expertise translates into superior products like our 1.85 Male To Gppo Female Adapter that meet international standards while offering competitive advantages.

Our strict production process management and precision testing instruments ensure every adapter meets specifications. From initial design through final testing, we maintain quality standards that give you confidence in your applications.

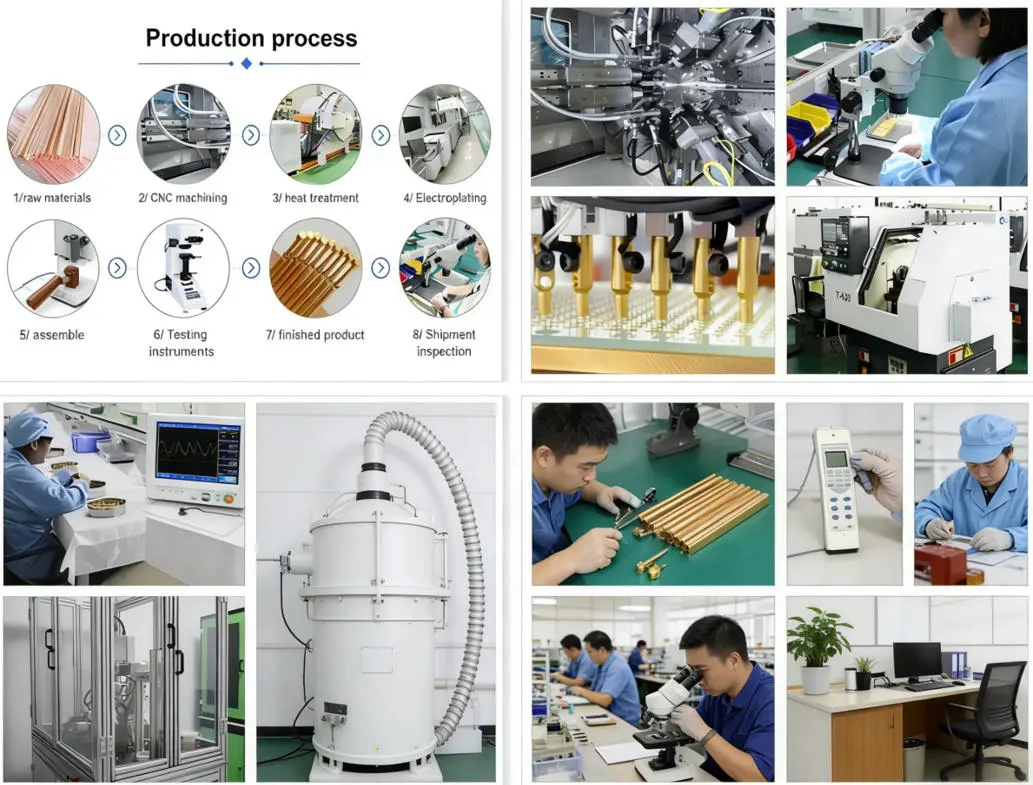

1.85mm Male to GPPO Female Adapter Workshop

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 67GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.3:1 to 67GHz typical
Insertion Loss	0.08√f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	4 milliohms maximum
Materials
Housings	Stainless steel passivated & Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PEI
Mechanical Data
Mate/Demate Cycles (1.85 Port)	500 cycles
Mate/Demate Cycles (GPPO Port)	FD: 100 minimum, SB: 500 minimum
Connection Torque (1.85 Port)	0.8N·m - 1.1N·m
Engagement Force (1.85 Port)	0.23N·m
Environmental Standards
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Quality Assurance and Reliability

Every connector experiences testing for electrical execution and natural conditions. Our controlled fabricating handle guarantees consistency, gaining acknowledgment from clients in different businesses for quality.

The adapter's vigorous development gives dependable benefit life with legitimate taking care of. Take after suggested torque determinations to maximize connector life and keep up performance.

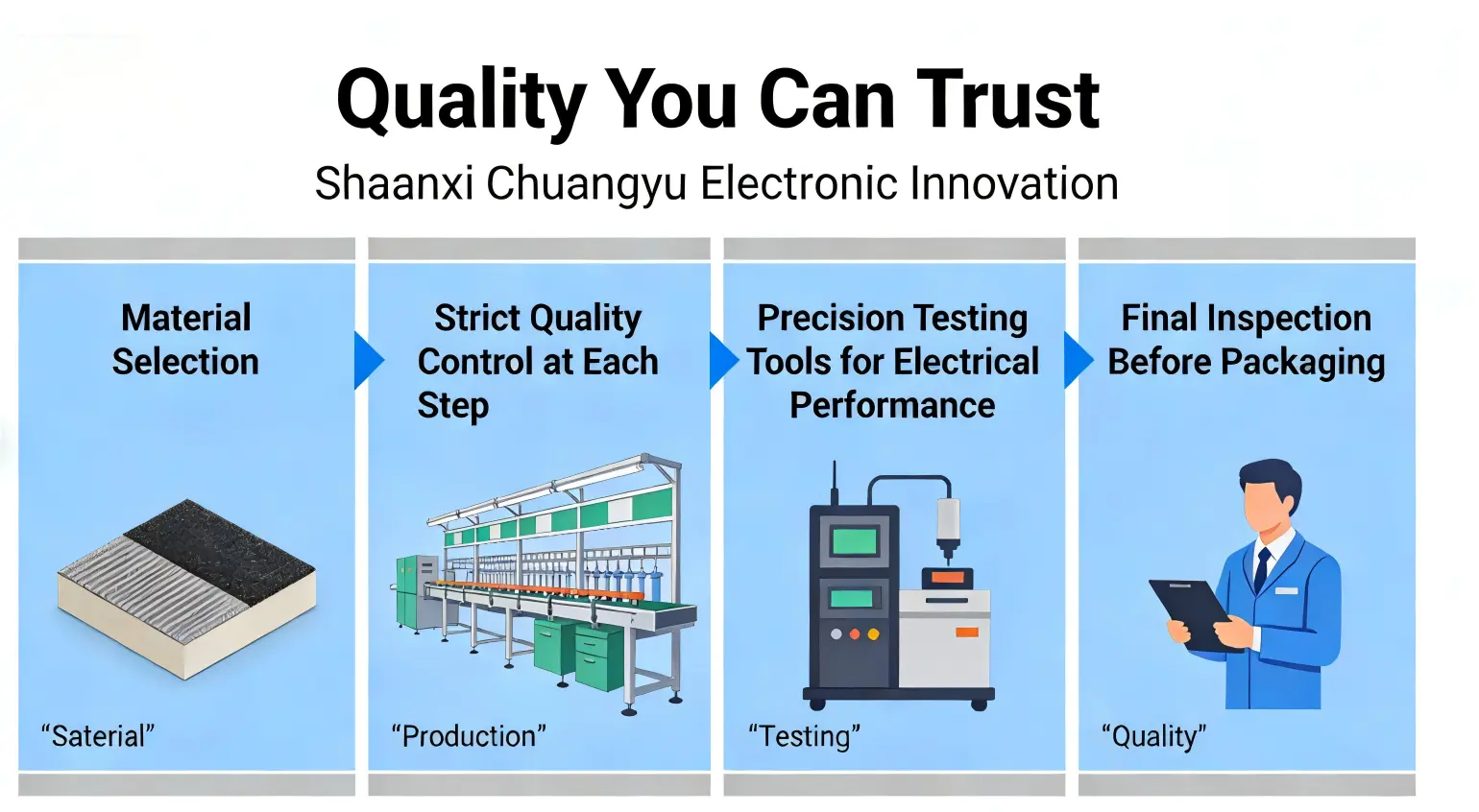

1.85mm male to GPPO female adapter with quality assurance.

Getting Begun With Your Application

Install the connector by guaranteeing clean, undamaged connectors and applying appropriate torque. For ideal execution, minimize associations and utilize high-quality cables to complement the adapter.

Regular review makes a difference keep up long-term unwavering quality. Check for signs of wear or defilement, particularly in cruel situations.

Ready to Enhance Your RF Systems?

This 1.85 Male To Gppo Female Adapter represents the precision and reliability you need for critical applications. Our commitment to quality ensures you receive a product that performs consistently throughout its service life.

For technical questions or custom requirements, contact our engineering team at postmaster@cymicrowave.com. We're here to support your success with expert guidance and quality products designed for your specific needs.
