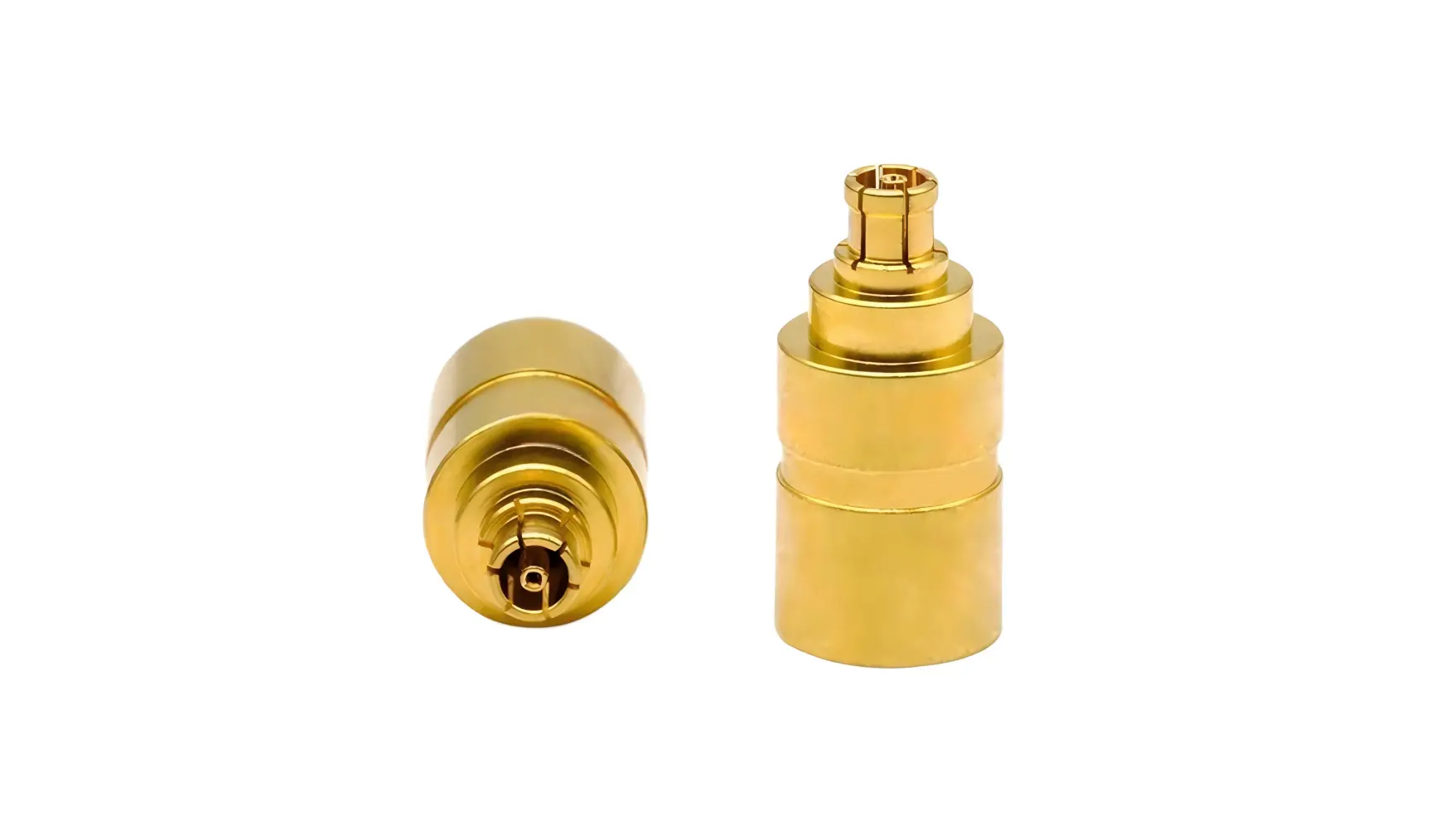

GPPO RF Coaxial Load
1. The GPPO RF coaxial load is a type of RF coaxial termination, where GPPO (SSMP) is a miniature RF connector featuring ultra-compact dimensions and high-frequency performance, 2. designed for millimeter-wave frequency bands (e.g., DC to 50GHz or higher). As a termination load, it is used to absorb RF energy, improve circuit impedance matching (typically 50Ω), prevent signal reflection and interference, and ensure system stability.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 18GHz
5. VSWR: 1.25:1 to 18GHz typical
6. Power: 2W
7. Temperature range: -65°C to 165°C
8. Advantages: Miniaturized design, suitable for high-frequency applications with space constraints such as Utheisa Kong, requiring low voltage standing wave ratio (VSWR), wide frequency range, and other specifications.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 18GHz
5. VSWR: 1.25:1 to 18GHz typical
6. Power: 2W
7. Temperature range: -65°C to 165°C
8. Advantages: Miniaturized design, suitable for high-frequency applications with space constraints such as Utheisa Kong, requiring low voltage standing wave ratio (VSWR), wide frequency range, and other specifications.
Product Description
GPPO RF Coaxial Load - Precision Millimeter Wave Termination Solution
Looking for reliable RF termination for your high-frequency applications? The GPPO RF Coaxial Load delivers exceptional performance in the most demanding millimeter wave environments. This ultra-compact termination solution combines the miniaturized design of GPPO (SSMP) connectors with superior impedance matching capabilities. This product ensures optimal signal integrity and stability for radar, satellite, and test equipment, operating reliably from -65°C to 165°C for consistent performance across all conditions.
Understanding the Product
Radio recurrence frameworks require appropriate end to work accurately. Without satisfactory end, your circuits involvement flag reflections that corrupt execution and make interference.
GPPO connectors offer progressed scaled down RF innovation, conveying high-frequency execution in a compact shape. The "SSMP" name implies their subminiature push-on design.
When you require solid end in space-constrained applications, conventional loads frequently demonstrate as well bulky. That's where specialized end arrangements make the contrast.

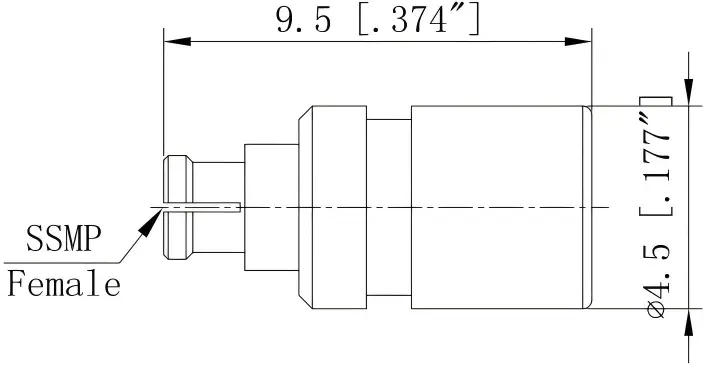

Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | GPPO-JR-2W RF Load |
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 18 GHz (select designs to 50 GHz) |
| VSWR | 1.25:1 to 18GHz typical |
| Power Rating | 2W |
| Temperature Range | -65°C to 165°C |
| Insertion Loss | .04√f (GHz) |
| RF Leakage | -80 dB (typical mated pair) |
Materials and Construction
| Component | Material |
|---|---|
| Housings | Beryllium copper gold |
| Center Contacts | Beryllium copper gold |
| Insulators | PTFE |
Electrical Performance
| Specification | Value |
|---|---|
| DWV @ Sea Level | 500 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
| Outer Conductor Resistance | 2 milliohms maximum |
| Inner Conductor Resistance | 6 milliohms maximum |
Why Choose Our Product?
Miniaturized Brilliance: The compact plan fits tight spaces without relinquishing execution, giving professional-grade end where conventional loads can't fit.
Wide Recurrence Scope: Standard operation from DC to 18 GHz guarantees compatibility with most applications, whereas extraordinary plans amplify execution to 50 GHz for progressed needs.
Superior VSWR Execution: The 1.25:1 VSWR detail implies negligible flag reflection. Your circuits keep up ideal impedance coordinating all through the recurrence range.
Robust Natural Resilience: Working from -65°C to 165°C, these loads handle extraordinary conditions. Whether in ice satellites or forsake radar establishments, execution remains reliable.
Applications and Use Cases
Radar Systems: Modern radar requires precise termination for optimal detection capabilities. Our loads provide the impedance matching necessary for clear target identification.
Satellite Communications: These loads, with a wide temperature range and compact size, are ideal for satellite transponders, ensuring reliable performance in extreme space environments.
Test Equipment: Laboratory and field testing equipment needs accurate termination for meaningful measurements. These loads ensure your test results reflect actual circuit performance.
Medical Devices: High-frequency medical equipment benefits from proper termination. Signal integrity directly impacts diagnostic accuracy and patient safety.
Military Applications: Defense systems require components meeting strict military specifications. Our environmental testing ensures reliable operation in combat conditions.
Installation and Usage Tips
For optimal performance and longevity, ensure proper installation and impedance matching. Handle the connector carefully during mating, using gentle, straight insertion. Monitor VSWR during installation to identify potential connection or circuit issues. Avoid excessive force to prevent damage.

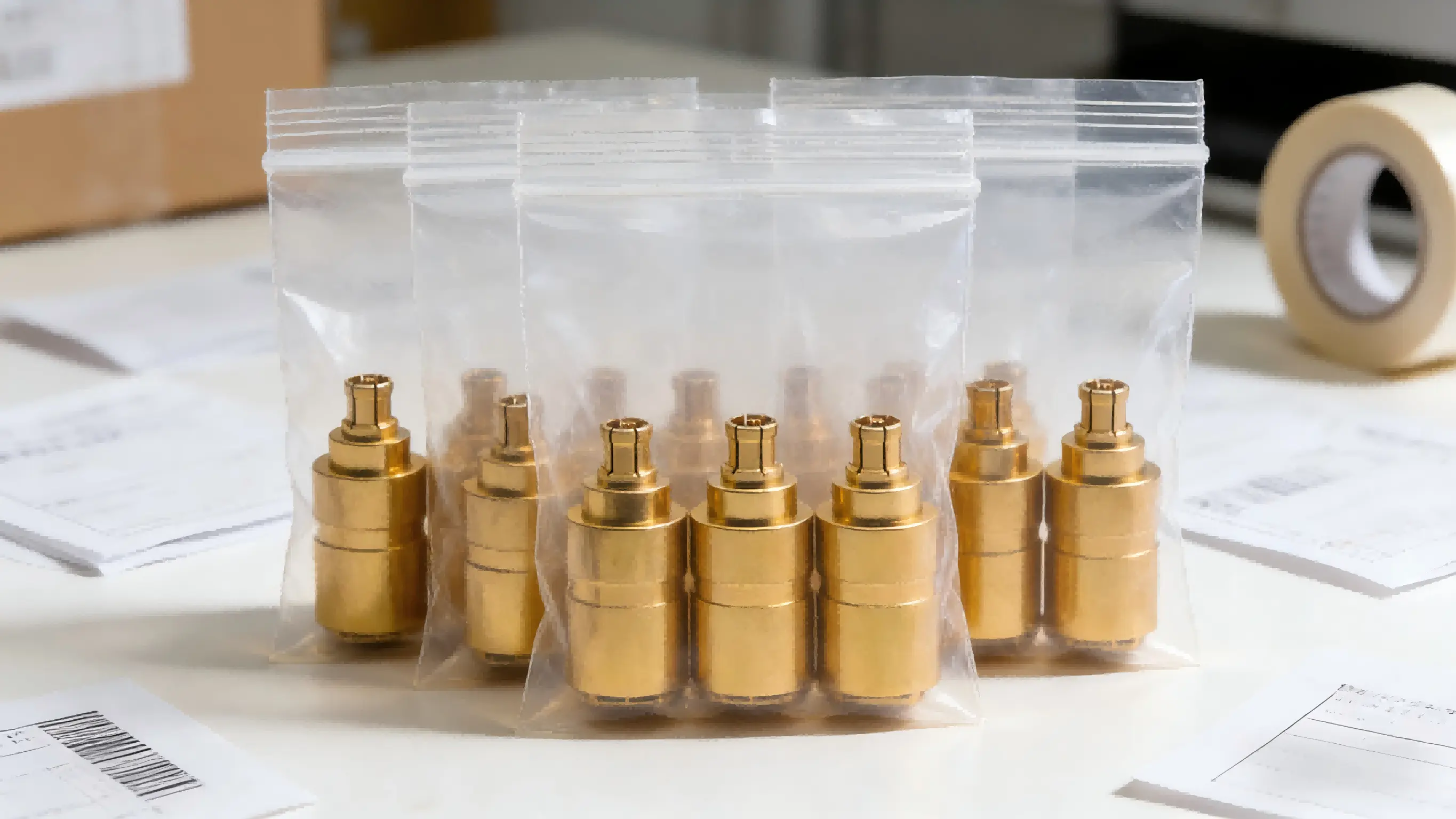

Store unused GPPO RF Coaxial Load units in protective packaging. The gold-plated contacts resist corrosion but benefit from proper storage conditions.

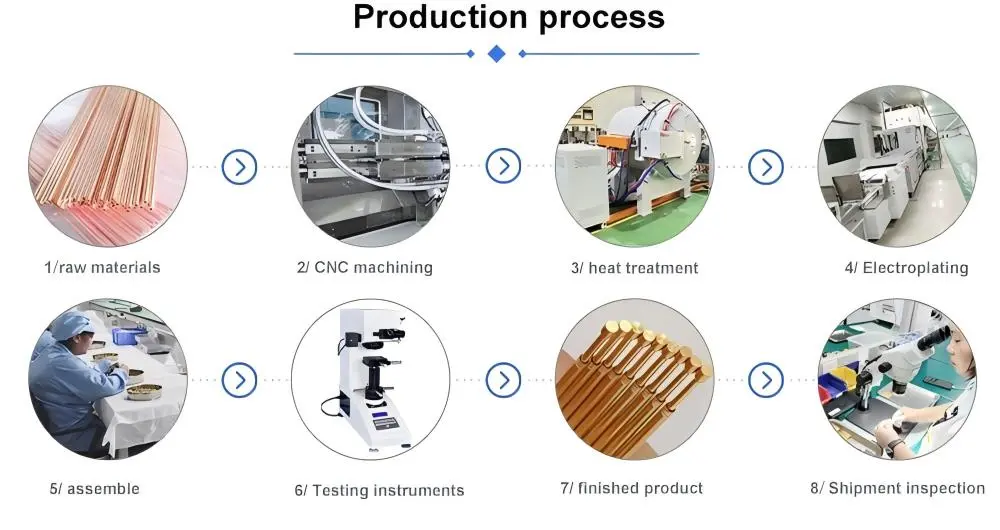

Quality Assurance and Testing
Every unit undergoes comprehensive testing before shipment. Our quality control process includes VSWR verification, power handling validation, and environmental stress screening.
We follow strict military standards for environmental testing:
- Thermal shock per MIL-STD-202, Method 107, Condition B
- Salt spray per MIL-STD-202, Method 101, Condition B
- Vibration per MIL-STD-202, Method 204, Condition D
- Shock per MIL-STD-202, Method 213, Condition I
These rigorous tests ensure your components perform reliably throughout their operational life.
Technical Support and Customization
Need specific performance requirements? Our engineering team provides custom solutions tailored to your exact specifications.
We provide design consultation to optimize your RF termination strategy, leveraging our millimeter wave expertise for improved system performance. Custom frequency ranges, power ratings, and connector configurations are available for volume applications. Contact our technical team for tailored solutions.
Get Started Today
Ready to improve your RF system performance? Our GPPO RF Coaxial Load provides the precision termination your applications demand.
Contact our technical sales team at postmaster@cymicrowave.com for detailed specifications, pricing, and delivery information. We help you find the ideal RF termination solution for high-frequency applications. Order today and discover why engineers trust our solutions for critical projects.
