Name: 2.92mm 50 Ohm Termination
SKU: N/A

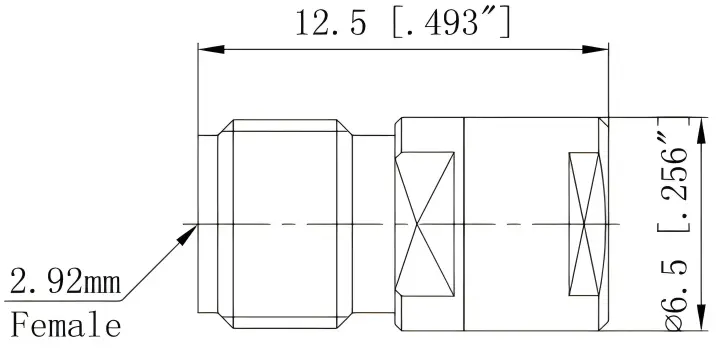

2.92mm 50 Ohm Termination

1. The 2.92mm 50 Ohm termination load refers to a radio frequency termination load with a characteristic impedance of 50 ohms and a 2.92mm interface. It is a component used in RF systems to terminate transmission lines and absorb signal energy. By absorbing incident signals, it prevents reflections and ensures measurement accuracy or system stability.
2. Used in instruments, radar systems, and microwave components.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 40GHz
5. VSWR: 1.25:1 to 40GHz typical
6. Power: 10W
7. Temperature range: -65°C to 165°C

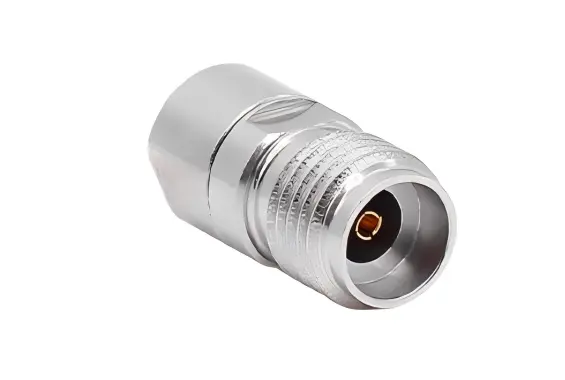

2.92mm 50 Ohm Termination - High-Performance RF Load Solution

When you need reliable signal termination for your high-frequency applications, our 2.92mm 50 Ohm Termination delivers exceptional performance up to 40 GHz. This precision-engineered RF stack viably retains flag vitality whereas avoiding hurtful reflections in your test setups and communication frameworks. You'll advantage from its predominant development and steady impedance characteristics that guarantee exact estimations and ideal framework execution. Whether you're working on radar frameworks, microwave components, or accuracy rebellious, this end stack gives the unwavering quality you require for requesting applications.

product-1-1

Why Select Our 2.92mm RF End Load?

You confront challenges each day with flag keenness and estimation exactness in high-frequency applications. Our RF end arrangement addresses these concerns with demonstrated unwavering quality and execution. The precision-matched 50-ohm impedance guarantees negligible flag reflections over the whole recurrence range.

product-1-1

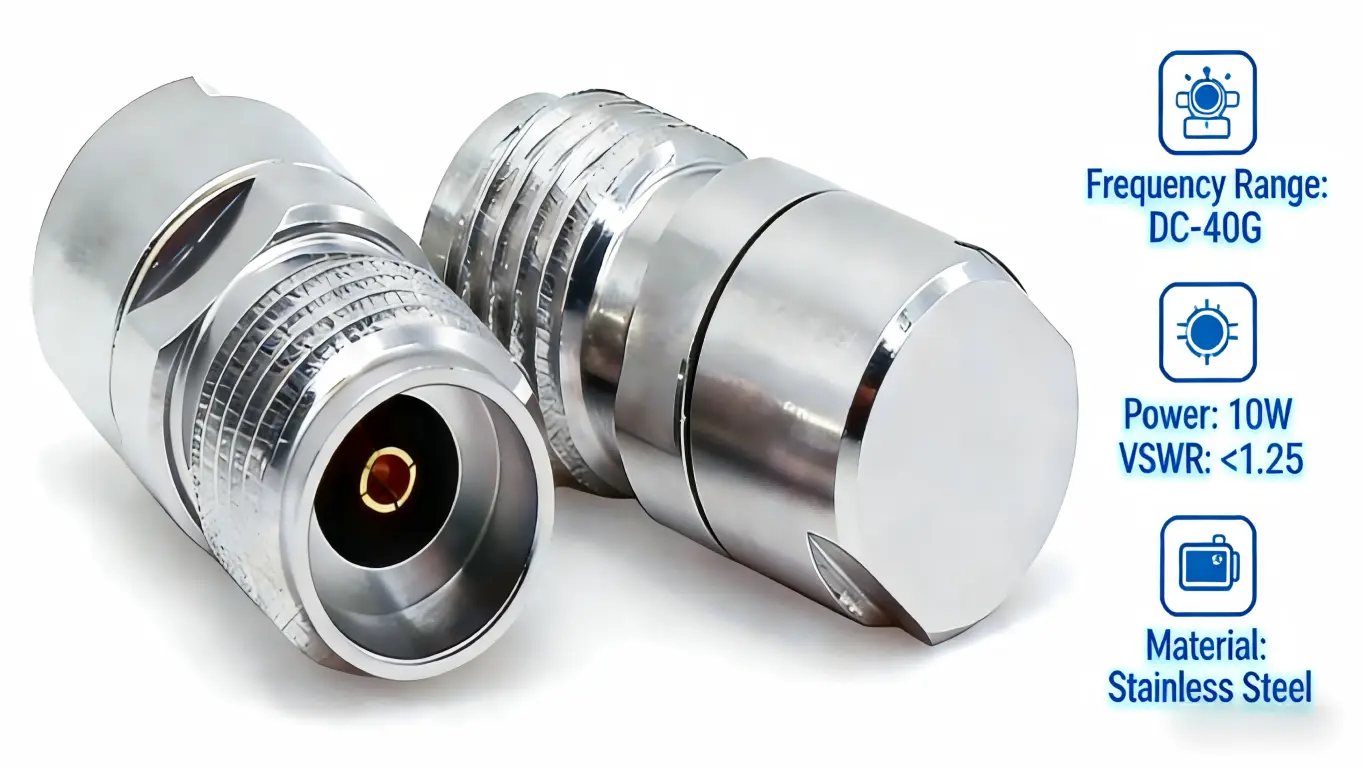

Superior Design Features

Your applications demand components that perform consistently under extreme conditions. This termination load features:

Wide Frequency Coverage: DC to 40 GHz operation range
Low VSWR Performance: 1.25:1 typical across full bandwidth
High Power Handling: 10W continuous power rating
Temperature Resilience: -65°C to +165°C operating range

The stainless steel housing provides excellent durability and EMI shielding. Beryllium copper gold-plated contacts ensure reliable connectivity with minimal insertion loss over thousands of mating cycles. The 2.92mm 50 Ohm Termination ensures precise signal termination for optimal performance.

Applications That Benefit

You'll find this termination particularly valuable in:

Test and Measurement

Vector network analyzers
Spectrum analyzers
Signal generators
Calibration standards

Communication Systems

Microwave links
Satellite communications
5G infrastructure
Radar systems

Research and Development

Laboratory testing
Component characterization
System validation
Prototype evaluation

Technical Specifications

Parameter	Value
General Specifications
Product Name	2.92-JR-10W RF Load
Impedance	50 Ohms nominal
Frequency Range	DC to 40 GHz
Temperature Range	-65°C to +165°C
Electrical Performance
VSWR	1.25:1 to 40GHz typical
Insertion Loss	.05 √f (GHz)
Power Rating	10W
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Connector Withstand Torque	1.69N·m

Quality and Environmental Standards

Your projects require components that meet rigorous quality standards. Our termination loads undergo comprehensive testing:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

These stringent tests ensure reliable performance in harsh environments and demanding applications.

product-1-1

Installation and Usage Tips

Proper installation maximizes the performance of your 2.92mm 50 Ohm Termination. Follow these guidelines:

Torque Specification: Apply 0.79-1.13 N·m connection torque for optimal contact
Visual Inspection: Check connector faces for damage before mating
Gentle Handling: Avoid over-tightening to prevent thread damage
Environmental Protection: Use dust caps when not in use

About Shaanxi Chuangyu Electronic Technology

We specialize in precision RF components and microwave solutions at our Chang'an Innovation and Technology Industrial Park facility in Xi'an. Our mastery ranges millimeter wave connectors, cable gatherings, and accuracy test hardware serving businesses from aviation to telecommunications.

You advantage from our commitment to computerized fabricating forms and strict quality control. Our items reach worldwide execution benchmarks whereas advertising competitive choices to imported arrangements.

product-1-1

Get Your 2.92mm Termination Solution

Ready to enhance your RF system performance? Contact our technical team to discuss your specific requirements. We offer customization options and volume pricing for your projects.

Contact us today: postmaster@cymicrowave.com

Our 2.92mm 50 Ohm Termination delivers the precision and reliability your high-frequency applications demand. Trust our proven expertise to support your next project's success.
