Name: N RF Coaxial Load
SKU: N/A

N RF Coaxial Load

1. The N-type RF coaxial load is a terminal device used in RF systems, whose core function is to absorb RF power in the transmission line and prevent signal reflection to protect equipment.
2. It features an N-type interface (including N-male/N-female) and is widely used in scenarios such as wireless communication base stations and test equipment.
3. Frequency range covers DC to 18GHz, with power ratings typically ranging from 0.5W to 10W.
4. Impedance: 50 Ohms nominal
5. Frequency range: DC to 6GHz
6. VSWR: 1.2:1 typical up to 6GHz
7. Power: 5W
8. Temperature range: -55°C to 125°C

N RF Coaxial Load - High Performance 50 Ohm Termination Solution

What is the product?

When you work with radio frequency systems, you need reliable termination devices that protect your equipment from signal reflections. An N RF Coaxial Load serves as a critical terminal component in RF systems. Its primary function involves absorbing RF power within transmission lines while preventing harmful signal reflections that could damage your valuable equipment. This specialized device features an N-type interface design, available in both N-male and N-female configurations. You'll find it widely deployed across wireless communication base stations and professional test equipment environments.

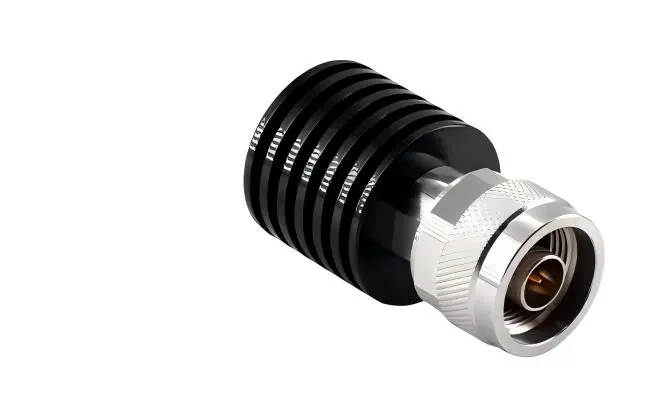

N RF Coaxial Load

Key Features & Benefits

Our product delivers exceptional performance across a broad frequency spectrum. You get consistent 50-ohm impedance matching from DC all the way up to 18GHz. This wide frequency coverage ensures compatibility with most modern RF applications you encounter.

The robust construction uses premium materials throughout. Nickel-plated brass housings provide excellent durability and corrosion resistance. Beryllium copper gold center contacts ensure reliable electrical connections with minimal contact resistance. PTFE insulators deliver superior dielectric properties across the entire frequency range.

Temperature stability remains outstanding from -55°C to 125°C. Your system continues operating reliably in harsh environmental conditions. Whether you're dealing with extreme cold or high heat applications, this N RF Coaxial Load maintains its electrical characteristics.

Technical Specifications

Parameter	Specification
Product Name	N-JR-18-5W RF Load
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Power Rating	5W
VSWR	1.2:1 to 18GHz typical
Temperature Range	-55°C to 125°C
Insertion Loss	0.1 √f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum

Material Construction

Component	Material
Housing	Nickel-plated brass
Center Contacts	Beryllium copper gold
Insulators	PTFE

Mechanical Performance

Parameter	Specification
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.2N·m

Applications & Use Cases

Your wireless communication systems benefit from proper signal termination. Base station testing requires reliable loads that handle continuous power while maintaining low VSWR. Network analyzers need precision terminations for accurate measurements.

Laboratory environments demand consistent performance. When you calibrate test equipment or verify system performance, accurate termination becomes essential. Our load provides the stability needed for repeatable measurements.

Production testing applications require durable components. The 500-cycle mating specification ensures long service life in automated test systems. You get reliable performance throughout the product lifecycle.

N RF coaxial load applications

Why Choose Our Solution?

Professional engineers trust our design expertise. We manufacture each N RF Coaxial Load using precision processes and quality materials. Strict production control ensures consistent electrical and mechanical performance.

Our broad frequency coverage from DC to 18GHz handles most applications you encounter. The 5W power rating provides adequate capability for typical test and measurement scenarios. Low VSWR characteristics minimize measurement uncertainty.

Environmental testing validates performance under real-world conditions. Salt spray, thermal shock, vibration, and moisture resistance testing ensure reliable operation in demanding environments.

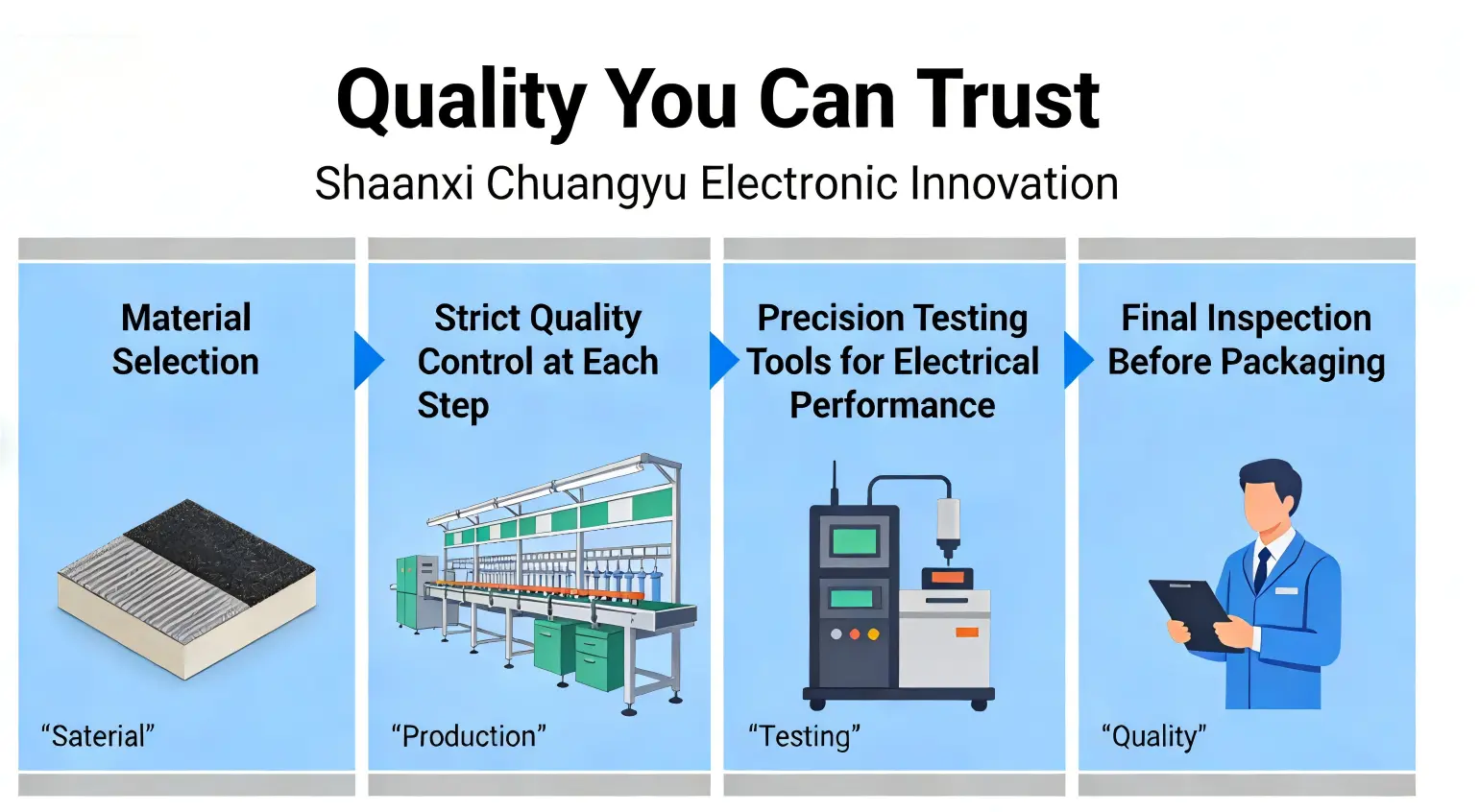

N RF Coaxial Load Quality Control

Quality Assurance

We implement rigorous testing protocols throughout manufacturing. Each unit undergoes electrical verification before shipment. VSWR measurements confirm specifications across the entire frequency range. Power handling tests validate thermal performance under rated conditions.

Environmental compliance testing includes MIL-STD-202 procedures. Method 107 thermal shock testing verifies temperature cycling performance. Method 101 salt spray testing confirms corrosion resistance. Vibration and shock testing validate mechanical integrity.

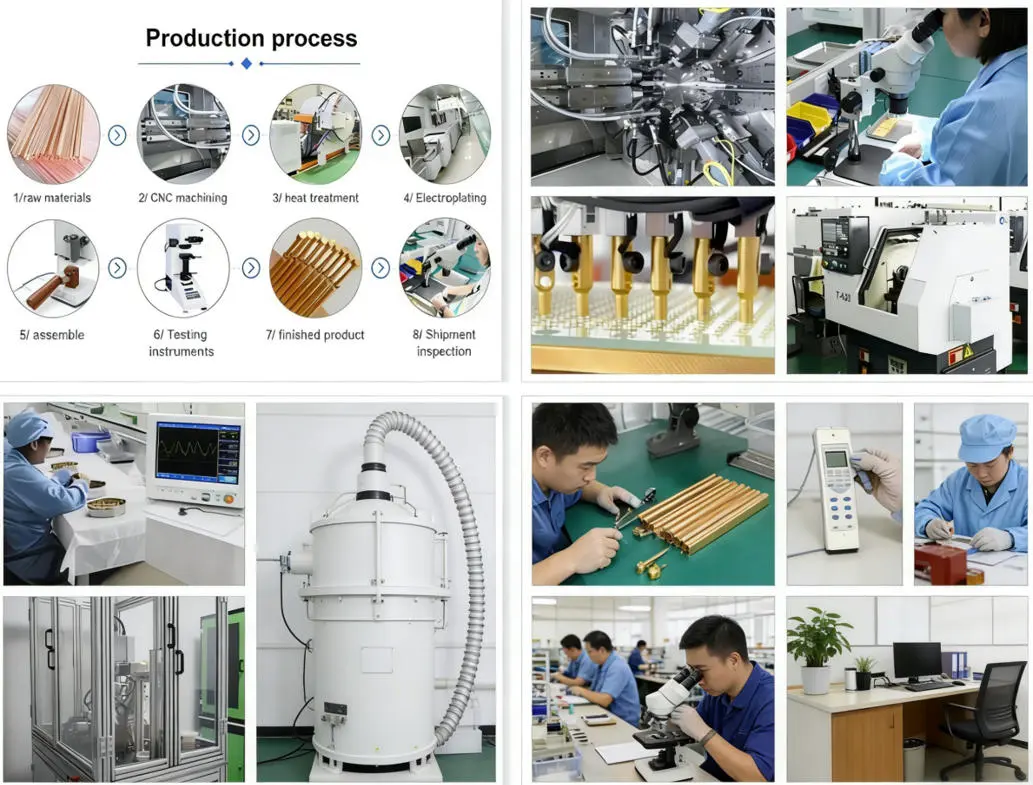

N RF Coaxial Load Quality Control

Get Your Product Today

Ready to enhance your RF system performance? Our team provides technical support to help you select the right N RF Coaxial Load termination solution. We offer customization options for special requirements.

Contact us at postmaster@cymicrowave.com for detailed specifications, pricing information, or technical discussions. Our engineers are ready to assist with your RF termination challenges and provide solutions that meet your exact requirements.
