Name: SMA 50 Ohm Termination
SKU: N/A

SMA 50 Ohm Termination

1. The SMA type 50-ohm RF terminal load is an impedance matching component used at the end of RF systems. It prevents signal reflection by absorbing excess signal energy, ensuring stable system operation.
2. Suitable for impedance matching at the signal terminations of microwave measurement instruments, communication equipment, and RF systems.
3. Frequency range covers DC to 18GHz, with power ratings typically ranging from 0.5W to 10W.
4. Impedance: 50 Ohms nominal
5. Frequency range: DC to 18GHz
6. VSWR: 1.25:1 typical up to 18GHz
7. Power: 10W
8. Temperature range: -65°C to 165°C

SMA 50 Ohm Termination - High-Performance RF Load Solutions

When you're working with RF systems, signal integrity is everything. An SMA 50 Ohm Termination serves as your reliable solution for preventing unwanted signal reflections and maintaining system stability. This accuracy impedance coordinating component assimilates abundance flag vitality at the conclusion of your RF transmission lines, guaranteeing your gear works at top execution. Whether you're planning communication frameworks or working with microwave estimation disobedient, choosing the right end stack makes all the distinction in your project's success.

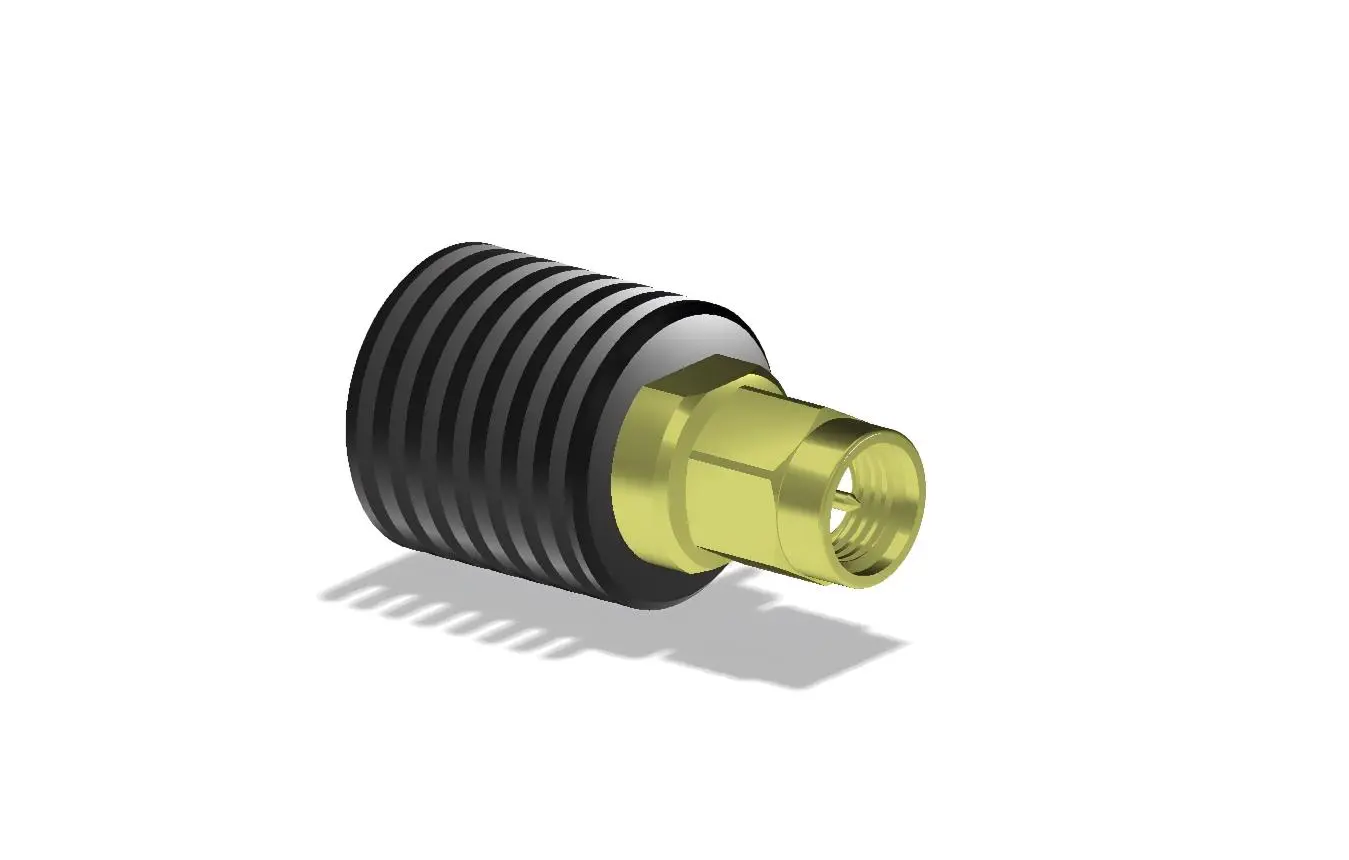

product-1-1

What Is the product?

An SMA end stack matches your transmission line’s impedance, retaining signals to anticipate reflections. Without appropriate end, signals can cause standing waves, driving to estimation mistakes, mutilation, and gear damage.

Our end loads unravel this issue by giving a exact 50-ohm impedance coordinate. They change over RF vitality into warm, viably killing undesirable reflections from your framework.

Key Features and Benefits

Wide Frequency Coverage

Our SMA 50 Ohm Termination operates across an impressive frequency range from DC to 18 GHz. This broad coverage makes it suitable for various applications, from basic communication systems to advanced millimeter wave testing.

Excellent VSWR Performance

With a typical VSWR of 1.25:1 up to 18 GHz, you get exceptional signal matching. Lower VSWR means better signal transfer and reduced reflections in your system.

High Power Handling

The 10W power rating provides sufficient capacity for most RF testing and measurement applications. You can confidently use it in demanding environments without worrying about thermal damage.

Robust Construction

These terminators use premium materials like nickel-plated copper and PTFE insulation for reliable, stable performance across temperature variations.

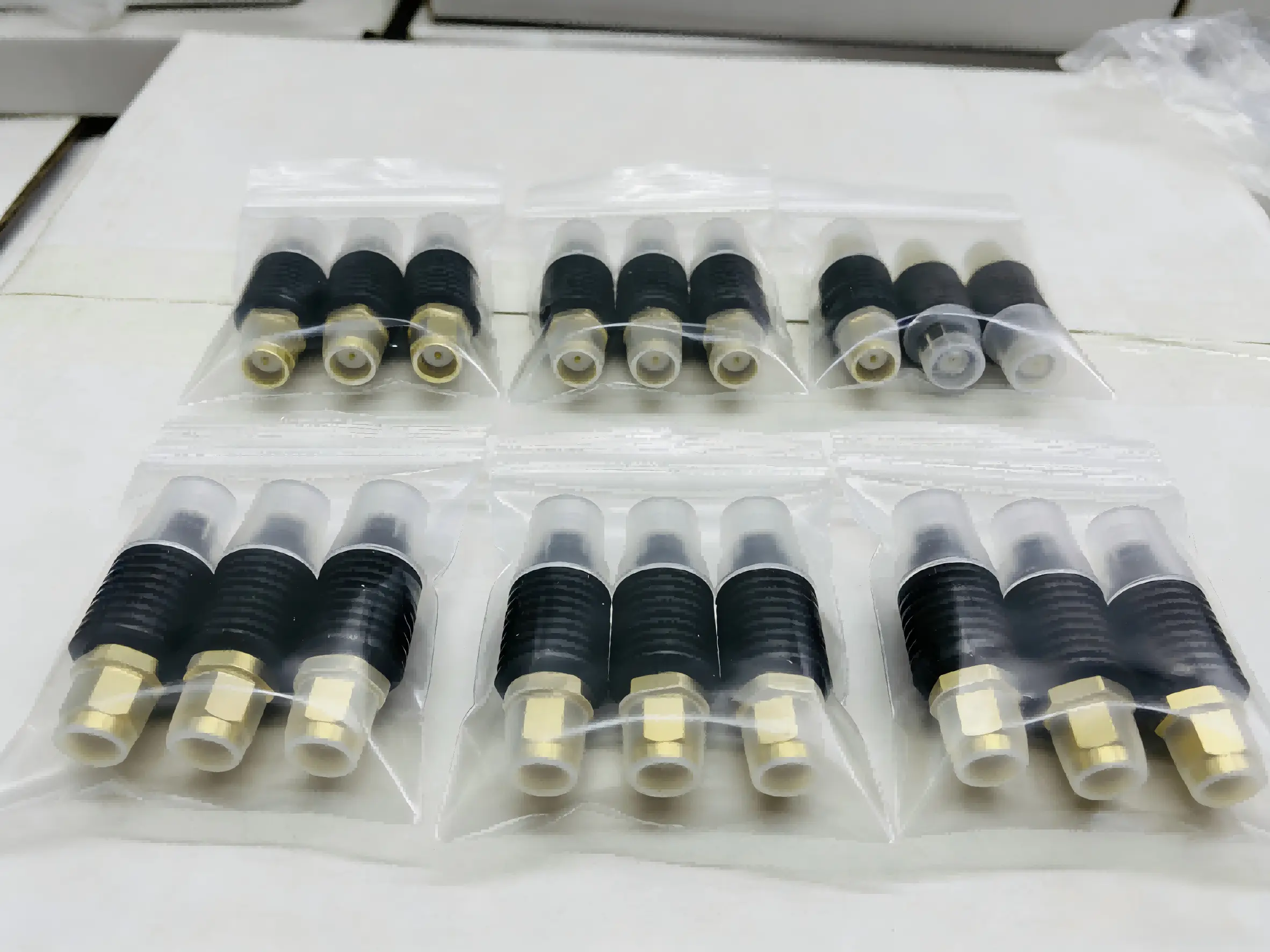

product-1-1

Technical Specifications

Parameter	Specification
Product Name	SMA-JR-18-10W RF Load
Impedance	50 Ohms nominal
Frequency Range	DC to 18 GHz
VSWR	1.25:1 to 18GHz typical
Power Rating	10W
Operating Temperature	-65°C to 165°C
Insertion Loss	.04 √f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Mate/Demate Cycles	500 cycles
Connection Torque	0.79N·m - 1.13N·m

Material Construction

Component	Material
Housing	Nickel-plated copper & blackened aluminum alloy
Center Contacts	Beryllium copper gold
Insulators	PTFE

Environmental Standards

Test	Standard
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Common Applications

RF Testing and Measurement

These terminators are essential in labs for accurate measurements, providing clean signal termination for network analyzers, spectrum analyzers, and signal generators.

Communication Systems

Base stations, repeaters, and other communication equipment rely on proper impedance matching. Our termination loads help maintain signal quality throughout your transmission path.

Microwave Systems

High-frequency applications demand precision components. The SMA 50 Ohm Termination's wide frequency range and low VSWR make these terminators ideal for microwave measurement setups.

System Prototyping

During development phases, you often need to terminate unused ports or test points. These loads provide a convenient way to maintain proper impedance while testing individual circuit sections.

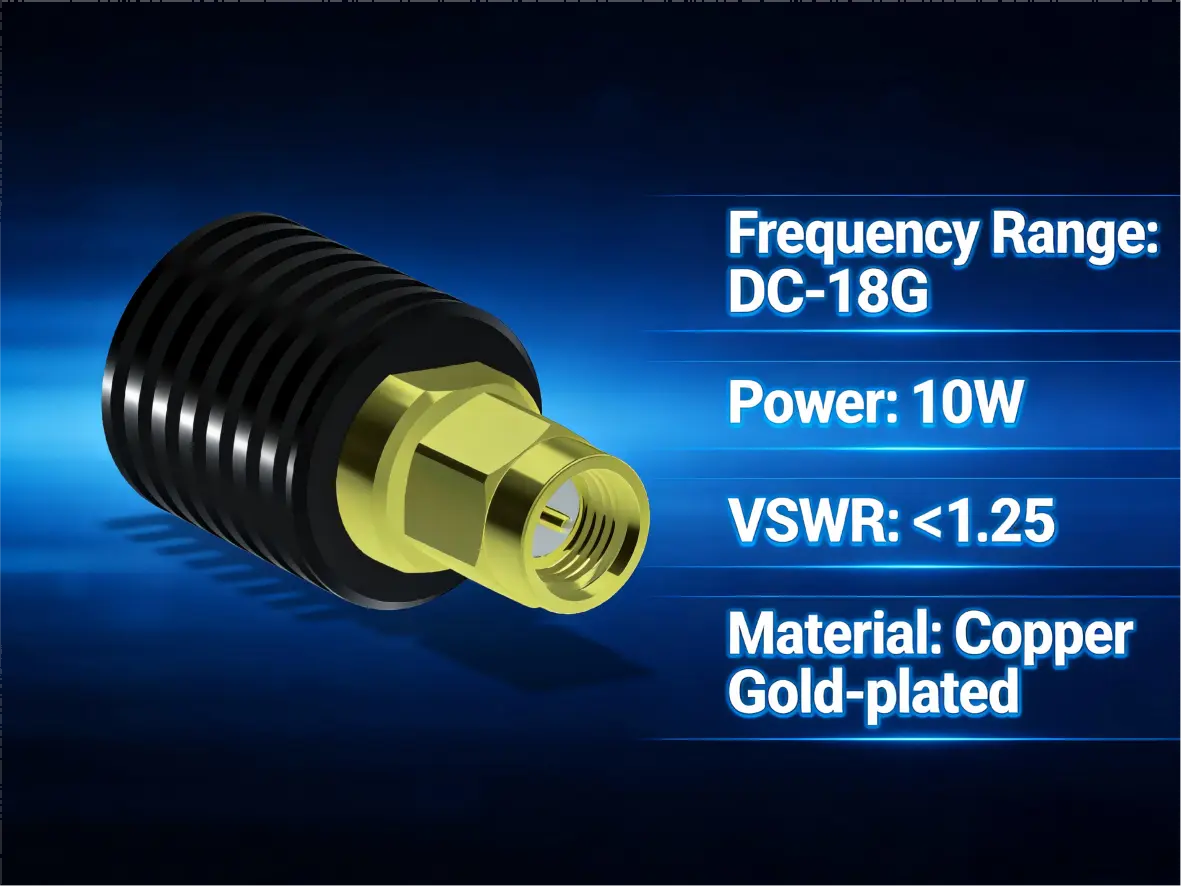

product-1-1

Installation and Usage Tips

Install your termination load by hand-tightening first, then use a torque wrench (0.79-1.13N·m). Check power levels before connection to avoid exceeding the 10W rating and causing damage.

For best results, use quality SMA connectors throughout your system. Poor connections elsewhere can introduce reflections that mask the terminator's performance benefits.

Why Choose Shaanxi Chuangyu

At Shaanxi Chuangyu Electronic Technology, we understand the demands of modern RF systems. Our products undergo rigorous testing to meet military standards for environmental performance.

We use advanced manufacturing and strict quality control, testing each terminator for VSWR, power handling, and integrity. Custom solutions for power ratings, frequency ranges, and connectors are also available.

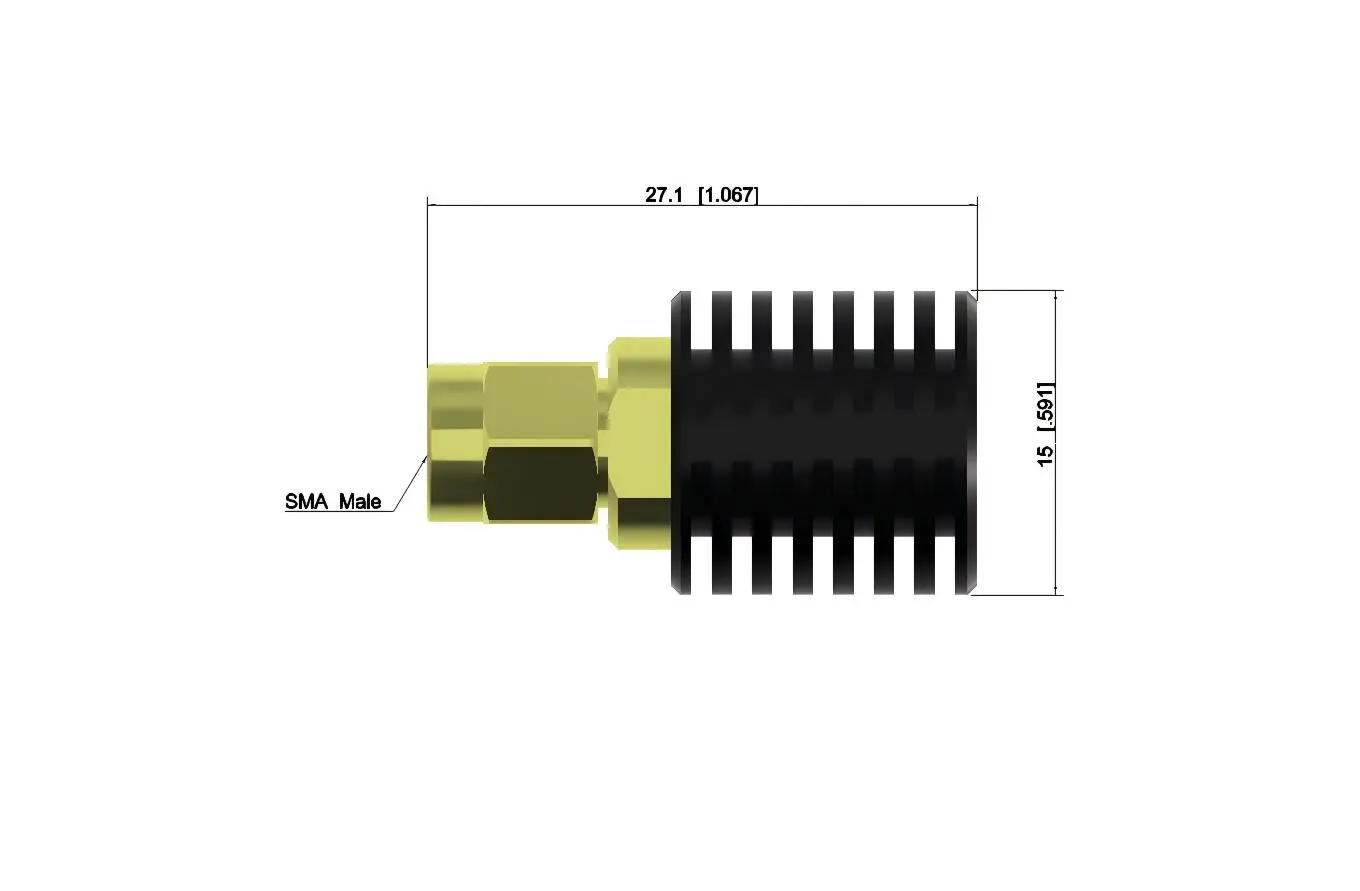

product-1-1

Get Your SMA Termination Loads Today

Ready to improve your RF system performance? Our SMA 50 Ohm Termination loads are in stock and ready to ship. We offer competitive pricing and fast delivery to keep your projects on schedule.

Contact our technical team at postmaster@cymicrowave.com for detailed specifications, pricing, or custom requirements. We're here to help you find the perfect termination solution for your application.
