Name: 2.4mm 50 Ohm Termination
SKU: N/A

2.4mm 50 Ohm Termination

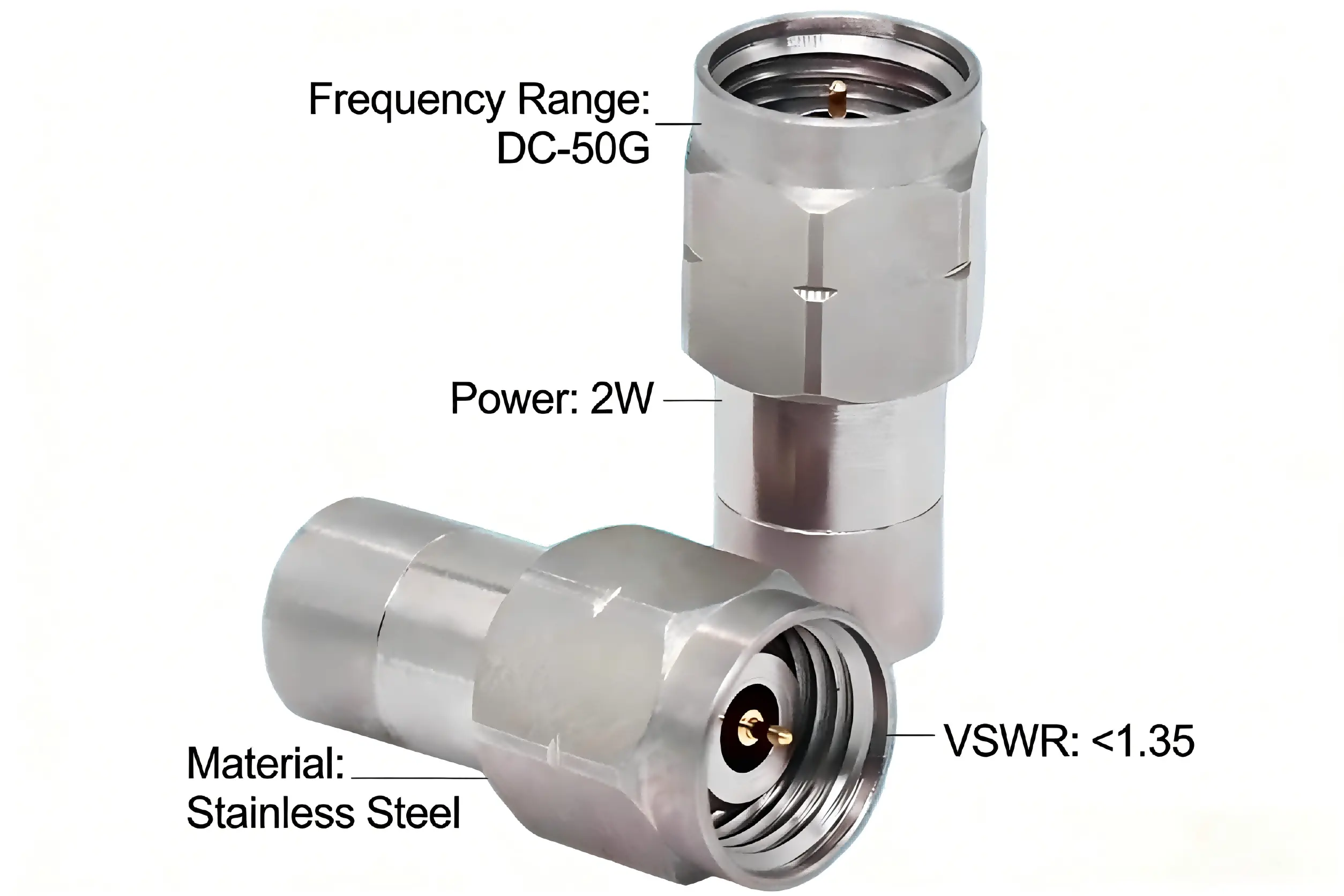

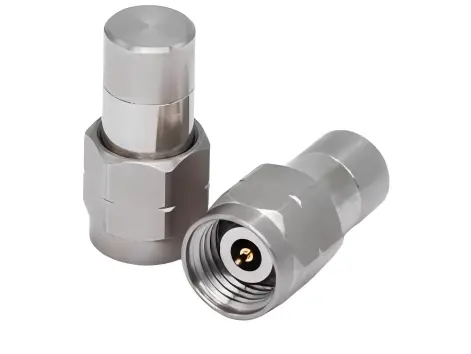

1. The 2.4mm 50 Ohm termination load (2.4mm 50 Ohm load) is primarily designed to connect to the open end of a transmission line (such as an RF port) to absorb signal energy, prevent reflections, and ensure stable system operation.
2. It is widely used in microwave instruments, millimeter-wave systems, wireless communication equipment, and other applications, particularly in scenarios requiring stable signal transmission in high-frequency bands (e.g., 50GHz). It helps protect device ports and minimize signal interference.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 50GHz
5. VSWR: 1.35:1 to 50GHz typical
6. Power: 2W
7. Temperature range: -65°C to 165°C

2.4mm 50 Ohm Termination Load - Premium RF Solution for High-Frequency Applications

When you need reliable signal termination for your high-frequency RF systems, our 2.4mm 50 Ohm Termination delivers exceptional performance across DC to 50GHz. This precision-engineered RF stack interfaces consistently to your transmission line's open conclusion, successfully retaining flag vitality whereas anticipating undesirable reflections. Your microwave rebellious, millimeter-wave frameworks, and remote communication hardware advantage from upgraded steadiness and decreased impedances. Our end stack guarantees steady execution in requesting situations where flag astuteness things most.

product-1-1

Why Choose Our Product Load?

Our termination load ensures signal quality with durable stainless steel housing and beryllium copper gold contacts, offering 500 mate/demate cycles and reliable performance in harsh environments.

Superior Performance Specifications

Our end guarantees 50-ohm impedance coordinating, moo VSWR (1.35:1), and temperature steadiness from -65°C to 165°C, giving steady execution in both lab and field applications.

Wide Frequency Coverage

This termination handles frequencies from DC to 50GHz effectively. Your millimeter-wave applications benefit from stable performance across the entire spectrum. The air interface design follows IEC 60169-40 standards for universal compatibility.

product-1-1

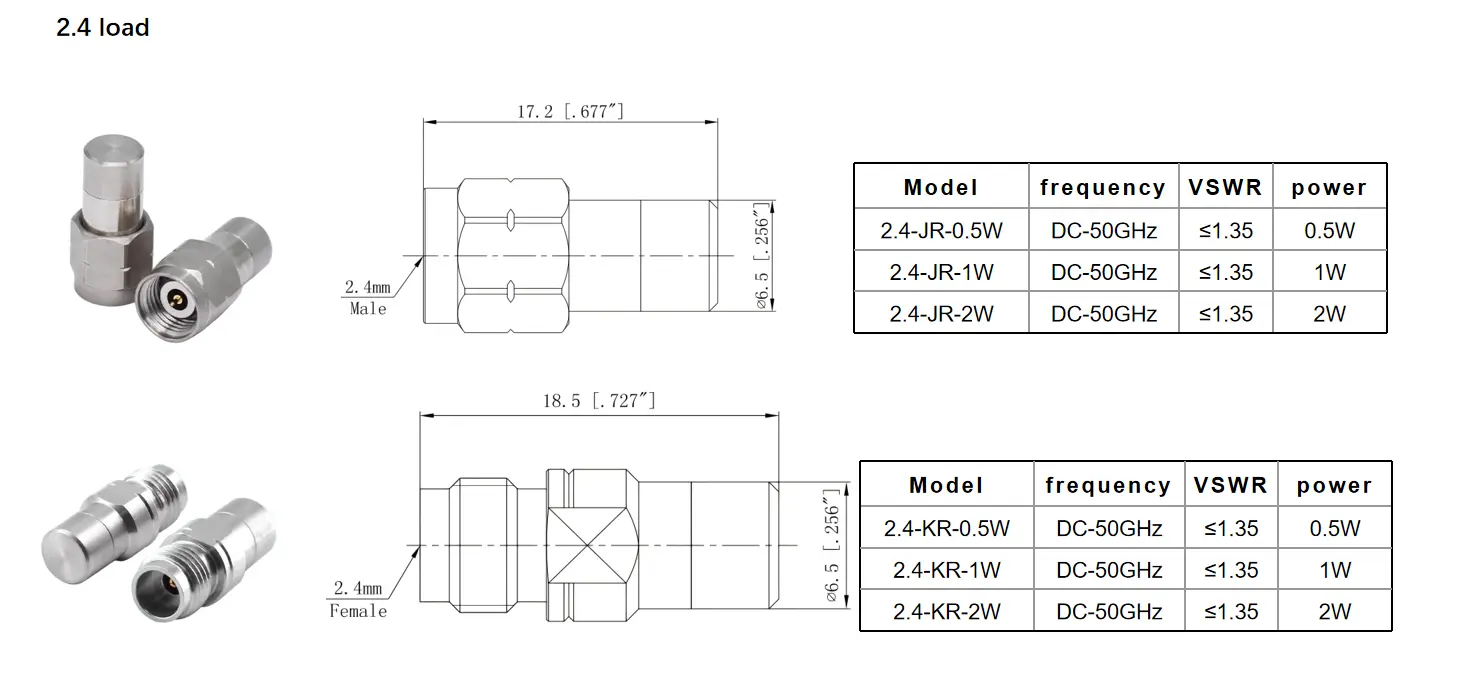

Technical Specifications

Parameter	Specification
Product Name	2.4-JR-2W RF Load
Impedance	50 Ohms nominal
Frequency Range	DC to 50 GHz
VSWR	1.35:1 to 50GHz typical
Power Rating	2W
Temperature Range	-65°C to 165°C
Insertion Loss	.05 √f (GHz)
DWV @ Sea Level	750 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	4 milliohms maximum
Mate/Demate Cycles	500 cycles
Connection Torque	0.8N·m - 1.1N·m

Material Construction

Component	Material
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI

Applications and Industries

Our stack guarantees exact end for remote frameworks, moving forward microwave calibration precision and killing reflection-induced blunders, coming about in steady test comes about over numerous estimation cycles.

Military and aviation applications request unwavering quality beneath extraordinary conditions. Our end meets thorough MIL-STD necessities for warm stun, vibration, and dampness resistance.

Laboratory and Production Testing

Research facilities use our terminations for accurate network analysis. You get repeatable measurements when characterizing RF components. The stable performance supports critical research and development work.

Production testing environments benefit from the 500-cycle rating. Your automated test equipment operates efficiently without frequent connector replacement.

product-1-1

Installation and Usage Guidelines

Proper installation ensures optimal performance from your termination load. Apply the specified torque range of 0.8N·m to 1.1N·m for secure connections.

Check connector condition before each use. Clean contact surfaces maintain low insertion loss over time. Store terminated connectors in protective caps when not in use.

Your measurement accuracy improves when you follow proper handling procedures. Avoid over-torquing connections to prevent damage. Regular inspection extends service life.

Quality Assurance and Reliability

Shaanxi Chuangyu Electronic Technology follows strict production processes ensuring consistent quality. Each 2.4mm 50 Ohm Termination undergoes comprehensive testing before shipment.

Environmental testing includes thermal shock, salt spray exposure, and vibration resistance. Your termination performs reliably in challenging field conditions.

Digital manufacturing processes ensure dimensional accuracy and electrical performance. Quality control measures maintain specifications across production batches.
