GPO 50 Ohm Termination

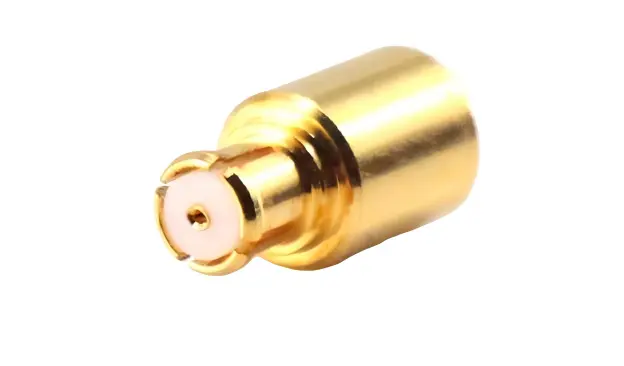

GPO 50 Ohm Termination: Professional RF Termination Load Solution

Superior RF Performance for Your Critical Applications

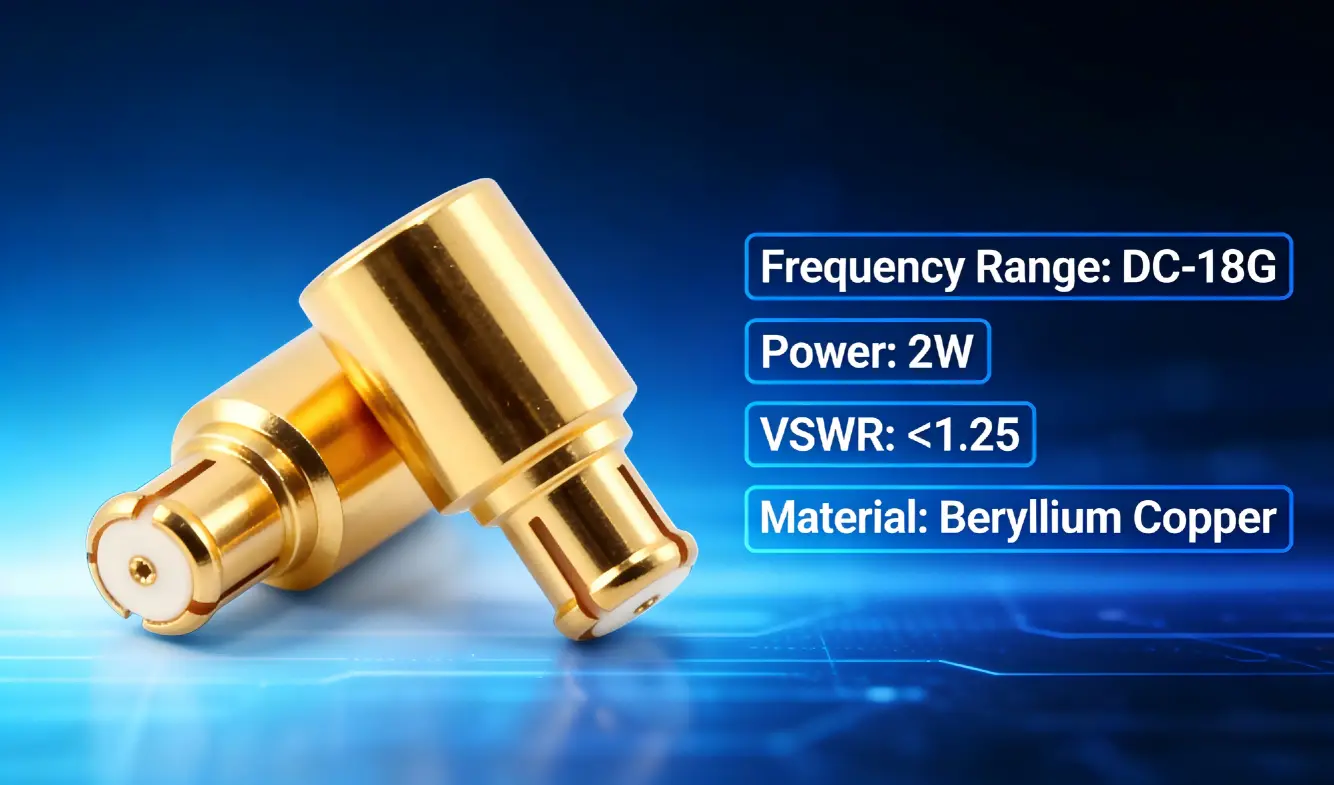

When you need reliable signal termination in your RF systems, the GPO 50 Ohm Termination delivers exceptional performance. This SMP-type RF termination load provides precise 50-ohm impedance matching for frequencies from DC to 18GHz. Our termination load ensures stable signal integrity while handling up to 2W of power. With its compact design and robust construction, this product meets the demanding requirements of modern electronic applications across telecommunications, testing, and measurement equipment.

Product Overview

Our termination load represents years of engineering expertise in RF component design. You'll discover this arrangement perfect for avoiding flag reflections, dispensing with undesirable resonances, and keeping up framework solidness. The gadget highlights extraordinary VSWR execution of 1.25:1 ordinary over its whole recurrence range.

Key Features and Benefits

Outstanding Electrical Performance

Our termination ensures precision with 50-ohm impedance matching from DC to 18GHz, delivering consistent performance across diverse applications.

Robust Construction

Engineered with premium materials, the brass-gold lodging offers protecting and erosion resistance, whereas beryllium copper gold contacts guarantee moo resistance and tall conductivity.

Temperature Resilience

Operating in challenging environments? This GPO 50 Ohm Termination functions reliably from -65°C to 165°C. Your equipment stays protected across extreme temperature variations.

High Power Handling

With 2W power rating, you can use this termination in demanding applications without performance degradation. The design efficiently dissipates heat while maintaining electrical specifications.

Technical Specifications

Contact Resistance

Materials Specification

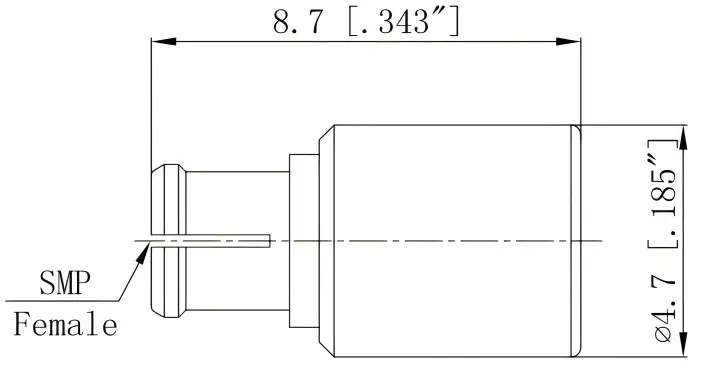

Mechanical Performance

Applications and Industries

Telecommunications

Your communication systems require precise impedance matching. Our termination prevents signal reflections that could degrade system performance. It's perfect for base stations, repeaters, and testing equipment.

Aerospace and Defense

Test and Measurement

Laboratory environments need reliable reference standards. You can use this termination for network analyzer calibration, signal generator termination, and general-purpose testing applications.

Medical Electronics

Precision medical equipment benefits from stable RF termination. Our component ensures accurate measurements in diagnostic equipment and therapeutic devices.

Quality and Reliability

At Shaanxi Chuangyu Electronic Technology, we maintain strict quality control throughout the manufacturing process. Each GPO 50 Ohm Termination undergoes comprehensive testing to verify electrical and mechanical performance. Our digital manufacturing approach ensures consistent quality and reliability.

Environmental Testing Compliance

Your applications may face harsh conditions. We test our terminators according to:

• Thermal shock: MIL-STD-202, Method 107, Condition B
• Salt spray: MIL-STD-202, Method 101, Condition B
• Vibration: MIL-STD-202, Method 204, Condition D
• Shock: MIL-STD-202, Method 213, Condition I
• Moisture resistance: MIL-STD-202, Method 106

Why Choose Our Solution

Technical Support and Contact

Our experienced engineers provide comprehensive technical support throughout your project lifecycle. From initial specification review to implementation assistance, we're here to help. Contact our team at postmaster@cymicrowave.com for technical discussions, quotations, or custom requirements.

Transform your RF system performance with our professional GPO 50 Ohm Termination. Experience the difference that precision engineering and quality manufacturing make in your critical applications.
