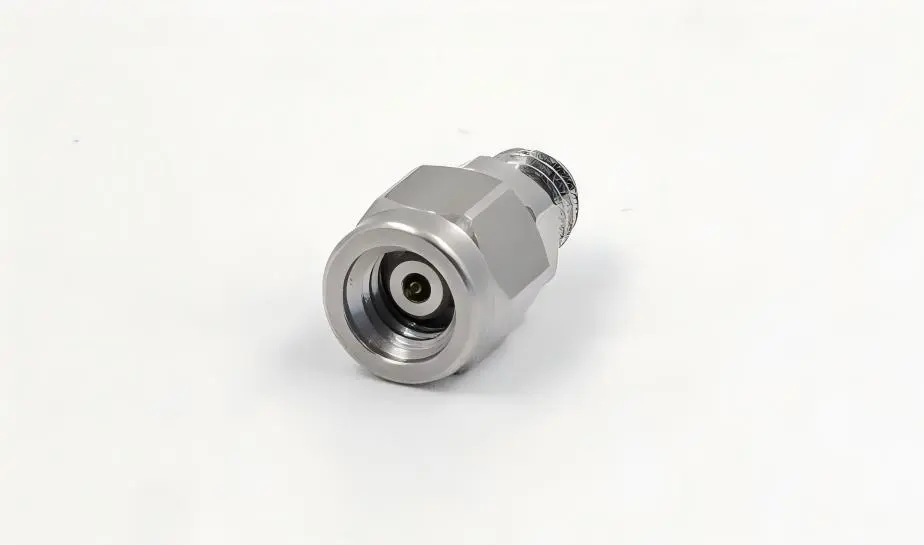

Name: Coaxial Adapter 1.0mm Plug To 1.0mm Jack
SKU: N/A

Coaxial Adapter 1.0mm Plug To 1.0mm Jack

1. Coaxial adapter with 1.0mm plug to 1.0mm socket, operating frequency up to 110 GHz (W-band);
2. The interface features threaded connection, offering compact size, portability, ultra-high operating frequency, and reliable connection.
3. This adapter can be widely applied in millimeter-wave communication and radar systems.
4. Impedance: 50 Ohms nominal
5. VSWR: 1.4:1 to 110GHz typical
6. Insertion loss: .06 √f (GHz)

Coaxial Adapter 1.0mm Plug To 1.0mm Jack - High-Performance Millimeter Wave Solution

Are you searching for a reliable, high-frequency adapter for your millimeter wave applications? Our Coaxial Adapter 1.0mm Plug To 1.0mm Jack delivers exceptional performance up to 110 GHz. This compact, lightweight connector highlights discuss interface strung associations that guarantee dependable network for your most requesting ventures. Whether you're working on radar frameworks, millimeter wave communication, or exactness testing gear, this connector gives the ultra-high recurrence execution you require. With its strong stainless steel development and exact building, you can believe this arrangement for basic applications.

Coaxial Adapter 1.0mm Plug To 1.0mm Jack

Why Choose Our 1.0mm Coaxial Adapter?

Our millimeter wave adapter offers reliable, secure threaded connections and a compact design, ensuring easy integration even in space-limited applications. Proven engineering for optimal performance.You won't have to compromise on performance for portability. This adapter maintains excellent electrical characteristics across its entire frequency range.

Superior Frequency Performance

Operating from DC to 110 GHz, this adapter covers the complete W-band spectrum. You can use it confidently in applications requiring the highest frequencies available in commercial connectors. The low insertion loss and excellent VSWR characteristics ensure signal integrity throughout your system.

Key Features and Benefits

Exceptional Frequency Range

DC to 110 GHz operation covers all your millimeter wave needs
W-band compatibility for advanced radar and communication systems
Low insertion loss maintains signal strength across connections

Reliable Construction

Stainless steel housing provides durability and corrosion resistance
Beryllium copper gold contacts ensure excellent conductivity
PEI insulators offer superior dielectric properties

Precision Engineering

50-ohm nominal impedance matches standard system requirements
Threaded connection provides secure, repeatable mating
Compact design saves valuable space in your assembly

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 110 GHz
VSWR	1.4:1 to 110GHz typical
Insertion Loss	.06 √f (GHz)
Operating Temperature	-65°C to 165°C
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	4 milliohms maximum
Mating Cycles	500 cycles
Connection Torque	0.3N·m to 0.45N·m
Engagement Force	≤0.23N.m

Material Construction

Component	Material
Housing	Stainless Steel (Passivated)
Center Contacts	Beryllium Copper Gold
Insulators	PEI (Polyetherimide)

Environmental Standards

Our adapters meet stringent military standards for reliability:

Test	Standard
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Applications

Millimeter Wave Communication Systems

You can integrate the Coaxial Adapter 1.0mm Plug to 1.0mm Jack into 5G networks, satellite communications, and point-to-point radio links. The high-frequency capability supports next-generation wireless technologies.

Radar and Defense Systems

Military and aerospace applications benefit from the adapter's rugged construction and reliable performance. It meets demanding environmental requirements for critical defense systems.

Test and Measurement Equipment

Laboratory and production testing environments require precise connections. This adapter provides the accuracy needed for millimeter wave measurements and calibration.

Medical and Scientific Instruments

Research offices and therapeutic gadget producers depend on these connectors for high-frequency applications in imaging and demonstrative equipment.

Coaxial Adapter 1.0mm Plug To 1.0mm Jack

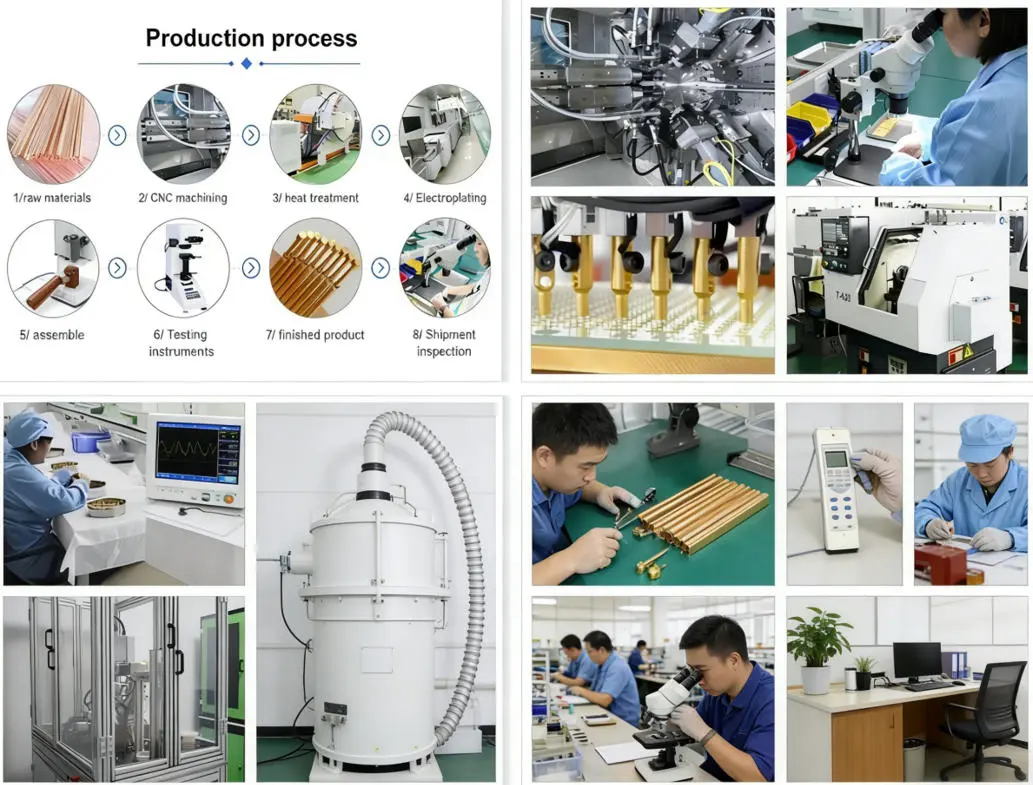

Why Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Development and Innovation Mechanical Stop, we specialize in exactness electrical connectors and millimeter wave components. Our mastery expands to frequencies up to 110 GHz, making us pioneers in high-frequency connector technology.

We guarantee strict quality control and thorough testing for dependable execution in basic applications. Our commitment to advancement drives persistent advancement, conveying arrangements that meet advancing industry needs.

Coaxial Adapter 1.0mm Plug To 1.0mm Jack

Get Your High-Performance Adapter Today

Ready to enhance your millimeter wave system with our Coaxial Adapter 1.0mm Plug To 1.0mm Jack? Contact our technical team to discuss your specific requirements. We provide comprehensive support to ensure you select the right solution for your application.

For technical specifications, custom configurations, or volume pricing, reach out to us at postmaster@cymicrowave.com. Our engineers are ready to help you achieve optimal performance in your high-frequency applications.
