Name: BNC Female To BNC Male
SKU: N/A

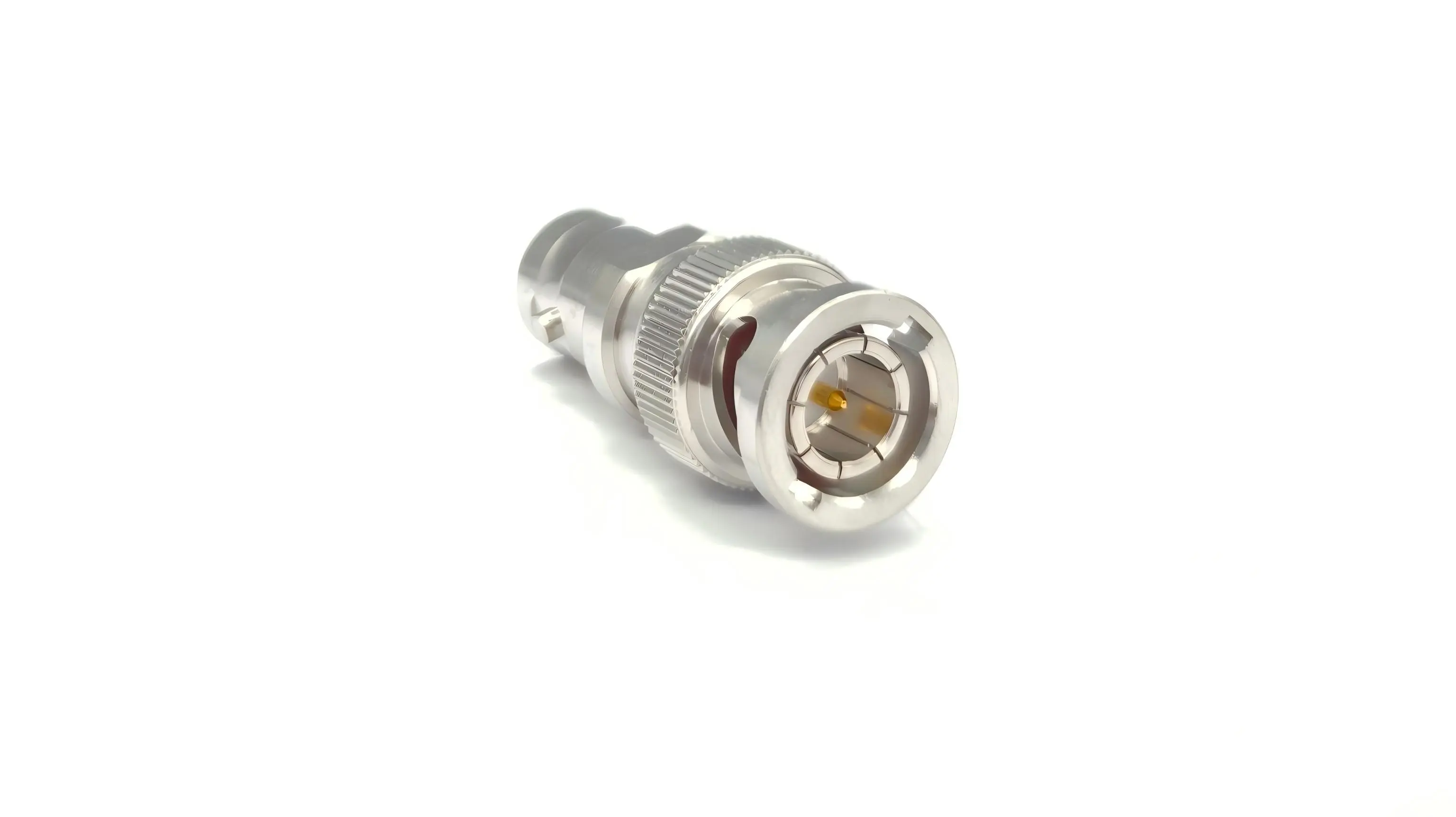

BNC Female To BNC Male

1. The RF coaxial adapter has BNC female connectors (slot-type connectors, for receiving plugs) on one end and BNC male connectors (pin-type connectors, for inserting into sockets) on the other end.
2. It is mainly used for extending or adapting signal transmission chains with BNC interfaces, commonly found in security surveillance, test equipment, and similar scenarios.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 6GHz typical
5. Insertion loss: .04 √f (GHz)
6. Temperature range: -65°C to 165°C

Professional BNC Female To BNC Male Adapter: Reliable RF Connection Solution

When you need to extend or adapt signal transmission chains in your RF applications, choosing the right connector is crucial for maintaining signal integrity. Our BNC Female To BNC Male adapter provides the perfect solution for your connectivity needs. This high-quality RF coaxial connector highlights a precision-engineered plan that guarantees dependable flag transmission over a wide recurrence extend. Whether you're working with security reconnaissance frameworks, test hardware, or other RF applications, this connector conveys reliable execution you can trust.

BNC Female To BNC Male

Understanding BNC Connector Technology

BNC connectors, known for their quick-connect plan and dependable execution, are perfect for visit associations. Our connector bridges distinctive association sorts in your flag chain for consistent integration.The female conclusion highlights spaces outlined to get male plugs, whereas the male conclusion has pins that embed into female attachments. This setup permits you to amplify cable runs, alter connector sexual orientations, or adjust between distinctive hardware types.

Key Features and Benefits

Superior Signal Performance

50-ohm impedance matching ensures optimal signal transfer
Low insertion loss maintains signal strength across the connection
Excellent VSWR performance up to 6 GHz
Minimal signal reflection for clean transmission

Robust Construction

Brass nickel housing provides durability and corrosion resistance
Beryllium copper gold center contacts ensure excellent conductivity
PTFE insulators deliver superior dielectric properties
Temperature stable from -65°C to 165°C

Professional Grade Reliability

500 mating cycles ensure long-term durability
Military standard compliance for harsh environments
Consistent engagement force for secure connections
High insulation resistance prevents signal leakage

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 6 GHz
Temperature Range	-65°C to 165°C
Electrical Performance
VSWR	1.15:1 to 6GHz typical
Insertion Loss	.04 √f (GHz)
DWV @ Sea Level	1500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Brass Nickel
Center Contacts	Beryllium Copper Gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.23N.m
Environmental Standards
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Common Applications

Security and Surveillance

Video surveillance systems often require cable extensions or gender changes between cameras, monitors, and recording equipment. Our BNC Female To BNC Male adapters maintain video signal quality while providing the flexibility you need for system configuration.

Test and Measurement

These adapters enable reliable connections in laboratory environments, ensuring accurate measurements across different test equipment configurations.

Communications Equipment

RF communication systems benefit from the quick-connect capability and reliable signal transmission. The adapters help you build flexible communication networks with consistent performance.

Industrial Applications

Manufacturing and automation systems use these connectors for sensor networks, control systems, and data acquisition applications where reliable connections are essential.

Advantages of BNC female to BNC male adapters

Quality Assurance

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we maintain strict quality standards throughout our manufacturing process. Our precision testing ensures every adapter meets or exceeds specifications. Located in Chang'an Innovation Park, our facility blends traditional craftsmanship with advanced manufacturing for reliable performance in demanding applications.

BNC female to BNC male connector quality control

Installation and Usage Tips

Proper establishment guarantees ideal execution and life span. Adjust the connector carefully some time recently locks in the pike coupling. Apply indeed weight whereas turning the coupling nut to dodge cross-threading. The quick-connect plan ought to lock in easily without over the top force.

Regular review makes a difference keep up association quality. Check for signs of wear, erosion, or harm. Clean associations intermittently with suitable solvents to evacuate defilement that may influence performance.

BNC female to BNC male connector installation instructions

Why Select Our Adapters

Our connectors combine a long time of building skill, quality materials, exactness fabricating, and thorough testing, guaranteeing solid execution and steady flag astuteness in requesting situations for ideal client fulfillment.

For technical support or custom solutions, contact our engineering team at postmaster@cymicrowave.com. We're here to help you find the right connectivity solution for your application. Trust Shaanxi Chuangyu Electronic Technology to deliver the reliable BNC Female To BNC Male adapters your projects demand.
