Name: QMA Male To Female Adapter
SKU: N/A

QMA Male To Female Adapter

1. SMA blind plug quick plug test adapter, used for rapid conversion of signal transmission between devices with different interfaces.
2. Can be interchanged with SMA quick blind plug to improve testing efficiency.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 18GHz typical
5. Insertion loss: .04 √f (GHz)
6. Temperature range: -65°C to 165°C

QMA Male To Female Adapter - Professional RF Connector Solution

Are you looking for a reliable QMA Male To Female Adapter that ensures seamless signal transmission between different interface devices? Our high-performance adapter delivers exceptional connectivity for your RF applications. This precision-engineered connector features quick-connect functionality that makes testing faster and more efficient. Whether you work with drones, communication equipment, or signal amplification systems, our product provides the reliability you need for critical connections.

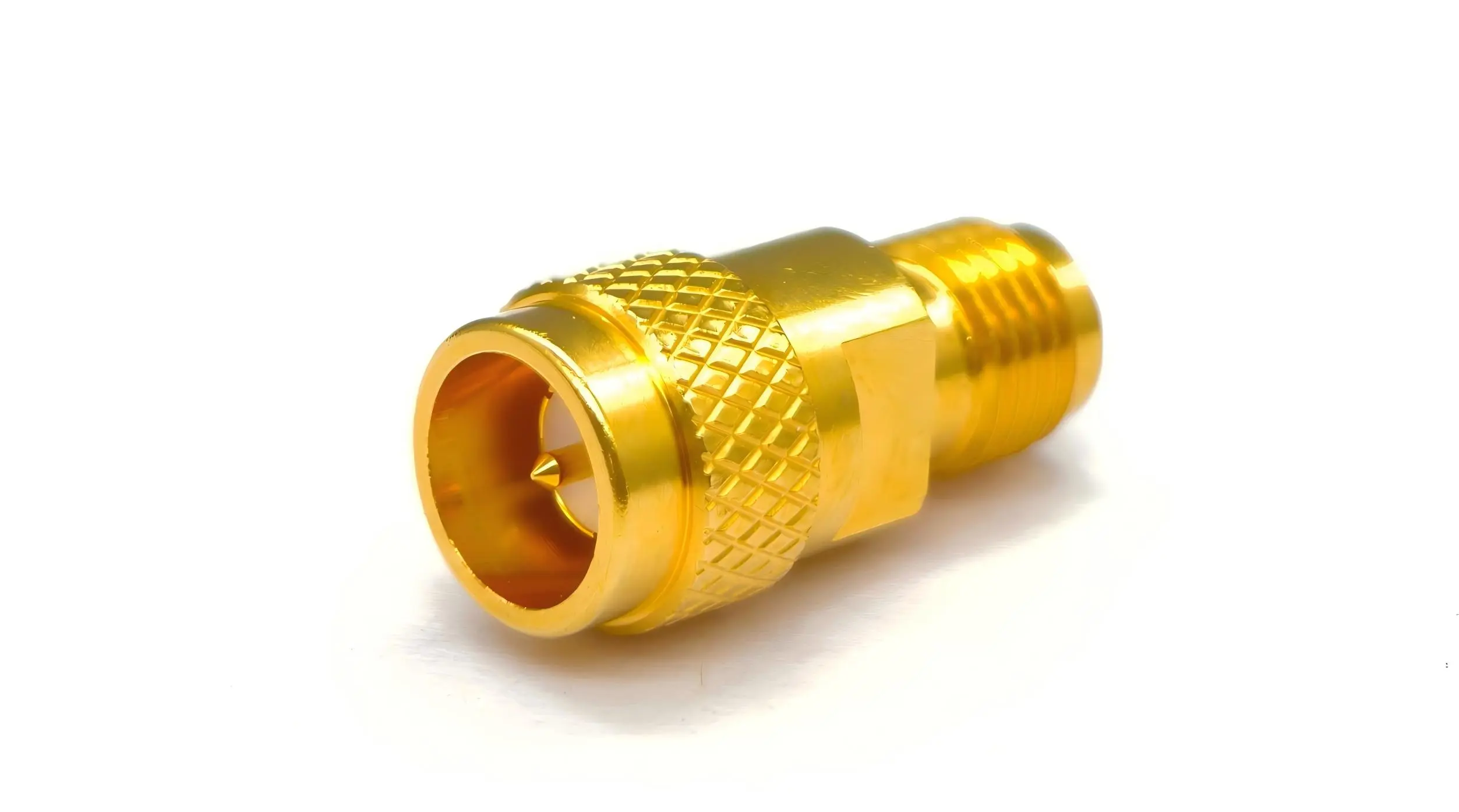

QMA male to female adapter

Why Choose Our QMA Connector Adapters?

Our connectors exceed expectations in requesting situations where accuracy things, advertising predominant execution with negligible flag misfortune and amazing impedance coordinating. The quick-connect plan spares important time amid testing, establishment, and upkeep strategies, guaranteeing effectiveness.

Key Applications

Communication Systems

Signal boosters and amplifiers
Antenna matching networks
RF test equipment connections

Drone Technology

Video transmission systems
Control signal routing
Antenna interface connections

Laboratory Testing

RF measurement setups
Network analysis applications
Signal path configurations

Applications of QMA male-to-female adapters

Technical Specifications

Parameter	Specification
General
Impedance	50 Ohms nominal
Frequency Range	DC to 18 GHz
Temperature Range	-65°C to 165°C
Electrical Performance
VSWR	1.15:1 to 18GHz typical
Insertion Loss	.04 √f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Brass gold-plated
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m-1.13N·m
Withstand Torque	1.69N·m

Superior Performance Features

Quick Connection Design

The innovative quick-connect mechanism eliminates threading time. You simply push and twist for secure connections. This feature proves invaluable during repetitive testing scenarios.

Wide Frequency Coverage

Our adapter maintains excellent performance from DC through 18 GHz. This broad range covers most commercial and industrial applications you encounter.

Robust Construction

Gold-plated brass housing provides excellent corrosion resistance. The beryllium copper contacts ensure reliable signal transfer over thousands of connection cycles.

Low Loss Performance

Minimal insertion loss preserves signal integrity across your entire frequency range. PTFE insulation maintains consistent dielectric properties under varying conditions, including the QMA Male To Female Adapter.

Environmental Reliability

Your applications demand connectors that withstand harsh conditions. Our adapters meet stringent military standards for:

Thermal shock resistance
Salt spray corrosion protection
Vibration tolerance
Shock resistance
Moisture protection

These capabilities ensure reliable operation in challenging outdoor and industrial environments.

Quality Manufacturing Process

Shaanxi Chuangyu Electronic Technology employs precision manufacturing methods. Each connector experiences comprehensive testing some time recently shipment. Our quality control frameworks confirm electrical execution, mechanical judgment, and natural compliance.

We utilize progressed testing gear to approve each adapter's details. This consideration to detail ensures reliable execution over our whole item extend.

QMA Male to Female Adapter Quality Process

Installation and Usage Tips

Proper Connection Technique

Align the connectors carefully before engaging. Apply gentle pressure while rotating to ensure proper seating. Avoid over-tightening which can damage the connector threads.

Maintenance Recommendations

Inspect connections regularly for wear or contamination. Clean contacts with appropriate solvents when necessary. Store adapters in protective cases to prevent damage.

Compatibility Considerations

Verify impedance matching between connected devices. Ensure frequency requirements fall within the adapter's specified range. Check power handling capabilities for your specific application.

Installation and use of QMA male-to-female adapter

Custom Solutions Available

Every application has unique requirements. Our engineering team can modify standard designs to meet your specific needs. We offer custom connector configurations, specialized materials, and enhanced performance parameters.

Contact our technical specialists to discuss your project requirements. We provide detailed application support and design recommendations.

Customization process for QMA male-to-female adapters

Get Your Product Today

Ready to improve your RF connections? Our experienced team stands ready to help you select the right adapter configuration. We provide comprehensive technical support and fast delivery for urgent projects.

Contact us at postmaster@cymicrowave.com for pricing, availability, and technical specifications. Let us help you find the perfect QMA Male To Female Adapter solution for your application needs.
