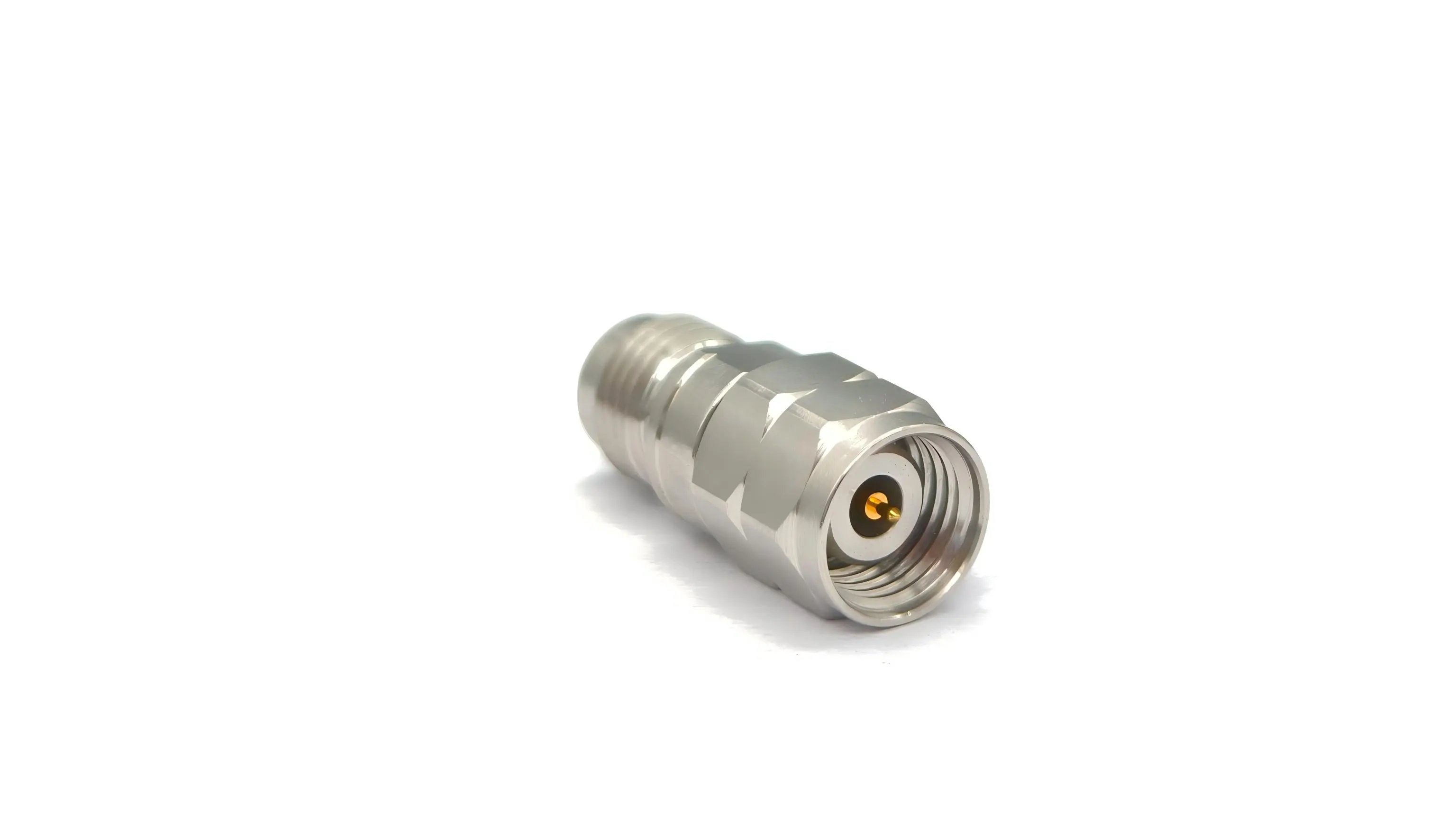

Name: Coaxial Adapter 2.4mm Plug To 2.4mm Jack
SKU: N/A

Coaxial Adapter 2.4mm Plug To 2.4mm Jack

1. Coaxial adapter with 2.4mm plug to 2.4mm jack, it is a coaxial adapter with male (plug) and female (jack) connectors on both ends of 2.4mm specification.
2. Used for connecting coaxial cables or equipment interfaces of the same specification, in high-frequency signal transmission scenarios (such as RF and microwave systems).
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 50GHz typical
5. Insertion loss: .05√f (GHz)

High-Performance Coaxial Adapter 2.4mm Plug To 2.4mm Jack

Looking for a reliable connection solution for your high-frequency applications? Our Coaxial Adapter 2.4mm Plug To 2.4mm Jack delivers exceptional performance in RF and microwave systems. This precision-engineered connector highlights male and female connectors outlined for consistent network up to 50GHz. Whether you're working on test gear, research facility setups, or communication frameworks, this coaxial connector gives the unwavering quality you require. Built with premium materials and thorough testing guidelines, it guarantees steady flag transmission for your basic applications.

Coaxial Adapter 2.4mm Plug To 2.4mm Jack

What Makes Our 2.4mm Coaxial Connector Special?

When you require reliable associations in high-frequency situations, exactness things. Our connector combines progressed building with vigorous development to convey steady execution over requesting applications.

Outstanding Recurrence Range

Our connector bolsters DC to 50GHz, perfect for RF testing, millimeter wave applications, and high-speed frameworks, guaranteeing flag integrity.

Superior Electrical Performance

Your signal quality remains pristine with our low insertion loss design. The Coaxial Adapter 2.4mm Plug To 2.4mm Jack maintains excellent VSWR characteristics, minimizing reflections that could compromise your measurements or system performance.

Durable Construction Materials

Made with premium materials, stainless steel housing ensures durability, while gold-plated beryllium copper contacts provide reliable, low-resistance connections.

Technical Specifications

Category	Parameter	Value
General	Impedance	50 Ohms nominal
	Frequency Range	DC to 50 GHz
	Temperature Range	-65°C to 165°C
Electrical	VSWR	1.15:1 to 50GHz typical
	Insertion Loss	.05√f (GHz)
	Dielectric Withstanding Voltage	750 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	2.5 milliohms maximum
	Contact Resistance (Inner)	4 milliohms maximum
Materials	Housing	Stainless Steel Passivated
	Center Contacts	Beryllium Copper Gold
	Insulators	PEI
Mechanical	Mate/Demate Cycles	500 cycles
	Engagement/Disengagement Force	≤0.23N.m
	Connection Torque	0.8N·m - 1.1N·m
	Withstand Torque	1.65N·m

Key Applications and Benefits

Laboratory and Test Equipment

Your measurement accuracy depends on reliable connections. This adapter excels in test setups where signal integrity is critical. The low insertion loss and excellent return loss characteristics ensure your measurements remain accurate across the entire frequency range.

Communication Systems

Modern communication equipment demands high-performance components. Our adapter supports the stringent requirements of millimeter wave systems, 5G infrastructure, and satellite communications.

Research and Development

When you're pushing the boundaries of technology, you need components that won't limit your innovations. This Coaxial Adapter 2.4mm Plug To 2.4mm Jack provides the performance headroom your cutting-edge projects require.

Coaxial Adapter 2.4mm Plug To 2.4mm Jack

Why Choose Shaanxi Chuangyu?

We understand the challenges you face in high-frequency applications. Located in Xi'an's Innovation and Technology Industrial Park, we specialize in precision RF components and millimeter wave solutions. Our expertise extends to frequencies up to 110GHz, making us your trusted partner for advanced connectivity solutions.

Quality You Can Trust

Every connector experiences thorough testing to guarantee it meets strict execution guidelines. We take after comprehensive quality administration frameworks that ensure consistency from plan through generation to last testing.

Custom Solutions Available

We customize adapters to meet unique mechanical or electrical needs, working closely with you to match system requirements.

Coaxial Adapter 2.4mm Plug To 2.4mm Jack

Environmental Reliability

Your equipment operates in challenging conditions. Our adapters meet stringent military standards for:

Thermal shock resistance
Salt spray corrosion protection
Vibration tolerance
Shock resistance
Moisture protection

These qualifications ensure reliable operation across diverse environmental conditions.

Get Started Today

Ready to enhance your system's performance? Our Coaxial Adapter 2.4mm Plug To 2.4mm Jack provides the reliable connectivity your high-frequency applications demand. Contact our technical team for detailed specifications, custom configurations, or application support.

For technical inquiries and ordering information, reach out to us at postmaster@cymicrowave.com. We're here to help you find the perfect connectivity solution for your specific needs.

Experience the difference that precision engineering and quality manufacturing make in your high-frequency systems. Choose reliability, choose performance, choose Shaanxi Chuangyu.
