Name: GPPO RF Connector
SKU: N/A

GPPO RF Connector

1.The GPPO RF connector (SSMP connector) is a push-in locking high-frequency RF connector. It is used in aerospace electronic systems (such as phased array radar, satellite communication) and transparent antenna system testing to verify signal integrity.
2.Bent flange fixed SSMP female connector
3.Impedance: 50 Ohms nominal
4.VSWR: 1.35:1 to 50GHz typical
5.Insertion loss: .1√f (GHz)
7.Adaptation cable: .086, cnx3506
6.Temperature range: -55°C to 125°C

GPPO RF Connector - High-Performance Push-In Locking Solution

When you need reliable high-frequency connectivity for demanding aerospace and communication applications, the GPPO RF Connector delivers exceptional performance. This push-in locking connector, too known as an SSMP connector, gives consistent flag transmission for staged cluster radar frameworks, obsequious communications, and radio wire testing applications. Our item bolsters DC to 50GHz recurrence run with predominant flag astuteness, making it your perfect choice for mission-critical electronic frameworks where execution things most.

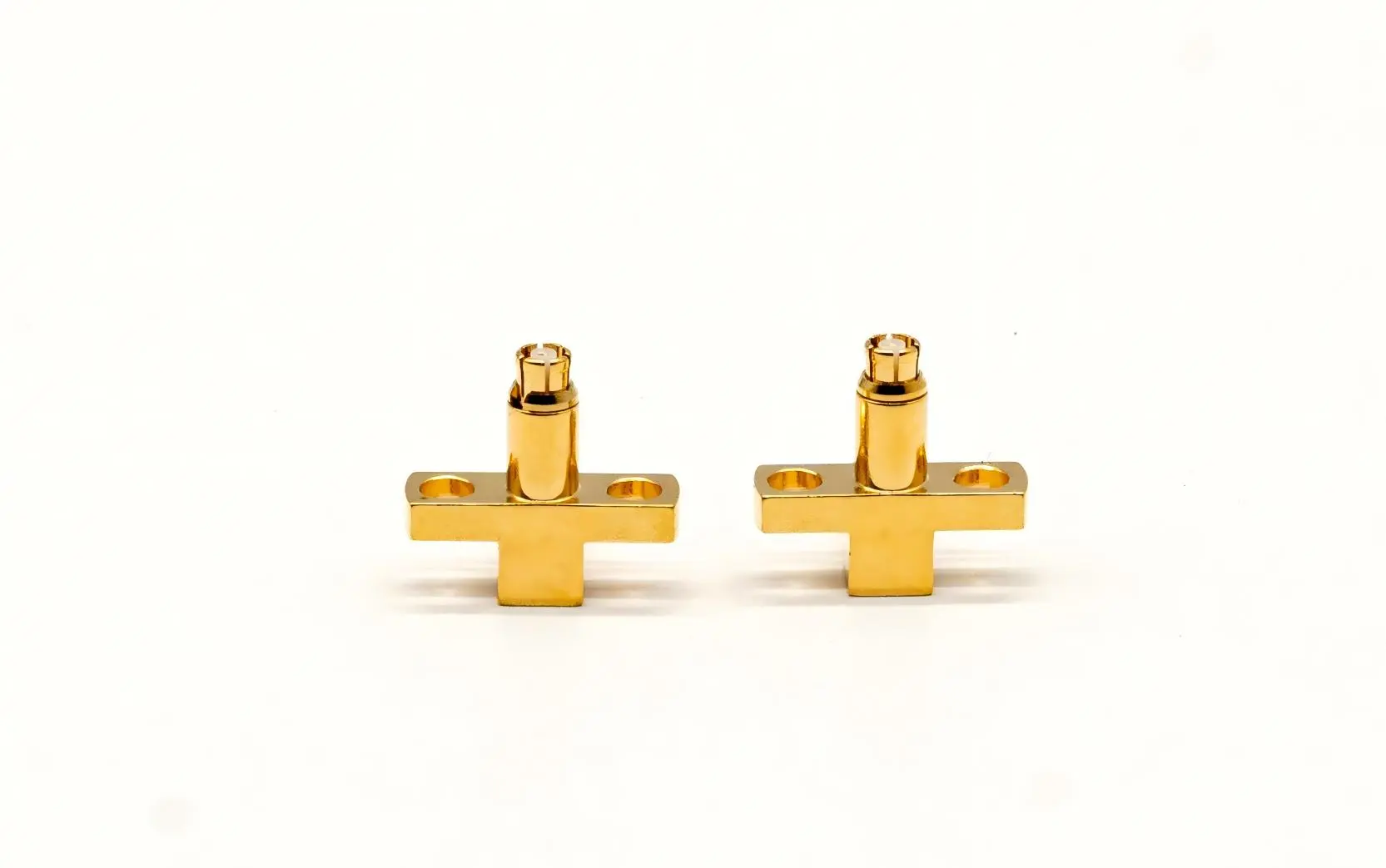

GPPO bent type flanged cable connector

What Makes Our Bowed Rib SSMP Connectors Special

You'll appreciate the progressed building behind our bowed spine settled SSMP female connectors. These connectors highlight a strong push-in locking component that guarantees secure associations whereas permitting speedy gathering and dismantling. The bowed spine plan gives upgraded mounting adaptability for your particular establishment requirements.

Our connectors exceed expectations in unforgiving situations, working dependably from -55°C to 125°C. This wide temperature run makes them culminate for aviation applications where extraordinary conditions are common. The PTFE cover and beryllium copper development guarantee long-lasting execution indeed beneath requesting operational stress.

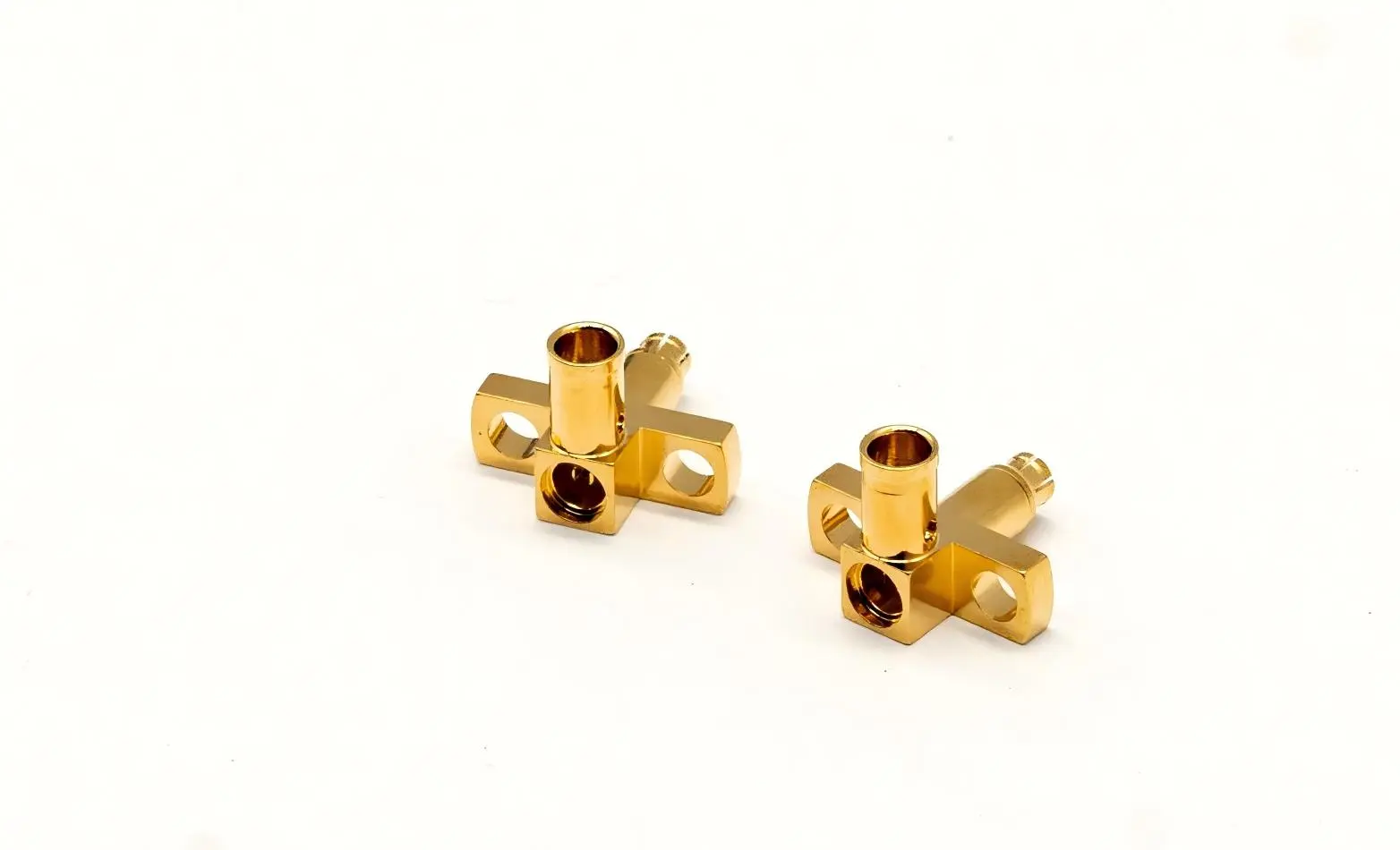

GPPO bent type flanged cable connector

Key Applications and Benefits

Your ventures advantage from our connector's flexibility over different businesses. Aviation engineers depend on these connectors for staged cluster radar frameworks where exact flag timing is vital. Adherent communication frameworks utilize them for dependable information transmission in space situations.

The transparent antenna system testing capabilities help you verify signal integrity during development phases. This feature saves valuable time during product validation and ensures your systems meet stringent performance requirements.

Superior Electrical Performance You Can Trust

Our connectors maintain excellent electrical characteristics across their entire frequency range. With a VSWR of 1.35:1 to 50GHz typical, you get minimal signal reflection and maximum power transfer. The insertion loss specification of .1√f (GHz) ensures your signals remain strong throughout the transmission path.

The 50-ohm nominal impedance of the GPPO RF Connector matches standard RF system requirements, eliminating the need for additional matching networks. This compatibility simplifies your design process and reduces overall system complexity.

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 50GHz
Temperature Range	-55°C to 125°C
Cable Compatibility	.086, cnx3506
Electrical Performance
VSWR	1.35:1 to 50GHz typical
Insertion Loss	.1√f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	5 milliohms maximum
Contact Resistance (Inner)	13 milliohms maximum
Materials
Housings	Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles (FD)	100 minimum
Mate/Demate Cycles (SB)	500 minimum
Engagement Force (FD)	4.5lb typical
Disengagement Force (FD)	6.5lb typical
Engagement Force (SB)	2.5lb typical
Disengagement Force (SB)	1.5lb typical

Environmental Reliability Standards

Your applications demand connectors that perform consistently under challenging conditions. Our connectors meet rigorous military standards including MIL-STD-202 testing protocols. They withstand thermal shock, salt spray exposure, vibration, shock, and moisture resistance testing.

This comprehensive testing ensures reliable operation in marine environments, aerospace applications, and industrial settings. You can confidently specify these connectors knowing they'll perform when you need them most.

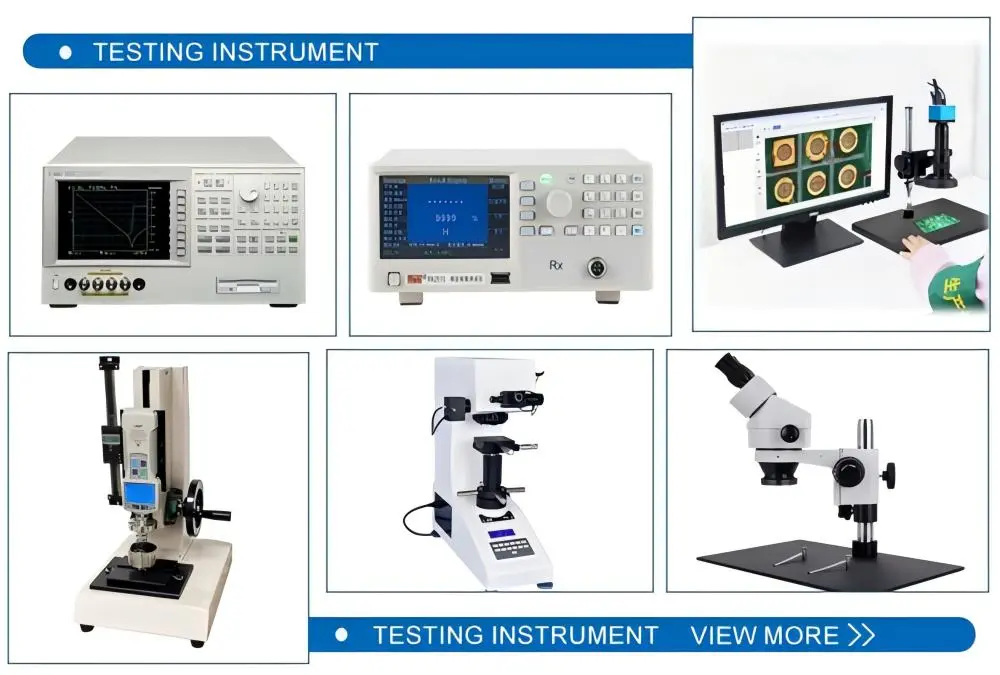

GPPO bent type flanged cable connector testing instrument

Quality Manufacturing Process

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we maintain strict quality control throughout our manufacturing process. Located in Chang'an Innovation and Technology Industrial Park in Xi'an, our facility specializes in precision electrical connectors and microwave components.

Our digital manufacturing approach combines advanced production techniques with precision testing instruments. Every connector undergoes thorough inspection to ensure it meets our high standards before reaching your facility.

GPPO bent type flanged cable connector quality control

Why Choose Our Product Solutions

Our GPPO RF Connector products offer complete support from specification to implementation, with customization options. Leveraging expertise in aerospace, communications, and military, we’ve extended RF connector technology to 110 GHz.

Customized GPPO bent type cable connectors with flanges

Contact us

Ready to enhance your next project with reliable high-frequency connectivity? Contact our team at postmaster@cymicrowave.com to discuss your specific requirements. We'll work with you to identify the optimal connector solution for your application and provide the technical support you need for successful implementation.
