N RF Connector

1. N RF connector A medium-sized coaxial RF connector with threaded coupling and waterproof features, designed for high-frequency signal transmission.
2. Widely used in radio, television, and data communication infrastructure, including wireless base stations, cable television systems, and test instruments.
3. Straight N female connector
3. Impedance: 50 Ohms nominal
4. VSWR: 1.2:1 to 6GHz typical
5. Insertion loss: .1√f (GHz)
7. Adaptation cable: .141
6. Temperature range: -55°C to 125°C

N RF Connector - High-Performance Coaxial Connector for Critical Applications

Superior Signal Transmission for Your RF Needs

When you need reliable high-frequency signal transmission for your critical applications, our N RF Connector delivers exceptional performance and durability. This medium-sized coaxial RF connector highlights strung coupling and waterproof characteristics, making it the culminate choice for requesting situations. Whether you're working on remote base stations, cable tv frameworks, or exactness test disobedient, our item guarantees steady associations that you can believe. With its 50-ohm impedance and recurrence run expanding from DC to 6GHz, this connector meets the exacting necessities of present day communication foundation and testing applications.

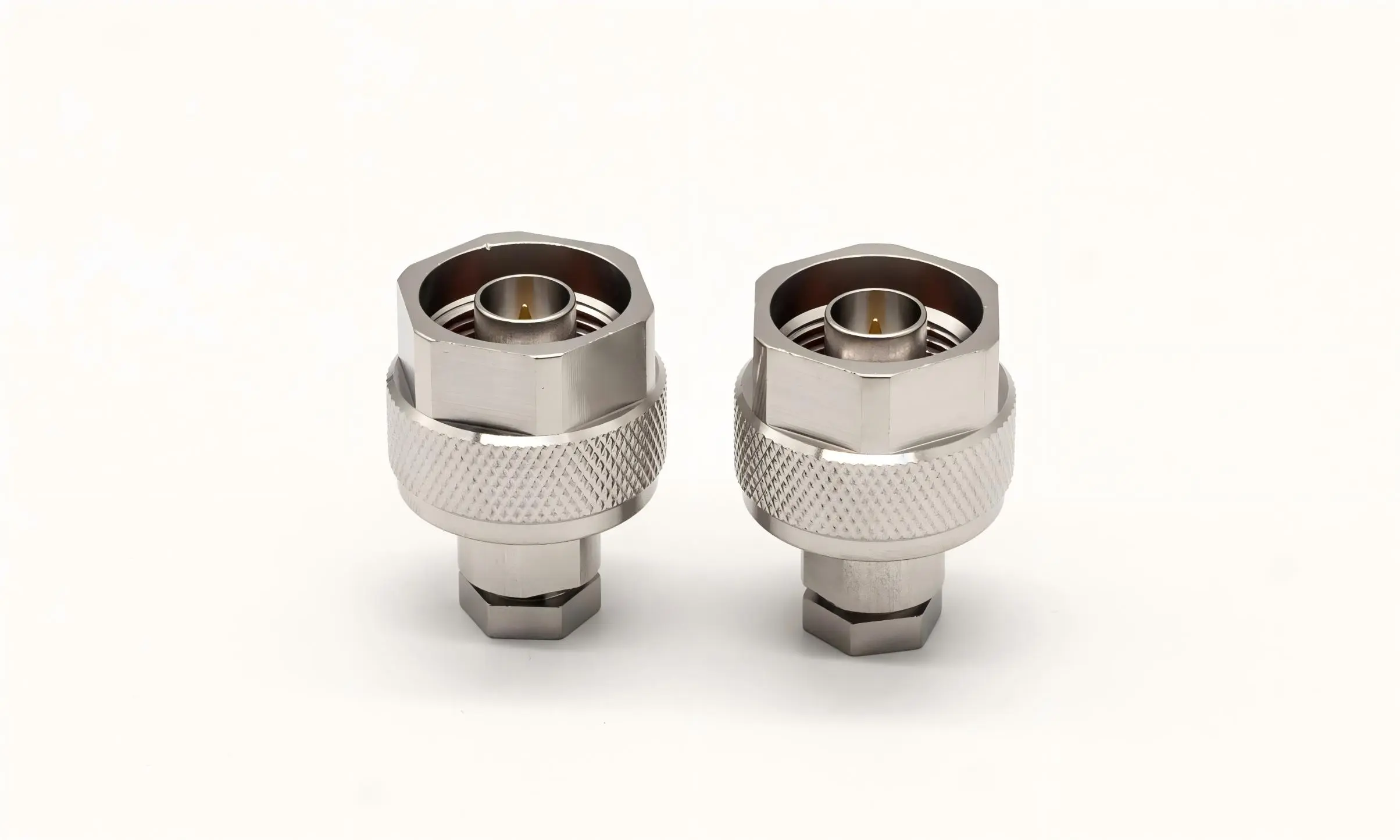

N-type RF connector with 3449 cable

Why Select Our product?

Robust Development for Requesting Environments

Your applications merit components that can withstand unforgiving conditions. Our connectors include nickel-plated brass lodgings and beryllium copper gold center contacts. The 5/8-24 UNEF strung external coupling guarantees vibration resistance and keeps up steady associations indeed in challenging situations.

Exceptional Electrical Performance

You need connectors that maintain signal integrity across your entire frequency range. Our design minimizes insertion loss with just .1√f (GHz) and maintains excellent VSWR performance of 1.2:1 to 6GHz typical. The PTFE insulation and precision engineering ensure consistent performance you can rely on.

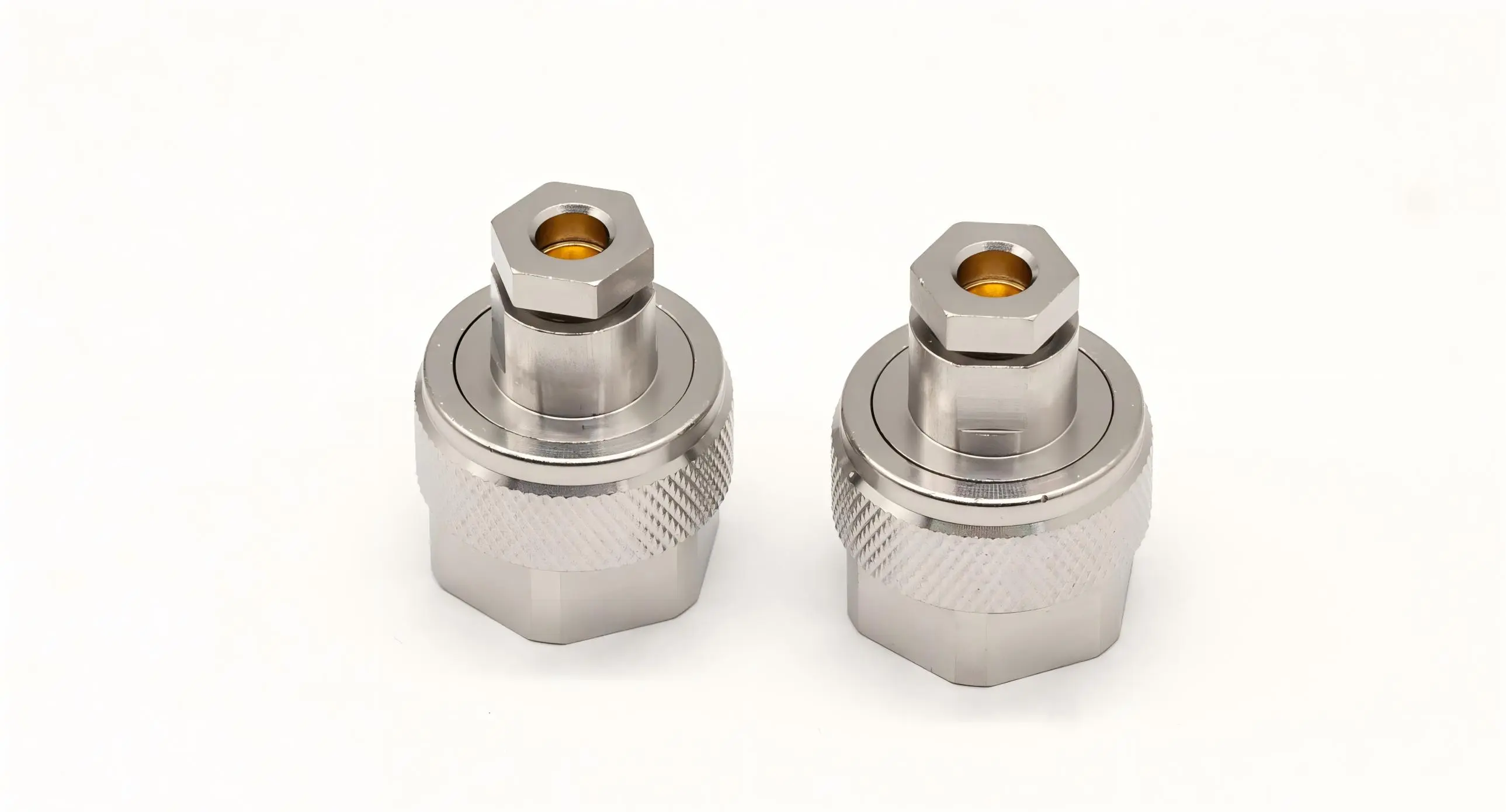

N-type RF connector with 3449 cable

Versatile Applications

These connectors excel in multiple industries:

Telecommunications: Wireless base stations and cellular infrastructure
Broadcasting: Cable television systems and antenna connections
Test & Measurement: Laboratory instruments and field testing equipment
Military & Aerospace: Mission-critical communication systems
Medical Equipment: High-frequency medical device connections

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 6GHz
Temperature Range	-55°C to 125°C
Cable Adaptation	.141/cxn3449
Electrical Performance
VSWR	1.2:1 to 6GHz typical
Insertion Loss	.1√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	0.3 milliohms maximum
Contact Resistance (Inner)	1 milliohms maximum
Materials
Housings	Nickel-plated brass
Center Contacts	Beryllium copper gold
Sealing Ring	Silicone rubber
Insulators	PTFE
Mechanical Specifications
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.2N·m

Environmental Reliability

Your equipment operates in various conditions, and our N RF Connector is tested to military standards:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

About Shaanxi Chuangyu Electronic Technology

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, we specialize in precision electrical connectors and RF solutions. Our expertise extends to millimeter wave applications up to 110GHz, with over 200 specifications of mmWave connectors and 400+ cable assembly specifications.

We focus on import substitution and provide solutions that match international quality standards while offering better value. Our comprehensive capabilities include electronic design, PCB manufacturing, and precision assembly services for new energy, photovoltaic, medical, communications, and automation industries.

Quality Assurance

Our digital manufacturing approach ensures consistent quality through strict production process management and precision testing instruments. Every connector undergoes rigorous testing from design through production to ensure reliability in your applications.

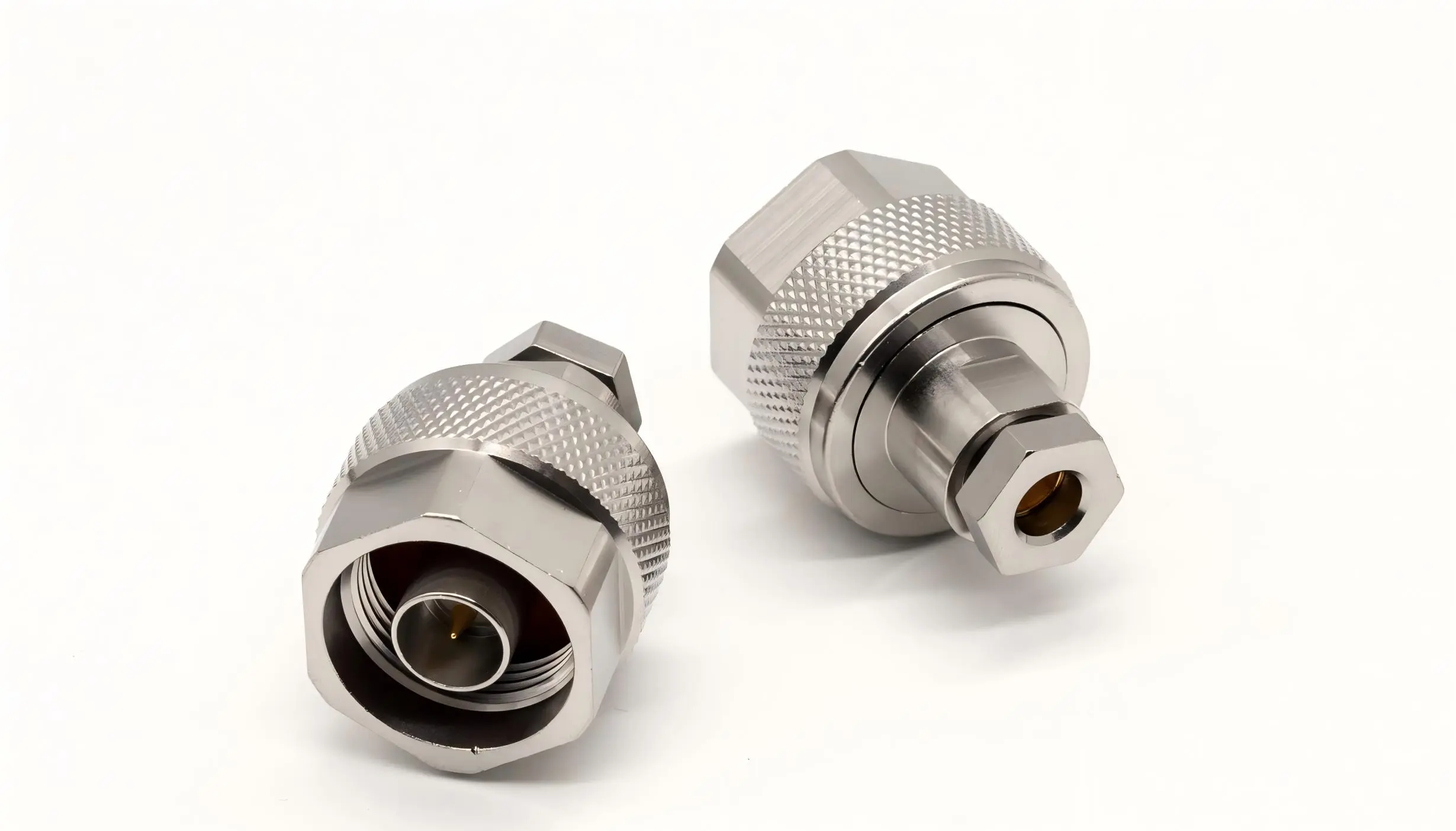

N-type RF connector with 3449 cable
