Why Use a Coaxial Adapter 1.0mm Plug to 1.0mm Jack?

A Coaxial adapter 1.0mm plug to 1.0mm jack solves one of the most persistent challenges in high-frequency RF testing: polarity mismatch between same-series interfaces. When your vector network analyzer, spectrum analyzer, or RF test fixture presents a male port where you need a female connection—or vice versa—this compact gender converter restores continuity without redesigning your cable assembly. Operating from DC to 110 GHz with a VSWR ≤1.35, it maintains signal integrity across millimeter-wave bands. For R&D engineers and procurement managers working with 5G chips, radar modules, or wafer-level test systems, this adapter is not optional—it is infrastructure.

Understanding the Coaxial Adapter 1.0mm Plug to 1.0mm Jack

This standard for a 1.0mm coaxial connector was created to expand RF testing into the W-band and D-band frequency ranges. It specifies a precise interface with an outer conductor inner diameter of 1.0mm. This compact shape makes it possible to send signals up to 110 GHz, which is higher than what bigger plugs like the 2.4mm (rated to 50 GHz) or 1.85mm (rated to 67 GHz) can do ².

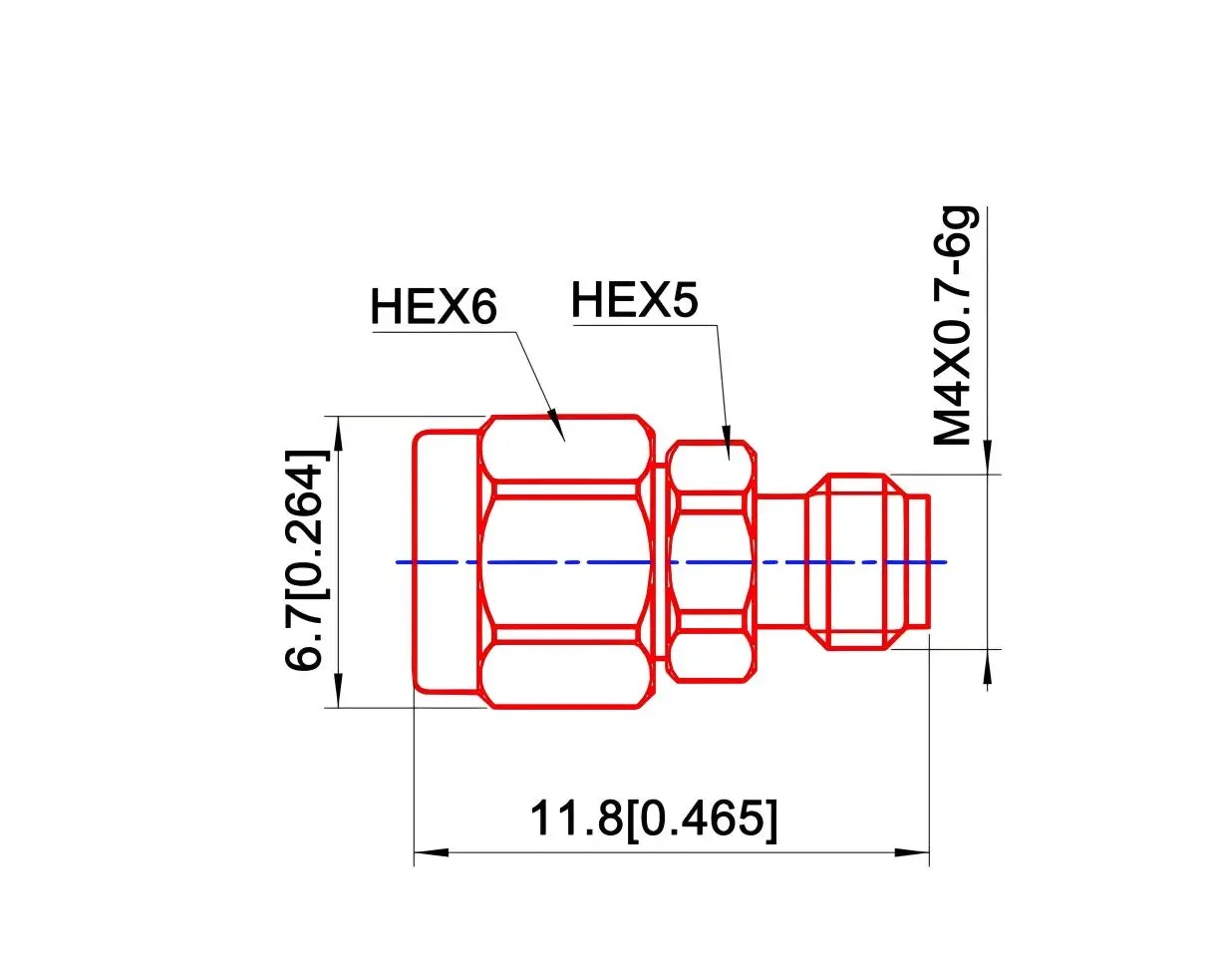

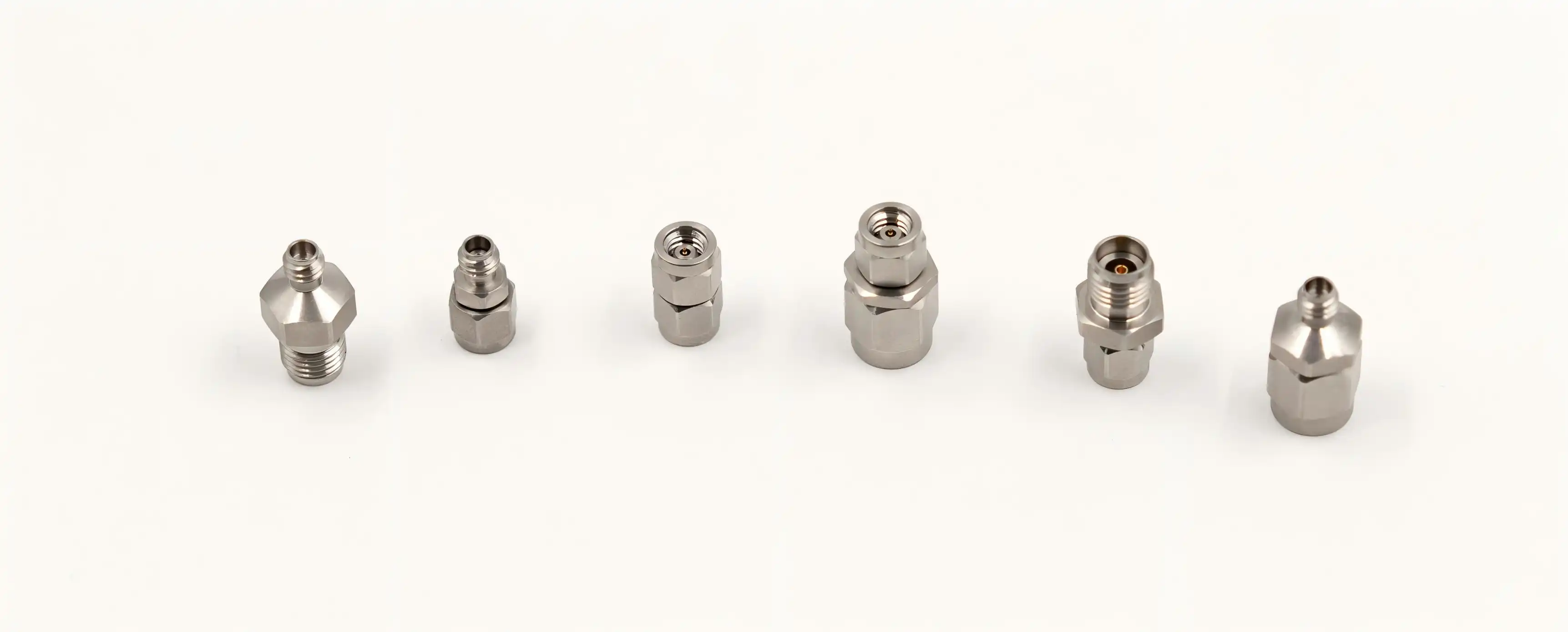

Structural Architecture

The adapter has a coaxial structure with a characteristic impedance of 50Ω. The middle wire is made of beryllium copper that has been covered with gold. This material was chosen because it has low contact resistance and springiness. Polyetherimide (PEI) is used as the shielding dielectric because it has stable dielectric properties over a wide temperature range. The outer conductor is made of passivated stainless steel, which makes it resistant to corrosion and dimensionally accurate in size. One end has a 1.0mm male connection with a pin that sticks out, and the other end has a 1.0mm female connector with a hole inside. This gender change device fixes interface polarity problems within the same 1.0 mm connector family without the need for extra adapters or cable extensions ².

Performance vs. the 1.3mm Variant

The Coaxial adapter 1.0mm plug to 1.0mm jack can work at frequencies up to about 90 GHz, which means it can be used for a lot of Ka-band and V-band tasks. When your test setup needs full coverage up to 110 GHz, like when characterising D-band 5G/6G chips or validating car radar at 77 GHz and above, the 1.0mm interface is the right choice. The gap in performance is not small; it is the difference between a correct test and a faulty one.

Why Choose a 1.0mm Coaxial Adapter?

Engineers who work with RF and microwaves already know that every inactive part of a signal path adds to the error of measurements. Picking the correct adapter isn't just a matter of buying something; it's also about making sure the signal stays strong.

The main reasons why this adapter is the best choice for hard tasks are listed below:

• Millimeter-wave test coverage: With an operating range of DC to 110 GHz and VSWR ≤1.35, the adapter supports interface conversion for vector network analyzers and spectrum analyzers used in 5G/6G chip testing, phased array antenna characterization, and millimeter-wave radar development. Signal fidelity is preserved across the full band ³.
• Mechanical durability for repeated use: The stainless steel outer conductor withstands mechanical stress without deformation. The center pin retention force meets or exceeds 4 lbs, and the insertion/extraction lifecycle is rated at ≥500 mating cycles. In high-throughput test environments, this longevity matters directly to cost-per-test metrics.
• Material-driven reliability: Gold plating on the beryllium copper center conductor resists oxidation and maintains stable contact resistance over time. This is particularly relevant in semiconductor testing environments where interface degradation introduces measurement drift.
• Compact form factor: The 1.0mm connector's compact geometry allows integration into dense test fixtures, wafer-level probing systems, and miniaturized RF modules where larger adapters create mechanical interference.

When procurement managers choose connectors for RF test infrastructure, 5G base station integration, aircraft RF component testing, and medical device equipment, these benefits help them deal with signal, mechanical, and space issues.

Choosing this connector also makes designing the system easier. A single 1.0mm plug to jack adapter fixes the polarity problem right away, so you don't have to rebuild a wire assembly or buy a special extension.

Connection Best Practices

Align the interface every time before you use it. Tighten with a measured torque wrench to the stated ≤0.41 Nm. If you over-torque, the outer conductor will bend, and if you under-torque, the electrical contact will become unstable. Do not insert it at an angle. All high-frequency measurements should be done in a shielded area to stop electromagnetic interference from the outside that could mess up data in the 110 GHz range.

Comparing 1.0mm Coaxial Adapters: Choosing the Best Solution

Manufacturers of precision 1.0mm RF adapters include Maury Microwave, Rosenberger, and Chuangyu. Each has its own benefits when it comes to design accuracy, OEM flexibility, and pricing ⁴.

Chuangyu's Coaxial adapter 1.0mm plug-to-1.0 mm jack adapter is made to meet international standards, and its Xi'an factory can make more than 500,000 RF components every year. The gold-plated beryllium copper middle pin, passivated outer wire made of stainless steel, and PEI dielectric are all examples of materials that meet MIL-grade performance standards. With almost twenty years of experience making RF connectors, we can offer OEM customisation, such as custom wire assemblies and non-standard layouts, with faster prototyping processes than the average in the industry.

Total cost of ownership is more important than unit price when figuring out cost-effectiveness. A high-quality adapter that has been tested and certified to work at 110 GHz and rated for at least 500 insertion cycles has a lower replacement frequency and fewer test interruptions than cheaper options that are rated to narrower frequency ranges and have shorter mechanical lifespans.

Procuring 1.0mm Coaxial Adapters for Your Business Needs

When buying precision RF connectors for business use, it's better to deal directly with makers instead of just using marketing platforms. Direct OEM sourcing gives you access to quality certifications, materials that can be tracked, set lead times, and warranties. These are all important when you need to specify parts for defence, medical, or telecommunications applications that need compliance paperwork ⁺.

When buying something, it's important to make sure that the supplier's quality management system includes lifetime testing, VSWR measurement validation, and dimensional checking. When supply chain managers are making resilient sourcing plans, it's important to know about the minimum order amounts, the availability of prototypes, and the supplier's ability to go from small R&D samples to large production volumes.

Chuangyu can handle both small orders for prototypes and large production runs. Its integrated production, R&D, and warehouse layout in Xi'an Chang'an Innovation Technology Industrial Park cuts order response times by over 20% compared to industry averages.

Ensuring Long-Term Performance and Reliability

Pre-Use Inspection and Installation

Before each use, check the outer wire for deformation, make sure the gold metal isn't peeling or corroding, and make sure the center pin or socket doesn't have any oxidation or damage. If an adapter fails this test, it should be replaced right away. Do not keep trying with a broken part. When installing, make sure the interface is fully lined up before applying torque, and don't go over 0.41 Nm.

Cleaning and Storage Protocols

Use a special RF swab that has been wet with anhydrous alcohol to clean the interface. Keep adapters in a dry, covered container that is away from toxic gases and with a humidity level of less than 60% RH. Store them in a room that is between -10°C and 40°C. If VSWR readings go up or down without warning, or signal attenuation rises for no apparent system-level reason, check the adapter right away for wear or problems with fitting. Stop using it until the problem is fixed. Putting a broken adapter back into service messes up readings and speeds up mechanical failure ⁶.

Conclusion

The Coaxial adapter 1.0mm plug to 1.0mm jack is a precision-needed part, not a common one. For testing millimetre waves, 5G/6G systems, aircraft RF systems, and wafer-level components, this cable is a must-have. It has a 50© coaxial design, a gold-plated beryllium copper center conductor, a passivated stainless steel outer body, and has been tested to work at 110 GHz. It is important to choose the right adapter from a reputable manufacturer that supports OEM customisation, provides traceable quality documentation, and ensures consistent mechanical reliability. This will protect both the accuracy of measurements and the long-term investment in infrastructure.

FAQ

1. What is the maximum operating frequency of a 1.0mm coaxial adapter?

The standard for a 1.0 mm coaxial connection allows it to work from DC to 110 GHz. Because of this, it is the best choice for D-band tests, characterising 5G/6G chips, and millimeter-wave radar uses where lower-rated connectors would cause measurement mistakes.

2. Can a 1.0mm plug-to-jack adapter be used with existing 1.0mm cable assemblies?

Yes. The adapter works with all standard 1.0mm RF cables and equipment connections, so you don't have to buy new cable kits to fix gender mismatches within the same connector family.

3. How do I know when to replace my adapter?

If the outer conductor is deformed, the gold metal is peeling, the center pin is oxidised, or the VSWR numbers rise without reason while testing, the adapter should be thrown away and replaced. The service life is rated for at least 500 insertion rounds, but with proper care, it lasts a lot longer.

4. What is the difference between a 1.0mm and a 1.3mm coaxial adapter?

The 1.0 mm version can handle up to 110 GHz, while the 1.3 mm version can handle about 90 GHz. The right choice varies on how high a frequency your test application can handle.

5. Does Chuangyu offer OEM customization for 1.0mm adapters?

Yes, Chuangyu can make custom configurations, cable assemblies that fit your needs, and designs that aren't standard. They can also make prototypes faster and increase their production capacity as needed.

Partner with Chuangyu for Precision 1.0mm RF Adapter Solutions

RF experts in the 5G, military, semiconductor, and medical fields accept Chuangyu's verified Coaxial adapter 1.0mm plug to 1.0mm jack options. If you're looking for a top-quality Coaxial adapter 1.0mm plug to 1.0mm jack, Chuangyu has been making RF connectors for almost 20 years and can make more than 500,000 of them every year. They also offer full OEM customisation support. You can look at all of our products and email our expert team at chuangyuwz01@cymicrowave.com to get a price or talk about the details of your project.
