Why Choose GPO HERMETIC FEEDTHRUS for RF Applications?

GPO HERMETIC FEEDTHRUS are the precise solution engineers rely on to maintain signal integrity. These ultra-compact, glass-to-metal sealed coaxial connections provide airtight RF transmission routes through enclosure walls under high pressure, temperature, and vacuum conditions. Whether developing satellite payloads, implantable medical devices, or semiconductor test chambers, GPO hermetic feedthrus provide the 50Ω impedance stability and environmental isolation demanding applications need. This book leads procurement experts and design engineers through the structural benefits, application fields, installation best practices, and sourcing concerns that make these components a need in high-reliability RF systems.

Understanding GPO Hermetic Feedthroughs and Their Role in RF Applications

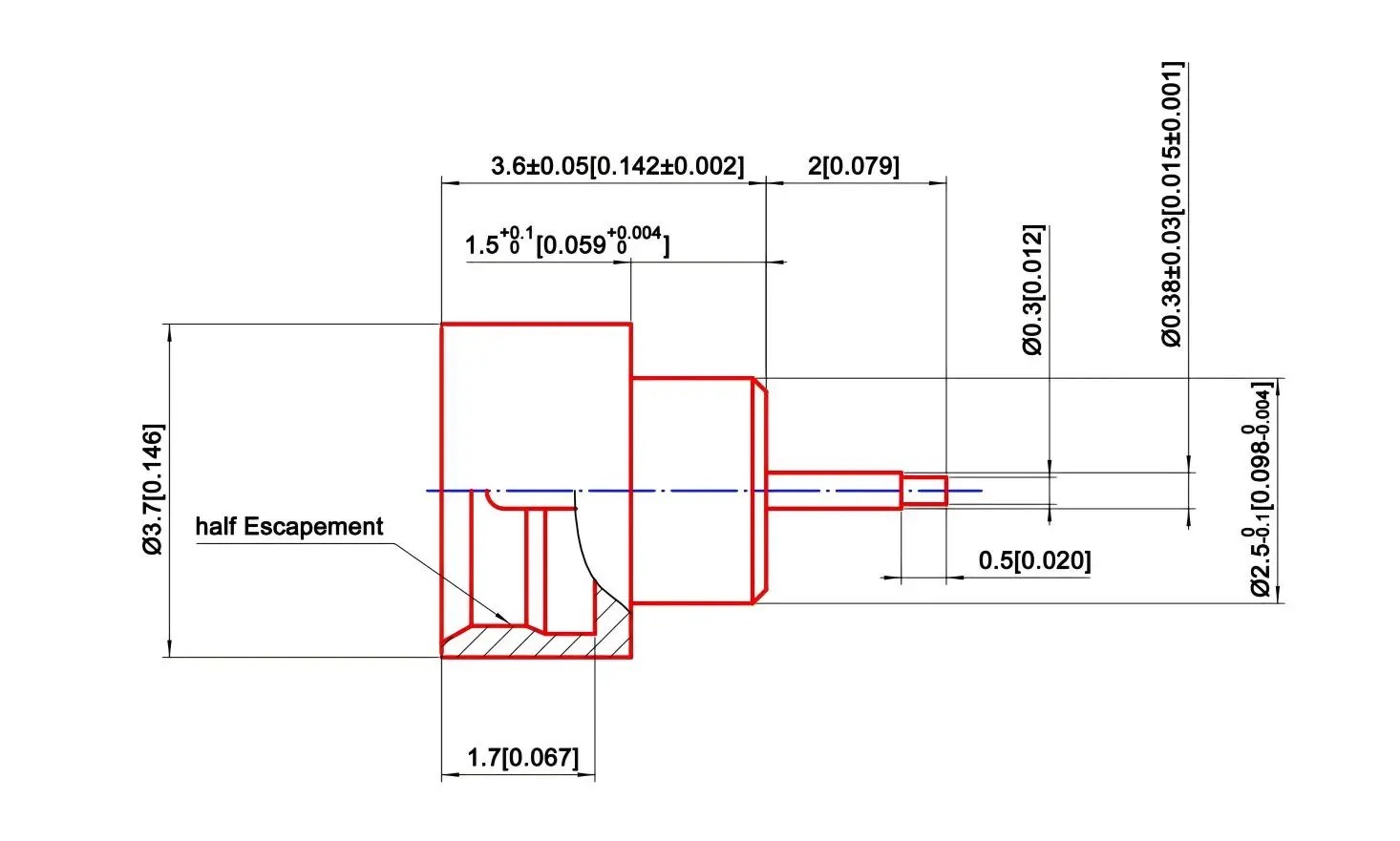

The GPO Hermetic Feedthru (SMP) is the protected version of the ultra-small push-in coaxial connection. It was engineered for situations where a regular connector would allow moisture, gas, or other contaminants to affect how well the system works.

Core Material and Sealing Architecture

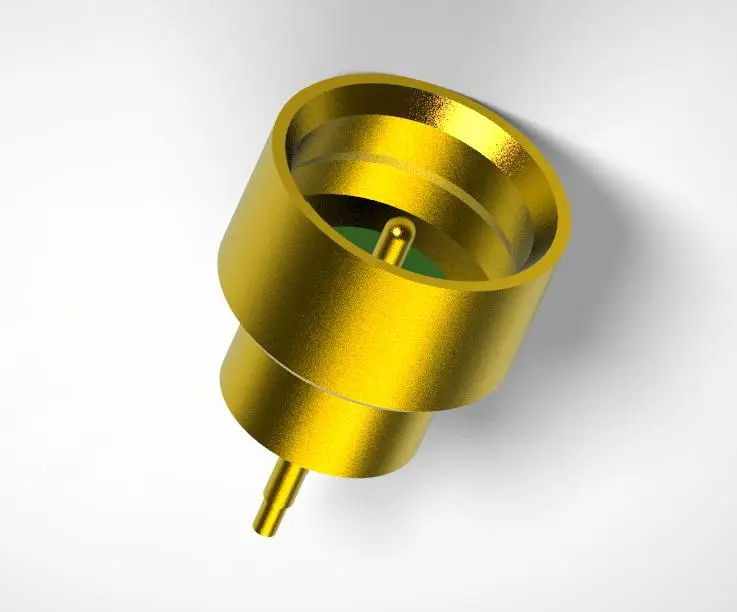

Kovar alloy that meets ASTM F15 standards is used for the housing and center wire, paired with Corning 7070 lithium potassium borosilicate glass as the dielectric. This glass-to-metal matched seal achieves a leak rate of 1.01325×10⁻³ Pa·cm³/S, which is a requirement found in standards for precision vacuum and aerospace engineering [1]. If the plating layer remains at least 2μm, the gold-plated exterior will not rust in salt mist environments.

Electrical Performance Specifications

The connector has a characteristic impedance of 50Ω from DC to 40 GHz, with some high-end models covering up to 65 GHz. Important electrical factors include:

• VSWR: ≤1.4, which means that very little power is reflected across the working band
• Insertion loss: ≤0.09×√(f_GHz), which means that signal reduction stays predictably low
• Insulation resistance: At least 1000 MΩ, necessary to stop cross-talk in dense multi-channel setups
• Dielectric withstand voltage: 300 Vrms, supporting high-power RF situations

Based on these specs, the GPO Hermetic Feedthru is much better than non-hermetic options in terms of both signal quality and environmental resistance.

Mechanical and Environmental Ratings

The connector can be inserted and removed up to 500 times (limited detent type), works in temperatures ranging from -55°C to +165°C, and meets MIL-STD-202G standards for vibration and shock [2]. These ratings are important when parts have to deal with launch vibrations in spacecraft platforms or repeated temperature changes in industrial vacuum systems.

Comparing GPO Hermetic Feedthroughs with Alternative Solutions

Under normal circumstances, non-hermetic GPO Hermetic Feedthroughs are acceptable but become liabilities when moisture penetration, pressure differential, or particle contamination are threats to system stability. Ceramic-sealed GPO HERMETIC FEEDTHRUS have comparable leak rates but are fragile under vibration and do not have the push-in convenience of the GPO Hermetic Feedthru interface. The Kovar-glass combination here is an example of a glass-to-metal seal that balances the thermal expansion coefficients and so reduces the chance of seal breaking during large temperature fluctuations. This is a proven procurement benefit for military- and space-grade electronics [3].

Procurement teams face the risk of early field failures with generic items from unqualified vendors who typically don't provide helium leak-rate certification or gold plating thickness criteria. Chuangyu’s GPO Hermetic Feedthru provides monitored material certifications and the ability to confirm leaks using a helium mass spectrometer before shipment, providing procurement managers with written confirmation of conformity prior to shipping the items.

Benefits of Choosing GPO Hermetic Feedthroughs for Your RF Procurement

To understand why the GPO Hermetic Feedthroughs outperform alternatives in real-world deployments, it is necessary to look at both the engineering data and the operational outcomes reported by engineers. Here are the core advantages that directly solve problems with production and system reliability:

• Verified hermeticity at ≤1.01325×10⁻³ Pa·cm³/S enables use in equipment that makes semiconductor wafers and keeps the vacuum level at ≤10⁻⁵ Pa, where even trace outgassing degrades process yield [4].
• Broadband frequency coverage (DC–40 GHz, optional 65 GHz) supports the full signal chain of 40 GHz vector network analyzer calibration units and millimeter-wave test chambers without component substitution.
• Thermal stability from −55°C to +165°C satisfies both cryogenic test bench requirements and high-ambient industrial enclosures within a single component SKU, which makes inventory management easier.
• MIL-STD-202G compliance means the same connector qualifies for radar, electronic warfare sealing, and satellite RF front-end modules without additional qualification testing.
• Gold-plated Kovar construction eliminates galvanic compatibility concerns when mating with standard SMP/GPO wire assemblies, preserving phase consistency across multi-channel measurement systems.

These advantages collectively reduce system-level risk, shorten qualification timelines, and lower total cost of ownership in aerospace, defense, medical, and industrial vacuum applications. Procurement teams that specify hermetic feedthroughs early in the design process avoid expensive board-level redesigns caused by moisture failures in the field.

Procurement Guide for GPO Hermetic Feedthroughs

When looking for precision GPO HERMETIC FEEDTHRUS, you need to pay close attention to specification traceability, lead time management, and supplier qualification.

Installation and Integration Considerations

Hermetic seal and electrical performance are guaranteed by correct installation. Use a high-frequency soldering iron and maintain the temperature at ≤260°C while soldering to minimize thermal stress on the glass dielectric. A specific mold is needed to produce a draw force of 10 N or more of wire-core to center conductor in crimping setups. Helium mass spectrometer leak detection ensures that the assembled feedthrough fulfills the system leak-rate criteria, and not only the component-level requirements, prior to installation into vacuum systems. For multi-channel assemblies, the insertion loss is adjusted for all channels to maintain the phase stability required by test and phased-array systems [5].

Maintenance, Inspection, and Fault Management

The network analyzer is used every three months for VSWR and insertion loss checks to identify gradual performance loss before it impacts system output. Annual helium leak detection is used for long-term seal strength monitoring, notably in temperature cycling situations. Clean contact surfaces using anhydrous ethanol on a lint-free cloth. Avoid chlorinated or acidic solvents, which degrade gold plating. To avoid contact with metallic debris, store idle connections in a sealed, dry location with humidity < 60%. If you see fractures in the glass seal or an abnormal spike in VSWR, replace the unit immediately—uncertified individuals attempting to disassemble it may cause irreparable damage to the seal.

Case Studies and Application Evidence

GPO Hermetic Feedthroughs have provided satellite communication RF front-end modules with the ability to consistently provide RF signals in vacuum-sealed compartments when hermeticity and DC-to-40 GHz coverage are required. Defense radar programs rely on the −55°C cold-start rating and MIL-STD-202G shock compliance to ensure platform qualification criteria are met. These connectors are selected by manufacturers of implanted RF treatment devices for their biocompatibility and the durable glass-to-metal seal. Chip producers use vacuum compatibility of 10^(-5) Pa to keep the process uncontaminated by cheaper feedthroughs. For the 40 GHz VNA calibration modules, the engineers indicate that the corrected insertion loss of ≤0.09×√(f_GHz) puts the measurement error within acceptable bounds [6].

Conclusion

GPO HERMETIC FEEDTHRUS represent a well-thought-out solution to getting signals through environmental barriers without affecting quality or long-term reliability. The Kovar-glass seal architecture, 50Ω broadband performance to 65 GHz, and MIL-STD-202G mechanical ratings all work together to support tough deployments from satellite payloads to implantable medical devices. When procurement teams know these specs, they can make faster, less risky choices about sourcing. Chuangyu's production base in Xi'an can make 500,000 RF components every year, ensuring a steady supply of high-quality parts with traceable standards.

FAQ

1. Are GPO hermetic feedthrus suitable for frequencies above 40 GHz?

Normal models can handle DC to 40 GHz. Some high-end models go up to 65 GHz and use the same VSWR ≤1.4 and insertion loss method. For millimeter-wave uses close to 110 GHz, get in touch with Chuangyu's engineering team to talk about custom setups.

2. Can these feedthrus be customized for non-standard vacuum or pressure environments?

Yes, Chuangyu can make OEM and ODM configurations, such as changing the number of pins, the shape of the flanges, and providing helium leak certification before shipping based on the customer's chosen leak-rate limits.

3. What is the typical lead time and warranty coverage?

Most of the time, standard setups arrive within the agreed-upon production windows. Chuangyu offers a warranty that is backed by certifications of traceable materials and will replace any unit that has a cracked glass seal or VSWR that isn't within the acceptable range.

4. How do I verify seal integrity after installation?

The usual way to find leaks in the industry is with a helium mass spectrometer. Do this test before putting the assembly into vacuum service, and then repeat it annually to check on the seal's long-term health.

5. What cleaning agents are safe for gold-plated Kovar connectors?

Only use anhydrous ethanol on a lint-free cloth. Cleaners and solvents that are chlorinated or acidic hurt the gold plating and speed up corrosion at the seal contact interface.

Partner with Chuangyu for Precision GPO Hermetic Feedthroughs

Chuangyu's Xi'an factory makes carefully approved GPO HERMETIC FEEDTHRUS, with an annual capacity of 500,000 RF components and full traceability from raw materials to finished assembly. As a reliable manufacturer and supplier, Chuangyu offers custom configurations, pre-delivery leak certification, and quick technical support. You can email the team directly at chuangyuwz01@cymicrowave.com.

References

1. IPC/WHMA-A-620, IPC, 2017. Standards for hermetic seal verification in electronic assemblies.

2. MIL-STD-202G: Test Methods for Electronic and Electrical Component Parts, U.S. Department of Defense, 2002.

3. Kovar Alloy Technical Data, Carpenter Technology Corporation, 2020. Glass-to-metal seal thermal expansion compatibility.

4. Semiconductor Equipment and Materials International (SEMI) Standards F47, SEMI, 2019.

5. Pozar, D.M., Microwave Engineering, 4th ed., Wiley, 2011. Impedance matching and insertion loss in RF transmission systems.

6. Keysight Technologies Application Note: VNA Calibration Standards to 40 GHz, Keysight, 2021. Measurement uncertainty and connector insertion loss specifications.
