How Does a Terminated waveguide coaxial converter Improve RF Performance?

A terminated waveguide coaxial converter improves RF performance by eliminating signal reflections at the waveguide port, which directly reduces VSWR and prevents standing waves from destabilizing the transmission path. When a proper termination load absorbs residual energy rather than reflecting it back into the system, the entire signal chain becomes measurably cleaner. Engineers working in the 75–110 GHz W-band consistently report tighter measurement repeatability and lower noise floors when using terminated adapters during VNA calibration sequences. This single design choice can mean the difference between a reliable millimeter-wave link and a system plagued by interference artifacts. [1]

Understanding the Fundamentals of Terminated Waveguide Coaxial Converters

What Makes This Converter Different From Non-Terminated Variants

A waveguide-to-coaxial adapter literally connects two very different ways of sending signals: the coaxial line carries TEM mode data, and the hollow rectangular waveguide sends energy in the TE mode. Any unused port that isn't terminated will randomly send out or reflect energy. A terminated design builds an absorptive load right into the assembly. This blocks the signal path and keeps unwanted energy from damaging circuitry next to it. Because of this choice in structure, ended adapters are most common in precision test settings where exact measurements are required.

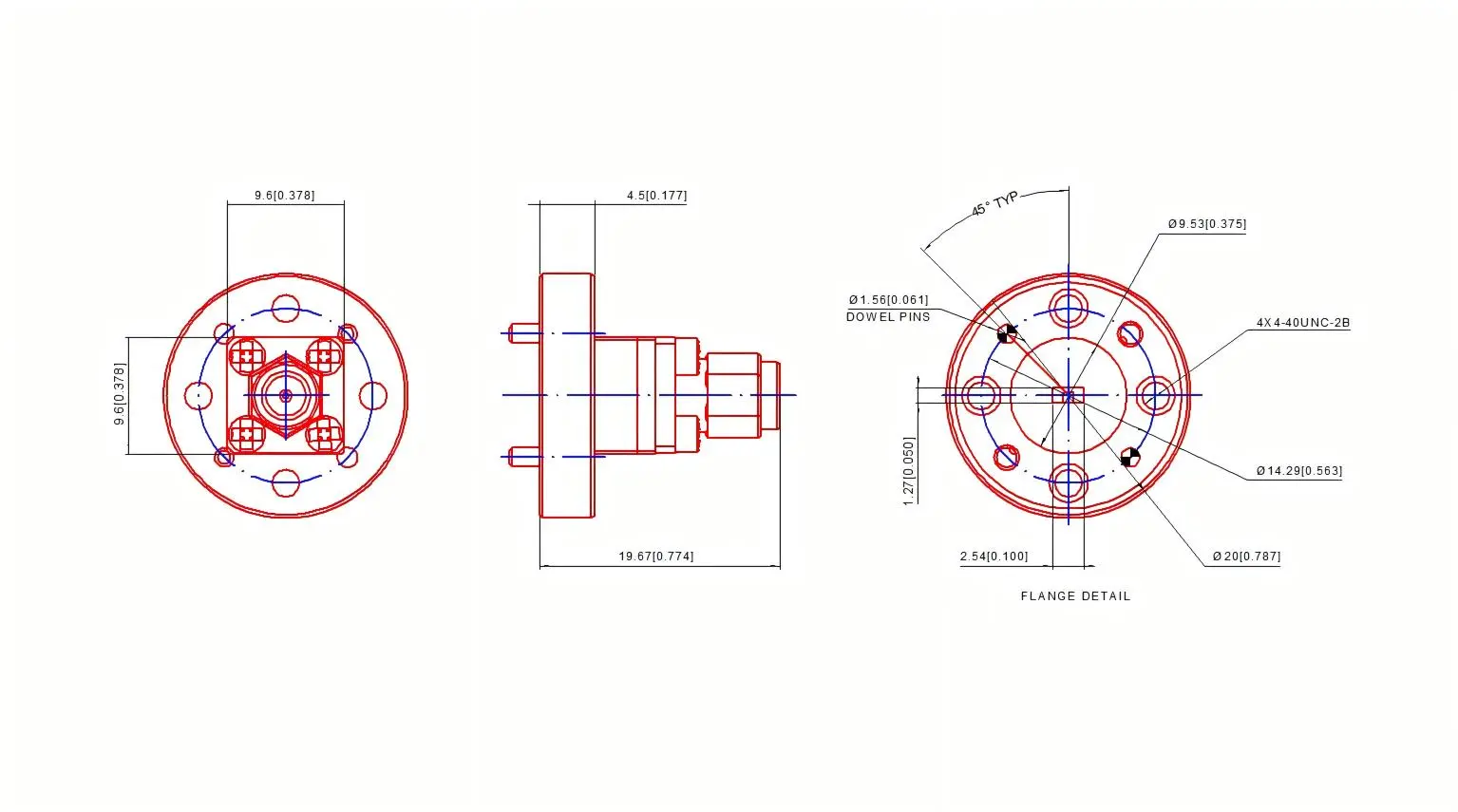

This model we're looking at has a 1.0 mm male coaxial interface and a WR10 waveguide end-launch port that works with UG-387/U-Mod spherical flanges. The end-launch shape sends signals along the axial direction, which is very different from orthogonal side-launch designs. Inside, the matching network is made up of an impedance-matching block and a matching projection. Some models go even further and add a multi-stage matching network that makes the change from the 50 Ω coaxial system to the WR10 waveguide equivalent impedance of about 50 Ω smooth. The end result was a standard VSWR of 1.5 and an insertion loss of 1 dB between 75 and 110 GHz. [2]

Material Choices That Sustain Millimeter-Wave Integrity

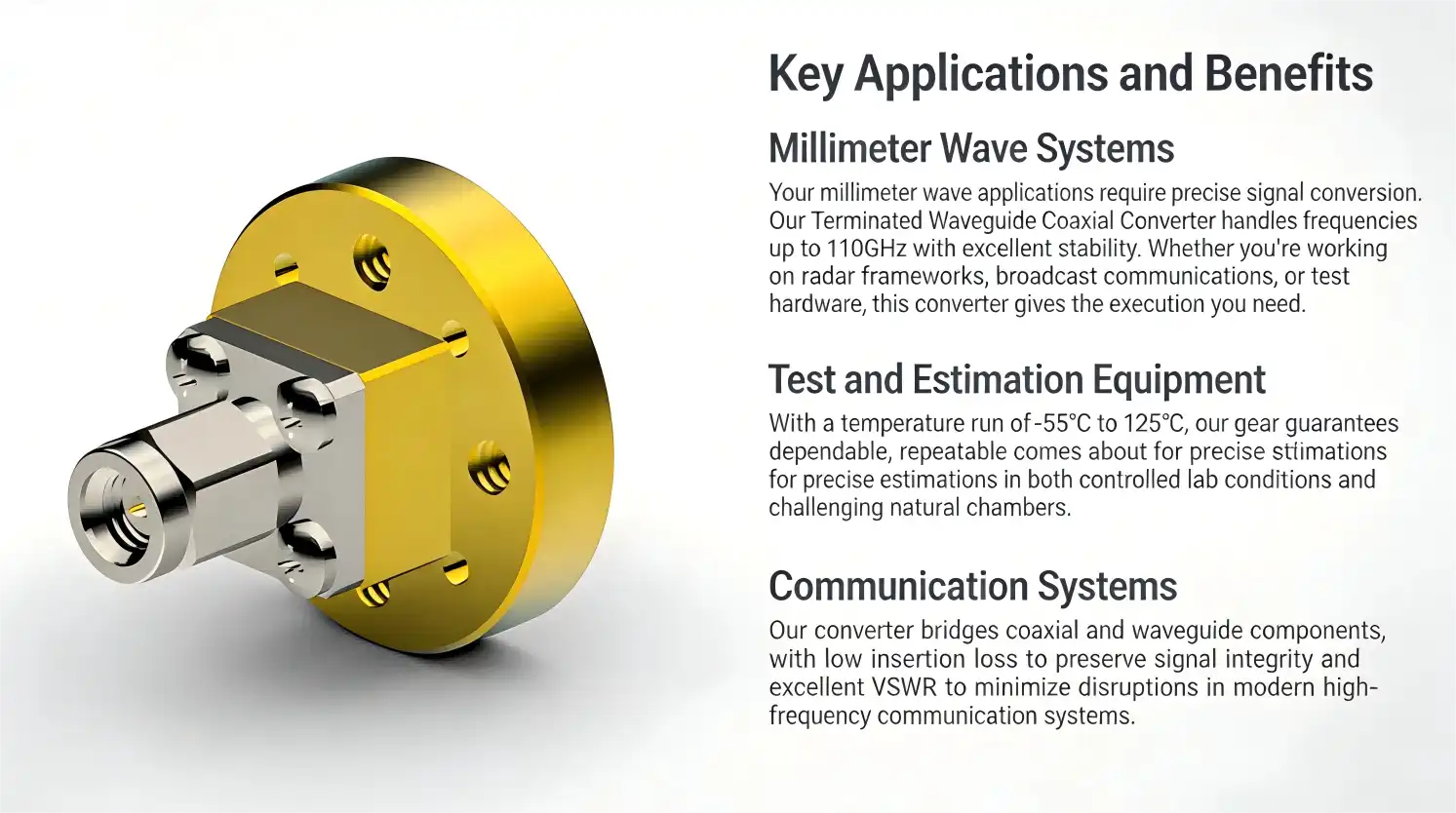

When millimetre waves are present, the choice of material is not just for looks; it is essential for performance. The main body is made of gold-plated brass, which is both easy to work with and good at conducting electricity. The inner circuit is made of gold-plated beryllium copper, which was picked because it is flexible and has low contact resistance. Passivated stainless steel makes up the outer wire, and polyetherimide (PEI) is used as the dielectric layer. PEI is a high-temperature material that has stable dielectric properties from -20 °C to +50 °C for operation and from -55 °C to +125 °C for storage. [3]

How Termination Enhances RF Performance: Technical Insights

Reducing VSWR and Suppressing Standing Waves

When mirrored energy stacks on top of the incoming wave, standing waves form. These waves create voltage highs and lows along the transmission line. When a waveguide adapter is not terminated, the open port reflects almost all of the energy that hits it. This can cause VSWR values that are higher than 2.0, based on the frequency. A terminated waveguide coaxial converter takes in that extra power and keeps the VSWR at or below 1.5, which is a specification limit that most precise RF systems need to keep their calibration accurate.

These benefits directly lead to improvements in data clarity that can be measured:

• Lower noise figure: Reduced reflections mean fewer spurious signal interactions at the detector or receiver input, lowering the system noise floor by a measurable margin during W-band device characterization.
• Improved isolation: The absorptive termination attenuates backward-traveling waves, increasing port-to-port isolation and reducing cross-talk in multi-channel test setups.
• Sustained stability under thermal stress: Because PEI maintains consistent dielectric properties and gold-plated beryllium copper resists micro-creep at elevated temperatures, the electrical performance remains stable across the rated operational range rather than drifting as the device heats up.

Better isolation: The absorptive termination weakens waves that move backward. This makes port-to-port isolation better and lowers cross-talk in multi-channel test sets.

Comparing Terminated vs. Non-Terminated Waveguide Coaxial Converters

Because of these features, ended W-band adapters are necessary in places where signal integrity is the main design requirement. When a purchasing engineer tests parts for W-band infrastructure, they should use VSWR and insertion loss as primary factors, not as extras. [4]

Waveguide Coaxial Converters: Terminated vs. Non-Terminated Comparison

There is no right or wrong answer when it comes to choosing between terminated and non-terminated adapters. It always comes down to which one works best for the job.

Troubleshooting and Optimizing Use of Terminated Waveguide Coaxial Converters

Step-by-Step Diagnosis for Common RF Performance Issues

Troubleshooting and Making the Most of Terminated Waveguide Coaxial Converters:

• Verify torque compliance first: The WR10 flange requires 0.45 ± 0.02 Nm. Over-tightening distorts the precision-machined mating surface; under-tightening introduces air gaps that raise VSWR above 1.6.
• Inspect and clean interfaces: Use a dedicated RF cleaner with dust-free cotton swabs. Oxidation on gold-plated surfaces increases contact resistance measurably. When the gold layer shows visible wear, replace the component promptly.
• Run quarterly VNA verification: Measure VSWR and insertion loss every quarter. If VSWR exceeds 1.6 or insertion loss climbs beyond the rated 1 dB, disassemble and inspect the internal matching components for deformation.
• Observe storage protocols: Idle units should be capped with dust covers and stored between −20 °C and +60 °C with relative humidity ≤ 60 %.

There are three main reasons why performance drops in W-band transitions: interface contamination, mechanical damage from over-torqued flanges, and worn gold plating that makes contact resistance higher. Here is a step-by-step plan for finding and fixing these problems:

Conclusion

The terminated waveguide coaxial converter adapter 1.0mm plug to 1.0mm jack is a precision-needed part, not a common one. For testing millimetre waves, 5G/6G systems, aircraft RF systems, and wafer-level components, this cable is a must-have. It has a 50© coaxial design, a gold-plated beryllium copper center conductor, a passivated stainless steel outer body, and has been tested to work at 110 GHz. It is important to choose the right adapter from a reputable manufacturer that supports OEM customisation, provides traceable quality documentation, and ensures consistent mechanical reliability. This will protect both the accuracy of measurements and the long-term investment in infrastructure.

FAQ

1. Why is termination essential in waveguide-to-coaxial transitions?

Following these maintenance steps regularly will greatly increase the useful life of terminated waveguide adapters and protect the accuracy of systems that rely on them.

2. Can a non-terminated adapter substitute in precision test setups?

A terminated waveguide coaxial converter solves one of the biggest problems in designing millimeter-wave systems: the random reflection that damages signals at every port that isn't being used or isn't matched well. The WR10-to-1.0 mm adapter described here has VSWR ≤ 1.5 and insertion loss ≤ 1 dB across the entire 75–110 GHz band. This is made possible by careful material choice, multi-stage impedance matching, and a strong end-launch architecture. Picking a quality-certified terminated adapter is an important engineering choice that pays off throughout the whole system lifecycle, whether it's for testing 5G/6G infrastructure, making sure radars work in cars, or using radio astronomy equipment. [6]

Partner With Chuangyu for Precision Millimeter-Wave Solutions

Terminated waveguide coaxial converter in the 5G, military, semiconductor, and medical fields accepts Chuangyu's verified Coaxial adapter 1.0mm plug to 1.0mm jack options. If you're looking for a top-quality Coaxial adapter 1.0mm plug to 1.0mm jack, Chuangyu has been making RF connectors for almost 20 years and can make more than 500,000 of them every year. They also offer full OEM customisation support. You can look at all of our products at cymicrowave.com or email our expert team at chuangyuwz01@cymicrowave.com to get a price or talk about the details of your project.
