Why Use a 3.5mm Plug-to-Jack Coaxial Adapter?

For dependable conversion between RF ports of opposite gender without signal loss when your test bench needs it, a coaxial adapter 3.5mm plug to 3.5mm jack is the precise tool bridging the gap. The component provides 50Ω characteristic impedance from DC to 26.5GHz, maintaining a VSWR of 1.35 or less, unlike common barrel adapters. Whether an R&D engineer testing 5G modules, a hardware designer integrating RF test equipment, or a procurement manager obtaining dependable microwave interconnects, this adapter provides traceable, verifiable performance — not just physical connection. Choosing the correct 3.5mm RF adapter influences the precision of your measurements, the repeatability of your system, and the long-term durability of your test fixture.

Understanding the 3.5mm Plug-to-Jack Coaxial Adapter

What Makes This Adapter Different from Standard Connectors

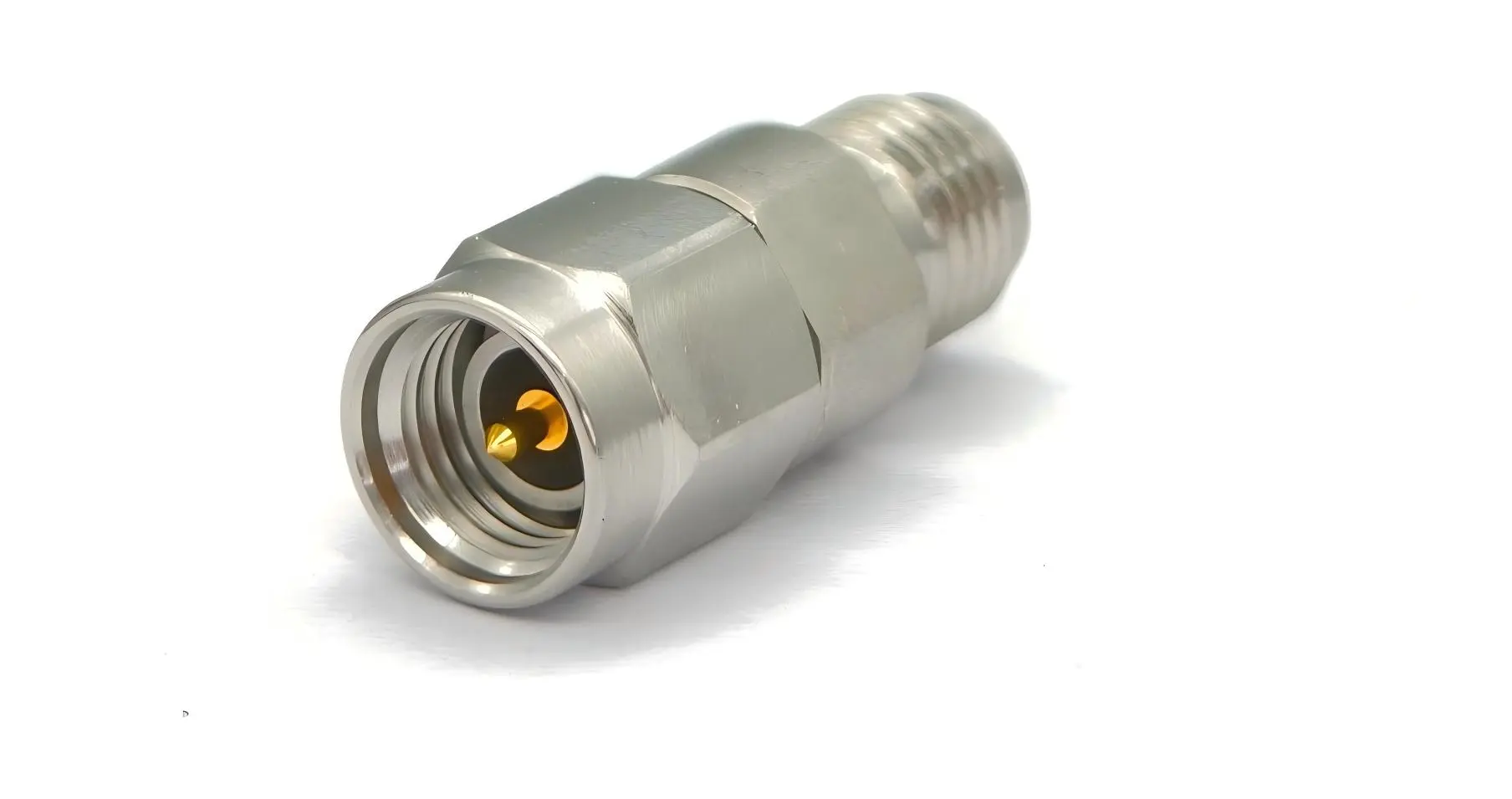

The 3.5mm plug-to-jack coaxial adapter is not an audio part. It is a precise RF connection for microwave signal transfer. Its coaxial topology of center conductor, dielectric, and outer conductor keeps the signals intact in ways that traditional two-conductor connections just can’t. Structurally, this adapter is a 50Ω impedance-matched coaxial design. The central conductor is gold-plated beryllium copper for superior conductivity and oxidation resistance. The insulating dielectric is PTFE, selected for its low dielectric loss at high frequencies. The outside conductor is made of stainless steel, providing both electromagnetic shielding and mechanical strength.

Gender Conversion and Interface Compatibility

One end of the adapter has a 3.5mm male connection with exposed pins; the other end has a 3.5mm female connector with an internal socket. This jack-to-plug arrangement overcomes a typical problem in RF test setups: polarity mismatch between instruments and devices under test. This 3.5mm RF adapter instantly addresses the clash when a vector network analyzer port and an RF module both provide the same gender interface – with no extra wiring.

Key Benefits of Using a 3.5mm Plug-to-Jack Coaxial Adapter

Engineers in semiconductor testing, 5G development, and microwave system integration cite three consistently performance-critical benefits when using this Coaxial adapter 3.5mm plug to 3.5mm jack in their settings. The main benefits of this component are:

• Verified high-frequency performance from DC to 26.5GHz with VSWR ≤1.35 and minimal Insertion loss. This level of reflection control translates directly into reducing measurement uncertainty in 5G NR sub-6GHz and mmWave FR2 test scenarios. That means a lot for calibration chains in spectrum analyzers and network analyzers.
• Mechanical durability for frequent use: The stainless steel exterior conductor resists corrosion and deformation during intensive laboratory cycles. The mating cycle value of ≥500 insertions suggests that this adapter is suitable for high-throughput semiconductor test applications where daily reconnection is common. Center pin retention force is set to ensure contact integrity without wear of the connection.
• Flexibility of the system without adding complexity: The 3.5mm coaxial interface is mechanically compatible with 2.92mm (K-connector) interfaces; therefore, this adapter may be smoothly added to mixed-connector test systems. A single kind of adapter may be used for many instrument ports, reducing inventory and simplifying spare-parts management.

These benefits make the 3.5mm plug-to-jack converter a high-value, low-risk procurement solution for RF research laboratories and production test floors.

Selecting the Best Coaxial Adapter for Your Business Needs

Key Procurement Criteria for RF Adapters

Don’t only look at the frequency range when choosing a 3.5mm RF coaxial adapter. Procurement managers and test engineers need to examine impedance uniformity throughout the whole frequency range, the quality of plating on the center pin, the grade of the outside conductor material, and the rated mating cycles. Suppliers who offer traceable test data, such as S-parameter files, VSWR curves, and torque parameters, show the technical discipline required for high-reliability applications. Buying in bulk from a vertically integrated producer lowers cost per unit and ensures lot-to-lot uniformity. Some manufacturers are also able to provide custom configurations, including other plating possibilities or adjusted torque parameters, if they are able to do their own machining and plating.

Why Material Choices Affect Long-Term Cost

Beryllium copper center pins provide better retention force stability over several mating cycles than brass. PTFE dielectric provides dimensional stability at severe temperatures, a critical need for aerospace and military applications that undergo thermal cycling as part of their certification. The stainless steel exterior conductors are far more resistant to corrosion in humid laboratory settings than passivated brass. A good source of a coaxial adapter 3.5mm plug to 3.5mm jack would be transparent about the materials used, which is a good practical indication of quality.

How to Use and Troubleshoot a 3.5mm Plug-to-Jack Coaxial Adapter

Pre-Use Inspection and Proper Installation

Inspect the outside conductor for any deformation. Inspect the gold plating on the center pin for any oxidation or physical damage. Then attach a 3.5 mm plug-to-jack RF adapter. Replace any adapters that show noticeable wear immediately. A compromised adapter may generate impedance discontinuities that will contaminate the measurement results. During installation, ensure the interface is correctly aligned before engagement. Tighten to the value provided by the manufacturer using a calibrated torque wrench, usually ≤0.5 N·m. Oblique insertion or over-tightening may cause irreparable structural damage to the adapter and the mating port of costly test equipment.

Signal Control and Troubleshooting

The test signal frequency should be in the range DC to 26.5GHz. Outside this range, performance drops unexpectedly. Measurement baselines may be affected by external electromagnetic interference; hence, high-frequency testing should be done in a protected container. If you see an unexpected spike in VSWR measurements or an increase in signal attenuation without any clear explanation, examine the mating connection first, since partial engagement is a frequent cause. If reseating the connection does not correct the anomaly, examine the adapter for mechanical wear. Do not leave a bad 3.5mm coaxial RF adapter in the signal path during active testing.

Maintenance and Storage Best Practices

Clean the interface using specialist RF cleaning swabs wetted with anhydrous alcohol. Store the Coaxial adapter 3.5mm plug to 3.5mm jack in a sealed container, without corrosive gas, dry, at a temperature from -10°C to 40°C and humidity ≤60% RH. Regular maintenance extends the service life much beyond the authorized 500 mating cycles and maintains calibration traceability.

Application Fields for the 3.5mm Plug-to-Jack Adapter

The 3.5mm Male to Female RF Adapter is used in a variety of precision-critical industries:

• Microwave communication testing: The adapter offers interface conversion between vector network analyzers, spectrum analyzers, and the device under test during 5G base station validation and RF module characterisation while guaranteeing signal route integrity throughout the measurement chain.
• Semiconductor RF development: Engineers often encounter instrument ports and device test sockets with the same connection gender while testing RF chips and microwave ICs. This 3.5mm coaxial adapter addresses the mismatch without generating any substantial electrical discontinuity.
• Aerospace and Defense: Military radar and electronic warfare systems need RF interconnects that can fulfill demanding environmental and reliability requirements. The stainless steel outer conductor and beryllium copper core pin of this adaptor do.
• Test System integration: RF test setups generally need polarity-matched extension ports. 3.5mm plug to 3.5mm jack adaptor reduces interface polarity issues and improves fixture adaptability.

Conclusion

A 3.5 mm plug to 3.5 mm jack precision Coaxial adapter 3.5mm plug to 3.5mm jack is a modest item that may have a big impact on the accuracy of measurements and the durability of the system. Its 50Ω coaxial construction, PTFE dielectric, beryllium copper center pin, and stainless steel outer conductor all cooperate to guarantee signal integrity from DC to 26.5GHz. When you purchase the proper 3.5mm RF adapter from a company you trust, you’ll get excellent measurements and longer equipment life. This is true whether you use it for 5G validation, semiconductor characterization, aircraft RF inspection, or test fixture integration.

FAQ

What is the maximum operating frequency of a 3.5mm plug-to-jack coaxial adapter?

The standard 3.5mm coaxial adapter operates from DC to 26.5GHz, making it suitable for 5G sub-6GHz testing, microwave component characterization, and vector network analyzer work within that frequency band.

Is a 3.5mm RF adapter compatible with 2.92mm connectors?

The 3.5mm interface is mechanically compatible with 2.92mm connectors, allowing mixed-connector test configurations without additional adapters in many setups.

How many mating cycles can I expect from this adapter?

Quality 3.5mm plug-to-jack RF adapters are rated at ≥500 mating cycles. Proper torque application and regular cleaning extend operational life beyond that baseline.

What torque should I use when connecting a 3.5mm RF adapter?

Apply ≤0.5 N·m using a calibrated torque wrench. Exceeding this value risks damaging the adapter and the mating instrument port.

How do I know when to replace a 3.5mm coaxial adapter?

Replace the adapter immediately if VSWR increases unexpectedly, if insertion loss rises abnormally, or if physical inspection reveals pin damage, deformation, or coating degradation.

Partner with Chuangyu for Reliable 3.5mm RF Adapter Solutions

Chuangyu supplies precision coaxial adapter 3.5mm plug to 3.5mm jack components built to international RF standards, with traceable performance data and an annual production capacity exceeding 500,000 RF components. As a trusted coaxial adapter 3.5mm plug to 3.5mm jack manufacturer, Chuangyu supports OEM customization, bulk procurement, and rapid order fulfillment from its Xi'an facility. Contact the technical team directly at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request specifications, samples, or a procurement quotation.
