How to Choose a Top 1.85 male to GPPO female adapter Supplier?

The correct 1.85 male to GPPO female adapter provider makes the difference between your millimeter-wave test equipment performing at its maximum and expensive signal deterioration. With the operating frequency extending into the DC-67 GHz region for 5G/6G and phased-array radar and semiconductor wafer-level testing, even a little reduction in the quality of the connection may distort measurement accuracy and jeopardize project timetables. This document provides the technical basics, the assessment criteria for suppliers, and procurement techniques that procurement managers, R&D engineers, and hardware design engineers need to have to be able to confidently find a dependable 1.85 mm to GPPO (SSMP) adapter.

Understanding the 1.85 Male to GPPO Female Adapter and Its Market Requirements

What This Adapter Actually Does

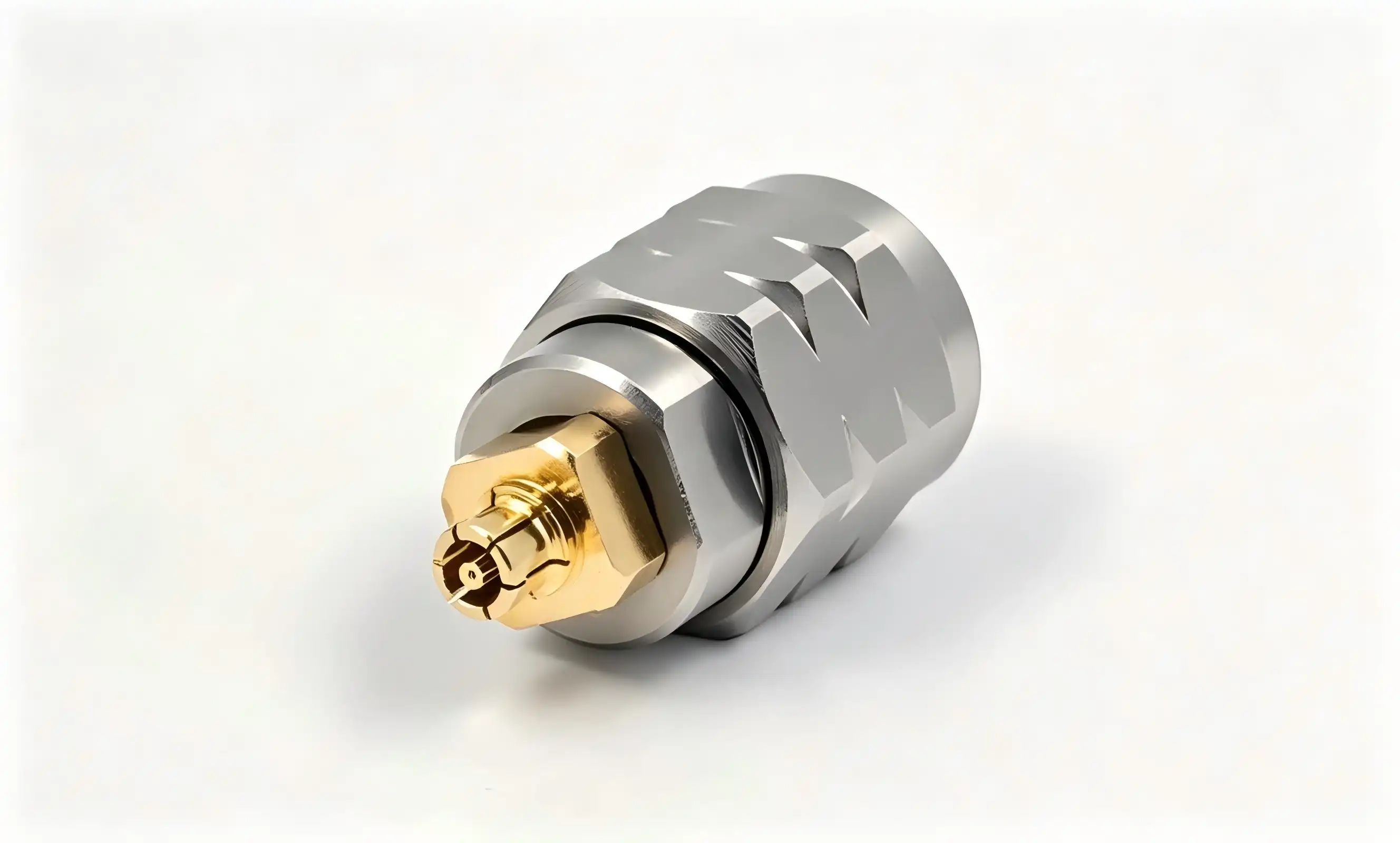

1.85 male to GPPO female adapter is a cross-series RF interface converter. One end is terminated with a 1.85 mm male connection, the millimeter-wave standard interface used in vector network analyzers and spectrum analyzers. The other end is terminated with a GPPO (SSMP) female connector, an ultra-small millimeter-wave interface which is frequently integrated in tiny RF modules and test boards. They combine to provide signal relay between 1.85 mm transmitting equipment and GPPO reception devices of various millimeter wave product families.

Technical Specifications That Define Performance

For a high quality 1.85 mm to GPPO adapter, the right choice of materials is dependent on the strength of the structure. The exterior conductor is stainless steel passivated for both mechanical strength and corrosion resistance. The inner conductor is made of gold-plated beryllium copper to reduce resistive loss at high frequencies. PTFE is the dielectric material, providing reliable 50 Ω impedance matching from DC to 67 GHz. The VSWR is under 1.35, and insertion loss is minimal throughout the whole band, which is crucial for reliable millimeter-wave signal transmission. The 1.85 mm threaded end has a connection torque of 0.8-1.1 Nm. The GPPO push-in end has a radial offset of ≤±0.25 mm and an axial tolerance of ≤+0.25 mm, with an insertion/extraction life of ≥500 cycles. They are not random. Any adapter that is even slightly out of impedance specifications will create reflections that will corrupt S-parameter measurements. That’s a risk no semiconductor R&D team or military contractor can afford to take.

Core Criteria to Evaluate When Choosing a 1.85 Male to GPPO Female Adapter Supplier

Define Your Procurement Baseline

Before reaching out to any 1.85 to GPPO adapter manufacturer, be sure to define your project’s non-negotiable requirements: frequency band, order volume, customisation demands, lead time, compliance criteria. Buyers of 5G base station MIMO antenna arrays confront different limitations than those producing phased-array radar test benches. For applications requiring precise RF connections, a 1.85 male to GPPO female adapter should also be evaluated based on compatibility, performance stability, and manufacturing quality. These are the main assessment criteria that a competent provider must meet:

• Certifications and compliance: The baseline is quality management ISO 9001 and RoHS environmental compliance. For suppliers supplying to aerospace or military industries, suppliers should additionally show compliance with MIL-spec material and process requirements.
• Verified RF Performance Data: Search for traceable test reports with VSWR < 1.35, insertion loss curves over the DC-67 GHz span, and impedance consistency at 50 Ω. Generic datasheets without calibrated measurement data are a red flag.
• Customization capability: OEM and ODM maker needs always non-standard interface configurations or unique coatings. A competent provider of GPPO female adapters should be able to meet custom mechanical and electrical criteria.
• Lead time and logistical transparency. Global customers care as much about verified manufacturing lead times, foreign freight choices, and clear paperwork for customs clearance as they do about product requirements.
• Warranty coverage, technical support access, and a structured return/repair procedure guarantee your operational continuity should unforeseen problems happen.

In unison, these criteria provide a shortlist framework to filter out dubious sources before you spend money on samples.

Comparing Leading 1.85 Male to GPPO Female Adapter Suppliers and Brands

Global stalwarts in the millimeter-wave RF adapter industry include Rosenberger, Huber+Suhner, and Amphenol, as well as precision-focused Chinese producers like Chuangyu. There are trade-offs in price, customizability, agility, and lead time for each category.

Shaanxi Chuangyu Electronic Technology Co., Ltd. (Chuangyu) has been well-known for almost 20-year RF connector engineering. The millimeter-wave connector with a 110 GHz rating is at the top level in China and meets international requirements. It is this depth that is reflected in their 1.85 male-to-GPPO female adapter line: every unit combines passivated stainless steel housings, gold-plated beryllium copper center pins, and PTFE dielectrics built to precise dimensional specifications. The 1,000-square-meter dedicated RF component lines at the Xi'an manufacturing facility produce 500,000 RF components annually, allowing the company to satisfy large orders without sacrificing quality.

Upfront unit price is not the whole story for a cost-efficiency study. A 500 cycle insertion / extraction life, steady VSWR, and uniform gold plating on an adapter decreases replacement frequency and recalibration downtime – offering significantly better total cost of ownership than a cheaper part that wanders out of spec after 200 cycles.

How to Navigate Procurement and After-Sales Support for 1.85 Male to GPPO Female Adapters

Step-by-Step Procurement Workflow

A disciplined procurement process avoids expensive surprises. The procedure logically runs from technical inquiry to sample validation, manufacturing order, and post-delivery assistance for products such as the 1.85 male to GPPO female adapter.

• Ask and align specs: Give the supplier the complete technical specifications (frequency range, physical dimensions of mating interfaces, environmental requirements, quantity, etc.), and the supplier will verify if the product meets your needs or suggest revisions.
• Sample testing: Request pre-production samples and test VSWR, insertion loss, and mechanical fit with the actual interface geometry of your test system. Objective data using a calibrated VNA
• Order confirmation and personalization: Complete designs, surface finish standards, labeling and packing. For OEM customers, ensure that tooling and NDA terms are recorded before manufacturing starts.
• Logistics coordination: International customers should confirm Incoterms, method of freight, and HS code classification early to minimize customs delays that increase effective lead times.

Protecting Your Investment Through After-Sales Support

A GPPO SSMP adapter manufacturer will provide you with explicit warranty conditions to guarantee the quality of their goods. Communicate pre-use inspection methods – looking for distorted exterior conductors, plating that is flaking, or oxidized connections. If there is an abrupt increase in VSWR or an anomalous attenuation of signals during testing, the provider should offer quick diagnostic help. Cleaning guidelines (RF swabs with anhydrous alcohol, storage at -10 °C to 40 °C, humidity ≤60% RH) and established fault escalation procedure ensure both component life and test integrity.

Summary: Making the Final Choice and Ensuring Long-Term Supplier Satisfaction

Choosing the right provider for your application requires honest alignment of technical standards with commercial goals. A team deploying 1.85 mm to GPPO adapters for semiconductor wafer-level testing requires different tolerances and a different level of customisation than a military contractor qualifying electronic warfare modules – but both need uncompromising signal quality up to 67 GHz. When sourcing a 1.85 male to GPPO female adapter, engineers should also evaluate compatibility, manufacturing precision, and long-term reliability to ensure stable performance in demanding RF applications.

The best supplier partnerships occur when both sides see quality evaluation as a continual process, not a one-time gate. Regular performance assessments, open communication channels for specification changes, and the flexibility to negotiate variable order quantities will let the collaboration grow with your engineering needs. Choose providers that are willing to disclose manufacturing data proactively, are open to audits, and are invested in your application results.

FAQ

How do I verify that a 1.85 male to GPPO female adapter is compatible with my test system?

Check the adapter's impedance (50 Ω), frequency rating (DC–67 GHz), and mechanical tolerances against your instrument's interface specifications. Request calibrated VNA test reports from the supplier and run a bench-level verification using your actual test setup before committing to volume orders.

What certifications should I require from a millimeter-wave adapter supplier?

ISO 9001 quality management certification and RoHS compliance are the minimum. Defense and aerospace procurement may additionally require MIL-spec material traceability and environmental stress test documentation.

Can suppliers support custom configurations for non-standard interfaces?

Yes. Established manufacturers like Chuangyu offer OEM and ODM customization covering interface geometry, surface coatings, and dimensional modifications. Submit detailed engineering drawings with your inquiry to accelerate feasibility assessment.

What causes sudden VSWR increases during use?

Common causes include improper torque on the 1.85 mm threaded end (outside the 0.8–1.1 Nm range), misaligned GPPO push-in connection, oxidized contact surfaces, or mechanical wear from repeated cycling beyond the rated 500 insertions.

How should I store these adapters to maximize service life?

Store in a sealed, dry container free of corrosive gases. Maintain ambient temperature between −10 °C and 40 °C and relative humidity at or below 60% RH. Clean interfaces with RF-grade swabs and anhydrous alcohol before storage.

Partner with Chuangyu for Precision 1.85 Male to GPPO Female Adapters

Chuangyu delivers industry-proven 1.85 male to GPPO female adapter solutions engineered for DC–67 GHz millimeter-wave performance. As a trusted 1.85 male to GPPO female adapter manufacturer, we support OEM customization, rapid sampling, and bulk fulfillment backed by ISO-compliant quality control. Visit cymicrowave.com or contact our engineering team directly at chuangyuwz01@cymicrowave.com to request samples or discuss your specific RF application requirements today.
