Why Choose OEM SMA Panel Connectors for Custom RF Designs?

The SMA panel connection, such as the SMA panel connector, is frequently ranked among the most reliable options when engineers and procurement teams look for reliable RF connectivity solutions. This standardised coaxial interface provides constant 50Ω impedance, low VSWR, and mechanical stiffness in severe operating conditions. It is designed to install directly into equipment enclosures and racks. By allowing for dimensional customisation, material selection, and finish specification, OEM-sourced versions enhance these qualities even further, making them the go-to option for bespoke RF designs when off-the-shelf components just don't measure up.

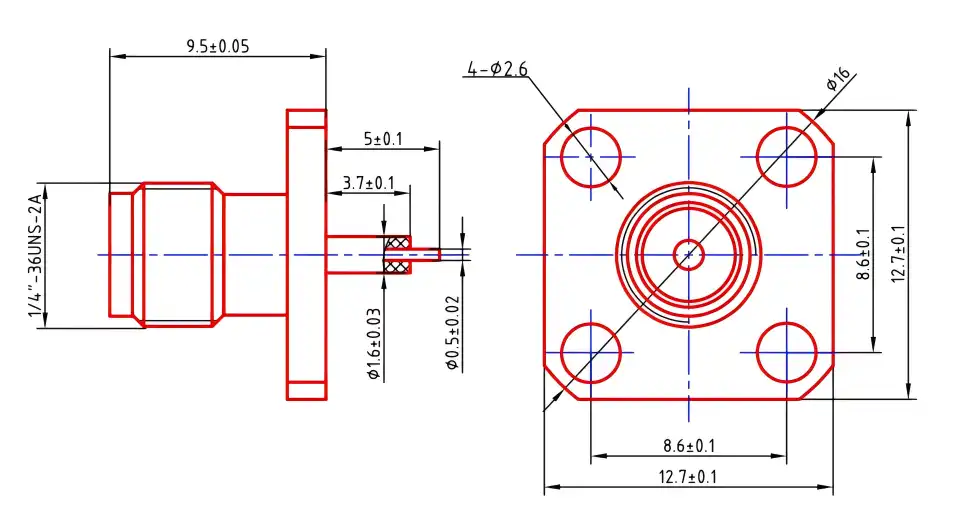

Advantages of Choosing OEM SMA Panel Connectors

Although specialised RF designs never function under generic settings, generic RF connections may theoretically satisfy datasheet minimums. By adjusting each parameter to the real operating environment, OEM production of SMA panel connectors bridges this gap. Engineers and procurement managers are drawn to OEM SMA flange connections for the following main reasons:

• Dimensional and material customisation: To closely match PCB footprints and mechanical designs, OEM vendors may alter flange geometry, hole patterns, plating thickness, and center conductor alloys. For instance, for high-volume runs, a bespoke beryllium copper inner conductor with selective gold plating lowers contact resistance while keeping costs under control.
• Verified quality and traceability: Reputable OEM producers use CNC milling, electroplating, and precision turning techniques under recorded process controls. Dimensional inspection records and electrical performance test data are included in every batch; contact resistance, VSWR, and insulation resistance values are confirmed prior to shipping rather than approximated.
• Scalable procurement economics: Consignment inventory options, blanket order agreements, and negotiated MOQ thresholds are all made possible via OEM alliances. This results in predictable lead times and lower per-unit costs at volume for procurement managers overseeing multi-site manufacturing.

Together, these benefits address an issue that many hardware design engineers face: the discrepancy between what catalogue connections provide and what a bespoke RF chassis really requires. By filling that gap at the component level, expensive redesigns later on are avoided.

How to Select the Ideal SMA Panel Connector for Your RF Design

An honest assessment of the system's operational frequency ceiling, environmental exposure, and mechanical integration limitations is necessary for selecting the best RF panel-mount connection. A 5G mmWave test fixture operating signals close to 26.5 GHz has significantly different needs than an industrial wireless monitoring node operating below 6 GHz.

Matching Frequency Range to Application

For the majority of base station, microwave relay, and lab equipment applications, standard SMA coaxial connections like SMA panel connectors rated to 18 GHz are adequate. The DC–26.5 GHz high-frequency variation is the proper baseline for designs using millimeter-wave signal pathways or high-bandwidth test equipment like spectrum analysers or vector network analysers (VNAs). When the connector's rated frequency is exceeded, VSWR is deteriorated and reflection losses are introduced, which might affect measurement accuracy and link budget estimates.

Environmental and Mechanical Compatibility

Connector selection is influenced by operating temperature range, humidity exposure, and vibration profile. The majority of industrial and telecom installations fall within the rated operating window of 55°C to +125°C. Stainless steel exterior conductors and sealed O-ring flanges provide significant protection without changing the electrical interface for outdoor installations or medical equipment housings where humidity or cleaning chemicals are present. Always make sure that the selected panel material and tools can achieve the mating torque criteria (0.8–1.2 N·m for thread engagement).

Installation, Maintenance, and Troubleshooting of SMA Panel Connectors

The mechanical and electrical performance that was verified during design is preserved via proper installation. Under real RF circumstances, issues that are hard to identify are introduced by rushing the operation or applying uneven torque.

Prior to tightening mounting screws to 0.5–1.0 N·m, position the flange flush with the equipment panel surface during panel installation. Impedance continuity is deteriorated by uneven clamping, which deforms the flange and moves the connector's axis. When connecting the SMA male connection, provide a final tension of 0.8–1.2 N·m after engaging threads carefully and completing 4–6 full rotations. Under-tightening permits micro-motion that gradually reduces contact resistance, while over-tightening removes the 1/4-36UNEF threads.

Routine Maintenance Protocol

Clean contact surfaces and threaded interfaces with anhydrous alcohol on a lint-free swab every 3–6 months, or after any exposure to particulate or oily environments. Use a network analyzer to verify VSWR and insertion loss at scheduled intervals. A VSWR reading above 1.5 or a measurable increase in insertion loss signals either connector damage or a loose flange—both require immediate remediation before the system returns to service.

Storage and Handling Best Practices

Install protective dust caps on unmated connectors like SMA panel connectors during storage. Keep stored connectors in a dry environment at −20°C to +60°C with relative humidity below 60%. Gold-plated contacts resist oxidation well, but contaminated contacts from improper storage account for a disproportionate share of field failures reported in RF system maintenance logs.

Procuring OEM SMA Panel Connectors: What B2B Buyers Should Know

B2B sourcing decisions for precision RF components carry real technical and commercial risk. A connector that fails incoming inspection or drifts out of specification after 200 mating cycles disrupts production schedules and erodes program margins. Evaluating an OEM supplier requires more than comparing unit prices.

Assess the manufacturer's process documentation, in-house testing capabilities, and track record with customers in your specific sector—whether that is defense electronics, photovoltaic inverter testing, or medical RF systems. Request sample units and validate them against your own electrical and mechanical acceptance criteria before committing to a production order. Confirm MOQ flexibility, quoted lead times, and logistics options, including consignment and just-in-time delivery arrangements.

OEM partnerships with collaborative design support add a further dimension of value. Suppliers who engage at the prototype stage can recommend material substitutions, flag dimensional conflicts with mating hardware, and accelerate qualification testing—reducing the total cycle time from design freeze to production release.

Conclusion

The SMA panel connector is a deceptively compact component that carries significant weight in any custom RF design. Its impedance integrity, mechanical stability, and broad frequency coverage make it foundational to reliable signal transmission in communications, test and measurement, medical, and industrial automation systems. OEM sourcing amplifies these inherent strengths by enabling precise customization, verified quality, and scalable supply arrangements. When the design demands accuracy and the production schedule demands consistency, partnering with an experienced OEM RF connector manufacturer is the most direct path to both.

FAQ

What frequency range does an OEM SMA panel connector typically support?

Standard OEM SMA flange connectors support DC to 18 GHz, covering most wireless communications and test instrument applications. High-frequency models extend to DC–26.5 GHz for microwave relay, satellite, and advanced test equipment deployments. Both variants maintain 50Ω characteristic impedance with VSWR ≤ 1.25 across the rated band.

How does an OEM connector differ from a standard catalog connector?

OEM connectors are manufactured to buyer-specified tolerances in dimensions, materials, and plating. A standard catalog connector ships to a generic drawing; an OEM connector ships to your drawing—with inspection records confirming it. This distinction matters in high-reliability applications where field failure costs far exceed the marginal sourcing premium.

Can OEM SMA connectors be configured for outdoor or harsh environments?

Yes. Stainless steel outer conductors, sealed flange designs with O-ring grooves, and enhanced plating specifications are all available through OEM customization. These configurations extend reliable operation into environments with humidity above 90%, salt fog exposure, and wide thermal cycling—conditions common in outdoor base stations and industrial automation enclosures.

Partner With Chuangyu for Precision OEM SMA Panel Connector Solutions

Chuangyu delivers precision-engineered SMA panel connector solutions backed by nearly two decades of RF manufacturing expertise. As a trusted SMA panel connector manufacturer, we support custom dimensions, material grades, and qualification testing from prototype to volume production. Reach our engineering team directly at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a tailored quote, sample evaluation, or technical consultation aligned with your project requirements.

References

1. Pozar, D. M. Microwave Engineering, 4th ed. Wiley, 2011.

2. IEC 61169-15: Radio-Frequency Connectors — Part 15: Sectional Specification for SMA Series. International Electrotechnical Commission, 2013.

3. MIL-STD-348B: Radio Frequency Connector Interfaces for MIL-PRF-39012 Connectors. U.S. Department of Defense, 2010.

4. Sturdivant, R. RF and Microwave Circuit Design: Theory and Applications. Artech House, 2021.

5. IEEE Transactions on Microwave Theory and Techniques, IEEE, Vol. 70, 2022.

6. Laverghetta, T. S. Practical Microwaves. Prentice Hall, 1996.
