Best OEM Supplier for 2.4mm 50 Ohm Termination

The 2.4mm 50 ohm termination is a component that merits careful consideration when your engineering team needs reliable signal termination at millimeter-wave frequencies. Offering precisely manufactured 2.4mm 50 ohm termination solutions built to DC–50GHz performance criteria, VSWR < 1.35, and 2W power capacity, Chuangyu distinguishes itself as a reliable OEM provider. With 500,000 RF components produced annually and over 20 years of experience in RF component manufacturing, Chuangyu provides B2B procurement teams in the telecommunications, defence, semiconductor testing, and medical equipment industries with certified quality.

Understanding 2.4mm 50 Ohm Termination: Specifications and Applications

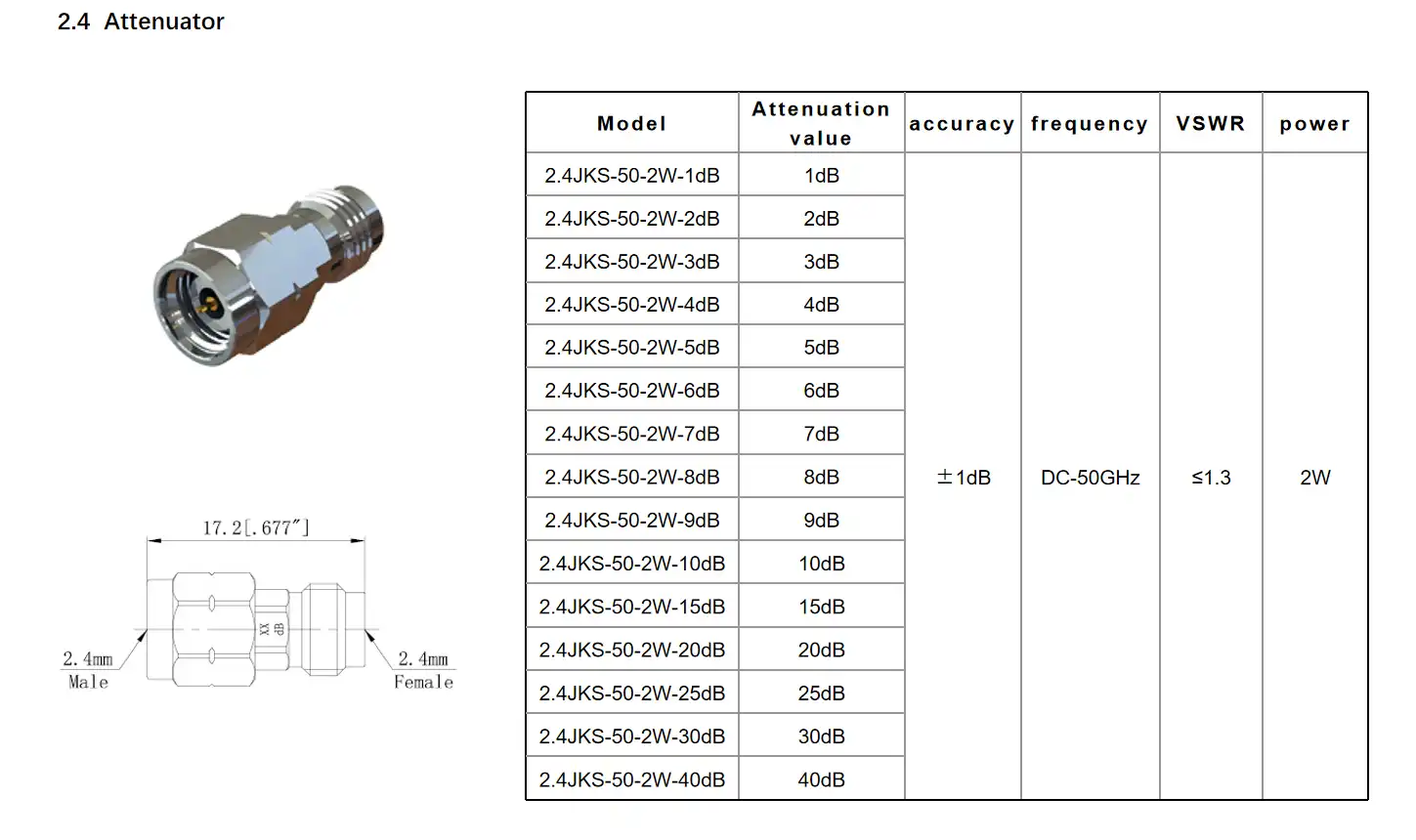

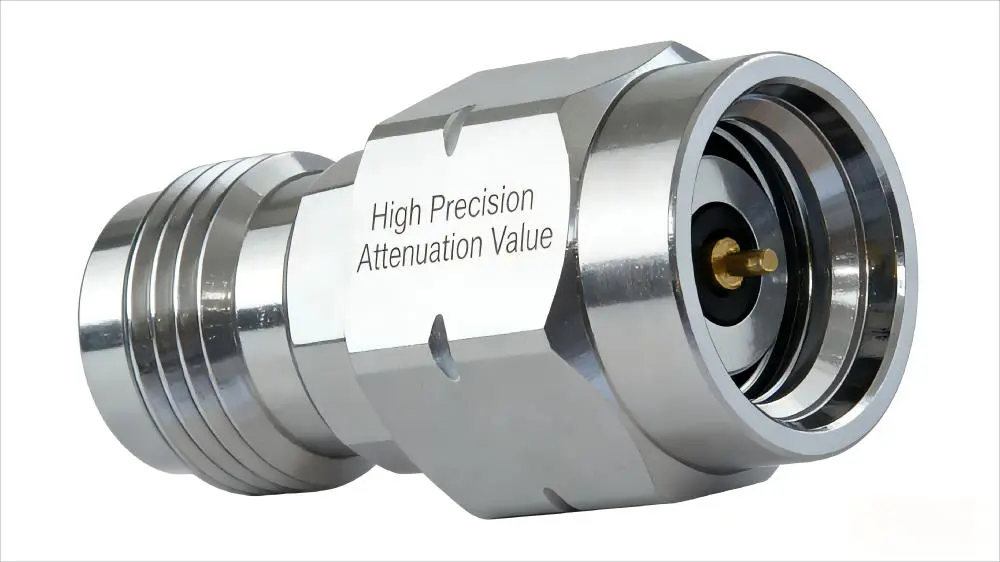

Core Structural Design

A 50Ω resistor element fabricated on a tantalum nitride resistive layer bonded to an aluminium nitride substrate is integrated into the 2.4mm 50 ohm termination. This combination was chosen for its wideband absorption accuracy and thermal stability. Beryllium copper with gold plating serves as the inner conductor, while 2.4 mm stainless steel with passivation treatment serves as the exterior conductor. The assembly is completed by an air medium insulation structure that provides homogeneous dielectric performance over the whole frequency range. Multi-layer heat dissipation and high thermal conductivity metal packing guarantee that the component may operate continuously without experiencing performance drift.

High-Frequency Performance Parameters

This termination spans DC to 50GHz with VSWR≤1.35, a standard that directly affects millimeter-wave subsystem testing and vector network analyser calibration. At 25°C, the power capacity reaches 2W, and operation is allowed between -55°C and +125°C; however, at 125°C, power must be derated to 0.2W. The torque standard is maintained at < 1.8 N · m, and the stainless steel body can resist at least 500 mating cycles. These characteristics make the 2.4mm 50 ohm termination a dependable precision load in both lab and field settings.

Real-World Application Fields

Three principal application domains are served by the 2.4mm 50 ohm termination. It is crucial for 50GHz-band system calibration because it serves as a terminal load for vector network analysers and signal generators in millimeter-wave testing and measurement. It offers dummy load and impedance matching for transmission lines in 5G and millimeter-wave communication infrastructure, such as base station modules and radar systems. It maintains signal integrity in high-precision test settings where system stability is non-negotiable by absorbing leftover radio-frequency energy in laboratory subsystems in military R&D environments.

Comparing 2.4mm 50 Ohm Termination With Other Connector Types

Knowing what each interface provides is essential to selecting the best termination connection. The 3.5mm connection is useful for lower-frequency lab work since it can withstand frequencies up to 34GHz and is compatible with SMA. In addition to providing mechanical compatibility with SMA and 3.5mm interfaces, the 2.92mm (K) connection increases the range to 46GHz. Both are surpassed by the 2.4mm 50 ohm termination, which reaches 50GHz with less reflection and tighter impedance control. The 2.4mm interface provides quantifiable performance benefits that the more general connection types just cannot match for procurement engineers purchasing parts for next-generation millimeter-wave systems.

Reputable 2.4mm termination devices with solid certification histories are available from companies like Pasternack, Rosenberger, Keysight, and Maury. Each has unique advantages: Rosenberger is renowned for its mechanical endurance, Maury concentrates on calibration standards, and Keysight focuses on high-precision metrology. Chuangyu successfully competes in this market by fusing competitive lead times for large B2B orders with precise production and OEM customisation options.

Why Choose an OEM Supplier for Your 2.4mm 50 Ohm Terminations?

Procurement teams may get product combinations that catalogue distributors seldom provide by working directly with an OEM supplier. Custom non-standard connection variations, modified power rates, and customised mechanical dimensions according to system integration needs are all supported by Chuangyu. Each unit is subjected to full-band VSWR verification prior to shipping, and quality traceability is integrated across the whole manufacturing process, from raw material input at the Xi'an Chang'an Innovation Technology Industrial Park facility to final product testing.

The following are the main benefits of using Chuangyu as your OEM termination provider:

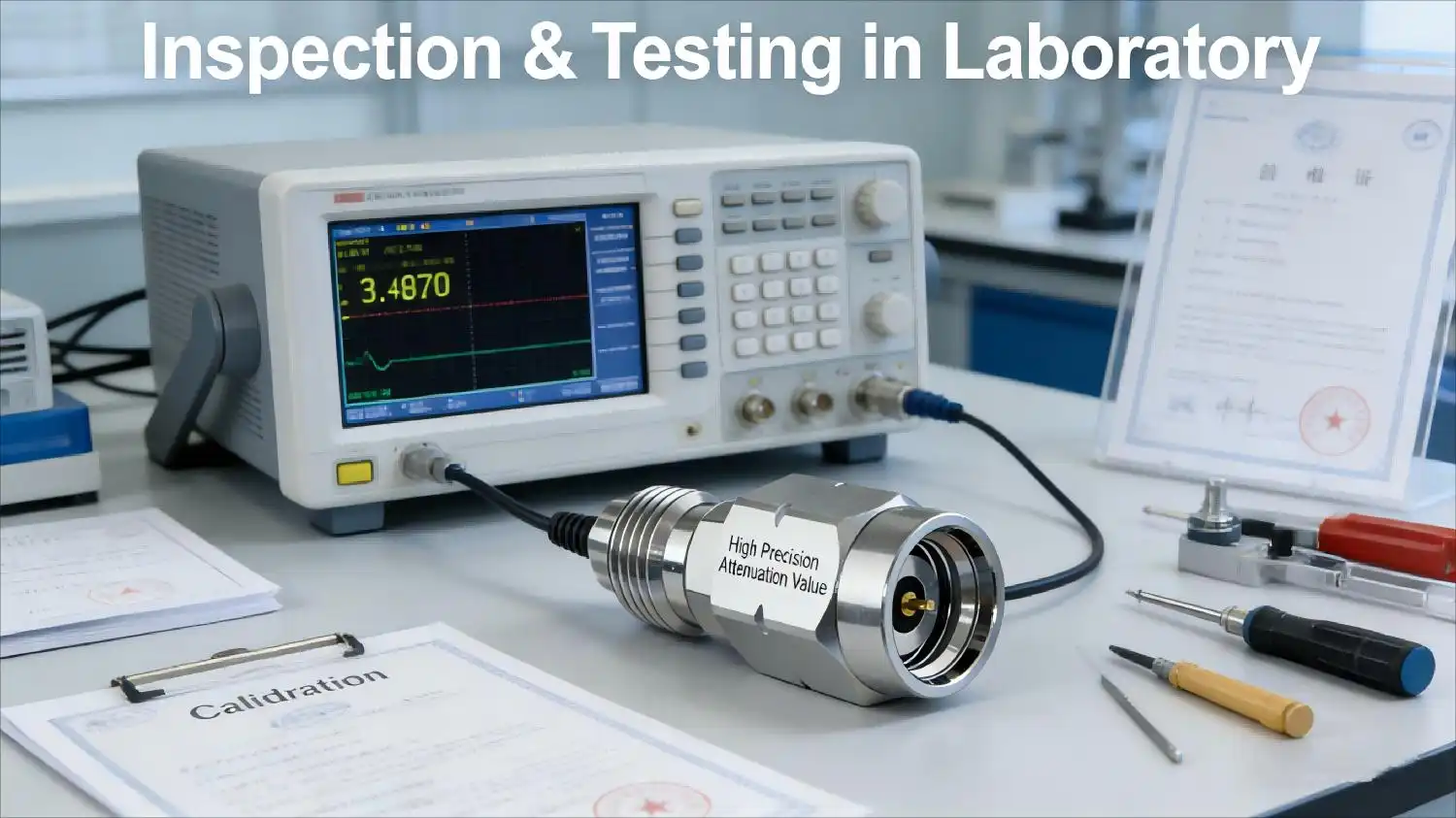

• Verified impedance control: Using calibrated network analysers in Chuangyu's own test lab, every 2.4mm 50 ohm termination device is sent with a validated VSWR < 1.35 throughout DC–50GHz.
• Flexible MOQ and order structure: Before committing to production numbers, B2B customers may request sample units, which lowers their financial risk throughout the product validation phases.
• Accelerated order response: Compared to the industry average, Chuangyu's integrated production-warehouse-logistics structure reduces order response cycles by more than 20%, which is a quantifiable benefit for project-driven procurement timelines.
• Certified production base: The 200-square-meter R&D lab and 800-square-meter manufacturing workshop run under organised quality control, and customers in the defence, medical, and communication sectors may access traceability data.

These benefits significantly mitigate the sourcing risks that hardware engineers and procurement managers encounter while evaluating potential suppliers of millimeter-wave components.

How to Purchase 2.4mm 50 Ohm Termination: Procurement Best Practices

Precision RF load procurement selections go beyond unit cost. Technical engineers should seek datasheets with measured VSWR plots throughout the whole frequency range, not just notional values, when assessing a 2.4mm 50 ohm termination provider. Make sure the supplier maintains traceability records and provides post-sale calibration assistance, since these are essential for producers of medical and defence equipment that must adhere to stringent compliance regulations.

A recurring trend emerges when comparing direct OEM involvement with online wholesale platforms: catalogue resellers provide convenience but offer little customisation and often take longer to respond to technical questions. Working directly with suppliers, such as Chuangyu, provides you with access to application engineers who may provide guidance on integration issues and suggest whether a standard or bespoke termination configuration is appropriate for your system. Prior to committing to volume, always request a sample order. This helps avoid expensive rework later on by assessing insertion loss, VSWR stability, and mechanical fit during the design phase.

Technical Insights to Optimize Use of 2.4mm 50 Ohm Termination

Usage Specifications and Handling Protocol

Protecting termination performance over its service life requires adherence to a defined operating protocol. Input power must remain at or below 2W at 25℃, with instantaneous peak power not exceeding 200W. Operating frequency must stay within DC–50GHz. During connection, use a dedicated torque wrench set to < 1.8 N · m to ensure coaxial alignment — forced contact between inner and outer conductors causes deformation that degrades impedance stability permanently. In environments where relative humidity exceeds 60%, install an IP67-rated sealing cap to protect the air medium structure from moisture ingress and corrosive gas exposure.

Maintenance and Care Schedule

Consistent maintenance extends service life and preserves measurement accuracy. After every 20 mating cycles, clean the connector end face using isopropyl alcohol swabs, paying attention to oxidation on the gold-plated inner conductor surface. Never use metal tools to clean the air-medium interface — abrasion destroys the dielectric uniformity that underpins low-reflection performance.

During storage periods, keep the termination in a dry environment at -20℃ to +60℃ with relative humidity at or below 50%. Conduct a VSWR pre-test monthly; if the measured value exceeds 1.35, return the unit to the factory for recalibration. After 1500 cumulative operating hours, or following any significant mechanical shock event, perform full-band VSWR and power capacity verification using a network analyzer to confirm continued performance compliance.

Conclusion

The 2.4mm 50 ohm termination is a precision component where material selection, mechanical tolerance, and frequency performance converge. For B2B procurement teams supporting millimeter-wave testing, 5G infrastructure, or defense RF subsystems, sourcing this component from a qualified OEM supplier determines whether your system performs to specification or introduces unacceptable reflection loss. Chuangyu brings verified manufacturing depth, direct OEM customization capability, and rigorous quality assurance to every order. If your team is qualifying a new millimeter-wave load supplier, the data and the track record both point in the same direction.

FAQ

What frequency range does the 2.4mm 50 ohm termination support?

The 2.4mm 50 ohm termination covers DC to 50GHz, with VSWR maintained at ≤1.35 across the full range. This makes it suitable for millimeter-wave system calibration, 5G module testing, and high-frequency radar subsystem validation.

How does the 2.4mm termination differ from an SMA termination?

SMA terminations typically operate up to 18GHz and use a lower-precision interface standard. The 2.4mm 50 ohm termination reaches 50GHz with tighter mechanical tolerances and a beryllium copper gold-plated inner conductor, which supports the dimensional accuracy millimeter-wave measurements demand. They are not mechanically interchangeable.

Can Chuangyu manufacture custom 2.4mm termination configurations?

Yes. Chuangyu supports custom non-standard 2.4mm 50 ohm termination variants, including modified power ratings and tailored mechanical dimensions. Procurement teams can request engineering consultation and sample orders before committing to production volume, reducing qualification risk.

What torque is required when connecting the 2.4mm termination?

Use a dedicated torque wrench set to < 1.8 N · m. Exceeding this value risks deforming the inner or outer conductor, which permanently degrades impedance matching and VSWR performance.

Partner With Chuangyu — Your Verified 2.4mm 50 Ohm Termination Manufacturer

Chuangyu delivers precision-built 2.4mm 50 ohm termination solutions with DC–50GHz coverage, VSWR < 1.35, and OEM customization for B2B clients across defense, telecom, and semiconductor testing sectors. With an annual production capacity of 500,000 RF components and order cycles 20% faster than the industry average, we match your project timelines. Contact us at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a sample or technical consultation.

References

1. Pozar, D. M. Microwave Engineering, 4th ed. — Wiley, 2011.

2. IEEE Transactions on Microwave Theory and Techniques — IEEE, 2022.

3. Hiebel, M. Fundamentals of Vector Network Analysis — Rohde & Schwarz, 2007.

4. IPC-2141A: Controlled Impedance Circuit Boards and High-Speed Logic Design — IPC, 2004.

5. MIL-PRF-39012: General Specification for Connectors, Coaxial, Radio Frequency — U.S. Department of Defense, 2020.

6. Microwave Journal: State of the Industry Report — Horizon House Publications, 2023.
