Which N female to TNCA male adapter Has RoHS Certification?

If you are looking for a compatible RF adapter for use in industrial or laboratory environments, the quick answer is: RoHS-compliant N female to TNC. There are male adapters, and choosing the proper one is so much more than checking a box. Chuangyu’s N female to TNCA male adapter is RoHS certified and has a gold-plated beryllium copper inner conductor, a passivated stainless steel outer conductor and PTFE insulation, all of which are free of lead, mercury, cadmium or other banned elements. It is a proven solution for test engineers and procurement teams requiring regulatory compliance and demonstrable signal performance, operating from DC to 18 GHz with a VSWR of 1.3 or below.

Technical Overview: N Female to TNCA Male Adapter Specifications

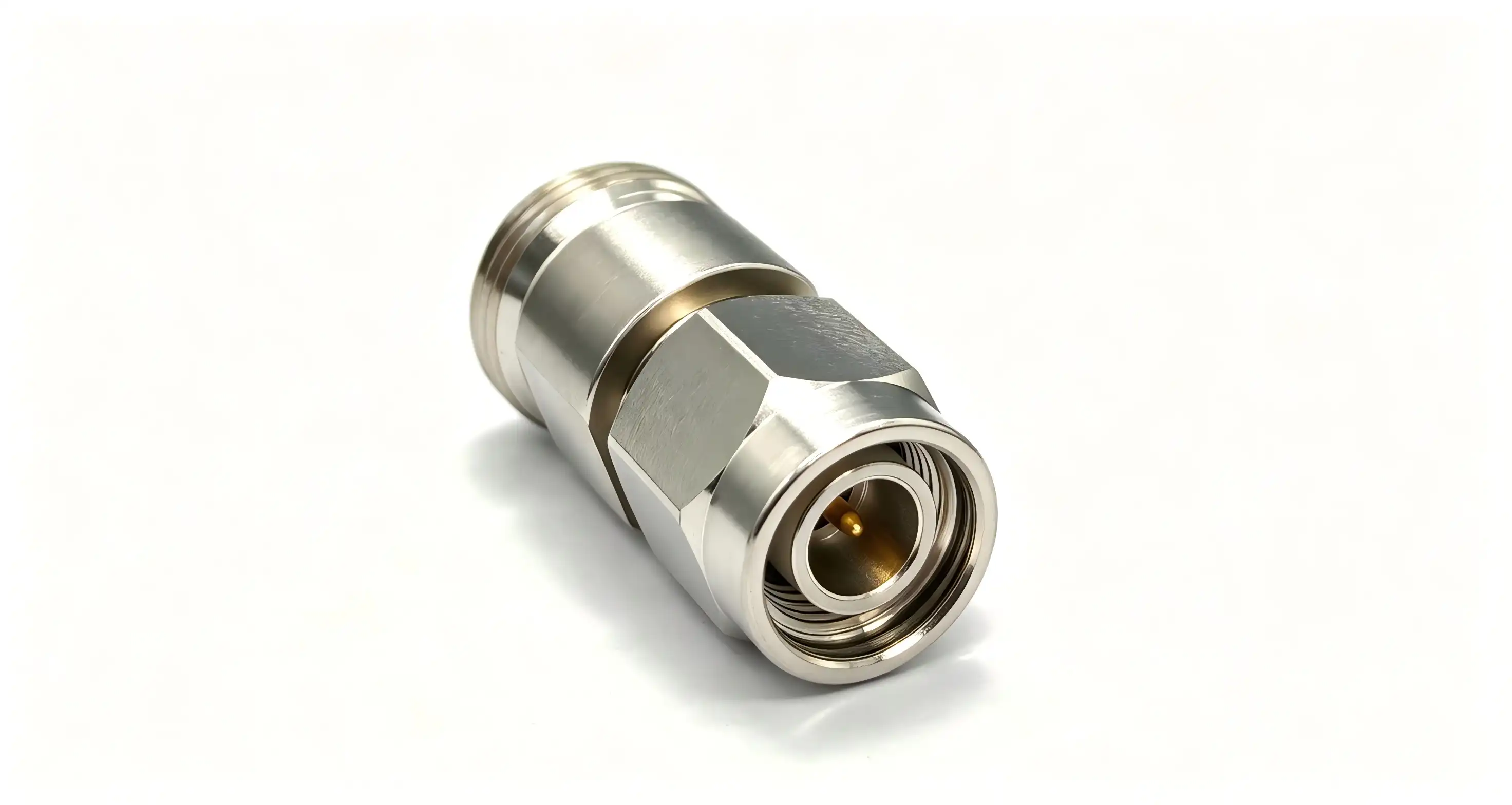

N female to TNCA male Adapter combines two different thread standards in one precision-machined body. An understanding of its structure shows that the choice of materials has a direct effect on compliance and RF performance. The N female end has a 5/8-24UNEF threaded outer conductor manufactured from brass and plated with nickel or gold. Its elastic socket inner conductor mates with the N male pin with a suggested torque of 0.8–1.2 N·m, providing vibration-resistant mechanical stability. The TNCA male end is an extended-frequency derivation of the TNC standard with comparable interface dimensions and has a passivated stainless steel outer conductor with a 7/16-28UNEF threaded fitting and a stiff pin of beryllium copper with a gold plate. The resistance at the TNCA male interface is generally less than or equal to 2 mΩ.

Core Electrical and Mechanical Performance Parameters

The PTFE or PEI core insulator of the adapter provides consistent 50 Ω impedance from DC to 18 GHz. The following are the proven performance metrics that procurement engineers need to compare against competitor products:

• Frequency Range: DC to 18 GHz, for millimeter wave testing and satellite communication signal chains
• VSWR: ≤1.3 across the entire working range, reducing signal reflection in high-sensitivity measuring systems
• Contact resistance: 2 mΩ max at inner conductor contact for reduced insertion loss
• Mechanical cycle life ≥ 500 mating/unmating cycles MIL-STD-202 vibration test conditions
• Operating torque (male TNCA end): 0.5 to 0.8 N. m to safeguard the precise thread structure

The specifications make the N female to TNCA male adapter an effective interface for network analyzers, signal generators, radar front-ends, and aircraft avionics, or any place where signal quality and mechanical endurance must co-exist. Together, these specs prove that a fully RoHS certified adapter does not lose performance for compliance. The gold-plated beryllium copper center conductor and PTFE dielectric meet the RoHS material limits and provide the conductivity and dielectric stability needed by high frequency RF systems.

How to Identify RoHS-Certified N Female to TNCA Male Adapters in the Market

Verifying Authentic RoHS Documentation

True RoHS compliance means the manufacturer has produced a Declaration of Conformity referencing the particular version of the Directive (2011/65/EU or the 2015/863/EU amendment) and has supporting material testing results (ICP-MS or XRF). When purchasing any N female to TNCA male adapter source, ask for the whole material composition data, not just the product label. The internet catalogs of reputable manufacturers such as Amphenol, Pasternack, and Rosenberger include RoHS status per SKU that procurement teams may cross-check against internal compliance databases.A typical misperception is that a “RoHS compliant” logo on a product bears the same legal weight as a Declaration of Conformity supported by test evidence. It does not do. Unsubstantiated or false claims are common on third-party reseller platforms; thus, requesting direct supplier documentation is a must-have step in the certification process.

Comparing RoHS-Certified Coaxial Adapters: What Differentiates Quality Suppliers

Not all RoHS compliant N to TNCA adapters are created equal, and selection should be based on more than the compliance label. The difference between certified suppliers is related to material traceability, dimensional tolerance, and post-sale technical assistance. The Chuangyu adaptor line illustrates how RoHS compliance fits with precision production. The passivated stainless steel TNCA male outer conductor is immune to corrosion in humid or chemically active situations – a significant benefit in industrial automation and aeronautical maintenance bays. The inner conductor is gold-plated beryllium copper, to a RoHS compliant thickness, to provide minimal contact resistance during the whole 500-cycle mechanical life. So a supplier selling a product with generic brass pins who doesn't know and control the plating material used can say they are RoHS but not have the material controls to back it up. Supplier evaluation criteria for 2024 N female to TNCA male adapter:

• Depth of documentation: Full Declaration of Conformity and material test results, not just a label
• Connector body tolerance: Precision machined to IEC 61169 dimensional specifications to provide repeatable mating force and thread engagement
• availability and lead time: High-volume buying, however, is better served by suppliers with specialized manufacturing lines, rather than catalog resellers
• Custom/OEM capability: Test-house and system integrator customers typically demand customized flange mounts, longer bodies, or non-standard plating – direct manufacturers fill those requirements where distributors cannot

Such criteria enable procurement managers to go beyond checking compliance at a superficial level and instead establish a supplier relationship based on demonstrable quality. Unit pricing is as important as supplier dependability and audit readiness to OEM and ODM customers with complicated supply chains.

Best Practices for Procuring RoHS-Certified RF Adapters

The first step to the successful purchase of certified RF connectors is to distinguish between catalog claims and verified proof. Before you place a purchase order, you need to have third-party RoHS test results and make sure that the frequency rating, impedance, and connector interface dimensions of the adapter meet your system requirements. The product datasheet should provide mechanical durability criteria for applications from satellite ground stations to industrial millimeter-wave inspection systems to aerial navigation equipment, and in particular, MIL-STD-202 vibration compliance, not only stated orally. Dealing directly with the manufacturer instead of the middleman distributor shortens the paperwork chain and makes OEM customization requests simpler. While platforms like Amazon Business work well for low-volume spot buys, volume purchasers and test institutes are better served via negotiated supplier relationships that involve quality audits, sample qualification runs, and documented change control for material replacements.

Conclusion

The RoHS certification on an N female to TNCA male adapter may be verified and is technically and procurement significant. Rigorous material selection – gold-plated beryllium copper conductors, PTFE insulators, passivated stainless steel housings – that meets hazardous substance limitations and provides dependable DC–18 GHz RF performance supports the certification. Those customers who need comprehensive Declaration of Conformity documents, check material test results, and evaluate supplier manufacturing depth will always get adapters that work in the field and pass compliance audits. Chuangyu’s approved adapter range satisfies these criteria and offers bespoke configurations for demanding industrial and aerospace applications.

FAQ

How quickly can I verify RoHS certification for an N female to TNCA male adapter?

Request the supplier's Declaration of Conformity referencing Directive 2011/65/EU alongside the ICP-MS or XRF material analysis report. Established manufacturers maintain these documents per part number and can provide them within one business day.

Are certifications from brands like Amphenol or Pasternack more reliable than those from precision manufacturers?

Certification reliability depends on documentation depth and material testing protocols, not brand scale. Both large-catalog brands and specialized precision manufacturers like Chuangyu maintain auditable RoHS records. Verify the test report rather than relying on brand reputation alone.

What happens if I use a non-RoHS-compliant adapter in an industrial environment?

Non-compliant products risk customs seizure at EU and UK borders, contractual penalties from OEM clients with environmental mandates, and potential liability if hazardous material exposure occurs during maintenance. In regulated sectors such as medical devices and aerospace, non-compliance can trigger product recalls or contract terminations.

Can N female to TNCA male adapters be customized for OEM applications while retaining RoHS status?

Yes. Manufacturers with in-house machining and plating controls can modify body dimensions, add flange mounts, or adjust plating specifications while maintaining full RoHS compliance—provided the substitute materials remain within permitted substance thresholds.

Connect with Chuangyu for Certified N Female to TNCA Male Adapter Solutions

Chuangyu delivers precision-engineered, RoHS-certified RF coaxial adapters to OEM manufacturers, test institutions, and system integrators across the United States and globally. As a direct N-female-to-TNCA male adapter manufacturer with nearly two decades of RF component expertise, Chuangyu offers competitive pricing, documented compliance, and OEM customization. Reach out to our procurement specialists at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a quote today.

References

1. European Parliament. Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment. Official Journal of the European Union, 2011.

2. IEC. IEC 61169-16: Radio-Frequency Connectors — Part 16: Sectional Specification for Type N Connectors. International Electrotechnical Commission, 2013.

3. MIL-STD-202H. Test Method Standard: Electronic and Electrical Component Parts. U.S. Department of Defense, 2015.

4. Amphenol RF. Product Compliance and RoHS Documentation Guide. Amphenol Corporation, 2022.

5. Pasternack Enterprises. RF Coaxial Adapter Technical Reference and Compliance Overview. Pasternack, 2023.

6. Rosenberger. RF Connectors and Adapters: Material Compliance and High-Frequency Performance Standards. Rosenberger Hochfrequenztechnik, 2021.
