3.5 Female to BMA Female Adapter: A Complete Buying Guide

If you work in RF testing, microwave communication or high frequency system integration you have probably experienced interface compatibility problems with various connection types. This article will explain all you need to know about the 3.5 female to BMA female adapter including physical construction and materials, procurement strategy, installation and maintenance. Whether you're an R&D engineer considering your signal relaying alternatives or a procurement manager buying in volume, this resource will provide the technical clarity and practical knowledge needed to make informed buying decisions.

Understanding the 3.5 Female to BMA Female Adapter

What Makes This Adapter Unique?

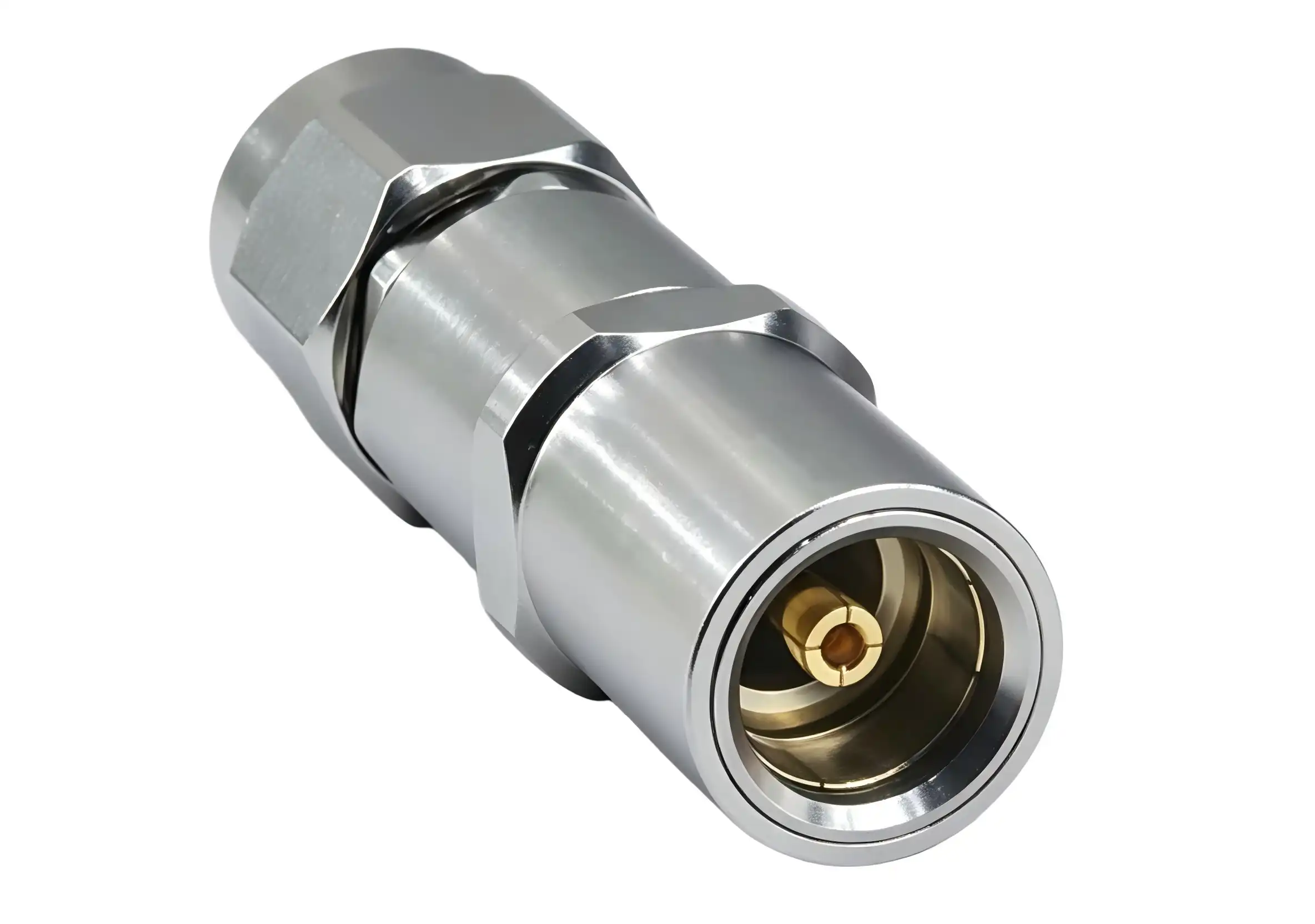

The 3.5 female to BMA female adapter is a series to series coaxial interface converter. One end has a 3.5mm female connection, a precise microwave interface with an internal jack and the other end has a BMA female connector for blind mating. Combined, these two cover the two connection families and allow the signal to be sent between the 3.5mm and BMA devices without compromising the precision of the measurement.This adapter is characterized from DC to 18 GHz with a VSWR < 1.25, and a 50$\Omega$ characteristic impedance for the frequency range. These characteristics are directly relevant for vector network analyzers, spectrum analyzers, RF module test platforms.

Core Material and Construction

This adapter gets its structural stability from 3 carefully chosen materials. The exterior conductor is passivated stainless steel, providing corrosion resistance and mechanical robustness in severe laboratory or field settings. The inner conductor is gold plated beryllium copper which reduces resistive loss and allows for reliable high frequency signal transmission. PTFE (polytetrafluoroethylene) is used as the dielectric insulator and is well known for its low dielectric loss and dimensional stability, both of which are crucial to ensuring 50Ω impedance matching across the working range.The BMA end has a blind mating mechanism which allows for some misalignment during attachment and has a rated mating life of ≥500 cycles. The 3.5mm end must be installed with a regulated torque of 0.5-0.8 Nm using a calibrated torque wrench to minimize mechanical stress on the interface.

Comparing the 3.5 Female to BMA Female Adapter with Alternatives

3.5mm Female vs. SMA Female: Where the Difference Matters

Engineers often question whether a SMA-based adapter can replace a 3.5mm connection in high-frequency applications. The SMA connections have the same 50Ω impedance and the same approximate physical dimensions but the maximum frequency is usually 18 GHz in perfect circumstances . The 3.5 mm interface does keep the same electrical performance at that limit with more strict dimensional restrictions . The 3.5mm female interface offers more predictable return loss characteristics for applications requiring measurement precision better than 12 GHz.Comparison of the main performance metrics side by side:

• 3.5 female to BMA female adapter: DC-18 GHz, VSWR ≤1.25, inner conductor gold plated beryllium copper, body stainless steel, blind mating BMA end, ≥500 mating cycles.
• SMA female to BMA female adapter: DC–18 GHz (standard spec) VSWR ≤1.20 in high-spec versions Brass or stainless steel body PTFE dielectric MIL-STD-348 compatible
• SMA female to SMA female barrel adapter: DC-18 GHz, simpler mechanical design, no blind mating capability, more accessible at cheaper cost.

These characteristics help to explain where each adapter fits. The 3.5 female to BMA female adapter has a particular benefit over SMA barrel adapters in precision microwave testing conditions where it is operationally critical to blind mate.

How to Choose the Right 3.5 Female to BMA Female Adapter

Selecting the appropriate adaptor is both a technical and procurement choice that has downstream impact on system dependability, maintenance frequency and total cost of ownership. There are a few things to watch out for:

• Frequency ceiling: Make sure that your test signal is inside DC-18 GHz. If your application extends beyond this range you will need a whole other interface family.
• Mating environment: The BMA blind mating architecture is ideal for high density PCB backplane assembly and rack mounted test systems where manual alignment is not feasible.
• Mechanical durability: A service life rating of ≥500 cycles is acceptable in most laboratory conditions. This could be justified for high turnover ATE (automated test equipment) installations.
• Plating quality: Gold plated beryllium copper inner conductors provide reduced contact resistance and longer service life than ordinary brass connections.
• Supplier traceability: OEM and ODM firms may decrease qualification risk via procurement from suppliers with established quality management systems (including lot traceability and dimensional inspection records).

All these parameters are used to determine the appropriateness of your adapter. For procurement managers, working with large quantities, negotiating sample validation of the 3.5 female to BMA female adapter before full volume commitment ensures both technical and timetable integrity.

Installation, Troubleshooting, and Best Practices

Step-by-Step Installation and Signal Integrity Checks

The performance of the adapter to its rated specifications is directly affected by proper installation. Prior to mating visually check the outer conductor for distortion, the gold plating for peeling or oxidation and the female socket for debris or physical damage. Any evident flaw is grounds for prompt repair – utilizing a damaged adapter risks contaminating the device under test with reflection artifacts.When installing, use a calibrated torque wrench to impart precisely 0.5-0.8 Nm of torque to the 3.5 mm end. Undertorquing creates impedance discontinuities. Overtorquing threatens cold welding of the threads or deforming the inner conductor. Make that the interfaces are aligned on the BMA side before applying seating force – oblique insertion is a major cause of blind mating connection failure.

Maintenance, Cleaning, and Storage Protocols

Regular servicing prolongs service life and maintains measuring accuracy. After every 20 to 30 connections or soon after any suspected contamination, wipe the mating surfaces with a specialist RF cleaning swab wetted with anhydrous isopropyl alcohol. Store adapters in sealed, non-corrosive environment from -10 degrees C to +40 degrees C, relative humidity not to exceed 60% RH.If you see VSWR values jump abruptly or insertion loss climb over the rated baseline, detach the adapter and examine the mating contact with magnification. Do not continue testing with a questionable adapter -- poor contact geometry provides repeated measurement errors that may invalidate an entire characterisation data set.

Conclusion

The 3.5 female to BMA female adapter is a specialized, yet critical component in microwave test equipment. It offers a reliable interface conversion between two different connector types without degrading signal integrity. It runs throughout the DC–18 GHz frequency range, has a VSWR of ≤1.25, gold-plated beryllium copper contacts, and a stainless steel body, catering for the needs of RF engineers and procurement teams engaged in the fields of telecommunications, semiconductor testing, and industrial automation. Choosing the proper adapter involves matching technical parameters to your application needs and purchasing from providers with proven quality standards.

FAQ

Does this adapter support both analog and digital microwave signals?

The 3.5 female to BMA female adapter handles any signal type — analog or digital — transmitted within the DC–18 GHz operating range. Signal type is secondary to frequency content; what matters is that the spectral energy of your signal stays within the rated band.

Can I use this adapter with standard 50Ω coaxial cables?

The adapter is designed for 50Ω systems. It interfaces cleanly with standard semi-rigid and flexible coaxial cables terminated in 3.5mm male connectors on the instrument side, provided the cable's own characteristic impedance is 50Ω.

What affects lead time for bulk orders?

Lead times depend on order volume, plating specification, and whether custom dimensions or marking are required. Standard configurations typically ship within normal production cycles; customized variants require additional qualification time. Confirming specifications upfront — including torque requirements and environmental rating — shortens the procurement cycle.

Is the BMA end compatible with PCB-mounted BMA receptacles?

The BMA female end is designed for blind mating against BMA male pins or plug-type receptacles mounted on PCBs or chassis panels, accommodating minor radial and axial float typical of high-density board layouts.

Partner with Chuangyu for Your RF Connector Needs

Chuangyu supplies precision 3.5 female to BMA female adapters built to microwave-grade tolerances, with full material traceability and documented inspection records. As a trusted 3.5 female to BMA female adapter manufacturer serving RF communication, semiconductor testing, and industrial automation clients across the U.S. and globally, Chuangyu combines nearly two decades of connector engineering expertise with an annual production capacity of 500,000 RF components. Custom configurations, OEM support, and bulk order pricing are available. Reach out to our technical team at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a quote.
