Where to Buy 2.92 Female to GPPO Female Adapters for RF Testing

You may look for direct manufacturers such as Chuangyu (cymicrowave.com), authorized distributors like Mouser and Digi-Key, and B2B platforms for a dependable 2.92 female to GPPO female adapter for RF testing. For precise millimeter-wave testing (DC to 40 GHz with VSWR ≤1.35 and 50Ω impedance), there’s no room for error in selecting a proven provider. Whether you are an R&D engineer, procurement manager, or test systems integrator, this book will teach you how to identify such adapters, who to trust, and how to buy them with confidence.

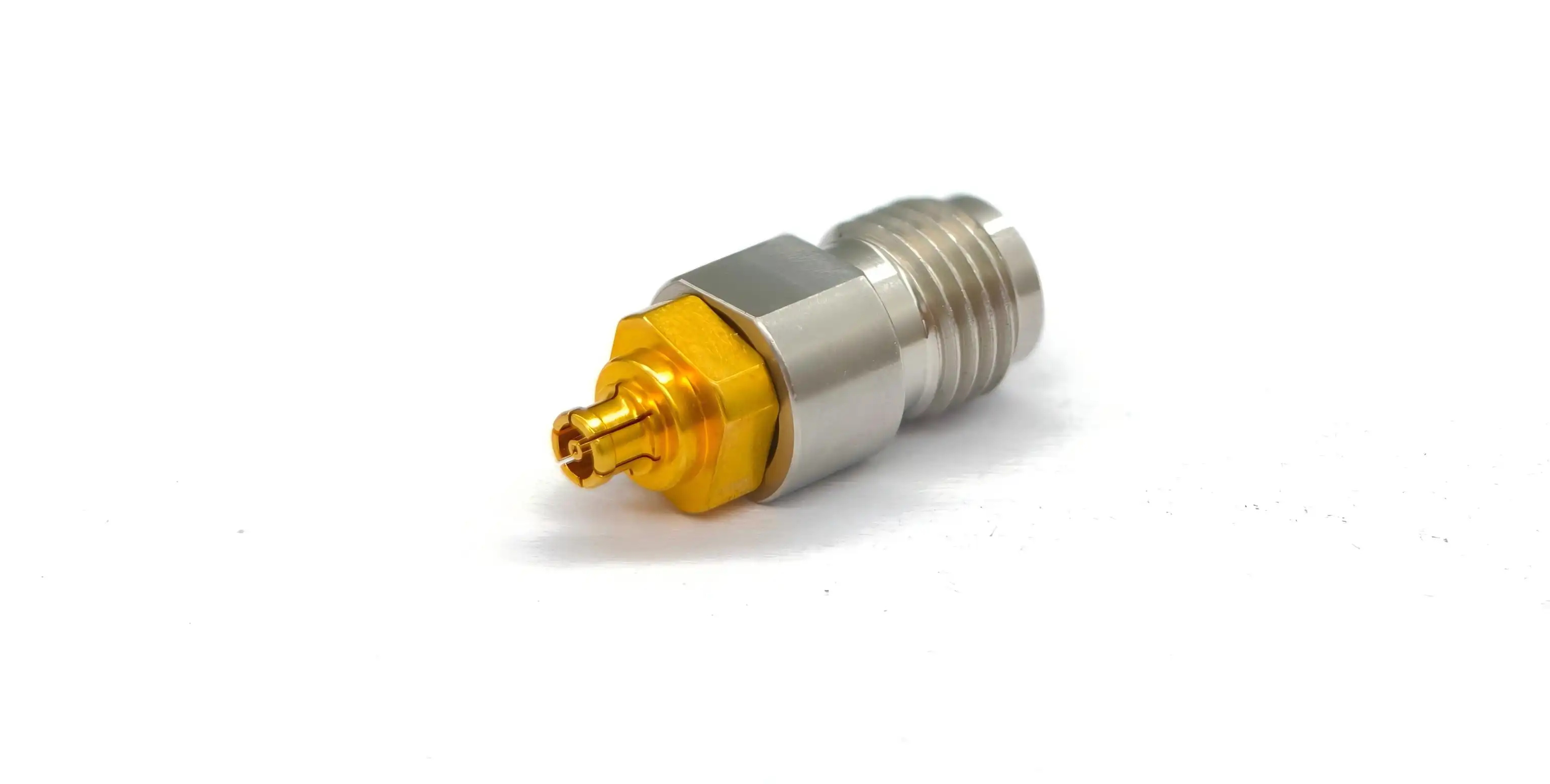

Understanding 2.92 Female to GPPO Female Adapters

What Makes This Cross-Series Adapter Unique

A 2.92 mm female to GPPO (SSMP) female adapter joins two different kinds of millimeter wave connectors. The GPPO (SSMP) female end is for ultra-compact push-in connections used in high-density RF modules and phased array radar systems. On the other end is a 2.92mm male pin interface, used on instruments like vector network analyzers and spectrum analyzers. This cross-series design addresses a genuine pain issue – mismatched interfaces among millimeter-wave test equipment. The GPPO connection is about 30% smaller than a normal SMP connector and has an outside diameter of around 2.4mm. Its small size makes it a must in tight circuit situations where space is a premium but signal integrity must be sacrificed.

Core Technical Specifications You Should Know

The outside conductor of the adapter is stainless steel, passivated to resist corrosion and mechanically durable. The inner conductor is beryllium copper with gold plating. This reduces ohmic loss while transmitting high-frequency signals. The dielectric insulator is PTFE. The characteristic impedance is 50Ω from DC to 40GHz across the working range. Some important electrical and mechanical parameters are:

• Frequency of work: DC-40 GHz (for 5G NR, microwave backhaul, and radar testing); VSWR: ≤1.35 (little signal reflection throughout the frequency spectrum)
• 2.92mm connection torque: 0.8–1.1 Nm (needs a calibrated torque wrench)
• GPPO Push in tolerances Radial ≤±0.25mm, Axial ≤+0.25mm
• Mating cycle life: ≥500 insertions, suitable for recurrent laboratory and production testing

The performance specifications meet IEC 61169 for coaxial RF connections and are suitable for harsh measurement situations with 2.92 female to GPPO female adapter applications.

How to Choose the Right 2.92 to GPPO Female Adapter for RF Testing

When requesting a price, please ensure that you have defined the signal frequency range, the ambient working conditions, and predicted mating cycles. If your test bench is always running in a shielded environment up to 40 GHz, then the proven DC–40 GHz range of the adapter is a perfect fit. For higher frequency applications close to 67 GHz, be aware that the GPPO connection design can theoretically handle this range, but the adapter assembly is only certified up to 40 GHz—do not exceed this limit. If you need measurement-grade performance, you cannot compromise on VSWR and insertion loss. Reflections at a VSWR over 1.35 can distort your S-parameter measurements, which is particularly important when characterizing semiconductor RF chips or validating 5G base stations. Here are the quality elements you should focus on while assessing suppliers:

• Material traceability: Gold-plated beryllium copper inner conductors and passivated stainless steel bodies should be delivered with material certifications
• Impedance uniformity: Confirm 50 ohm impedance over the whole rated frequency range and not only at a particular test point
• Insertion loss documentation: Get measured insertion loss data, not just spec sheet minimums.
• Compliance Certification: Look for goods that meet the MIL-PRF-39012 or similar specifications for use in severe environments

These parameters differentiate dependable millimeter wave adapters from generic components that may not last long under test circumstances. Once technical congruence is confirmed, it is easy to evaluate existing providers.

Where to Buy 2.92 Female to GPPO Female Adapters — Trusted Suppliers and Platforms

This sort of RF coaxial adapter may be ordered in a number of ways, each with its own benefits depending on how many you need to purchase, whether you need them customized, and how fast you need delivery. RF adapters from companies like Amphenol, Pasternack, and Radiall are stocked by global electronics wholesalers such as Mouser Electronics, Digi-Key, and RS Components. These platforms provide fair pricing, access to datasheets, and dependable logistics, making them great for low-volume prototype purchases.

But they seldom provide for specific interface needs or bulk price agreements. If you are an R&D lab or an OEM company with large orders and special requirements such as changed torque ratings, different plating, or non-standard connection pairings, it is usually easier to deal directly with the manufacturer. This approach reduces the specification-to-delivery period and allows for technical participation in the design phase. Chuangyu (cymicrowave.com) is a producer and direct provider of precision RF connectors, millimeter wave cable assemblies, and cross-series adapters, including 2.92 female to GPPO female adapter.

Chuangyu has approximately 20 years’ expertise in producing RF components, with an annual output of 500,000 RF components and a specialized R&D lab, serving the military, semiconductor, 5G communications, and medical instruments industries. Orders are managed from the Xi’an production base with response cycles 20% shorter than the industry norm on average.

Understanding Pricing and Procurement Logistics

The price of precise millimeter wave adapters depends on the quality of the materials, the production tolerances, and the quantity of the order. Good quality GPPO female adapters with a Standard 2.92 inlet normally sell for between $15 and $80 each. So buying in bulk from a manufacturer brings the price down a lot per unit, and also allows more control over the specs. International B2B Buyers: Please note customs classifications under HS Code 8544.42 or 8536.90 depending on jurisdiction. Lead Times: Standard Stock 2-6 weeks. Custom Builds: 4-8 weeks. Long-term supplier agreements with explicitly specified quality milestones mitigate procurement risk and stabilize your supply chain against component shortages.

Common Use Cases and Applications in RF Testing

The 2.92mm to GPPO female adapter is specially designed for demanding RF test applications. So here are the key application fields where this adapter brings real value:

• 5G and microwave testing: Interface conversion between vector network analyzers and DUT ports for 5G base station validation, microwave backhaul testing, and radar system characterization up to 40 GHz without compromising signal integrity
• RF development: Semiconductor enables wafer-level test probe compatibility with benchtop measurement devices to accelerate development verification cycles for RF chip characterisation
• Aerospace and Defense: High reliability requirements are met for phased array radar component screening and RF testing of military electronic equipment, where VSWR instability or unexpected attenuation causes mission-critical failures.
• System integration test: Matches interfaces across mixed-generation millimeter-wave equipment, improving utilization of current test infrastructure without the need for expensive hardware changes.

Such applications indicate that measurement confidence is directly affected by the quality of the adaptor. A bad or misaligned adapter might result in a poor VSWR measurement that can invalidate an entire test run. Clean interfaces with a specific RF swab using anhydrous alcohol for maintenance. Store adapters in shielded, dry enclosures within the temperature range of –10°C to +40°C and humidity ≤60% RH. Inspect before each use for deformations of the outer conductor, deterioration of the coating, or oxidation of the socket. If you get any abrupt VSWR rise during testing, you should investigate immediately before proceeding.

Conclusion

It’s not only about pricing in terms of finding the correct 2.92 female to GPPO female adapter; it’s about quality of materials, VSWR performance, interface tolerances, and supplier dependability. With gold-plated beryllium copper conductors and a mating life of ≥500 cycles, this adapter class is designed for demanding applications from 5G validation to semiconductor research and military testing, with an operating range from DC to 40 GHz. Whether sourcing from wholesalers or directly from a manufacturer like Chuangyu, you should always emphasize verified specs and traceable quality to maintain the integrity of your test systems.

FAQ

What is the maximum operating frequency of this adapter?

The 2.92 female to GPPO female adapter supports DC to 40 GHz. This covers the majority of 5G sub-6 GHz and millimeter-wave test scenarios, as well as radar and microwave communication equipment validation.

Is this adapter compatible with high-power RF applications?

This adapter is designed for measurement-grade, low-power RF signal transmission. It is not intended for high-power RF transmission applications. Always verify rated power limits with your supplier before deployment.

How do I confirm physical compatibility with my existing test equipment?

Verify that your instrument port accepts a 2.92mm male pin, and that your device under test or cable assembly uses a GPPO (SSMP) male connector. The push-in GPPO end accommodates radial misalignment of ±0.25mm, which suits most standard test setups.

How long does the adapter last under repeated use?

With a rated mating cycle life of ≥500 insertions, this adapter suits high-throughput test environments. Cleaning and proper torque application on the 2.92mm end (0.8–1.1 Nm) extend service life significantly.

Get Your Custom Quote from Chuangyu Today

Chuangyu delivers precision-engineered 2.92 female to GPPO female adapters built to meet the rigorous demands of millimeter-wave RF testing. As an experienced 2.92 female to GPPO female adapter manufacturer, we support OEM, ODM, and custom configurations with full technical documentation. Visit cymicrowave.com to explore the full product portfolio, or contact our engineering team directly at chuangyuwz01@cymicrowave.com to request a datasheet or bulk pricing quote tailored to your project.
