How to Choose the Best SMA Female to TNCA Male Adapter

Choose the correct SMA female to TNCA male adaptor according to your frequency range, impedance needs, and mechanical requirements. This coaxial adapter is cross-series and adapts a SMA female jack, a small microwave standard interface, to a TNCA male connection with precise exposed pins. For B2B procurement in RF test, telecom, or industrial applications, the optimum SMA female to TNCA male adapter should have VSWR ≤1.25 over DC to 18 GHz, have 50Ω impedance using PTFE dielectric, and be rated for ≥500 mating cycles. Quality of materials, torque compliance, and dependability of suppliers are other determining criteria.

Understanding SMA Female to TNCA Male Adapters

What This Adapter Actually Does

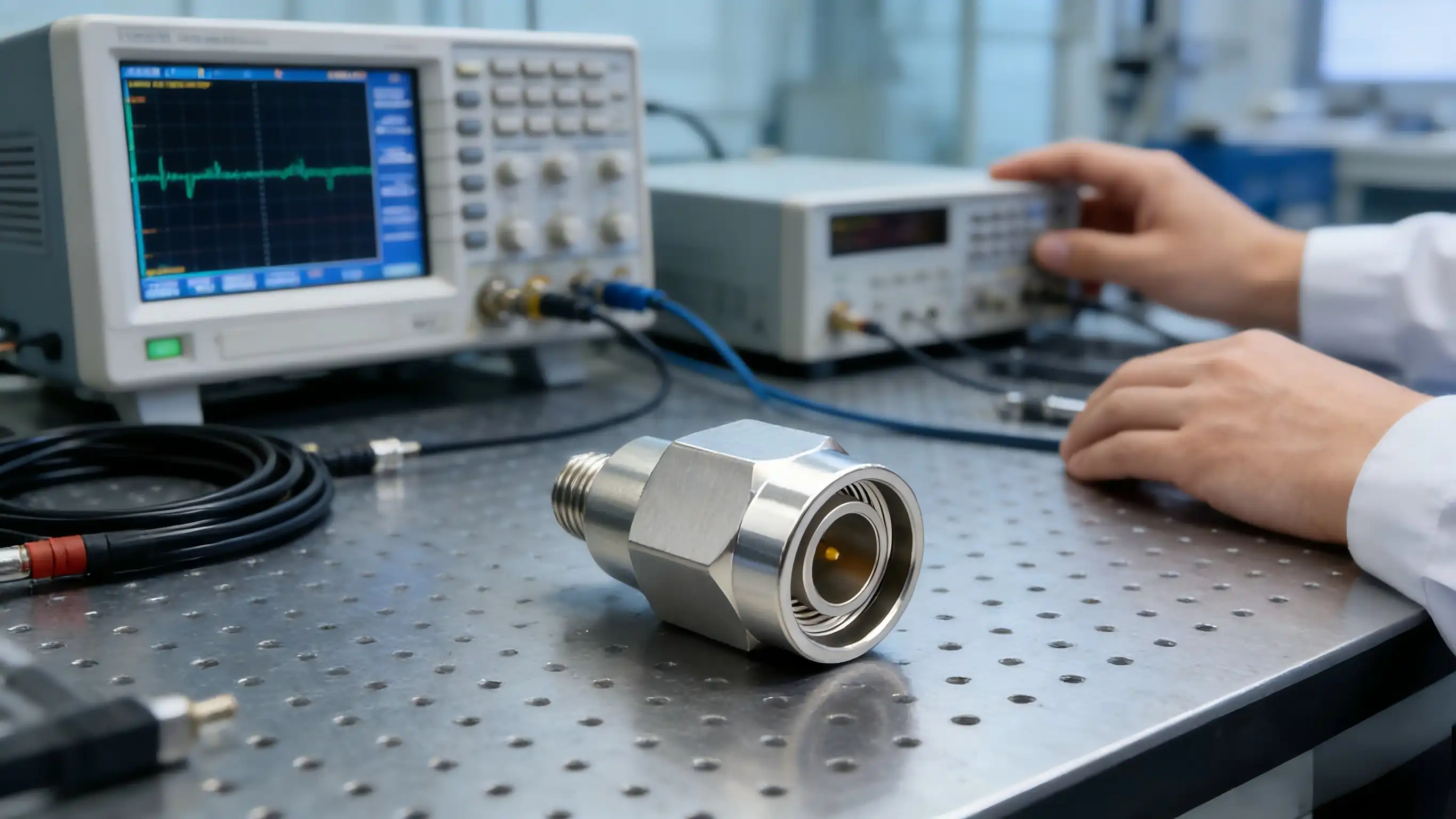

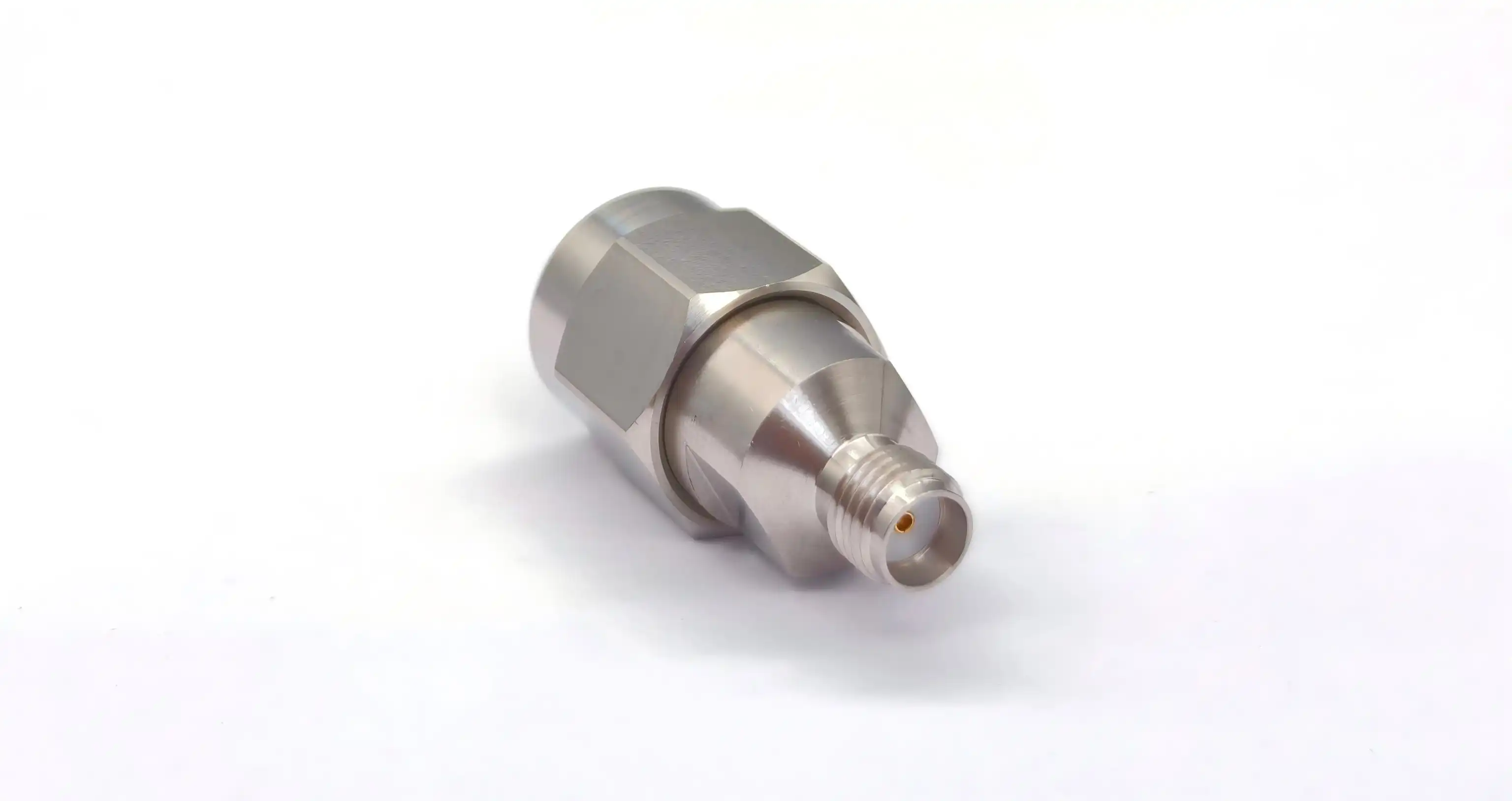

An SMA female to TNCA male adapter is a cross-series RF coaxial component used for the conversion between two different microwave connection standards. The SMA’s female end is an inside jack, a common small microwave interface. The TNCA’s male end has precision exposed pins for high-precision signal relay. Used together, they provide a smooth interface conversion between SMA receiver ports and TNCA transmitter ports in demanding test and measurement situations.

Core Technical Specifications

This adapter’s construction and materials directly impact its field performance. These are the main specs that matter most to hardware developers and procurement managers:

• Outer conductor: passivated stainless steel for great mechanical strength and corrosion resistance in tough lab or industrial settings.
• Inner conductor: Beryllium copper, gold-plated for low-loss, reliable transmission of high-frequency signals up to 18 GHz.
• Dielectric material: PTFE (polytetrafluoroethylene) - Chosen for uniform dielectric characteristics offering 50Ω impedance matching across the whole working range.
• Frequency Range: DC to 18 GHz, encompassing most wireless communication, radar, and precision measurement applications.
• VSWR: ≤1.25 indicates a little reflected signal and high transmission efficiency.
• Mating torque: SMA female end 0.5–0.8 Nm; TNCA male end 0.8–1.1 Nm.
• Plug and pull life: > 500 cycles for regular usage in high-frequency test procedures.

These specs prove that a well-built SMA female to TNCA male adapter is not a passive accessory but a precision microwave component whose design directly impacts system accuracy.

Criteria for Choosing the Best SMA Female to TNCA Male Adapter

Electrical Performance First

When analyzing any RF coaxial adapter, cost should be secondary to electrical performance parameters. VSWR is a direct measurement of how well the adapter passes a signal. A VSWR of ≤1.25 from DC to 18 GHz represents less than 1% reflected power, which is important when connecting to devices such as vector network analyzers or spectrum analyzers. Also check insertion loss. Low insertion loss means the signal integrity across the signal chain is maintained. But more importantly, the 50Ω impedance continuity across the PTFE dielectric means that the adapter integrates without causing the impedance discontinuities that distort readings. However, engineers working on 5G base station modules or microwave circuit R&D cannot afford any signal deterioration, no matter how little, at crucial test nodes.

Material Quality and Mechanical Durability

Material selection is a direct reflection of lifespan and dependability. Passivated stainless steel outer conductors are also more resistant to oxidation and physical deformation than brass counterparts under high-cycle test conditions. The gold-plated beryllium copper inner conductors retain contact resistance for hundreds of mating cycles without any surface deterioration. Mechanical durability is also a matter of torque compliance. If adapters do not hold structural integrity at the rated torque levels, from 0.5 to 0.8 Nm at the SMA end and from 0.8 to 1.1 Nm at the TNCA end, connectors may be damaged in test settings, and the whole system is compromised. The torque ratings are always specified and verified by the product you are sourcing.

Supplier Credibility and OEM Capability

For OEM manufacturers, system integrators, and R&D laboratories, the ability of the supplier to deliver consistent batch quality and customized assistance is as vital as the requirements of the adapter. Seek providers with verifiable quality procedures and documented test results, and who can accommodate non-standard interface needs. Brands with established distribution networks in North America are commonly cited in the industry, such as Pasternack, Amphenol, and TE Connectivity. At the same time, precision manufacturers headquartered in China, such as Chuangyu, are increasingly competing on specification parity with significant customization capabilities and shorter lead times.

Practical Tips and Best Practices for Using SMA Female to TNCA Male Adapters

Installation and Pre-Use Inspection

Always check the outside conductor for deformation before mating any SMA female to TNCA male adapter. Make sure the coating is not peeling or pitted and that the female socket and male pin are not oxidized or physically damaged. Replace the adapter immediately if there is any irregularity. Use a calibrated torque wrench during installation. In precision microwave connections, structural failure often results from oblique insertion or over-tightening beyond specified torque levels. Applying the torque uniformly protects the adapter and the attached instruments.

Signal Control and Environmental Setup

The test signal frequency should be firmly within the operating range of DC to 18 GHz. Excessive power ratings may induce thermal breakdown of the PTFE dielectric. To reduce the effects of external electromagnetic interference that may distort measurement baselines, especially for 5G R&D and vector network analyzer calibration work, do high-frequency testing in a shielded container.

Cleaning, Storage, and Fault Response

Clean connection interfaces using RF-grade swabs soaked in anhydrous alcohol. This eliminates oxide coatings and dust buildup that increase contact resistance over time. Store the adapters in a sealed, corrosion-free container at temperatures between -10°C and 40°C and humidity ≤60% RH. If the VSWR increases quickly or signal attenuation is abnormal during the test, stop testing immediately. Check the adapter for wear and make sure the connection is properly placed. Do not use a defective adapter. This may cause a series of measurement mistakes and harm to connected equipment.

Conclusion

Choosing the best SMA female to TNCA male adapter is a comprehensive selection process – not a series of check marks – that takes into account electrical characteristics, material integrity, mechanical ratings, and supplier dependability. Precision microwave testing requires coverage from DC-18 GHz and VSWR ≤1.25, for which a combination of gold-plated beryllium copper inner conductors, passivated stainless steel housing, and PTFE dielectric in an adapter is used. To maintain measurement accuracy and long-term system availability, effective procurement teams combine technical standards with supply chain considerations such as support for customization and consistent batch quality.

FAQ

What is the difference between an SMA female to TNCA male adapter and an SMA male to TNCA female adapter?

The polarity determines which port each adapter connects to. An SMA female to TNCA male adapter receives an SMA male plug on one end and plugs a TNCA male pin into a TNCA female port on the other. Reversing polarity—SMA male to TNCA female—serves the opposite connection direction. Confirm your instrument and device-under-test port genders before ordering.

How do I verify compatibility before purchasing?

Cross-reference the connector genders, impedance (50Ω), and operating frequency range against your instrument's specifications. For vector network analyzers and spectrum analyzers, ensure the adapter's VSWR ≤1.25 rating aligns with your calibration accuracy requirements.

Is a waterproof variant necessary for my application?

Standard passivated stainless steel housing provides strong corrosion resistance for most lab and indoor industrial environments. Sealed waterproof variants are advisable for outdoor base station work or high-humidity production floors. Consult your supplier about environmental rating requirements specific to your deployment.

What torque tool should I use?

A calibrated RF torque wrench set to 0.5–0.8 Nm for the SMA end and 0.8–1.1 Nm for the TNCA end is the correct choice. Standard hand-tightening does not provide the precision needed for high-frequency microwave connectors.

Partner with Chuangyu for Precision RF Adapter Solutions

Chuangyu offers rigorously engineered SMA female to TNCA male adapters built for DC–18 GHz performance and ≥500-cycle reliability—trusted by RF engineers across telecom, semiconductor testing, and medical device industries. As a dedicated SMA female to TNCA male adapter manufacturer and supplier, Chuangyu supports OEM customization, bulk procurement, and responsive global shipping. Contact our team directly at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request specifications and pricing.
