The 2.92mm 50 ohm termination is a precise coaxial load for mm-wave systems from DC to 40GHz. It absorbs leftover signal energy at unused ports in mmWave architecture to reduce reflections that affect measurement accuracy and system stability. It is used by engineers in vector network analyzer (VNA) calibration setups, 5G base station modules, radar transmission chains and high-power RF subsystems. With its regulated impedance and low VSWR, it is an absolute must when signal integrity, port isolation and dependable power absorption are non-negotiable criteria.

And when engineers want to find out where this component really earns its keep, the answer covers three high-stakes sectors.
In VNA measurement applications, the 2.92mm 50 ohm termination provides a high-power terminal load during system calibration and device characterization up to 40GHz. It captures signal energy at the idle ports of mm-wave signal generators and network analyzers, eliminating standing wave pollution from distorting S-parameter data. The precision of calibration in the 40 GHz band testing is very much a function of the stability of the termination VSWR. Any model that wanders over 1.35 will add quantifiable inaccuracy to the return loss and the insertion loss values. This is why monthly VSWR pre-testing is a suggested discipline.
The 2.92 mm 50-ohm termination is used as a dummy load and for impedance matching for 5G base station microwave modules operating in millimeter-wave frequency ranges. It is used in radar transmission systems to separate unneeded branches in beamforming networks and phased array front ends. This component satisfies the specifications for terminations used in high-power RF transmission connections where the instantaneous peak power handling of up to 1000 W is required under particular transient situations. Its air medium topology makes the dielectric loss minimal, which preserves the efficiency of high-power transmission chains.
Military RF subsystems have tight criteria for signal absorption. The 2.92 mm 50-ohm termination satisfies these requirements by efficiently absorbing reflected energy throughout the temperature extremes of -55°C to +125°C. It is used by R&D engineers in laboratory situations for terminating open ports in antenna measurement chambers, electronic warfare test benches, and high-frequency signal conditioning modules. The inner conductor is made of gold-plated beryllium copper, which resists oxidation over prolonged service life, important for long duration scientific installations where replacement of the connection has a substantial cost and schedule effect. The three most important application areas are summarized below:
These three application profiles represent the widest range of mmWave system design scenarios that are active in the U.S. market today, including applications that require components such as a 2.92mm 50 ohm termination for reliable signal performance.

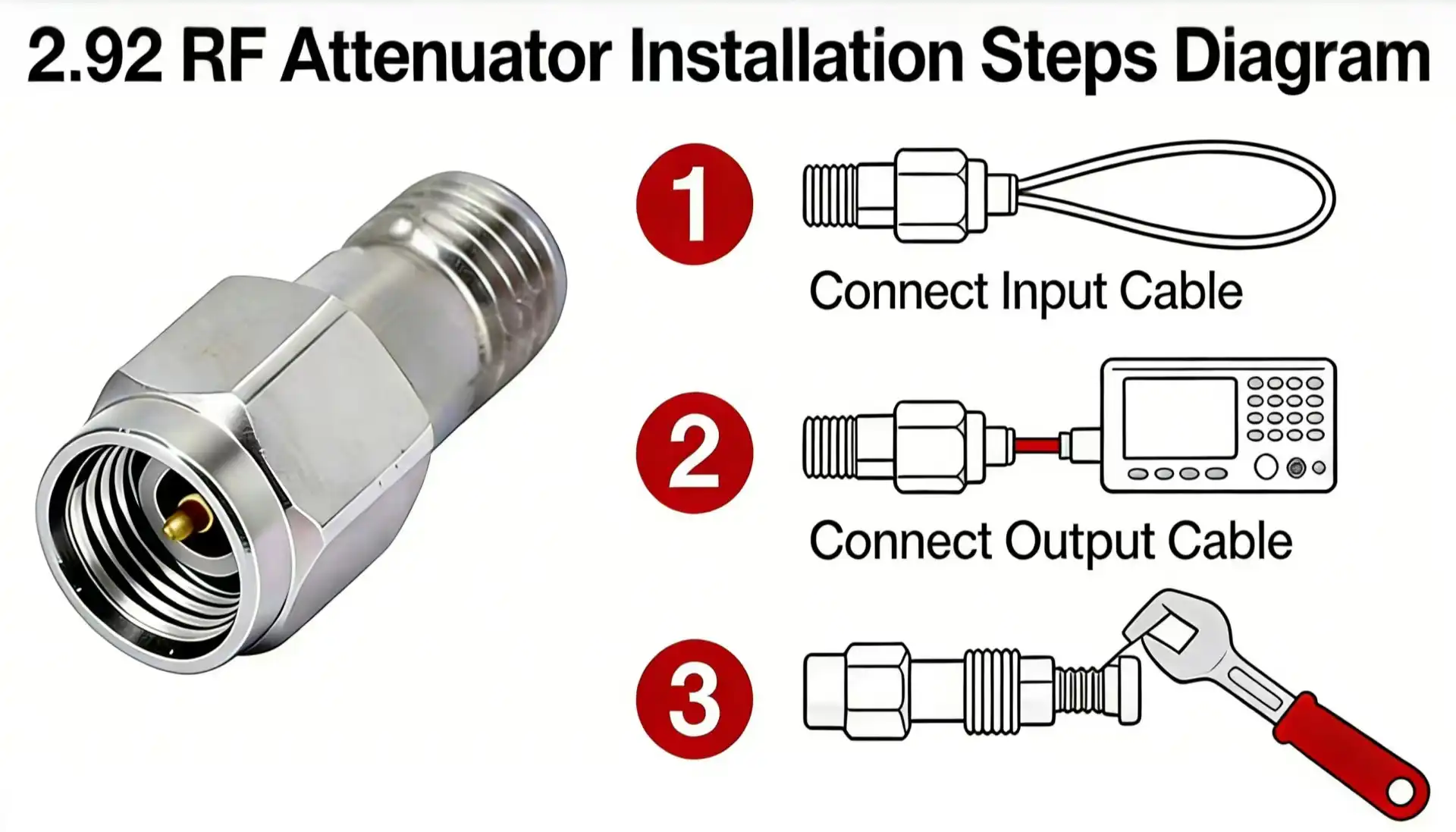

Terminate the 2.92mm 50 ohm to a calibrated VNA port and sweep from DC to 40 GHz. Measure return loss throughout the whole band. A complying equipment will show return loss better than around 17 dB, which corresponds to VSWR ≤ 1.35. Any departure from this threshold is an indication of deterioration of the resistive element or contamination of the connection contact. After every 15 insertion and withdrawal cycles, wipe the connection end face with isopropyl alcohol swabs, especially the gold-plated layer. Never use metal tools on the air medium contact. Mechanical abrasion will change the dielectric geometry forever and change the impedance.
Keep idle devices at temperatures ranging from -20°C to +60°C and relative humidity of 50% or below. Monthly VSWR pre-test: units over 1.35 need factory recalibration. Full band VSWR and power capacity testing with a network analyzer is recommended before putting the device back into operation after more than 1000 working hours or after a major mechanical stress event. If the humidity level of the working environment exceeds 60%, please install an IP67 sealing cover over the connection interface to prevent moisture and corrosive gases from entering the air medium structure.
The 2.92mm interface is a practical sweet spot for those who use coaxial terminations. The 2.4mm size is useful at 50 GHz but is somewhat more expensive per unit, and fewer mating cycles are available in big volume test applications. The 3.5mm and SMA connectors only cover up to 26.5 GHz and 18 GHz, respectively, which is not sufficient for the calibration operations in the 40 GHz range. The 2.92mm 50 ohm termination addresses the bulk of current mmWave design needs without the premium of sub-millimeter connections.
Certified 2.92mm terminations with verifiable product warranties and established distribution channels are produced by reliable providers like as Amphenol, Pasternack and HUBER+SUHNER. Qualification risk is lowered for procurement managers procuring in bulk via vendor-provided test data, RoHS compliance documents, and MIL-spec equivalence assurances. Manufacturers who develop and build RF components in-house may be able to provide custom solutions, such as different torque parameters, other housing materials, or embedded heat monitoring.
Chuangyu manufactures 2.92mm 50 ohm terminations at its Xi'an facility, which has an annual production of 500,000 RF components. With over 20 years of process expertise in producing coaxial connectors, dimensional tolerances and plating standards are strictly maintained across production runs, lowering the burden of incoming inspection for OEM and ODM customers.
For mmWave work, the correct 50 ohm termination is selected based on four non-negotiable parameters: impedance stability at the rated frequency, VSWR over the full DC to 40 GHz band, power handling at the expected operating temperature, and mechanical durability for the anticipated mating cycle count. Proper termination at each unused port avoids measurement error due to reflections and protects active components from standing wave stress.
By partnering with a supplier that has confirmed production data, can accommodate bespoke configurations, and responds swiftly to procurement requests, you decrease both technical risk and schedule exposure. mmWave design margins are tight, and component variability at the termination level propagates to the system-level performance. The easiest way to achieve a reliable, repeatable mmWave platform is to use a proven 2.92mm 50 ohm termination with documented test traceability.

The 2.92mm 50 ohm termination supports frequencies from DC to 40 GHz, making it compatible with the majority of current millimeter-wave test, 5G, and radar applications.
At 25°C, the rated continuous power is 10 W. At 125°C, this derates to 5 W. The instantaneous peak power tolerance reaches 1000 W under defined transient conditions.
Clean the end face with isopropyl alcohol swabs after every 15 mating cycles. Focus on the gold-plated inner conductor surface and avoid any metal-contact cleaning tools.
Return any unit for recalibration when monthly VSWR testing exceeds 1.35, or after the component accumulates more than 1000 cumulative operating hours, or following a significant mechanical shock event.
The 3.5mm interface covers up to 26.5 GHz, and SMA up to 18 GHz. The 2.92mm 50 ohm termination extends usable range to 40 GHz, filling the gap between standard SMA-based systems and higher-cost 2.4mm precision components.

Chuangyu delivers precision-built mmWave components, including the 2.92mm 50 ohm termination, from our Xi'an production base to customers across communications, defense, and test industries. As a reliable 2.92mm 50 ohm termination manufacturer, we support OEM orders, custom configurations, and rapid sampling. Our engineering team responds directly to technical specifications and procurement timelines. Contact us at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request datasheets or a quotation.
1. Pozar, D. M. Microwave Engineering, 4th ed. Wiley, 2011.
2. Bahl, I. J. Fundamentals of RF and Microwave Transistor Amplifiers. Wiley, 2009.
3. IEEE Standard 287-2007. IEEE Standard for Precision Coaxial Connectors (DC to 110 GHz). IEEE, 2007.
4. Collin, R. E. Foundations for Microwave Engineering, 2nd ed. Wiley-IEEE Press, 2001.
5. Rehnmark, S. "On the Calibration Process of Automatic Network Analyzer Systems." IEEE Transactions on Microwave Theory and Techniques, 1974.
6. Rytting, D. "Network Analyzer Accuracy Overview." Proceedings of the 58th ARFTG Conference, 2001.
