SSMA RF connector: Which Features Ensure Reliable Performance?

When engineers inquire about the aspects that contribute to dependable performance in an SSMA RF connector, the response is based on four pillars: selection of precision materials, tight tolerances, stable impedance management, and environmental robustness. These miniature coaxial connections handle DC to 34 GHz – with some types to 38 GHz – while retaining 50Ω characteristic impedance. The 10-36UNEF threaded coupling, gold-plated beryllium copper conductors and PTFE dielectric combine to provide minimal insertion loss and excellent signal integrity for demanding communications, radar and test-and-measurement applications.

Understanding SSMA RF Connector: Specifications and Functional Basics

The SSMA RF connection is simply a miniature version of the normal SMA connector, which was established in 1960 and was standardized under MIL-PRF-39012, MIL-STD-348, and CECC 22 160. Its small size makes it a must have when space is tight on the board and high frequency performance is not to be sacrificed.

Core Technical Specifications

The characteristic impedance is a constant 50Ω, from DC to 34 GHz with some high-performance models reaching 38 GHz. VSWR performance is less than or equal to 1.10:1 DC to 18 GHz, less than or equal to 1.15:1 18 to 27 GHz and less than or equal to 1.25:1 27 to 36 GHz. Genuine electrical resilience is shown in the insulation resistance of ≥5000 MΩ and the withstand voltage rating of ≥750 Vrms.

Cable Compatibility and Structural Design

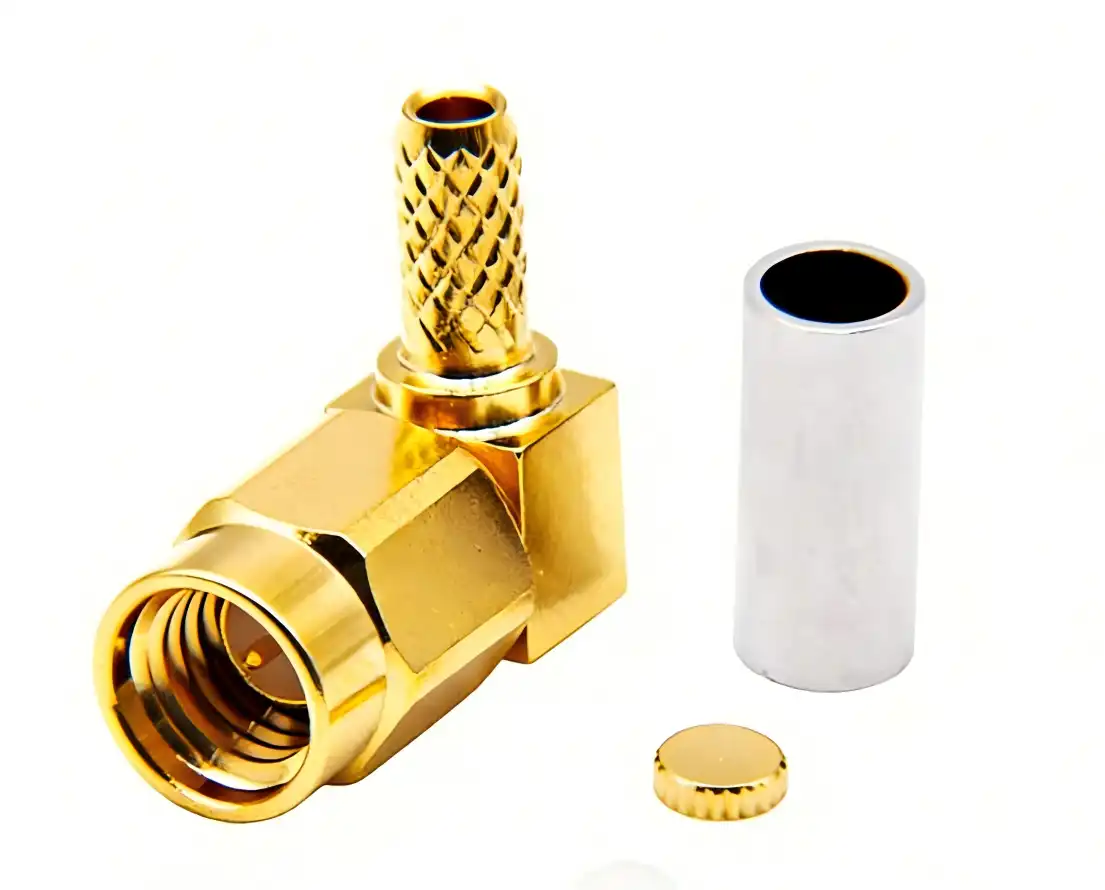

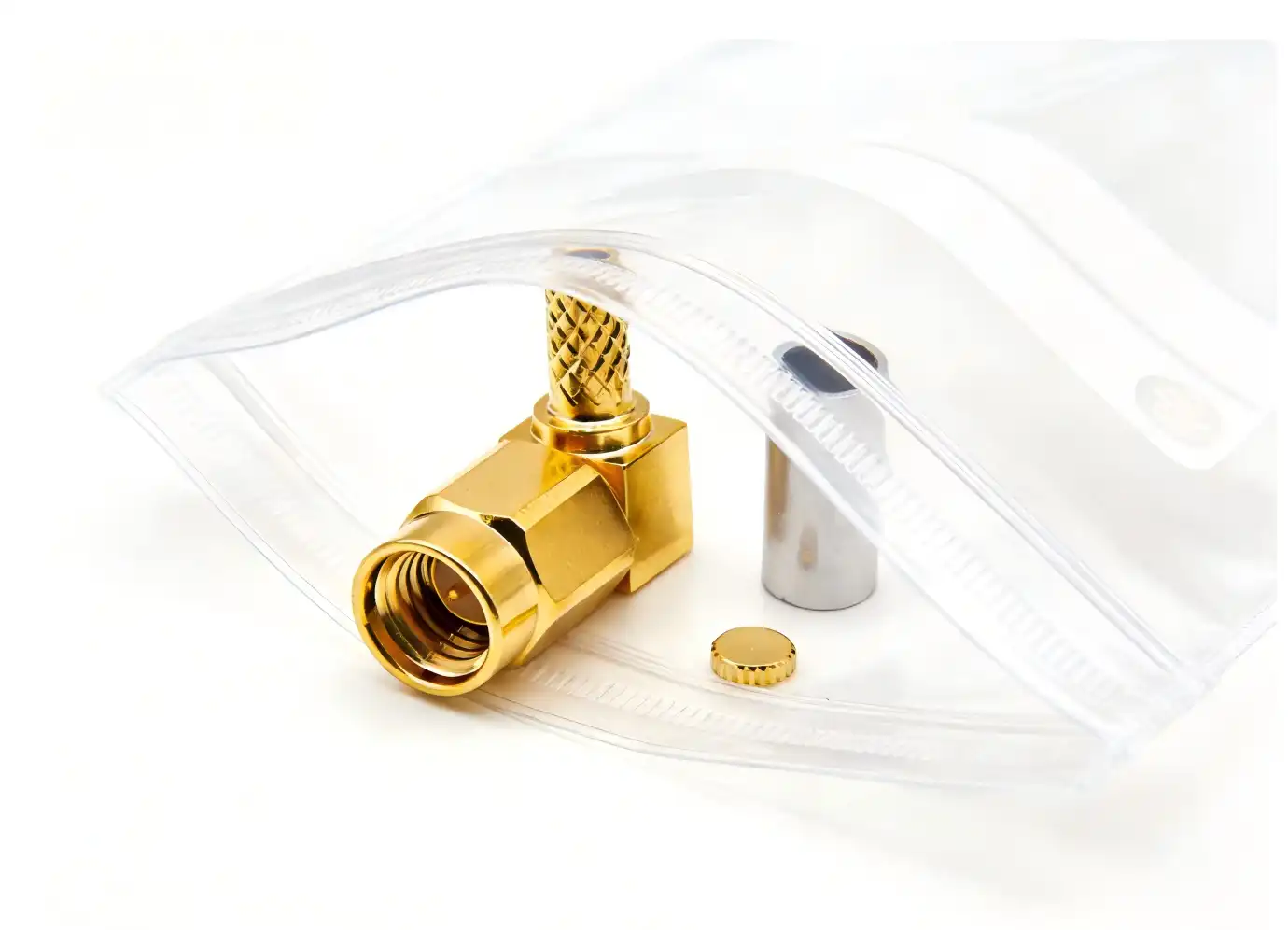

The SSMA RF connection may be used with a selection of flexible and semi-rigid cables including RG174, RG316, RG188 and LMR-100. Crimping or soldering makes the connection secure by creating a mechanical and electrical link. The bent version is available in straight and 90° right-angle configurations and saves installation space in crowded equipment layouts. The coaxiality error following cable construction is strictly managed to reduce signal reflection throughout the transmission line.

Critical Features That Ensure Reliable Performance of SSMA RF Connectors

Knowing the difference between a good SSMA RF connector connection and a typical one may save engineers from expensive field problems. Reliable performance isn’t a single property — it’s the sum of a number of designed traits working together.

Materials That Drive Electrical and Mechanical Integrity

Inner conductor is made of beryllium copper or brass and gold plated. Contact resistance is ≤3 mΩ. The combination offers outstanding electrical conductivity and high elastic recovery, allowing the contact to retain constant pressure during hundreds of mating cycles. The outer conductor is brass, gold or nickel plated for corrosion protection but has an added knurled surface to make hand tightening easier. The dielectric is PTFE (Teflon), with a stable dielectric constant of εr = 2.1 – a value that remains constant across the complete working frequency range, maintaining impedance matching when other materials might wander.The following are the key performance parameters that distinguish these connectors for high frequency applications:

• Impedance consistency The 50Ω system impedance is maintained throughout the connection body, avoiding a reflection of the interface. Mixing with 75Ω cable systems incurs substantial signal attenuation and should be avoided.
• Mating durability: Mechanical plug-and-unplug life is rated ≥500 cycles and meets the requirements of standard lab and production testing without mechanical deterioration.
• Thermal endurance: The connections can operate at temperatures from -65°C to +165°C, making them suitable for aerospace, industrial, and outdoor communication applications where ambient conditions might be extreme.
• Torque-controlled coupling The 10-36UNEF thread has a torque of tightening of 0.45 to 1.1 N·m. Keeping inside this window reduces thread stripping and offers vibration resistant mechanical fastening.

These qualities, taken together, address the most prevalent failure mechanisms in high frequency connection applications, namely impedance mismatch, mechanical wear, corrosion and thermal fatigue.

SSMA RF Connector vs. Other RF Connectors: Making the Right Choice

The selection of a connector interface is a procurement choice with long-term implications. If the choice of an SSMA RF connector is wrong then boards have to be redesigned, cable assemblies replaced or poor system performance accepted.

How SSMA Compares to SMA and Other Interfaces

SMA connections in their standard form can handle up to 18 GHz and are used for broad RF applications such as WiFi antennas and portable radio devices. The SSMA RF connection, however, can reach up to 34–38 GHz, making it the appropriate option when you need bandwidth headroom — 5G millimeter-wave modules, phased-array radar and precision spectrum analysis equipment all benefit from the extra range. Physical dimension is another thing that differentiates: the lower footprint of the SSMA allows for greater density PCB layouts that SMA just can't match.BNC connections are limited to around 4 GHz and they're OK for low frequency lab work but they're not ideal for microwave operations. N-type connections are suitable for outdoor, weatherproof applications but are too bulky for small RF modules. TNC connections are threaded and reliable up to around 11 GHz in vibration situations. The SSMA offers a unique mix of miniaturization, high frequency, and mechanical security that none of these alternatives can match.

Procurement Insights: How to Source Quality SSMA RF Connectors

Sourcing considerations impact overall lifespan cost and product dependability as well. Things like certification credentials, customisation capabilities and supply chain responsiveness matter, too. Procurement managers need to look at more than unit pricing when evaluating vendors.

A quality SSMA RF connection must meet the requirements of MIL-PRF-39012, ISO quality management standards, and RoHS environmental guidelines. Suppliers who comply with MIL-STD-348 prove that they meet field-validated dimensions and performance standards in aerospace and military applications. When you are looking at a vendor, ask the seller for test data on VSWR, insertion loss, and mating durability - good vendors will provide these to you automatically.

Chuangyu (cymicrowave.com) produces SSMA RF connectors and entire cable assemblies to international standards from its Xi’an manufacturing facility, with an annual capacity of 500,000 RF components. Its R&D laboratory has 200 square meters of connection validation and bespoke engineering, allowing quick iteration on non-standard needs. Chuangyu’s technical team may engage directly on unique solutions for applications requiring millimeter-wave connections up to 110 GHz, waveguide-to-coaxial converters, or application-specific cable assemblies. It is a realistic SSMA RF connection provider for both pilot projects and mass manufacturing, with volume pricing structures and OEM/ODM assistance.

Ensuring Long-Term Performance: Installation and Maintenance Best Practices

The highest standard SSMA RF connector connection is subject to early degradation if installation procedures are not followed. The most important habit to cultivate is the torque discipline, always applying between 0.45 and 1.1 N·m during mating. Too much torque on the inner pin will distort it. Too little torque permits micro-motion that wears the contact surface.

Clean contact surfaces and threaded interfaces with anhydrous alcohol on a cotton swab every 3-6 months. Do not use abrasive tools or sandpaper on gold-plated surfaces, as this will destroy the protective coating and speed up oxidation. Let the alcohol evaporate completely before you reconnect. Fit dust caps to connections while not in use to avoid particle contamination.

We recommend an annual electrical check using a network analyzer. Replace immediately if VSWR is above 1.5 or insertion loss is noticeably higher than baseline. Signs of thread stripping, intermittent signal operation, or inability to mate smoothly are all indications that the connection should be removed from service and not used. Store between −20°C and +60°C, ≤60% relative humidity, away from corrosive gases and strong magnetic fields. Proper storage greatly increases the service life and maintains the quality of the plating.

Conclusion

The SSMA RF connection provides dependable performance by carefully combining the quality of materials, geometric accuracy, impedance control, and environmental robustness. These ssma RF connector products have gold-plated beryllium copper conductors, PTFE dielectric (εr ≈ 2.1), 10-36UNEF threaded coupling and working range of DC to 34 GHz making them ideal for 5G infrastructure, radar systems, laboratory instruments and industrial wireless networks. If you purchase them from an SSMA RF connection manufacturer who is qualified, and you maintain them following the published specifications, then they will function at or above their specified performance for the duration of their service life.

FAQ

What is the maximum operating frequency of an SSMA RF connector?

Standard SSMA RF connectors are rated for DC to 34 GHz. Certain high-performance variants extend this to 38 GHz. This range covers most 5G millimeter-wave, radar, and precision test applications currently in production.

Are SSMA and SMA connectors mechanically interchangeable?

No. Although both use threaded coupling and share 50Ω impedance, SSMA connectors use a 10-36UNEF thread while SMA uses a 1/4-36UNS thread. The two interfaces are dimensionally incompatible and require an adapter for interconnection.

What compliance standards apply to SSMA RF connectors?

SSMA connectors are governed by MIL-PRF-39012, MIL-STD-348, and CECC 22 160. For commercial procurement, ISO quality management certification and RoHS compliance are additional indicators of a credible supplier.

Can SSMA connectors be used with semi-rigid cables?

Yes. SSMA RF connectors are compatible with both flexible cables such as RG174 and RG316 and semi-rigid cable types. Connection method — crimping or soldering — should be selected based on cable type and application vibration requirements.

Partner with Chuangyu for Precision SSMA RF Connector Solutions

Chuangyu brings nearly two decades of RF connector manufacturing expertise directly to your procurement process. As a trusted SSMA RF connector manufacturer, we offer certified connectors, custom cable assemblies, and millimeter-wave components up to 110 GHz — all backed by rigorous in-house testing. Visit cymicrowave.com to explore our catalog or request a custom solution. Contact our engineering team at chuangyuwz01@cymicrowave.com to discuss bulk pricing, OEM requirements, or application-specific configurations.
