What Specs Matter When Buying an SMA Detachable Connector?

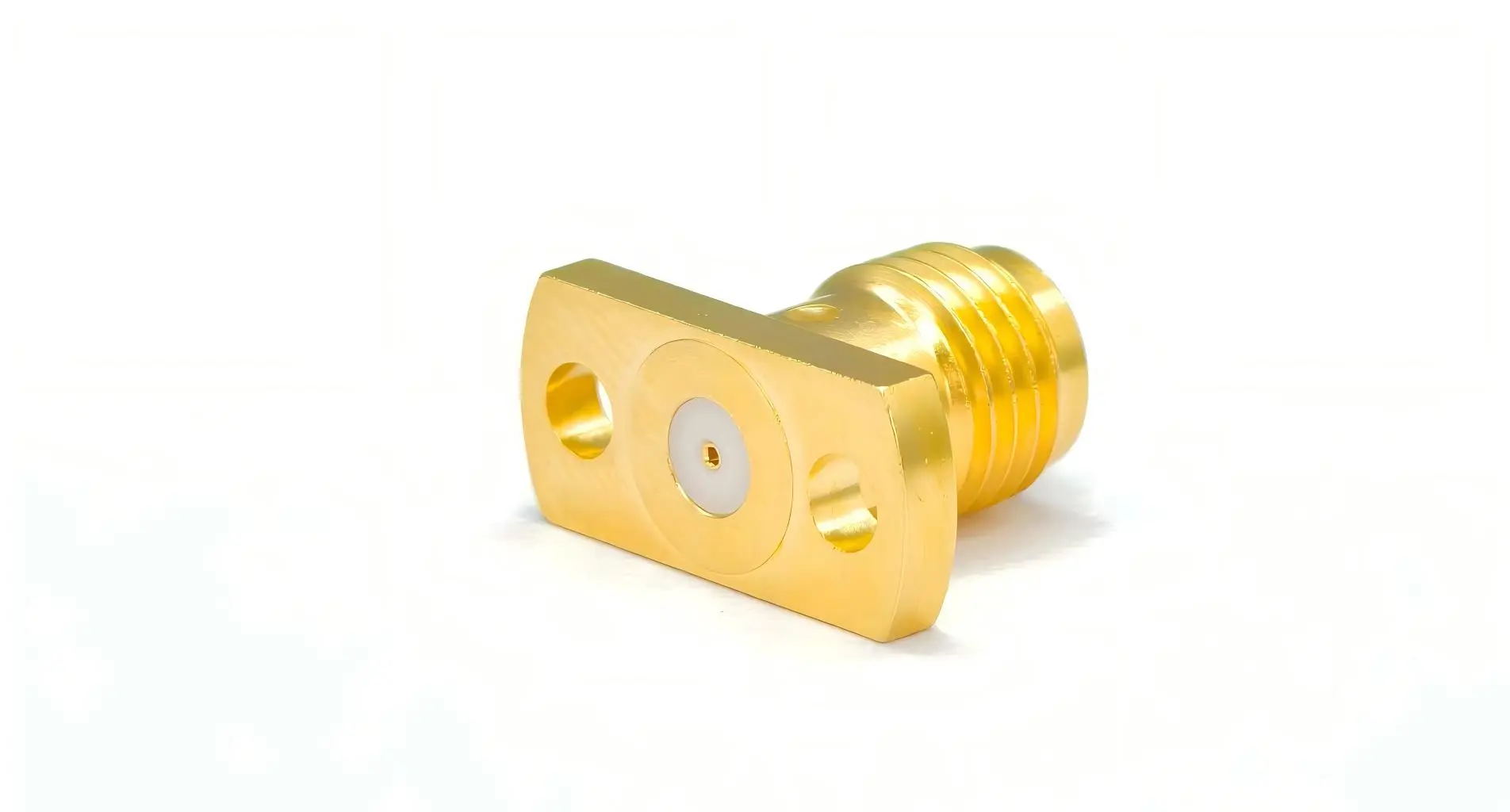

For RF connectivity solutions used in high-frequency applications, it is important to understand the crucial parameters of an SMA Detachable connector. These threaded coaxial connectors have a modular panel-mount design that provides mechanical ruggedness with accurate electrical performance. These connections are 50Ω and operate from DC to 26.5GHz, with high-end versions up to 40GHz. They are the workhorse for test equipment interfaces, communication systems, and aerospace applications. The detachable construction is a boon in contexts where dependability and repeatability cannot be compromised, allowing engineers to retain the integrity of the system while facilitating ease of repair.

Comparing SMA Detachable Connectors with Other RF Connectors

Performance Benchmarking Against Alternatives

Knowing how these connections compare to other RF interface alternatives helps engineers make educated selections. N-Type connections can handle greater power and are more weatherproof, but they take up more space on the panel and are limited in frequency, often only up to around 18 GHz. BNC connections provide quick-connect bayonet coupling, but are not mechanically stable and have a limited frequency range for millimeter-wave applications. TNC connections have threaded coupling and weather resistance, but increased insertion loss above 11GHz. The SMA Detachable connector version that is detachable provides the best mix of size, frequency capabilities, and mechanical dependability and is the recommended connector for test instruments and precision RF assemblies.

Even smaller footprints are possible with miniature choices like U.FL connections, although they are less durable and certified for fewer than 30 mating cycles. Due to their delicate nature, they are not appropriate for panel-mount applications where recurrent access is needed. The removable SMA configuration is good for 500 mating cycles with careful handling, which is a far longer lifespan than under laboratory and field service conditions.

Application-Specific Connector Selection

The best connection type is one that matches both the mechanical and electrical requirements of the operating environment. The threaded interface provides repeatable measurements, which are important for calibrating test equipment. For this reason, all the front-panel ports on vector network analysers and spectrum analysers utilise these connections. Low insertion loss with mechanical stability is important to preserve signal integrity in outdoor environments that are prone to temperature cycling and vibration in microwave communication systems and 5G base station RF modules.

The threaded connection mechanism offers better vibration resistance, which is especially beneficial for aerospace use. Push-on connections would slowly work loose and degrade signal pathways under the heavy mechanical stresses to which airborne radar systems and satellite communication terminals are exposed during operation. The panel-mount flange construction spreads the mechanical stresses across many mounting locations, eliminating stress concentrations that might damage circuit boards or cable assemblies.

Procurement Considerations: Ensuring a Smooth Purchase Process

Evaluating Cost Versus Quality Trade-offs

Procurement managers face constant pressure to balance cost efficiency with performance reliability. While commodity-grade connectors may appear attractive from a unit price perspective, total cost of ownership tells a different story. Low-quality variants often exhibit inconsistent VSWR performance, gold plating that wears rapidly, or threads that strip after minimal use. These failures lead to system downtime, troubleshooting labor, and ultimately higher costs than investing in premium components initially.

Bulk purchasing offers legitimate savings when sourcing from established manufacturers. Volume commitments typically reduce unit costs by 15-30% while ensuring consistent lot-to-lot performance characteristics. Lead times vary considerably across suppliers—domestic inventory can ship within days, while custom configurations may require 6-12 weeks. Planning procurement cycles around project timelines prevents schedule disruptions caused by component delays.

Supplier Evaluation Criteria and Support Services

Trusted manufacturers maintain rigorous quality control processes and provide comprehensive technical documentation. Globally recognized suppliers including Amphenol, TE Connectivity, Molex, and Hirose have established reputations for consistent product performance. When evaluating distributors, verify they stock authentic components rather than counterfeit substitutes—a persistent problem in electronic supply chains. Authorized distributors typically provide warranties, technical support, and quality certifications that gray-market vendors cannot guarantee.

After-sales support becomes particularly valuable when integrating connectors into custom assemblies. Technical assistance with proper installation techniques, torque specifications, and compatibility verification helps avoid implementation errors that compromise performance. Some suppliers offer application engineering services, assisting with cable assembly design and providing pre-production samples for validation testing.

Installation, Maintenance, and Troubleshooting Best Practices

Proper Installation Techniques for Optimal Performance

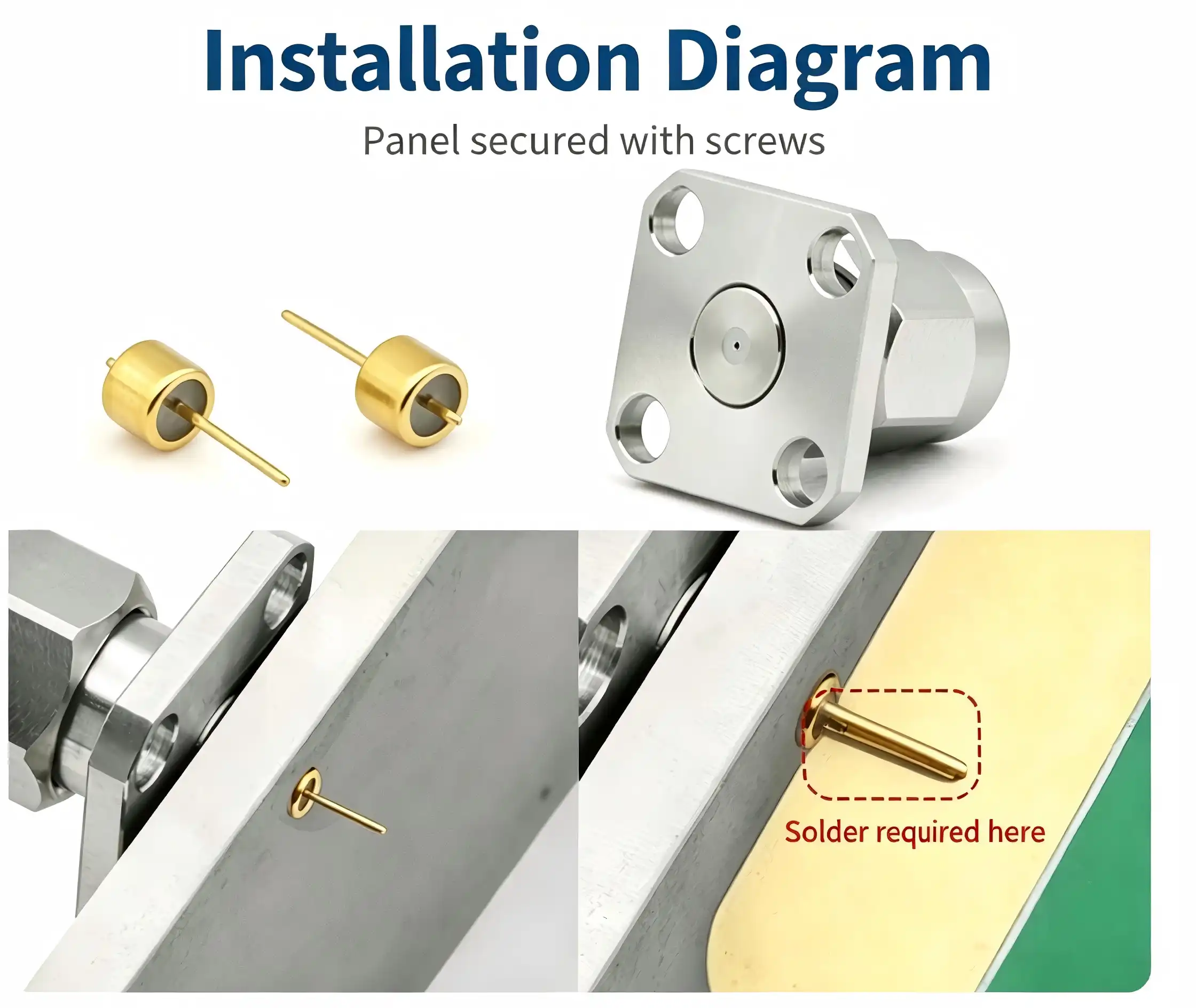

Proper installation starts with panel preparation. The mounting surface should be smooth and clean. Clearance holes should be properly sized to avoid binding. Mount the flange flush with the panel surface and tighten the mounting screws in a cross pattern to the necessary torque (0.8- 1.5 N · m) as indicated by the manufacturer. Excessive tightness may cause deformation of the SMA Detachable connector body and impair electrical properties, while inadequate tightening enables movement that will deteriorate connections over time.

To avoid cross-threading, proper alignment is needed. Hold the connection body motionless, then rotate the coupling nut to smoothly contact the threads with little resistance. Make 3-5 complete revolutions for good electrical contact and mechanical stability. Never push connections together or use pliers on coupling nuts since this destroys threads and gold plating. A finger-tight engagement and last quarter turn with an appropriate torque wrench will provide consistent performance over several mating cycles.

Maintenance Protocols to Extend Service Life

Regular cleaning will protect electrical performance and prolong connection life. Clean mating surfaces with a lint-free cloth wet with anhydrous ethanol prior to each connection, giving special attention to the thread surfaces and center conductors. Make sure to air-dry components thoroughly before joining. Residual solvent may contaminate PTFE insulators and impair dielectric characteristics. Never use anything abrasive or metal brushes or scrapers that might harm gold plating or score precision-machined surfaces.

When not in use, dust covers may be used to avoid contamination and mechanical damage to connections. The temperature of the storage environment should be between 0℃ and +40℃, and the relative humidity should be less than 70%. Avoid exposure to corrosive gases, salt spray, or strong magnetic fields since these increase disintegration. Periodic inspection may identify worn components before they cause system failure. Inspect threads for corrosion, inspect center conductors for deformation, and ensure VSWR tests are within spec.

Diagnosing and Resolving Common Issues

Normally, performance decline shows up as higher insertion loss or higher VSWR values. If you are troubleshooting these problems, check the threads for engagement. Stripped or broken threads will not allow adequate electrical contact and mechanical stability. Check oxidation on center conductors. Gold-plated surfaces may show discolouration or tarnishing. Clean the contacts well and try again before concluding that a part is defective.

If cleaning and correct re-mating do not restore functionality, the connection may have surpassed its specified mating cycles or been mechanically damaged. The 500-cycle rating is based on a typical service life under normal circumstances; high-vibration situations or frequent heat cycling may affect real lifespan. Replacing problematic components and testing system performance will validate whether the connection was the failure location or not. To minimise the downtime in case of replacement, have a spare inventory of crucial connections.

Making the Right Choice: Criteria and Decision Support for B2B Buyers

Aligning Specifications with Application Requirements

The successful connection must be selected by thorough examination of the system-level needs. The main spec is the frequency range – those below 18GHz may use the conventional parts with confidence, but those getting up to 26.5GHz need to be cautious with VSWR specs and insertion loss budgets. The power handling capabilities must be sufficient for the peak transmission levels with a suitable buffer and must consider average and pulse power ratings. Ruggedization characteristics will be driven by environmental conditions such as operational temperature range, vibration exposure, and the possibility of moisture intrusion.

Physical compatibility has many aspects. Check the thickness of the panel for the connecting flange and mounting hardware. Confirm that mating cable assemblies have suitable connections with the same impedance and frequency ratings. Note the space limits surrounding the panel positions – neighbouring connections need sufficient room for engagement of the coupling nut and access for the torque wrench. These dimensional considerations also avoid expensive redesigns after procurement commitments have been made.

Prioritizing Long-term Reliability and Support

The first purchase price gets the focus, but long-term stability pays larger dividends. Components that meet MIL-STD-348 standards have a proven performance in demanding situations, giving confidence for vital systems. Connectors made to ISO 9001 quality management systems have the same lot-to-lot properties. This helps to minimise variation in manufacturing assemblies. Validation of performance and compliance papers provides evidence of performance claims and aids in meeting industry norms.

Supplier partnerships aren’t only about buying parts as a transaction. With the capability to customise, manufacturers may tailor connections to particular applications, altering flange size, the length of threads, or unique plating choices. This adaptability is essential when creating items for hostile settings or unusual physical limits. Technical assistance throughout the product life cycle (from original selection to obsolescence management) provides continuity in long-term manufacturing operations.

Conclusion

The selection of RF interconnects is a trade-off between electrical performance, mechanical robustness, and procurement of SMA Detachable connector. Key characteristics, including frequency range, VSWR, material quality, and mechanical design, have a direct influence on system dependability and measurement accuracy. Knowing how these connections stack up against other options allows engineers to optimise designs for particular applications, whether test instruments, communication infrastructure, or aeronautical systems. Correct installation procedures and preventative maintenance provide maximum service life and signal integrity for hundreds of mating cycles. Procurement teams may feel confident in their sourcing of components that fulfil urgent requirements and long-term production demands when engaging with reliable suppliers who have broad support and customisation capabilities.

FAQ

1. What frequency range do standard SMA detachable connectors support?

Standard SMA detachable connectors typically operate from DC to 26.5GHz with VSWR specifications optimized for frequencies below 18GHz. High-performance variants extend operational frequency to 40GHz, accommodating millimeter-wave applications in 5G infrastructure and advanced test equipment. The frequency capability depends on manufacturing tolerances, material selection, and design optimization—always verify specifications match your application requirements.

2. How many mating cycles can these connectors withstand?

The threaded connection design provides approximately 500 mating cycles under normal operating conditions when handled properly. This substantially exceeds push-on connector ratings, which typically accommodate 30-100 cycles. Longevity depends on proper torque application, cleanliness, and environmental factors. Applications requiring more frequent connections should plan for periodic replacement as part of preventive maintenance programs.

3. Can these connectors work in extreme temperature environments?

Quality SMA detachable connectors operate reliably from -55℃ to +155℃, supporting aerospace and industrial applications exposed to temperature extremes. The PTFE insulation maintains dielectric properties across this range, while gold-plated contacts resist oxidation. Applications involving prolonged exposure to temperature cycling should verify that components meet specific environmental testing standards such as MIL-STD-202 to ensure long-term reliability.
