What Is a DIN RF Coaxial Load? A Buyer’s Guide

A DIN RF coaxial load is a passive radio frequency component that is used to absorb radio frequency energy at the end of a transmission line to avoid signal reflections that might affect the performance of the system. Such a coaxial termination load is based on the 7/16 DIN interface standard and is 50 ohm nominal. In high-end installations, it works at frequency ranges from DC to 6 GHz. Base station deployment, RF testing, and microwave communication engineers depend on these precision termination devices to secure sensitive equipment and to provide precise, repeatable measurements.

Understanding DIN RF Coaxial Loads

What Sets Them Apart from Other Termination Devices

Many engineers mistake coaxial termination loads with dummy loads or attenuators, but it is important to understand the differences. This is not precise impedance control, but a dummy load to dissipate the power. An attenuator does not absorb all the energy; it only lessens the loudness of the signal. Conversely, a DIN RF coaxial load terminates unused ports with a calibrated 50-ohm match, yielding a VSWR of ≤1.2:1 throughout its rated frequency spectrum. Its low reflection feature makes it a must for any multi-port device testing and system calibration where precision of measurement is of paramount importance.

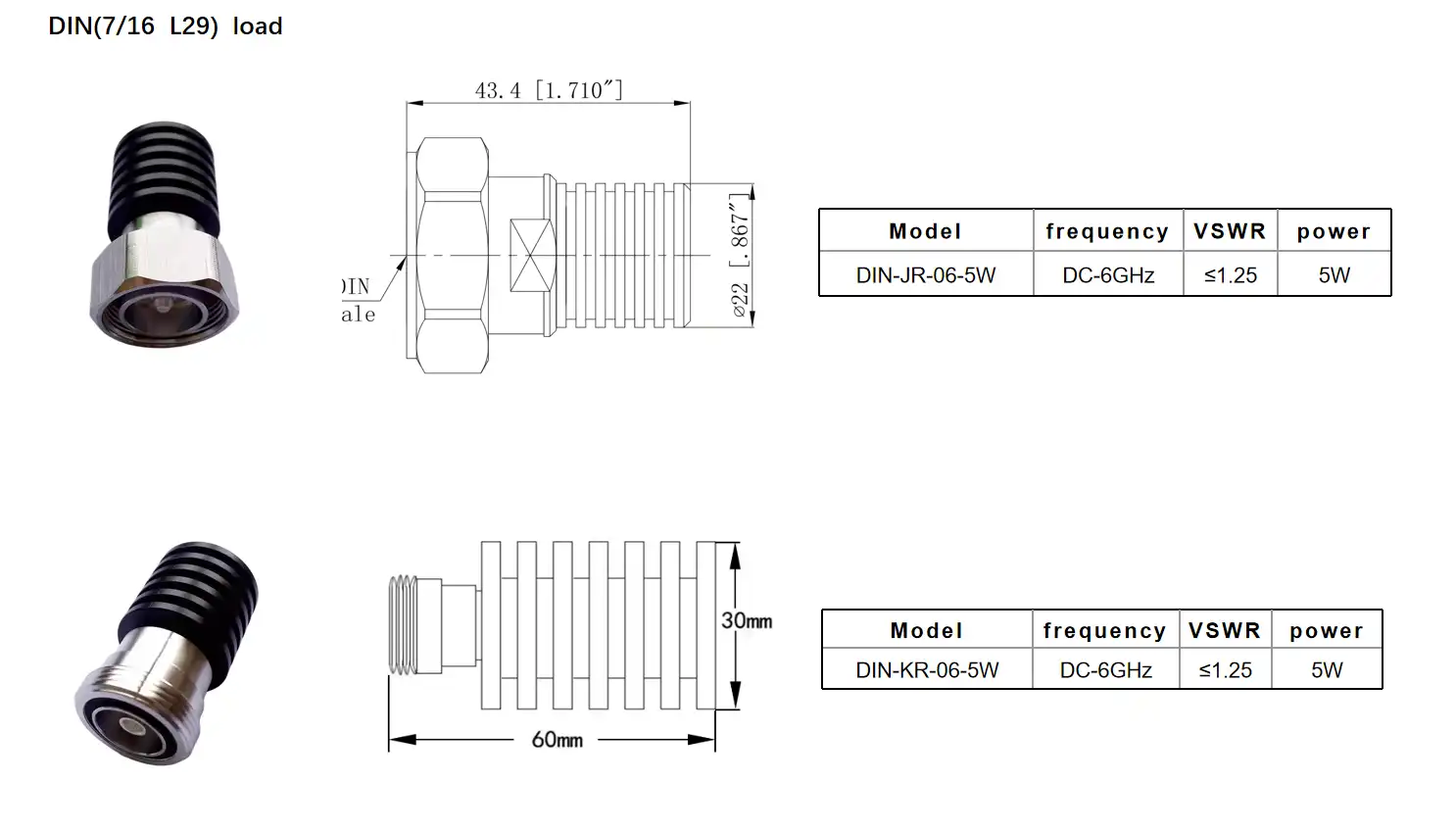

Core Technical Specifications

The structural design of a quality coaxial termination load is made up of multiple precise materials working together. The enclosure is either brass with nickel plating or black anodized aluminum. The inner conductor is phosphor bronze and gold-plated for corrosion resistance and reproducible contact. The dielectric insulating medium is PTFE, which offers predictable electrical performance across the temperature range -55°C to +125°C. Continuous wave input power capacity is 5W at 25°C. PIM performance is available in -105, -120, or -150 dBc, depending on the variation chosen.

These guidelines directly address the needs of R&D engineers and hardware design engineers who need reliable impedance matching under harsh operating circumstances. High-end DIN RF coaxial loads are available in frequency ranges up to DC-6 GHz, with standard models up to DC-3 GHz, providing clear decision criteria for procurement managers based on system bandwidth needs.

DIN RF Coaxial Loads in Applications and Maintenance

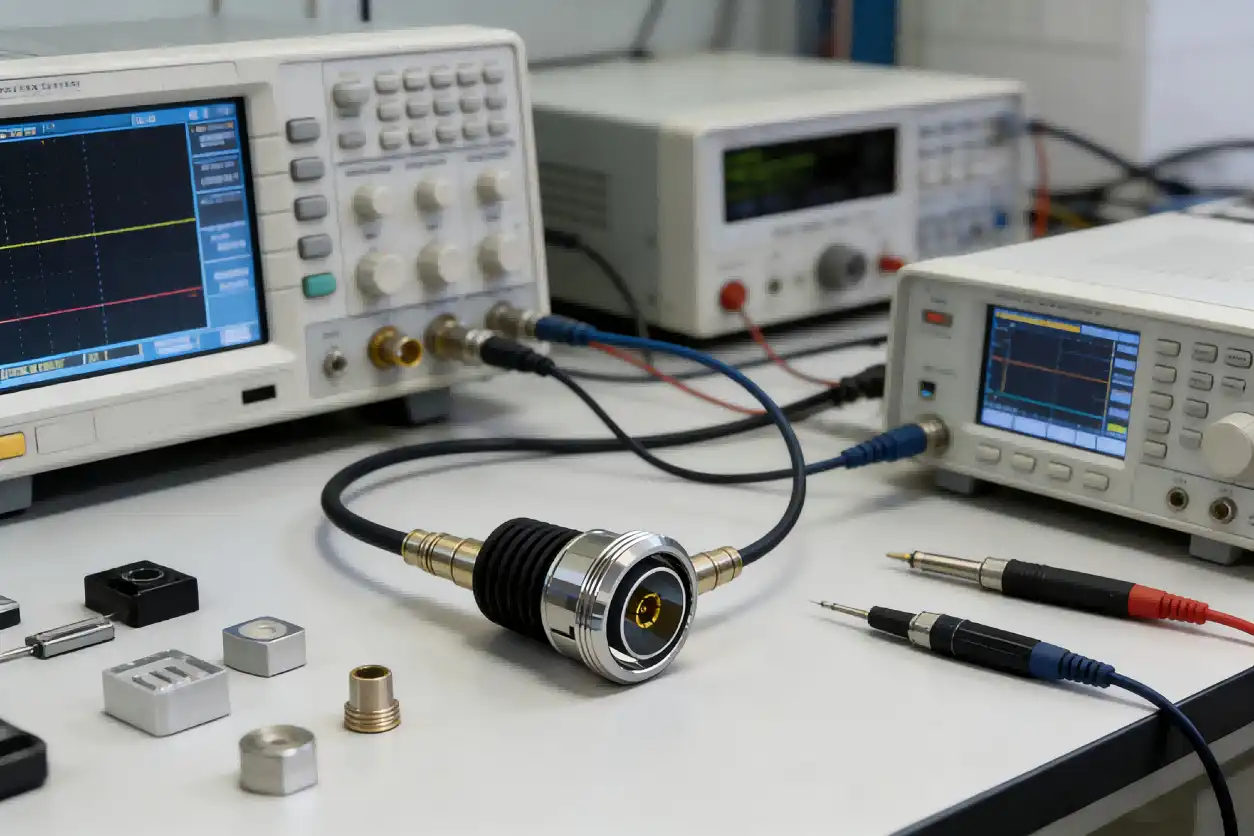

We have identified three cases in B2B industrial setups where the 7/16 DIN RF coaxial load is present. Communication infrastructure teams use them on 4G/5G base stations and distributed antenna systems (DAS) to terminate idle ports and shield transmitters from reflected radiation. They are used as precision termination loads on vector network analyzers and signal generators in device characterization up to 6 GHz by test and measurement professionals. Industrial and defense-grade systems depend on them for steady RF signal absorption when minimal intermodulation and environmental ruggedness are non-negotiable criteria.

Here are the core operational advantages that make this component a long-term investment:

• Stable high-power absorption: With 5W CW capacity and broad thermal tolerance (-55°C to +125°C), the load maintains accuracy under sustained operating stress without derating performance prematurely.
• Low PIM performance: Support for -150 dBc PIM levels satisfies the stringent intermodulation requirements of modern cellular networks, protecting channel integrity in dense RF environments.
• IP65/IP67 weatherproofing: Sealed variants resist moisture and particulate ingress, making outdoor and industrial deployment practical without additional protective enclosures.
• Mechanical durability: The connector interface supports ≥500 insertion/removal cycles, reducing replacement frequency and total ownership cost over the product lifecycle.

These benefits translate directly into lower system downtime and more reliable measurement baselines, which procurement managers and technical directors routinely cite as key criteria when assessing RF component vendors.

Good maintenance techniques may add a lot of service life. Clean the connector end face with isopropyl alcohol using a cotton swab after every 30 insertion cycles, paying particular attention to the gold-plated inner conductor and interface gaps. Store idle units at -20 °C to +60 °C, in an environment with less than 50% relative humidity. Check VSWR throughout the whole frequency band with a network analyzer after 800 cumulative running hours or any high-temperature overload incident. If the VSWR measurement exceeds 1.2, factory recalibration or replacement of the device is necessary.

Comparing DIN RF Coaxial Loads with Other Connector Types

When procurement managers review RF termination options, they often compare 7/16 DIN format connections against N-Type, SMA, BNC, and TNC connectors. Each interface has different power and frequency envelopes

The N-Type connection is ideal for laboratory equipment and outdoor applications where lower power levels are adequate, supporting up to 11 GHz and moderate power levels. SMA connections are limited in power handling because of their smaller form size; however, premium versions exist for 18 GHz and upwards, and as such are well suited in tight,t high-frequency systems. BNC and TNC connectors are used in lower-frequency, lower-power applications like older test equipment and video systems.

The 7/16 DIN interface is unusual in that it provides strong mechanical engagement and excellent passive intermodulation performance, which is why it was selected as the standard interface for base station antenna systems by cellular network operators throughout the world. If you want strong power handling, outside environmental durability, and low PIM, all at the same time, the DIN RF coaxial load beats the competition on all three counts. SMA or precise 2.92mm connections are better suited for millimeter-wave and above 6 GHz frequencies.

Procurement Considerations for DIN RF Coaxial Loads

If you are looking for a good 7/16 DIN coaxial load, you need to look at vendors other than the price. Our established distributors have normal lead times of one to three weeks for basic configurations. Custom orders (changed power ratings, non-standard housing materials, or customized PIM levels) may take four to eight weeks depending on manufacturing schedules.

Manufacturers with vertically integrated manufacturing lines may buy in bulk, giving them a cost advantage and better uniformity of quality. Require traceable calibration paperwork and test data for each batch from vendors. For overseas shipments, check that the manufacturer is compliant with export restrictions and can provide customs papers if needed to prevent shipping delays.

This connection type is approved for production and distribution by Amphenol, Pasternack, HUBER+SUHNER, Fairview Microwave, Radiall, and TE Connectivity. Each brand has its strengths: HUBER+SUHNER is known for its outdoor-grade dependability in telecom infrastructure, while Amphenol and TE Connectivity provide a wide catalog depth for OEM integration projects. Check product authenticity by requesting batch-level VSWR test data and verify that housings have the correct interface torque indications (2.0–3.0 N·m for 7/16 DIN).

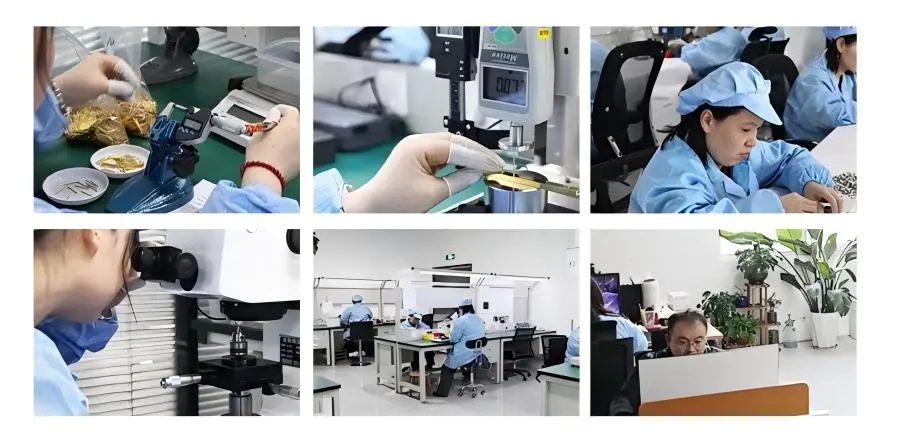

Chuangyu’s manufacturing facility in Xi’an produces RF coaxial loads and associated microwave components with an annual output of 500,000 RF components, backed by its own R&D and end-to-end quality assurance. These integrated manufacturing capabilities reduce order response cycles by more than 20% compared to the industry average, providing procurement teams with a trusted alternative to typical Western supply chains.

Conclusion

The DIN RF coaxial load is one of the most dependable and application-proven termination methods in RF engineering. Its 50-ohm impedance accuracy, low PIM performance, mechanical durability, and environmental resilience respond to real-world operating requirements of base station infrastructure, laboratory measurement systems, and industrial RF equipment. Whether you’re an R&D engineer verifying a novel design or a procurement manager standardizing your component supply chain, choosing a well-specified coaxial termination load from a traceable manufacturer preserves system performance and saves long-term cost exposure.

FAQ

1. What frequency range does a standard DIN RF coaxial load support?

Standard configurations cover DC to 3 GHz. High-end variants extend coverage to DC–6 GHz. Beyond 6 GHz, alternative connector interfaces such as SMA or 2.92mm are better suited to the application's frequency requirements.

2. How do I select the correct power rating?

Match the continuous wave power rating to your system's actual output level with a safety margin. The standard 5W CW rating at 25°C covers most base station port termination and laboratory testing scenarios. For pulsed or higher-power applications, consult the manufacturer for derated power curves at elevated temperatures.

3. Can I use a DIN RF coaxial load with non-DIN systems?

Yes, adapter hardware allows 7/16 DIN interfaces to mate with N-Type, SMA, or other connector families. However, adapters introduce additional insertion loss and potential impedance discontinuities, so verify the adapter's VSWR specification before deploying it in precision measurement setups.

4. What torque should I apply when connecting?

Apply 2.0–3.0 N·m using a calibrated torque wrench. Over-tightening deforms the inner conductor and housing; under-tightening degrades contact reliability and VSWR performance.

Partner with Chuangyu for Your DIN RF Coaxial Load Requirements

Chuangyu engineers precision RF components—including 7/16 DIN RF coaxial loads, millimeter-wave connectors up to 110 GHz, and custom test fixtures—backed by nearly two decades of manufacturing expertise and rigorous in-house quality control. As a trusted DIN RF coaxial load supplier, we support OEM, ODM, and custom orders with rapid response cycles. Contact our technical team at chuangyuwz01@cymicrowave.com to request a quote or discuss your specific application requirements today.
