If you work in RF engineering or purchasing, you’ve undoubtedly been asked what the optimum kind of BMA panel connector is for high-density, high-frequency panel installs. That question is answered exactly by the BMA panel connection. This push-on RF coaxial connection is widely used in 5G base stations, aircraft avionics, laboratory test instruments, and industrial millimeter-wave detection systems. It offers reliable signal transmission up to 26.5 GHz or 40 GHz, depending on the variation. Its snap-in blind-mate interface, tiny double-hole flange footprint, and 50Ω impedance design make it a trusted option when signal integrity and installation efficiency are both important.

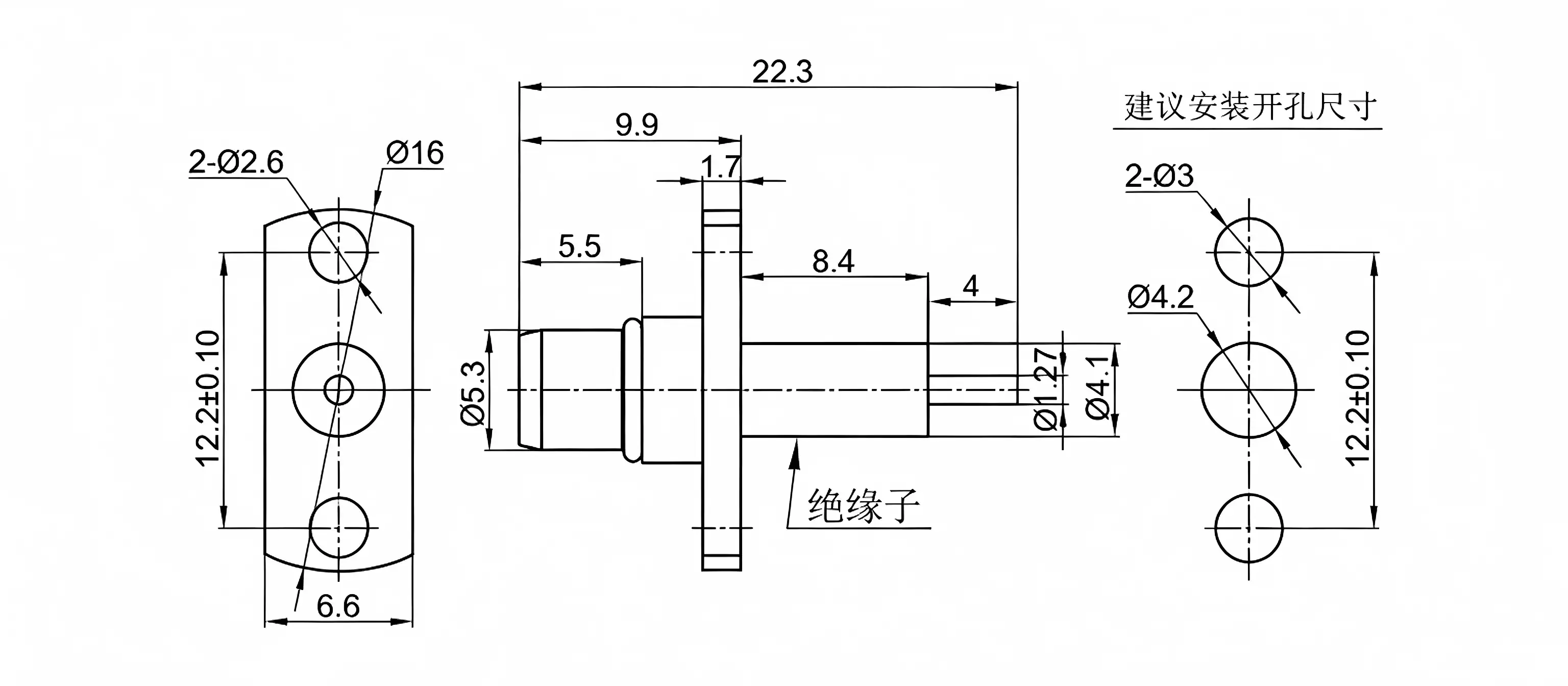

The BMA panel connection uses a snap-in lock rather than a threaded coupling. Stable electrical connection with as low contact resistance as $\leq3\mathrm{m\Omega}$ via inner elastic claw-spring contact activated by a single axial push. The double-hole flange attaches flush to equipment panels using M2 or M2.5 screws. The flange is roughly 8 mm wide with a center-to-center distance of just 4.3 mm. The small size allows for high-density arrangements that threaded connections just cannot match.
The housings are made of brass that is gold-plated to withstand oxidation and provide good conductivity. The inner contacts are made of beryllium copper and enable excellent elastic recovery for hundreds of mating cycles (rated 500 cycles minimum). PTFE insulators provide 50Ω impedance integrity over the whole working frequency range with a steady dielectric constant (εr = 2.1). These material selections lead to demonstrable electrical performance: minimal insertion loss, narrow VSWR numbers at the specified frequency ceiling, and repeatable performance throughout vast temperature swings of -55°C to +125°C.
The floating blind-mate variation offers more benefit. It allows minor axial and radial misalignment during mating. This is important in modular chassis where mechanical tolerances stack up across many connection points. The time of assembly is reduced, and the possibility of damage due to misalignment is almost eliminated.
BMA RF connection flexibility covers a range of challenging industries. Although each application challenges the connection differently, they are all addressed by the same key design attributes: high-frequency capability, vibration resistance, and repeatable mating.
The key markets where such panel-mount RF connections provide significant operational benefits include:
These application categories indicate that the BMA panel connector is not a specialty part. It's a vital signal interface for the most demanding RF conditions in contemporary electronics.
Engineers often compare BMA-type push-on RF connections with SMA, TNC, and N connectors. Each has true qualities, yet performance disparities matter in certain key instances.
SMA connections are common and easy to find; however, the threaded coupling method adds time to setup and restricts installation density. BMA connections are preferred in high-density panel applications over 18 GHz because to its reduced footprint and quicker mating. TNC connections provide good mechanical ruggedness via threaded coupling, but their larger body size and lower frequency ceiling (usually ≤11 GHz) are outside the performance envelope of millimeter-wave systems. N connections are rugged and waterproof, but physically huge, making them unsuitable for the small chassis designs of current RF equipment.
Your choice of materials matters, too. Gold-plated brass bodies provide a good blend of cost and conductivity for most commercial and industrial applications. Stainless steel versions are available for increased corrosion resistance in difficult outdoor or maritime situations, but at a greater cost. Procurement teams should consider environmental exposure, mating cycle needs, and frequency range together rather than selecting any one aspect as the main driver.
Choosing the right blind-mate RF connector requires matching the component specification to the system's actual operating parameters. Here are the core selection and installation criteria engineers and procurement managers should verify before finalizing a purchase:
These criteria, applied consistently, prevent the most common failure modes observed in panel-mount RF installations. After installation, routine maintenance adds further protection. Cleaning the contact area with anhydrous alcohol on a cotton swab every three to six months removes oxidation and particulate contamination. Periodic VSWR and insertion loss checks using a network analyzer catch degradation before it affects system performance.

The global RF connection market includes well-known players such as Amphenol, Rosenberger, and TE Connectivity, all of which provide BMA-compatible components. OEM and ODM customers requiring special configurations such as non-standard flange diameters, custom plating, or extended frequency ranges would benefit from the ability to work with a manufacturer that combines design engineering and manufacturing capacity, significantly reducing lead time.
The per-piece price of panel-mount RF connectors tends to go down when you buy in bulk, and this insulates inventory from supply chain volatility. Before placing significant orders, procurement managers should examine datasheets for IPC and MIL-spec certification, request samples for inbound inspection, and confirm that the supplier has manufacturing controls for gold plating thickness and contact resistance.
Chuangyu is based in Xi'an, China, and has an annual production capacity of 500,000 RF components. Its production lines include coaxial connectors, RF cable assemblies, waveguide coaxial converters and precision test probes, giving procurement teams a vertically integrated supplier controlling quality across the whole manufacturing chain.
The BMA panel connector is a niche but critical element in the design of contemporary RF systems. Its push-on blind-mate interface, high-frequency capacity to 40 GHz, low flange footprint, and durable material construction fulfill the dual objectives of installation efficiency and signal integrity. Be it 5G infrastructure, satellite ground terminals, military avionics, or millimeter-wave test equipment, this connection type fulfills the technical criteria that threaded alternatives cannot. Engineers and procurement teams that understand its area of use, reasons for selection, and needs for maintenance are better positioned to specify with confidence and purchase wisely.
Standard BMA panel connectors operate reliably from DC to 26.5 GHz. Precision-grade variants extend performance to 40 GHz, supporting millimeter-wave applications in 5G and satellite communication systems. Always verify the specific datasheet for the variant under consideration, as material and dimensional tolerances affect the actual frequency ceiling.
Yes, with appropriate precautions. The gold-plated brass housing and PTFE insulator maintain performance across temperatures from −55°C to +125°C. Sustained humidity above 95% or exposure to corrosive gases requires additional panel-level sealing. For outdoor deployments, sealing O-rings and dust caps protect the connector during non-operational periods.
The most immediate distinction is the coupling mechanism. BMA connectors mate with a simple push-on snap-in action; SMA connectors require threaded engagement. Physically, BMA panel-mount connectors feature a double-hole flange and a smaller mating interface diameter. If the connector requires a wrench to mate, it is not a BMA type.
Most BMA panel connectors are rated for a minimum of 500 mating cycles, making them suitable for test and measurement environments where frequent connection and disconnection occur.

Chuangyu specializes in high-frequency RF components that meet international quality standards, including millimeter-wave connectors reaching up to 110 GHz. As a trusted BMA panel connector manufacturer and supplier, Chuangyu offers OEM customization, volume pricing, and dedicated technical support. Reach the team directly at chuangyuwz01@cymicrowave.com to explore the full product range and request a tailored quotation.
