What Affects 2.4 RF attenuator Performance and Reliability?

RF experts constructing high-frequency test equipment, 5G base stations, and satellite communication systems need precision attenuators to provide accurate signal levels and protect sensitive instruments from overload. The 2.4 RF Attenuator is constructed with 2.4mm precision coaxial connectors and thick-film attenuation technology to provide stable performance from DC to 50GHz. This article addresses the key factors that influence 2.4 RF attenuator performance and long-term reliability, ranging from connection materials and heat management to proper installation and maintenance practices. We refer to the technical specifications of Shaanxi Chuangyu Electronic Technology Co., Ltd.'s 2.4 RF Attenuator product line.

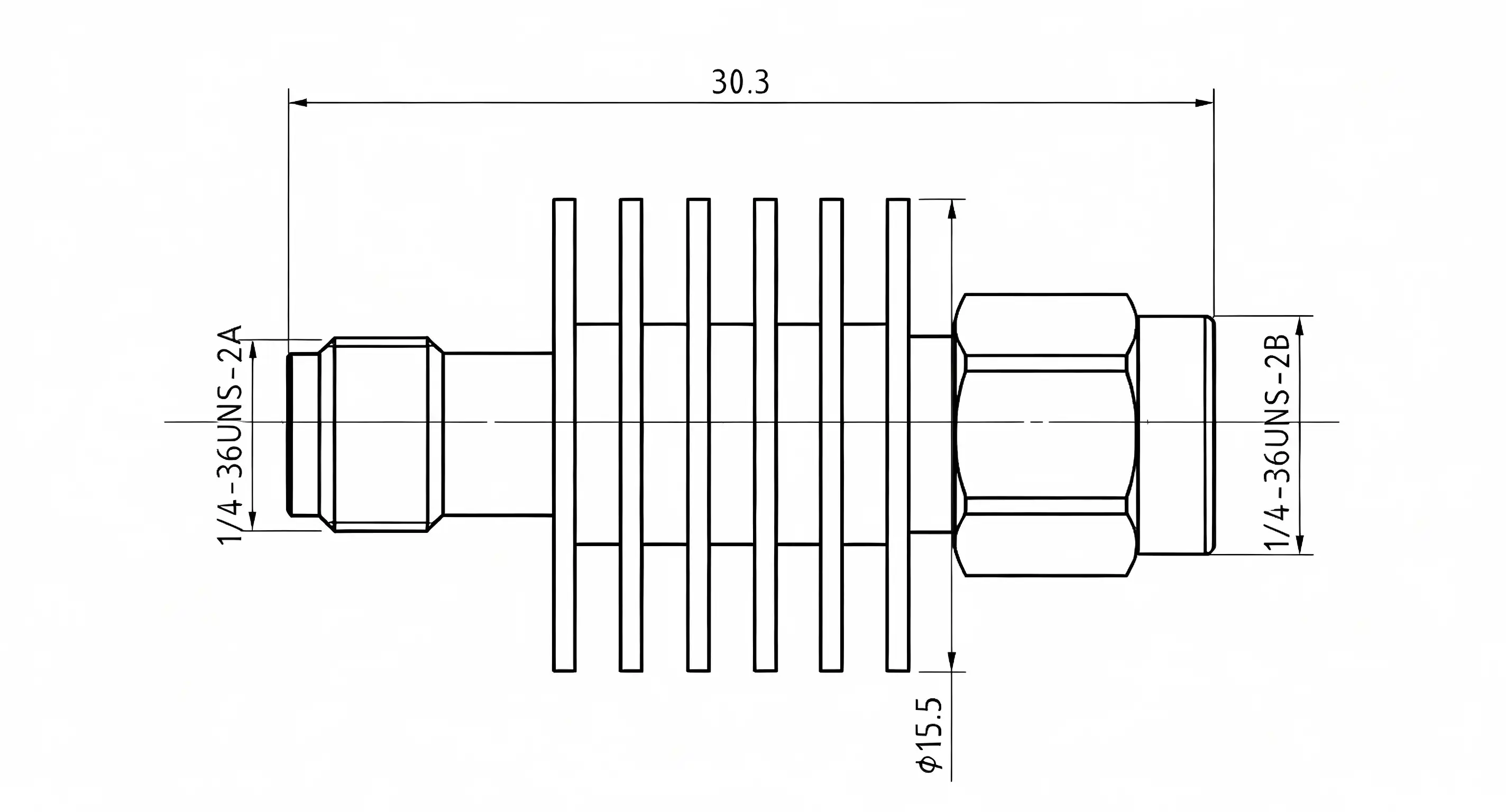

What Design Features Determine 2.4 RF Attenuator Accuracy?

How Do Connector Materials Affect a 2.4 RF Attenuator?

The connecting interface is one of the most important factors influencing the signal integrity of a 2.4 RF attenuator. Any little defect in this contact might cause reflection and insertion loss. The 2.4 RF attenuator is generally manufactured with a gold-plated, high-conductance brass inner conductor, and the outside conductor is a beryllium copper elastic contact construction. This combination was chosen to reduce contact resistance while yet delivering consistent mechanical engagement across several mating cycles. The body is made of anodized aluminum alloy for surface protection. The aluminum body provides mechanical stability without the unnecessary weight. This combination of material choices provides a 2.4 RF attenuator with low insertion loss and good electrical continuity over the whole service life.

What Role Does Thick Film Technology Play in Attenuation Accuracy?

The attenuation chip of a 2.4 RF attenuator is made using the thick-film process, in which a resistive material is deposited with precise control to realize a tight tolerance of attenuation across a wide range of values. The manufacturing approach allows a 2.4 RF attenuator to offer attenuations with ±0.5dB accuracy between 5dB and 20dB, and ±1.0dB at 30dB and above, giving engineers confidence in repeatable, predictable signal reduction. An integrated heat dissipation substrate is provided underneath the attenuation chip to efficiently dissipate heat generated during power absorption, preventing localized thermal stress that would degrade attenuation accuracy over time or during continuous high-power operation.

How Does VSWR Impact 2.4 RF Attenuator Measurement Precision?

A low voltage standing wave ratio is an important indication of the match of a 2.4 RF attenuator to the system impedance to which it is attached, and is an important consideration for reliable signal measurements across test and communication systems. A common specification for a 2.4 RF attenuator is a VSWR of 1.25 or below over the full frequency range from DC to 50GHz. This low VSWR helps to minimize signal reflection, which may distort measurement findings and degrade system efficiency. This tight VSWR specification, in addition to insertion loss kept at 0.3dB, makes a 2.4 RF attenuator ideally suited to precision applications such as network analyzer calibration, where even slight impedance mismatches may substantially impair test data correctness.

Why Does Proper Installation Affect 2.4 RF Attenuator Reliability?

Why Does Connection Direction Matter for a 2.4 RF Attenuator?

The direction of the installation is important for its proper operation. The 2.4 RF attenuator should always be connected with the input (IN) port facing the signal source and the output (OUT) port facing the load; the other way around should never be done. Installation of the component in the reverse direction may provide incorrect attenuation measurements. Higher power applications may exceed power handling assumptions and cause damage to the internal thick film chip. The connector body is clearly marked so that the installer can precisely orient the connector before tightening the connection. In complex test applications, using a 2.4 RF attenuator, the technician should always check port direction with the system schematic before applying signal power.

How Does Torque Affect Connector Longevity on a 2.4 RF Attenuator?

Correct torque for tightening a 2.4 RF attenuator connection is essential for electrical performance and mechanical lifetime. For tightening the precision coaxial interface, the manufacturer suggests using a torque wrench set to 8 to 10 N·m. Insufficient torque can result in intermittent signal leakage or unstable contact, and over-torquing can damage the connector threads or deform internal contact surfaces. Hand-tightening alone is replaced by calibrated torque tools, which allow for reliable, repeatable connections over several installation cycles and secure the long term dependability of a 2.4 RF attenuator in both laboratory and field deployment environments.

What Power and Frequency Limits Must Be Respected?

A 2.4 RF Attenuator should be used within its rated power and frequency limitations to avoid deterioration of performance or irreparable damage. The component is rated for an average input power of 2W and a peak power of 0.15kW. It has an operating frequency up to 50GHz for VSWR and attenuation accuracy. In a high-temperature environment (≥ 85°C), the input power should be lowered to less than 1W due to limited thermal dissipation capability. Even short excursions outside of these ranges might lead to attenuation drift or increased wear of a 2.4 RF attenuator; therefore, careful system-level power budgeting is a key design issue.

How Does Maintenance Extend 2.4 RF Attenuator Service Life?

What Cleaning Practices Preserve 2.4 RF Attenuator Performance?

Consistent electrical performance in a 2.4 RF attenuator is maintained by regular cleaning. Contamination or oxidation at the connection contact may progressively increase insertion loss and worsen VSWR. The manufacturer advises wiping the housing with a dry, soft cloth and cleaning the connection interfaces using cotton swabs soaked with anhydrous ethanol to remove oxides and dust, and letting the component dry out completely before rejoining. Performing this easy maintenance process on a frequent basis in active test scenarios will ensure that a 2.4 RF attenuator maintains its rated attenuation accuracy and low insertion loss characteristics over lengthy durations of repeated usage in laboratory or production environments.

How Should a 2.4 RF Attenuator Be Stored and Protected?

Storage conditions are critical for long term reliability of a 2.4 RF attenuator while it is not in active use. Units must be disconnected from all connections and stored in a dry, ventilated environment with 60% or less relative humidity, at room temperature between 0°C and 30°C, away from direct sunlight and excessive vibration. 3. Anti-static packing is necessary during transit, and pay attention to prevent collisions with sharp objects to bend the connection or harm the attenuation chip within. The storage and handling instructions are intended to preserve these precision qualities, so a 2.4 RF attenuator is the ideal choice for demanding measurement applications.

When Should a 2.4 RF Attenuator Be Recalibrated or Replaced?

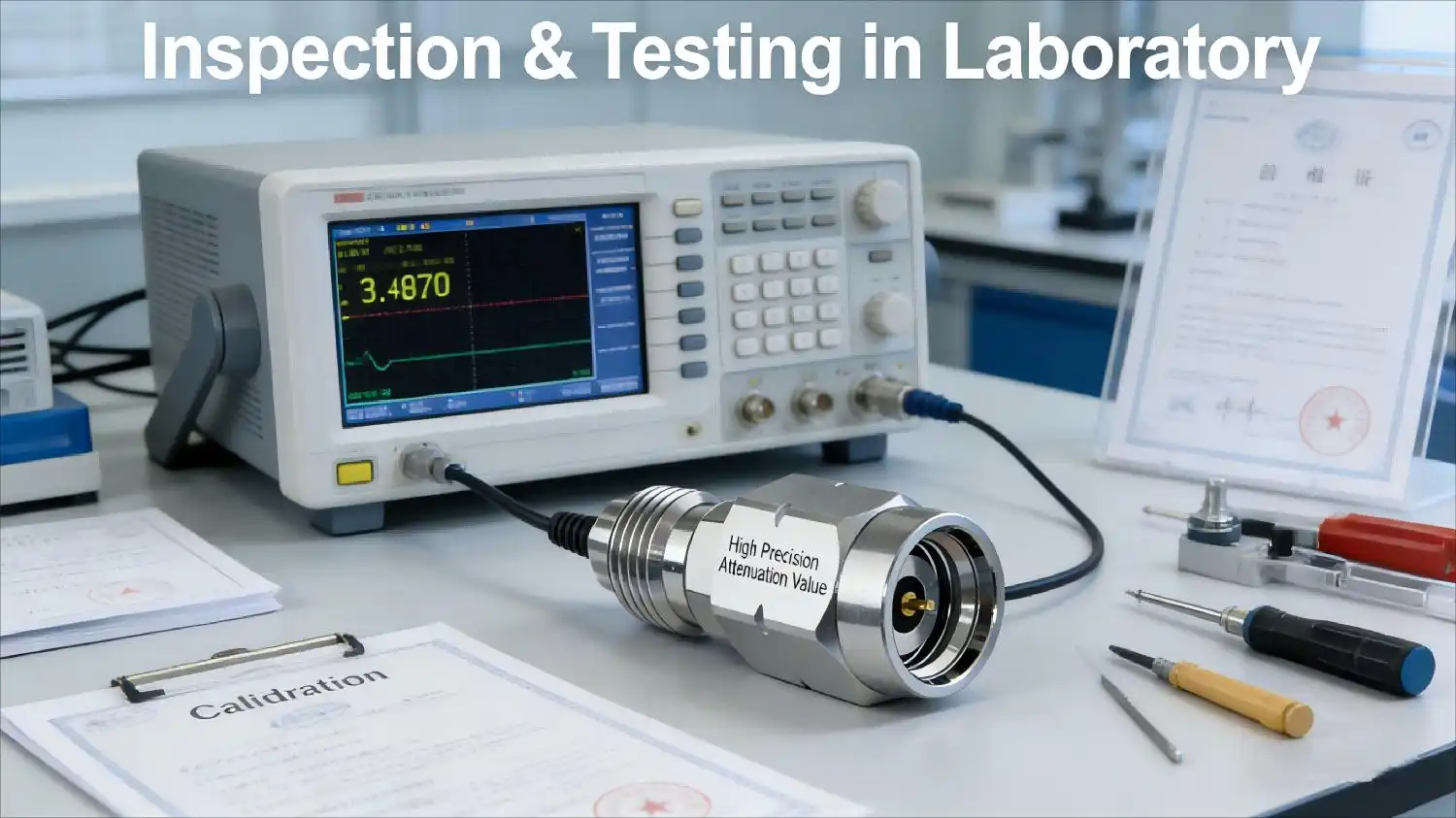

Periodic maintenance and recalibration are necessary to ensure that a 2.4 RF attenuator remains in conformance with its rated parameters after lengthy usage. The manufacturer suggests verifying the accuracy of attenuation and VSWR using a network analyzer every 6 to 12 months and recalibrating if the detected deviations are beyond the permitted range. Connector wear should also be examined periodically, as the suggested plug-and-play cycle limit for a 2.4 RF attenuator is 1,000 insertions before performance may start to decrease. Testing facilities may get ahead of performance drift by instituting a regular inspection schedule, preventing it from affecting the accuracy of crucial RF measurements or calibration operations on the manufacturing line.

Conclusion

The performance and reliability of a 2.4 RF attenuator depend on precise connector materials, thick film attenuation accuracy, correct installation practices, and consistent maintenance routines. Shaanxi Chuangyu Electronic Technology Co., Ltd., operating an integrated production, R&D, and testing base in Xi'an since 2022, manufactures RF attenuators and related components at scale for defense, telecommunications, and industrial clients. Backed by nearly two decades of process expertise, the company supports engineers with dependable, precision-engineered RF solutions. For technical datasheets or a customized quote, contact postmaster@cymicrowave.com today.

FAQ

Q1: What frequency range does a 2.4 RF attenuator cover?

A: It operates from DC up to 50GHz with a typical VSWR of 1.25 or lower.

Q2: What attenuation accuracy can be expected?

A: ±0.5dB for 5- 20 dB values and ±1.0dB for values of 30dB and above.

Q3: What torque should be used when connecting it?

A: A torque wrench set to 8-10 N·m is recommended to avoid thread damage or signal leakage.

Q4: How often should VSWR and attenuation be checked?

A: Every 6 to 12 months using a network analyzer, with recalibration if deviations exceed tolerance.

Q5: What is the maximum recommended connector cycle life?

A: Approximately 1000 plug-and-play cycles before performance may begin to degrade.
