GPO 50 Ohm Terminatio for Aerospace and Defense Systems

Correct and reliable termination components are required to absorb undesired signal energy and ensure correct impedance matching for high-frequency RF and microwave systems, including radar, satellite communication, and millimeter-wave test equipment. The GPO 50 Ohm Termination is constructed for rugged situations. It utilizes a tantalum nitride resistive element, gold-plated brass connection body, and PTFE insulation to provide consistent performance from DC to 40GHz. This article discusses the attributes that make a GPO 50 Ohm Termination ideal for aerospace and military applications, how it works under intense mechanical and environmental stress, and how good maintenance increases operating life. We always make reference to the technical parameters of the GPO 50 Ohm Termination product line produced by Shaanxi Chuangyu Electronic Technology Co., Ltd.

What Makes a GPO 50 Ohm Termination Suitable for High-Frequency Testing?

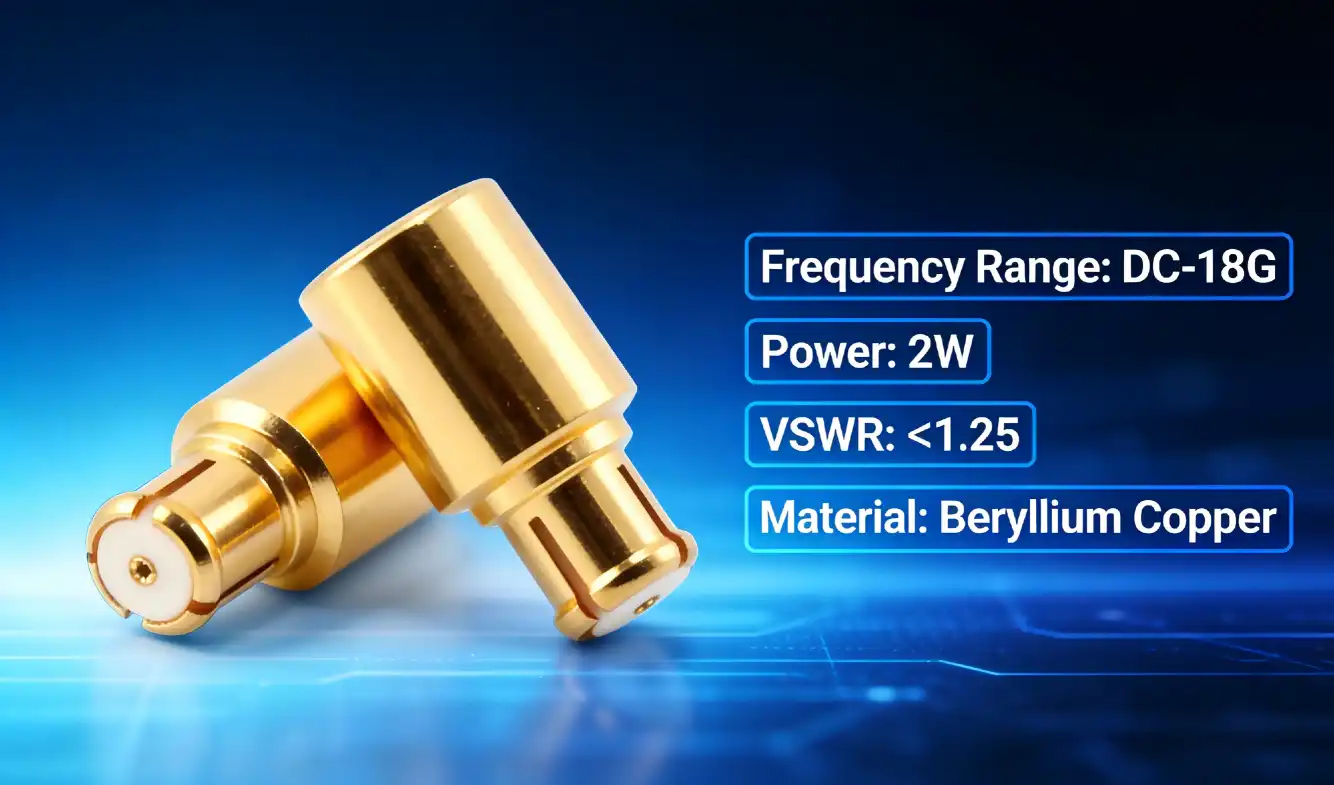

What Frequency Range Can a GPO 50 Ohm Termination Cover?

The GPO 50 Ohm Termination is intended to function reliably from DC to 40GHz, ideal for the rising bandwidth demands of contemporary radar, satellite communication, and 5G test equipment. The small metal package design with minimized parasitic reactance and uniform electrical properties throughout the whole band achieves broad frequency coverage. This wide frequency range is essential for engineers using vector network analyzers or millimeter-wave signal generators to calibrate test systems or to verify device performance, as a GPO 50 Ohm Termination must present a stable, predictable load impedance regardless of where in the spectrum the measurement takes place.

How Does VSWR Performance Affect a GPO 50 Ohm Termination?

The voltage standing wave ratio, or VSWR, is one of the most important performance parameters for any termination component, and the GPO 50 Ohm Termination is required to keep the VSWR at 1.4 or below across the whole working frequency range. A low VSWR means the terminal is absorbing incoming signal energy well and reflecting less of that energy back into the system. This is critical for proper calibration and measurement integrity in vector network analyzer applications. Any loss of VSWR performance, either by contamination, mechanical damage, or wear accumulated over a period of time, might produce measurement error in a whole test setup; thus, the recommendation of periodic VSWR verification is recommended as part of normal maintenance for a GPO 50 Ohm Termination in active operation.

What Role Does the Resistive Element Play in a GPO 50 Ohm Termination?

The core of a GPO 50 Ohm Termination is a resistive element consisting of a tantalum nitride resistive layer linked to a high thermal conductivity ceramic base. This combination is particularly chosen to release absorbed RF energy as heat without impairing electrical performance. The resistive layer sets the exact 50 ohm impedance that the termination is supposed to provide, while the ceramic substrate effectively draws heat away from the resistive film to avoid localized hot spots during continuous power absorption. The quality and uniformity of this resistive element directly dictate how accurately a GPO 50 Ohm Termination maintains its rated impedance and power handling capability throughout its operational lifetime.

How Reliable Is a GPO 50 Ohm Termination in Military and Space Environments?

What Temperature Range Can a GPO 50 Ohm Termination Withstand?

Aerospace and military applications sometimes subject RF components to extremes of temperature, and a GPO 50 Ohm Termination is rated for continuous performance across a broad -55°C to +125°C range. The power handling capability is derated at the higher end of this range to 0.2W at 125°C (compared with the full 2W rating at 25°C), reflecting the real temperature constraints of the resistive element and packaging materials. This large operational temperature range makes a GPO 50 Ohm Termination ideal for high-altitude aviation systems, satellite payloads, and outdoor radar installations where ambient conditions may vary widely between severe cold and strong heat within a single mission profile.

How Many Insertion Cycles Does a GPO 50 Ohm Termination Support?

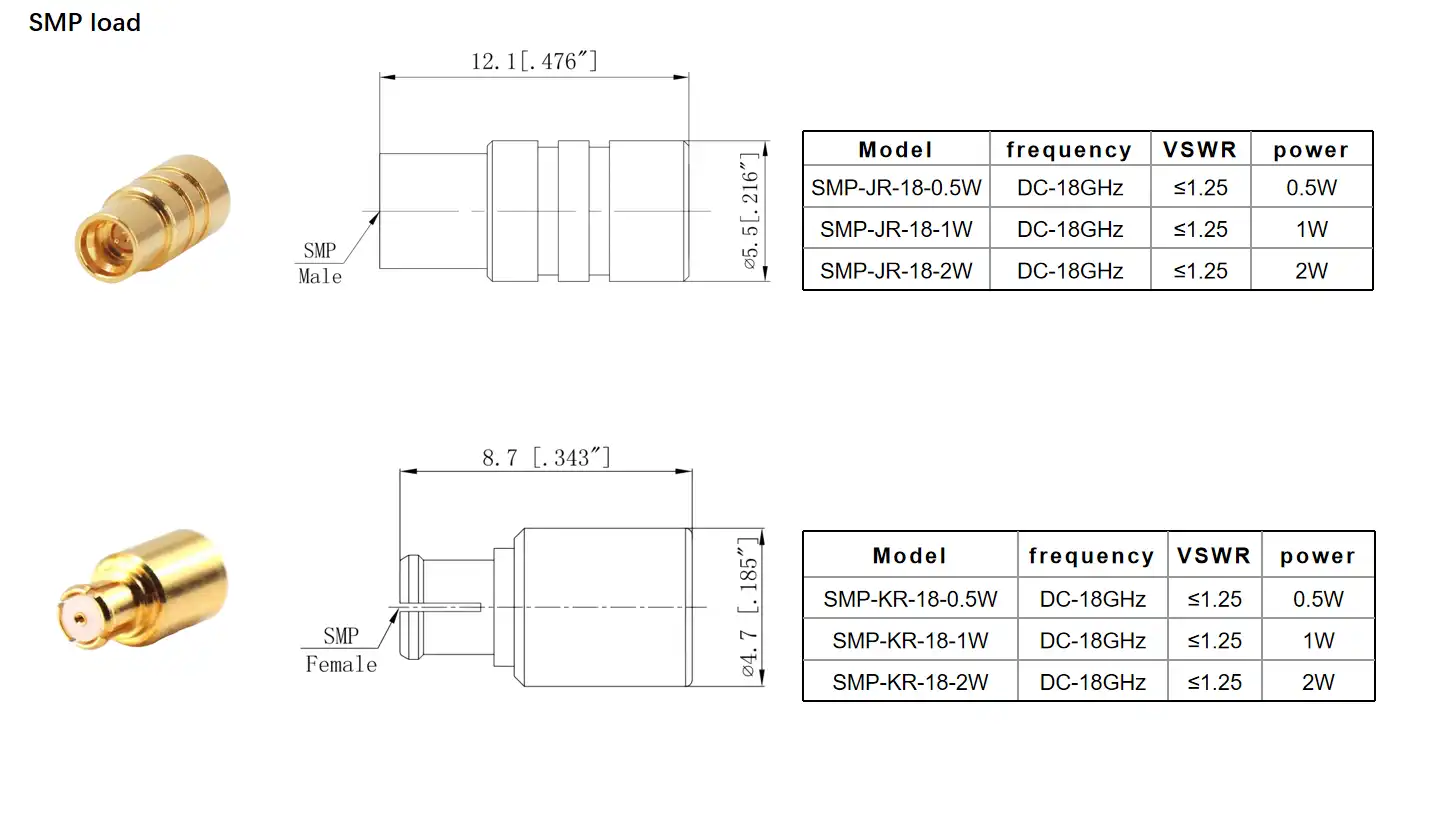

Mechanical durability is required for components used in test environments or field-deployable systems where frequent connection and disconnection is required. A GPO 50 Ohm Termination is constructed with a brass body that is rated for at least 500 insertion and extraction cycles without significant degradation in electrical performance. This mechanical strength is due to the tight manufacturing tolerances of the SMP male connection interface and the gold plating resistant to wear over several mating cycles. This cycle rating enables labs and test facilities using a GPO 50 Ohm Termination as a calibration load across several daily measurements to have the assurance that the component will continue to work consistently over a long service time before a replacement is required.

Why Does Push-In Connection Matter for a GPO 50 Ohm Termination?

A GPO 50 Ohm Termination utilizes a push-in connection technique that enables tool-free installation while preserving coaxial alignment between matching components. Threaded coaxial connections need precise torque management. This design greatly lowers the possibility of connection damage caused by over-torquing or misalignment, which is a major failure mechanism for threaded interfaces in high-density interconnect applications. Proper installation still demands that the connection be coaxially oriented at insertion and not forced twisting, which may distort the inner wire. The push-in architecture of the GPO 50 Ohm Termination allows the termination to be assembled in space-restricted modules for high-density RF subsystems in radar and satellite communication equipment where many connections need to be established fast and reliably.

How Should You Maintain and Store a GPO 50 Ohm Termination?

What Cleaning Steps Extend the Life of a GPO 50 Ohm Termination?

Maintaining consistent electrical performance in a GPO 50 Ohm Termination requires periodic cleaning of the connector interface, particularly after repeated insertion cycles introduce contamination or surface oxidation. Manufacturer guidance recommends cleaning the connector end face with an isopropyl alcohol swab after every 20 insertions and extractions, focusing specifically on any oxidized areas of the gold-plated layer that could otherwise degrade contact resistance and VSWR performance. Metal tools should never be used to scrape the insulating medium interface, since this can permanently damage the PTFE dielectric material. Following this cleaning protocol helps a GPO 50 Ohm Termination maintain its rated performance specifications across its full service life in demanding test and field environments.

How Should a GPO 50 Ohm Termination Be Stored When Not in Use?

Proper storage conditions play an important role in preserving the long-term performance of a GPO 50 Ohm Termination when it is not actively in service. Idle units should be stored in a dry environment between -20°C and +60°C with relative humidity at or below 50%, protecting the resistive element and connector plating from moisture-related degradation. In environments with humidity exceeding 60%, a dust cap should be installed on the connector interface to prevent moisture and corrosive gases from entering and compromising the connection quality. Facilities managing inventories of test components should also perform a monthly VSWR pre-test on stored units, returning any GPO 50 Ohm Termination exceeding a VSWR of 1.4 to the factory for calibration.

When Should a GPO 50 Ohm Termination Be Retested or Recalibrated?

In addition to normal cleaning and storage procedures, a GPO 50 Ohm Termination should be tested periodically to verify it is still performing to its rated spec after lengthy periods of usage. The manufacturer recommends full-range VSWR and power capacity testing with a network analyzer after accumulated working time exceeds 1500 hours or immediately following any incident of severe mechanical shock that could have affected the internal resistive element or the connector alignment. This approach to proactive testing is useful to detect performance drift prior to calibration accuracy or test measurement integrity being impacted. This is especially relevant to aerospace and defense applications where a GPO 50 Ohm Termination can be used as a reference load in critical system verification procedures.

Conclusion

A GPO 50 Ohm Termination delivers dependable broadband performance, mechanical durability, and thermal resilience suited to the demanding conditions of aerospace, defense, and millimeter-wave test applications. Shaanxi Chuangyu Electronic Technology Co., Ltd., operating an integrated production, R&D, and testing base in Xi'an since 2022, manufactures RF components including coaxial terminations at scale for defense, telecommunications, and high-end electronics clients. With proven process standards and nearly two decades of industry expertise, the company supports engineers seeking reliable termination solutions. For technical datasheets or a customized quote, contact postmaster@cymicrowave.com today.

FAQ

Q1: What frequency range does a GPO 50 Ohm Termination cover?

A: It operates from DC up to 40GHz with a VSWR of 1.4 or lower.

Q2: What is the maximum power rating?

A: 2W at 25°C, derated to 0.2W at 125°C, with an instantaneous peak of 200W.

Q3: How many insertion cycles can the connector withstand?

A: The brass body supports at least 500 insertion and extraction cycles.

Q4: How often should the connector be cleaned?

A: Every 20 insertions, using an isopropyl alcohol swab on the gold-plated end face.

Q5: When should performance be retested?

A: After 1500 accumulated working hours or following any severe mechanical shock.
