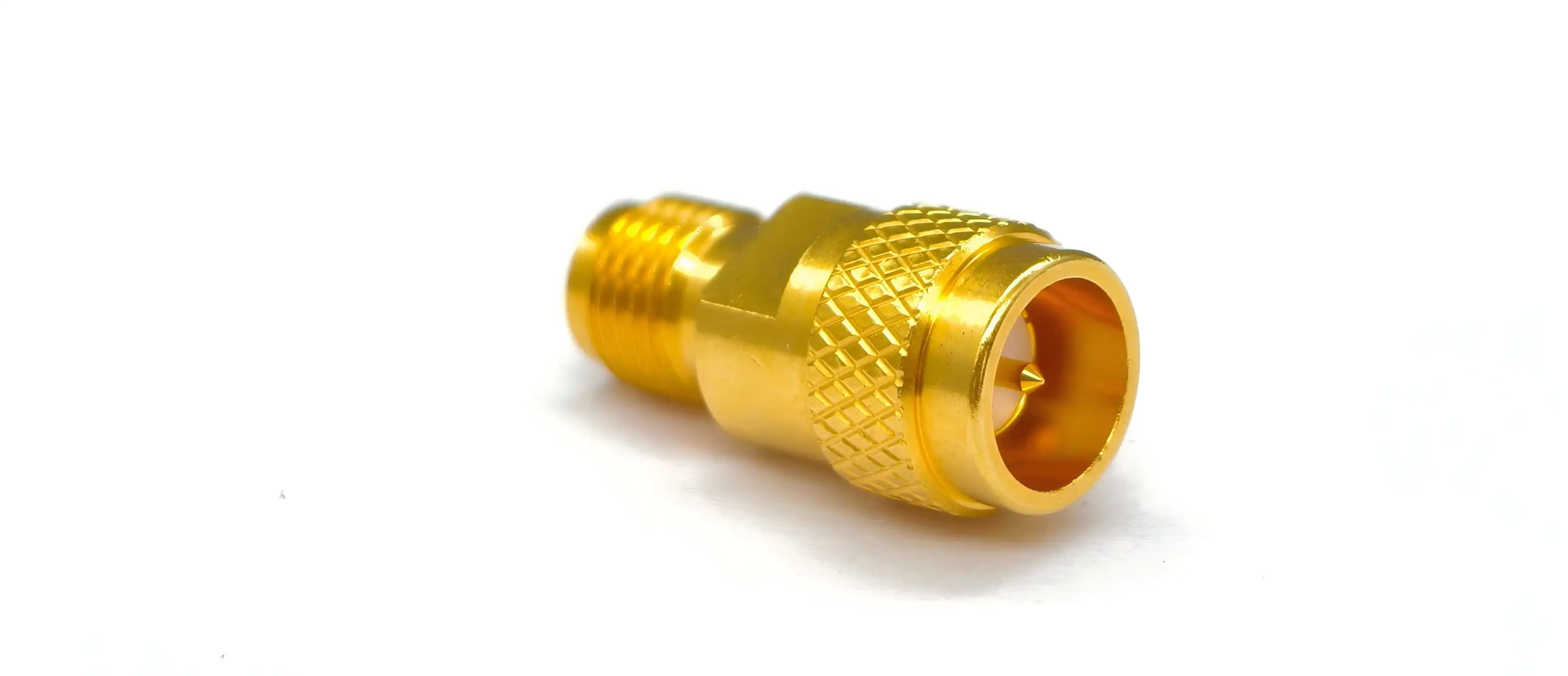

How Does a QMA male to SMA female adapter Work?

One small interface with an adaptor, SMA female to QMA male to SMA female adapter, to link 2 different RF connection standards. The QMA male end has a push-pull snap-lock mechanism that locks instantaneously and requires no equipment. The SMA female end takes a normally threaded male pin via conventional screw engagement. The two ends provide a continuous 50Ω coaxial signal path, with a beryllium-copper core conductor, PTFE insulation, and a gold-plated outer shell. The result is a low-loss, impedance-matched transition supporting frequencies from DC to 18 GHz. This converter is a dependable solution for demanding RF and microwave systems.

How This Adapter Compares to Other RF Adapter Types

Engineers considering coaxial adapters generally look at a variety of interface combinations. Here’s how the QMA-to-SMA combination compares to typical options.Simple, only the same kinds of interfaces may be connected. No fast detach function. The SMA male to SMA female barrel adapter cannot link equipment with different interface standards. The N male to SMA female converter is more power and physically bigger, but the bulkiness makes it impracticable for high density panel layouts. The RP-SMA versions have a gender-inverted center pin due to regulatory reasons and so might impose compatibility limits in typical RF chains.

The QMA male to SMA female adapter meets a real practical need: it delivers the quick-coupling simplicity of the QMA to older SMA-equipped equipment without compromising frequency performance. This speed advantage minimizes system downtime directly in high-density rack setups or in field-replaceable modules.

Where This Adapter Delivers Real Value: Industry Applications

This sort of RF adapter is used in a variety of demanding industries and the choice of such RF adapters is dictated by the performance requirements in each situation.Here are the main application contexts this adapter is best suited for:

• 5G Base Station Maintenance: QMA-to-SMA adapters are used to link RF modules with QMA interfaces to antennas with SMA interfaces in high-density 5G installations. The push-pull end enables personnel to quickly change out modules during maintenance periods, dramatically decreasing tower downtime compared to fully-threaded connection techniques.
• Satellite Communication Ground Stations: QMA connections are often provided on the equipment side of the ground station transceivers. The adapter offers a consistent low-reflection interface to test instruments and signal routing gear with SMA connectors for wideband signals from DC to 18 GHz for voice and data applications.
• RF Test and Measurement Labs SMA ports are widely used in spectrum analyzers and vector network analyzers. The adapter accepts QMA-interface signal sources or device-under-test fixtures, letting engineers do calibrated measurements with VSWR ≤ 1.4, without rebuilding test rigs, while maintaining the precision of results.
• Radar and Defense Systems The adapter connects powerful MA-interface front-end assemblies with SMA-port procimpracticalfor rhigh-densityt/receive modules . The high-reliability coating and vibration-resistant latch meets military-grade environmental criteria for field and flying systems.

The connecting thread for all applications is the need for minimal insertion loss, mechanical dependability, and interface flexibility in space-restricted devices.

Installation and Maintenance: Getting the Most from Your Adapter

Handling correctly maintains the electrical performance and the mechanical service life. The mechanical insertion life for quality equipment is usually in excess of 500 mating cycles, but improper installation techniques may greatly reduce it.

Connecting the QMA Male End

QM aligning QMA male to SMA female adapter  plug axially with the female socket before any forward pressure is applied. Push steadily in until the latch clicks, which means the retaining ring has engaged. Do not spin the QMA end while inserting or removing. Removal: Grasp the knurled outside conductor and pull straight back (do not twist). The elastic retaining ring may be deformed by lateral force or rotation which can result in intermittent contact.

Connecting the SMA Female End

Screw the SMA male pin into the female socket gently, counting 3 to 5 complete turns until installed. Apply hand-tight torque only. Over-tightening shreds threads and irreversibly destroys the mating surface. For precise applications, use a calibrated torque wrench (about 3-5 in-lb for SMA). To disengage, back off evenly, not pulling axially while the threads are still connected.

Maintenance and Service Life

Keep both ports covered with dust covers when not in use. If you can see oxidation on the contact surfaces, wipe carefully with a cotton swab dampened with isopropyl alcohol. Never use abrasive. Critical systems – aerospace, medical instruments, military – should have the insertion loss and VSWR inspected every 3 to 6 months using calibrated RF test equipment. Identify any units with large parameter drift before it impacts system performance.

Conclusion

The QMA male to SMA female adapter is a real engineering issue solver: linking quick-lock QMA device to the large installed base of SMA interface hardware without sacrificing signal integrity. Its beryllium copper conductors, PTFE dielectric and precision regulated design provide stable 50Ω impedance and low VSWR across DC to 18 GHz. The push-pull QMA end speeds field maintenance, while the threaded SMA end provides the mechanical stability required for precise RF couplings. When establishing 5G infrastructure, constructing a test bench or hardening a defensive system, choosing the proper adapter with confirmed specs is a choice that impacts every measure and transmission in your system.

FAQ

Can a QMA male to SMA female adapter handle frequencies above 6 GHz?

Yes. Well-engineered units maintain VSWR ≤ 1.4 up to 18 GHz, supported by the PTFE dielectric and precision conductor geometry. Some extended-frequency variants support higher ranges depending on design tolerances.

How many mating cycles can I expect before replacement?

Standard units are rated at 500 insertions or more. High-end models with reinforced retaining rings and spring mechanisms can exceed this. In high-cycle environments, track usage and inspect for increased insertion resistance or elevated insertion loss as early replacement indicators.

Is the QMA push-pull end secure enough for vibration-prone installations?

Yes. The elastic retaining ring mechanism is specifically designed for vibration resistance, which is why this connector type is used in aerospace, defense, and mobile base station applications.

Can I use this adapter with 75Ω systems?

No. This adapter is engineered for 50Ω systems. Using it in a 75Ω signal chain introduces impedance mismatch, which increases reflection and signal loss.

What distinguishes a QMA connector from an SMA connector mechanically?

QMA uses a push-pull snap-lock coupling. SMA uses a threaded hex-nut mechanism. QMA connects and disconnects faster but requires axial alignment, while SMA tolerates minor angular offset due to threaded engagement.

Partner with Chuangyu for Precision RF Connectivity Solutions,

Chuaprecision-regulateded precision RF components for nearly two decades, with an annual capacity exceeding 500,000 RF parts from our Xi'an production facility. As a trusted QMA male to SMA female adapter supplier, we serve OEM, ODM, and system integrator clients across telecommunications, aerospace, medical, and new energy sectors. Our adapters meet rigorous quality standards with full traceability. Contact our engineering team at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request specifications, samples, or volume pricing.
