2.4 Female to SMA Male vs Other RF Adapters: Which Wins?

The coaxial adapter 2.4 female to SMA male has been found to be the most competent cross-series option for engineers needing to connect millimeter-wave instruments and microwave subsystems with interface mismatches. This adapter provides VSWR ≤1.35 from DC to 50 GHz, and connects precise 2.4mm ports on vector network analyzers to older equipment with SMA connectors, without compromising signal integrity. It offers improved high-frequency headroom and mechanical endurance compared to typical SMA-to-SMA, N-type, or RP-SMA options and is the ideal choice for 5G testing, semiconductor characterization, and radar system integration.

Understanding the 2.4 Female to SMA Male Adapter: Features and Specifications

Cross-Series Design and Material Engineering

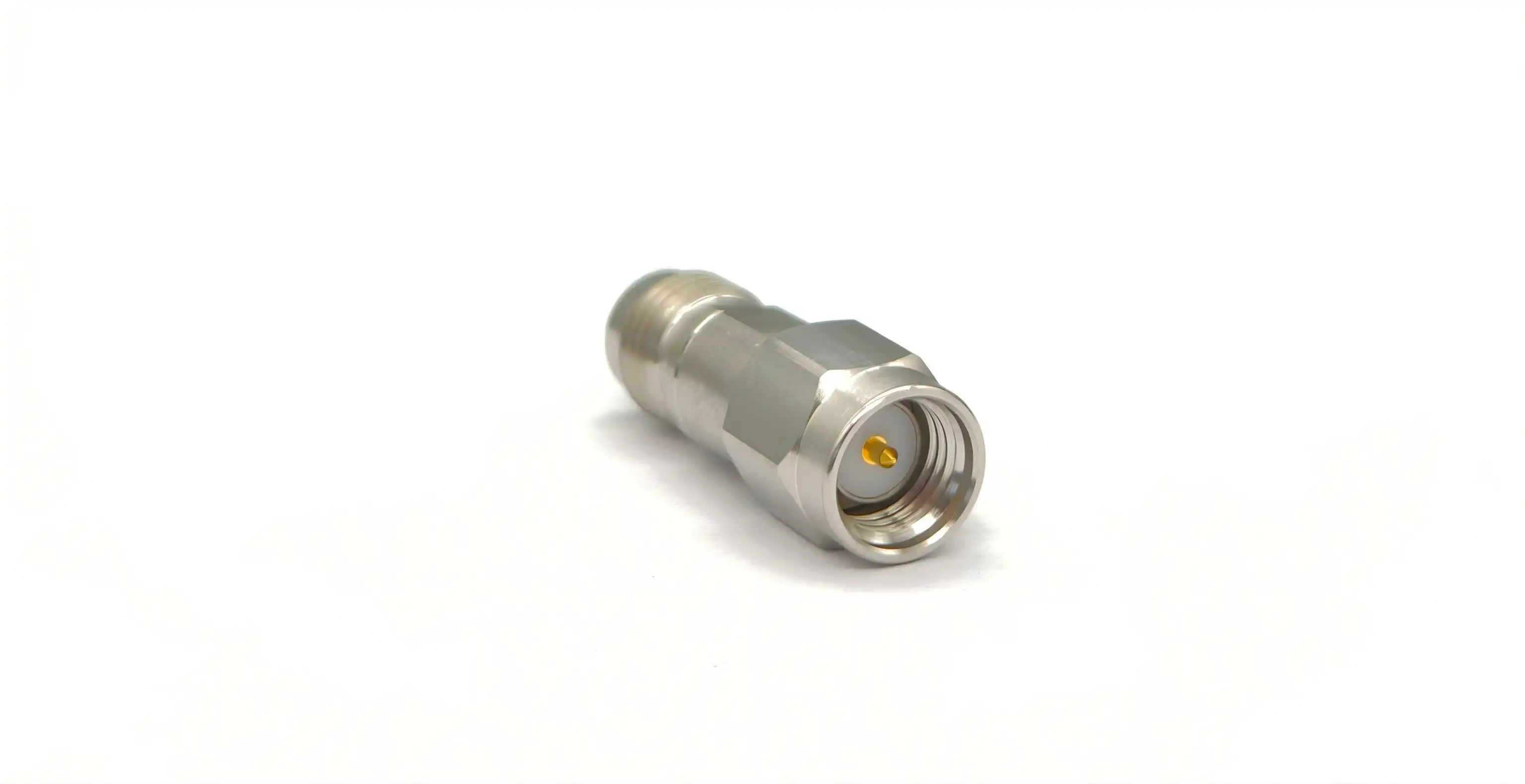

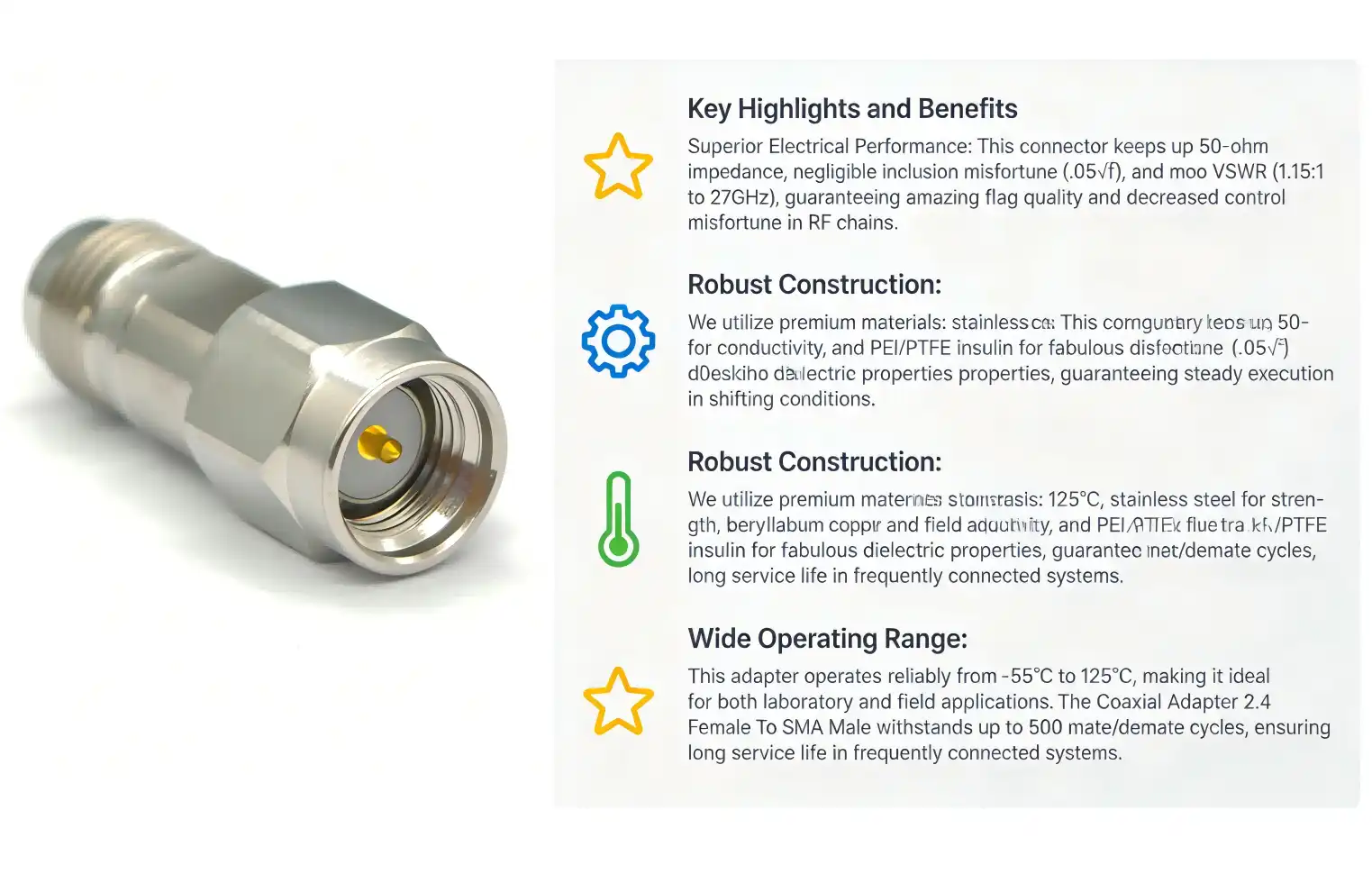

The coaxial adapter 2.4 female to SMA male is a cross-series adaptation. At one end is a 2.4mm female connection with an internal pin receptacle, and at the other is an SMA male connector with an exposed center pin. This setup guarantees a stable interface conversion and signal relay from 2.4mm receiving ports to SMA transmitting terminals. Electrical performance is directly controlled by material choices. The exterior conductor is made of stainless steel, passivated to provide corrosion resistance and high mechanical strength. The inner conductor is gold-plated beryllium copper, which provides little contact resistance and allows low-loss transmission even at millimeter-wave frequencies. The insulating medium is PTFE (polytetrafluoroethylene). This dielectric substance has a low dissipation factor to provide constant 50Ω impedance matching across the whole working range.

High-Frequency Performance and Mechanical Reliability

The adapter covers DC to 50 GHz, so it will work with devices on the millimeter-wave and microwave frequency bands. VSWR remains <1.35 across the whole range of operation, and the insertion loss is clearly low. These are crucial metrics for calibrating sensitive instrumentation such as spectrum analyzers or network analyzers. The mechanical dependability is just as strict. The suggested torque for the connection is 0.5–0.8 Nm at both the 2.4 mm end and the SMA end. The ≥500 mating cycles plug/unplug life cycle rating is designed for rigorous repetition rates characteristic of high-frequency test benches. These requirements are consistent with MIL-STD-348 standards for connector interface, providing compatibility among multinational test environments.

Comparing 2.4 Female to SMA Male with Other Popular RF Adapters

Not all RF adapters are created equal. Understanding the differences minimizes expensive misapplication. Below is a straight comparison of the most common kinds of adapters in use, including the coaxial adapter 2.4 female to SMA male for specific RF connection requirements.

• Reverse Polarity SMA Female to 2.4mm Male: This is the reverse polarity of the SMA Female to 2.4mm Male. It is suitable for cases where the test instrument has a 2.4mm male port, and the item under test has a female SMA. The other one is. There isn't any universal interchangeability. You need one or the other depending on what the port is. ( Connector gender to port gender) .
• N-Type Adapters: N-type connections are designed for greater power levels and are physically bigger, making them perfect for base station feeder cables or outdoor RF equipment. Their frequency ceiling (often 18 GHz for precision grades) is much below the 50 GHz capacity of the 2.4mm-to-SMA interface; hence, N-type adapters are not good for mm-wave operations.
• RP-SMA Adapters: Reverse-polarity SMA adapters were developed for consumer wireless devices to comply with FCC rules on antenna modification. The reverse pin-out rules them out for use with conventional SMA or 2.4mm lab instruments, and so they are cast into the consumer Wi-Fi and WLAN devices.
• Weatherproof RF Adapters: Weatherproof adapters with an IP67 or higher grade provide additional protection against the elements when used outside. The cost premium is 20–40 % above ordinary grades, with a minimal extra insertion loss from sealing materials, suitable for field installations but unneeded in protected laboratory conditions.

Precision quality 2.4mm-to-SMA adapters from major manufacturers like Rosenberger, Huber+Suhner, and Chuangyu. Chuangyu’s solution meets international dimensional requirements and offers a reasonable per-unit price at volume. It’s a great fit for OEM manufacturing lines that need consistent quality at scale.

How to Choose the Right RF Adapter for Your Application

An incorrect choice of adaptor may waste engineering time and even distort measurement data. The decision framework has three axes: frequency range, environment, and life cycle cost. The frequency range is the immovable ground zero. For test systems over 26.5 GHz (the limit of normal SMA), you will need a 2.4 mm interface adaptor.

The coaxial adapter 2.4 female to SMA male provides usable bandwidth to 50 GHz, supporting all sub-6 GHz and mmWave 5G NR bands per 3GPP Release 17. If you only need to use microwave frequencies below 18 GHz, then an N-type or regular SMA-to-SMA adapter is all you need and is less expensive. Material and sealing needs depend on the environmental conditions. Passivated stainless steel and gold-plated beryllium copper provide accurate tolerances in indoor laboratory situations where sealed housings are not required.

For outdoor or high humidity applications, weatherproof versions should be specified, with a little performance penalty. Purchase price. Calculation of lifecycle cost must include mating cycles. For example, if the application requires 6 months of daily reconnections, then a $45 adapter certified for 500 cycles will beat a $20 option rated for 200 cycles. Always ask for and review the manufacturer’s technical datasheet before committing to big purchases.

Bulk Procurement and Supply Chain Considerations

Procurement managers procuring 2.4mm to SMA adapters at scale have unique issues in lead time, quality consistency, and specification compliance. A good distributor or manufacturer can demonstrate the depth of their stock and have a documented quality control system such as ISO 9001 certification, which will lessen the chances of your manufacturing line being stopped due to inferior components.

Custom adapter designs are available to OEM integrators whose equipment has non-standard port geometries or needs unique cable stubs. Working with a manufacturer with in-house RF design capabilities, such as Chuangyu, custom cross-series adapters may be designed to match dimensional and electrical specifications not accessible off-the-shelf.

Generally, volume price agreements result in substantial savings at 100 or more units. Asking for a first item inspection report and sample batch testing against stated VSWR and insertion loss criteria can safeguard the procurement team from receiving non-conforming inventory. Provide comprehensive traceability data to material certifications for the beryllium copper and stainless steel utilized in adapter fabrication.

Troubleshooting and Maintaining Your 2.4 Female to SMA Male Adapter

Pre-Use Inspection

Before each connection, visually examine the outer conductor for distortion. Also ensure that the gold plating on the center pin and pin receptacle is free of oxidation and pitting. Any physical damage to the 2.4 mm female pin hole or the SMA male pin of the coaxial adapter 2.4 female to SMA male should be replaced immediately. Damaged interfaces transmit measurement inaccuracy and risk destroying costly instrument ports.

Installation and Cleaning Protocols

Use a calibrated torque wrench at both the 2.4mm end and the SMA end set to 0.5-0.8 Nm. The main reasons for premature mechanical failure are oblique insertion or over-torquing. After use, interfaces should be cleaned with a specific RF cleaning brush moistened with Isopropyl alcohol to remove oxides and particle pollution. Store the adapter in a sealed and dry environment, at a temperature between -10℃ and 40℃ and relative humidity ≤60% RH.

Diagnosing Signal Anomalies

A rapid increase in standing wave ratio or an unanticipated spike in insertion loss indicates either a loose connection or internal conductor deterioration. Disconnect immediately, re-torque to specification, and re-measure. If the abnormality continues, retire the adapter. Continuing to use a deteriorating component affects all measurements downstream of the component and risks damage to the ports of your instruments, which will cost orders of magnitude more than the adapter itself.

Conclusion

The coaxial adapter 2.4 female to SMA male wins this comparison since no other comparable adapter type combines a 50 GHz operational ceiling, VSWR ≤1.35, and ≥500-cycle mechanical durability in a small cross-series structure. N-type adapters are rated for more power but only to 18 GHz. RP-SMA adapters are for consumer wireless only. Standard SMA-to-SMA adapters are good to 26.5 GHz. If measurement precision is a must, then the 2.4mm-to-SMA interface is the definitive solution for engineers working in 5G NR, radar, and semiconductor RF characterisation.

FAQ

Is the 2.4 female to SMA male adapter suitable for 5G testing?

Yes. The adapter operates from DC to 50 GHz, covering all 5G NR frequency ranges defined by 3GPP, including sub-6 GHz and mmWave bands up to 52.6 GHz (FR2-2). Its VSWR ≤1.35 ensures minimal reflections during over-the-air and conducted 5G base station tests.

How do I confirm compatibility with my existing equipment?

Check the connector type and gender on both the instrument port and the device under test. Match the 2.4mm female end to any 2.4mm male port and the SMA male end to any SMA female port. Consult the manufacturer's datasheet to verify impedance (50Ω) and frequency range alignment before installation.

Are waterproof versions of this adapter available?

Sealed variants with environmental protection ratings exist for outdoor or high-humidity deployments. They carry a cost premium relative to standard laboratory-grade models and may introduce marginal additional insertion loss. For shielded indoor test environments, standard precision-grade adapters are the more cost-effective choice.

What torque should I apply during installation?

Both the 2.4mm end and the SMA end require 0.5–0.8 Nm of connection torque. Always use a calibrated torque wrench; hand-tightening alone cannot guarantee consistent mechanical contact, which directly affects measurement repeatability.
