Is a short stroke high current probe plug in type Right for You?

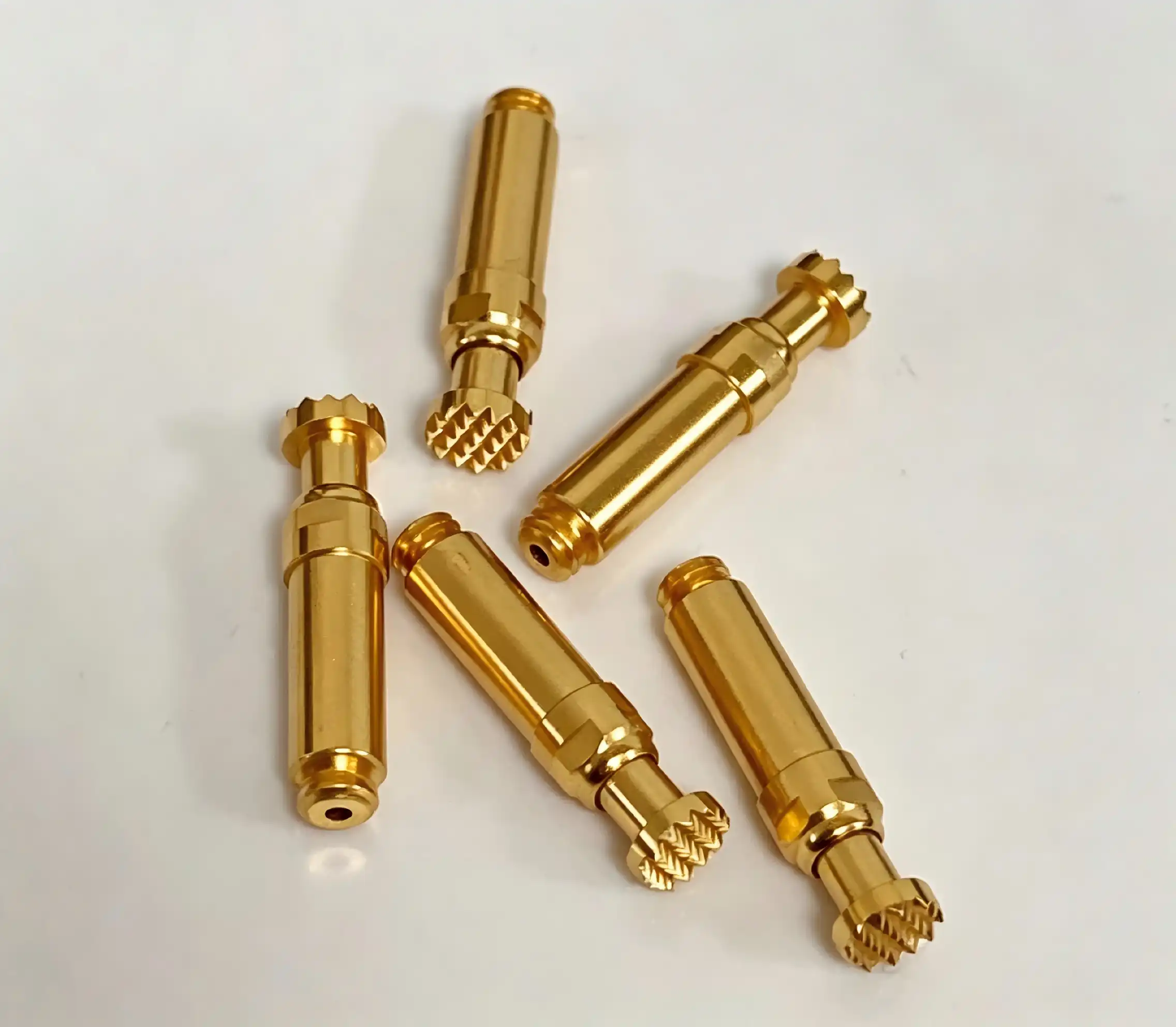

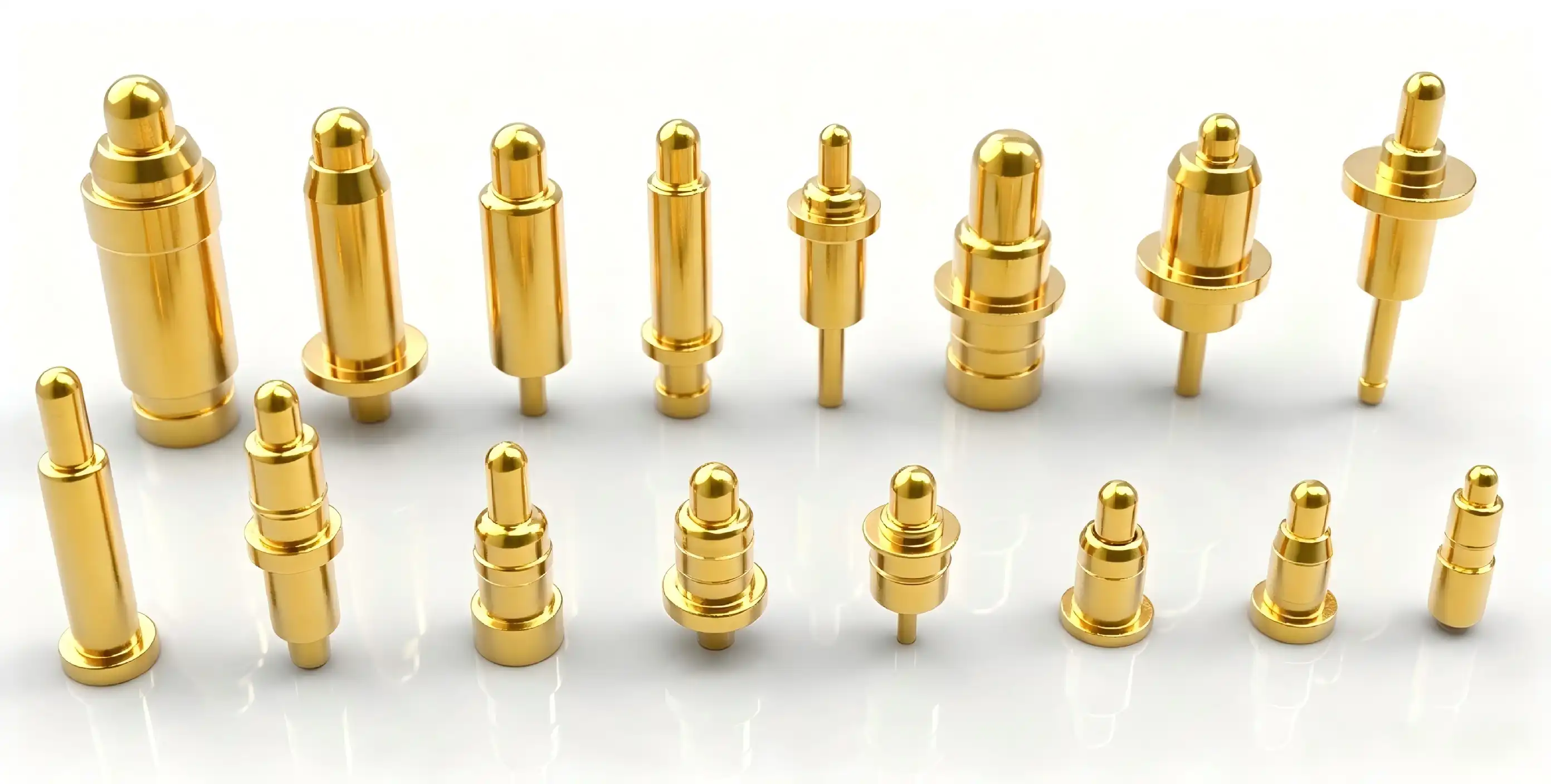

Choosing the right high-current testing probe can make or break your production quality control and R&D validation processes. A short-stroke, high-current probe plug-in type delivers exceptional accuracy and rapid installation benefits, making it ideal for power electronics testing, semiconductor device characterization, and industrial equipment inspection. These compact probes feature reduced stroke lengths—typically under 5mm—combined with plug-in connectivity that simplifies integration into automated test fixtures. Their design prioritizes low contact resistance, superior heat dissipation, and repeatable measurement precision, particularly when evaluating power devices like IGBTs and MOSFETs under demanding current loads. Whether you're testing charging pile circuitry, motor control systems, or frequency converters, understanding how these specialized short-stroke, high-current probe plug-in type probes compare to clamp-on or soldered alternatives will guide your procurement decision toward tools that truly match your operational requirements and budget constraints.

Comparing Short Stroke High Current Probes with Other Types

Short Stroke versus Long Stroke Configurations

Stroke length directly influences mechanical reliability and space efficiency. Long stroke probes accommodate greater test point height variation—useful when probing uneven PCB surfaces or components with significant z-axis tolerance ranges. However, this extended travel introduces additional spring compression cycles and contact instability at the extremes of motion. Short stroke alternatives sacrifice vertical tolerance accommodation in exchange for improved contact pressure consistency, reduced bounce effects, and enhanced durability. For power electronics testing where devices mount flush to heatsinks or rigid bus bars, the minimal height variation makes short-stroke designs the superior choice.

Plug-In versus Clamp and Soldered Types

Installation methodology creates cascading impacts on workflow efficiency and measurement accuracy. Clamp-on current probes offer unmatched convenience for field troubleshooting since they require no circuit interruption, simply encircling the conductor under test. Yet their Hall-effect or Rogowski coil sensing mechanisms introduce bandwidth limitations and phase shift errors that compromise high-frequency switching characterization—critical when validating modern wide-bandgap semiconductors operating above 100kHz, while short stroke high current probe plug in type probes provide another option for specialized testing needs.

Soldered probe connections provide exceptional signal integrity and permanent installation benefits for dedicated production test stations. The trade-off appears during maintenance cycles or fixture reconfiguration projects, where desoldering and reattachment consume significant technician labor hours. Plug-in configurations split the difference, delivering near-soldered signal quality through high-pressure gold-to-gold contact interfaces while maintaining the flexibility to swap probes within seconds for different current ratings or replacement following wear.

Cost-Performance Analysis

Procurement budgets must account for total ownership costs beyond initial unit prices. Clamp-on probes command premium pricing—often $800-$2,400 per unit for quality models—but eliminate fixture integration expenses. Soldered probes cost $45-$180 each, yet require skilled labor for installation and replacement. Plug-in high current probes typically price between $120-$350 per unit, combining moderate acquisition cost with minimal ongoing labor requirements. When amortized across 50,000+ test cycles, plug-in designs frequently deliver the lowest cost-per-test metric, particularly in high-volume manufacturing environments.

Application Scenarios and Use Cases

Power Device Testing in Semiconductor Production

Validating power semiconductor performance represents the primary application domain for these specialized probes. During IGBT production testing, manufacturers must verify maximum collector current ratings, saturation voltage characteristics, and switching transition behavior under actual load conditions. A short-stroke high-current probe plug-in type directly contacts the collector terminal while injecting currents ranging from 50A to 600A, measuring voltage drop across the device junction to calculate on-state resistance.

MOSFET characterization similarly requires drain-source current injection while monitoring gate threshold voltages and channel resistance. The probe's low contact resistance—typically under 5 milliohms—ensures measurement accuracy isn't compromised by probe-induced voltage drops. Gold-plated contact surfaces maintain stable resistance across temperature swings from -40°C to +125°C, matching the thermal cycling demands of semiconductor burn-in chambers.

Industrial Equipment Inspection and Quality Control

Production lines manufacturing frequency converters, solar inverters, and EV charging stations incorporate high-current test probes into end-of-line validation sequences. Charging pile testing exemplifies demanding requirements: DC fast chargers must deliver 150-350 kilowatts through cables rated for 500+ amperes. Quality verification involves energizing the output stage while monitoring voltage regulation, ripple current, and protection circuit response times.

Here are the core advantages these probes deliver in such applications:

• Rapid test cycle completion: Plug-in mounting reduces fixture changeover time from 8 minutes (soldered alternatives) to under 45 seconds, directly improving production throughput when testing multiple power rating variants.
• Consistent contact pressure: Spring-loaded mechanisms maintain 1.8-2.2N engagement force across 100,000+ insertions, preventing false-pass results caused by intermittent connections that plague manual clamp-on testing.
• Thermal stability: Gold-copper material stacks exhibit thermal coefficient variations of 0.02% per degree Celsius, ensuring measurement accuracy remains within ±0.5% even as probe temperatures rise to 85°C during sustained current injection.

These advantages directly address production bottlenecks in high-volume manufacturing, where even minor efficiency gains translate to significant annual cost savings. The automotive electronics sector particularly benefits from such performance consistency when validating motor controller assemblies that demand sub-microsecond timing accuracy.

Motor and E-Mobility System Validation

The new energy vehicles need extensive testing of traction motor controllers, battery management systems, and high-voltage distribution topologies. The engineers replicate real-world operating circumstances by infusing stator winding currents of over 400A while monitoring insulation failure thresholds, activation of thermal runaway protection, and the efficacy of regenerative braking energy recovery. Short stroke probes are designed to work inside the limited area available in motor terminal boxes when standard long stroke or clamp-on instruments cannot physically fit between consecutive phase connections at a distance of 15- 20 mm apart.

Maintenance and Calibration Best Practices

Systematic maintenance practices are required to extend the service life of the probe and preserve measurement integrity. Arcing produces hot pluggings, which build up oxidation layers and carbon deposits on contact surfaces. Monthly cleaning with isopropyl alcohol and lint-free wipes restores the surface conductivity. Storage conditions should be maintained at 60% relative humidity to minimise corrosion of exposed copper parts. The probes are stored in foam-lined boxes to reduce bending stress on the connecting wires.

Verify calibration quarterly using current shunts traceable to NIST for short-stroke high-current probe plug-in type. With the probe, measure the voltage drop and compare it to the reference standard at all working currents. If the difference is more than 1%, the contact is degraded, and the probe should be replaced. Check the integrity of the connecting wire carefully. Repeated stretching at the termination points causes fatigue fractures, which increase resistance. Inspect cable strain relief boots every 500 cycles; replace assemblies with cracking or conductor exposure before intermittent problems cause test results to become invalid.

Procurement Guide for Short Stroke High Current Probe Plug-In Type

Critical Technical Parameters for Specification

To define your testing needs, the first step is to quantify certain essential criteria. The first thing to think about is the current range—probes that are rated for 100A continuous operation cannot even stand short surges of 150A without threatening contact welding or spring annealing. So you want to match the probe’s continuous rating to 125% of your highest projected test current to guarantee thermal margins. Voltage rating is also important, with high-voltage systems (> 600 VDC) requiring reinforced insulation barriers and increased creepage intervals between conductors.

In terms of mechanical integration, it is possible if the connectors are compatible. PCB test fixture pogo pin receptacles are almost always the standard 2.54mm pitch. Some specialised high-current applications need unique socket designs. Make sure the mating cycle ratings are 3-5x your expected yearly test volume to allow for increased wear in automated systems. The specs for contact resistance should include beginning values (usually 3-8 milliohms), as well as the maximum deteriorated threshold before replacement is required.

Evaluating Supplier Reliability and Service

“Proven test equipment manufacturers such as Tektronix and Keysight Technologies provide complete probe portfolios supported by global service networks and extensive application engineering support. These high prices speak to decades of measurement science experience and strict quality control processes. Both Fluke and Yokogawa are known for metrological precision and long-term calibration stability, which is why both manufacturers are the chosen option for calibration labs and metrology institutions.

Competitive alternatives have evolved in the form of specialised connection makers such as Chuangyu, especially for those clients who want specific solutions that large brands can’t provide at an affordable price. These vendors are vertically integrated with their own connection machining, plating procedures, and assembly processes, which allows them to provide customised current ratings, contact geometries, and cable terminations for 40-60% of tier-one prices. When considering such partners, check for quality management certifications (ISO 9001, IATF 16949 for automotive applications), request sample validation units, and ensure they can support continuous supply for multi-year manufacturing commitments.

Strategic Ordering and Contract Terms

Bulk purchase provides major cost savings. Quantities beyond 500 units usually qualify for 15-25% savings, and multi-year supply agreements may provide extra tooling expense concessions for unique designs. Lead times vary widely by supplier and by the complexity of the specification. Catalogue items from the major brands will ship in 2 to 4 weeks, while custom-engineered probes may require 8 to 12 weeks for first articles. Build lead time buffers into project timelines, especially for new product launches, when test fixture creation is typically on the critical path.

The warranty conditions are well worth negotiating. Standard coverage is 12 months against flaws in production, but excludes damage from electrical overstress or mechanical misuse. Some providers offer longer service contracts that include probe replacement as well as frequent calibration verification, turning unexpected maintenance charges into a predictable yearly cost. Such an arrangement deserves attention for high-volume businesses when the unexpected downtime costs outweigh the price for guaranteed uptime.

Is a Short Stroke High Current Probe Plug-In Type Right for Your Needs?

When Short Stroke Plug-In Probes Excel

In many situations, these tools are clearly better. The fast insertion cycles and positional reproducibility are great benefits to automated test equipment applications. The small footprint allows probes to be placed closer together when test heads need to touch thousands of measurement points at the same time. This is important for current electronics, where the density of components rises each year. These probes are especially well suited for power electronics characterisation, since their high current capacity, thermal management, and low contact resistance provide a level of measurement precision that cannot be matched by clamp-on alternatives for verifying switching transients or performing thermal impedance testing.

High numbers of tests in production contexts provide an attractive return on investment. Fast cycling, low maintenance, and a long service life all work together to bring down cost-per-test metrics. In terms of a semiconductor fab testing thousands of devices a day, probe expenses amortise to less than $0.002 every test cycle. This is a trivial amount compared to the value of avoiding faulty units from reaching consumers.

When Alternative Probe Types Prove Superior

Some applications favour alternative architectures. Clamp-on current probes are used in field service troubleshooting because they do not require circuit de-energization or direct contact with potentially dangerous voltages. Although they are more expensive and have less bandwidth, they are essential for live system diagnostics, since they can detect conductor current without disrupting the functioning of the circuit.

For the purpose of power distribution, permanent monitoring installations will, of course, make use of soldered or bolted current shunts. Over fixed measurement sites over years and in situations where maximal signal integrity counts, the effort of permanent installation delivers long-term returns. Shunt-based techniques are very popular for laboratory-grade precision current measurements, with temperature-compensated devices achieving accuracy standards of 0.1%. This is a level of performance that cannot be consistently achieved by contact-based probes.

In cases of budget-constrained projects or low-volume testing circumstances, manual measuring approaches employing benchtop ammeters and mechanical switches may be used. It is labour expensive but you save the cost of the specialised probe completely. You have basically traded capital investment for technician time. This is a fair trade-off when your testing throughput requirements are not too high.

Conclusion

High-current test probes are dependent on matching the tool’s capabilities to your individual operating needs, expected test volume, and quality criteria. Short-stroke high-current probe plug-in type solutions provide demonstrable benefits in automated production settings, power semiconductor validation, and dense PCB testing situations where compact dimensions, fast cycling, and measurement accuracy come together as important success factors. Their plug-in design combines the signal integrity of soldered connections with the operational flexibility required for field applications. In procurement choices that include total cost of ownership, rather than just purchase pricing, these probes are often the most affordable solution for high-volume production testing. A careful assessment of technological capabilities, vendor dependability, and application performance requirements may help you identify testing alternatives that improve product quality without increasing your operating costs.

FAQ

1. What current ratings are available for short-stroke plug-in probes?

These probes typically span current ranges from 20A to 600 A for continuous operation, with short-duration surge capacity reaching 120% of rated values. Selecting appropriate ratings requires analyzing your maximum expected test current and applying a 25% overhead for thermal safety margins. Specialty designs accommodate even higher amperage requirements—Chuangyu offers custom solutions reaching 800A continuous for industrial motor testing applications.

2. How do I verify probe accuracy over time?

Quarterly calibration checks using NIST-traceable current shunts maintain measurement integrity. Pass test current through both the probe and reference shunt in series, comparing voltage readings. Deviations exceeding 1% from baseline measurements indicate contact degradation requiring probe service or replacement. Many quality suppliers provide calibration certificates documenting traceability to national standards.

3. Can these probes work with automated test equipment?

Absolutely—plug-in designs specifically target automated environments. Standard 2.54mm pitch configurations integrate directly with pneumatic actuators and robotic probe heads. The rapid insertion capability and positional repeatability make them ideal for high-throughput production lines. Verify that mating cycle ratings exceed your annual test volume projections by 3-5 times to ensure reliability.
